Model # 11080094 Official Kenmore automatic washer gearcase & superstructure

Here are the diagrams and repair parts for Official Kenmore 11080094 automatic washer gearcase & superstructure, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Shaft Seal 91939
#22

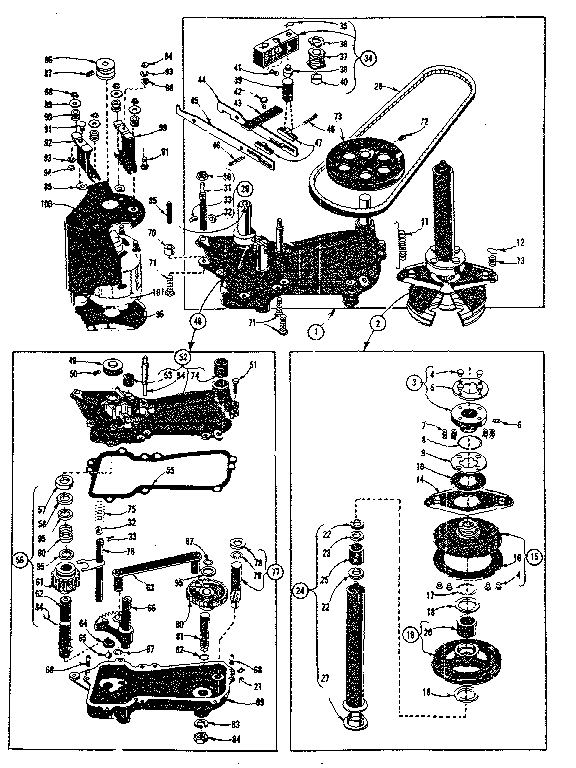

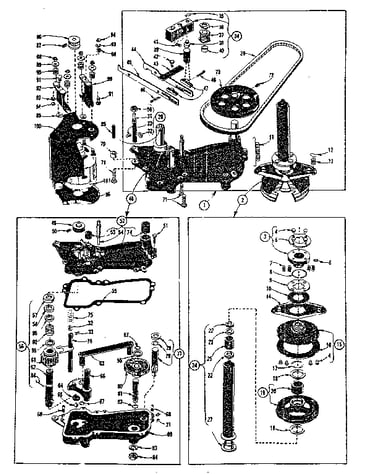

Gearcase and brake diagram

Shaft seal

Part #91939

Replaced by #WP91939

?
Manufacturer substitution
This part replaces 91939. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Ring 90368
#17

Gearcase and brake diagram

Ring

Part #90368

Replaced by #W11033823

?
Manufacturer substitution
This part replaces 90368. Substitute parts can look different from the original.
This item is not returnable
$8.53 |
10% OFF Phone Price : $9.53
In Stock
Bearing 16018
#64

Gearcase and brake diagram

Bearing

Part #16018

Replaced by #285205

?
Manufacturer substitution
This part replaces 16018. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Ball 9970
#65

Gearcase and brake diagram

Ball

Part #9970

Replaced by #285205

?
Manufacturer substitution
This part replaces 9970. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Clip 90044

#NI

All parts diagram

Clip

Part #90044

Replaced by #8528351

?
Manufacturer substitution
This part replaces 90044. Substitute parts can look different from the original.
$29.89
In Stock
V-belt 16192
#28

Gearcase and brake diagram

V-belt

Part #16192

Replaced by #WP95405

?
Manufacturer substitution
This part replaces 16192. Substitute parts can look different from the original.
This item is not returnable
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Super Case 80094
#1

Gearcase and brake diagram

Super case

Part #80094

The manufacturer no longer makes this part, and there's no substitute part

Core 10947
#38

Gearcase and brake diagram

Core

Part #10947

The manufacturer no longer makes this part, and there's no substitute part

Gr Sctr/shft 80101
#66

Gearcase and brake diagram

Gr sctr/shft

Part #80101

The manufacturer no longer makes this part, and there's no substitute part

Agt Shft Gr 91173
#61

Gearcase and brake diagram

Agt shft gr

Part #91173

The manufacturer no longer makes this part, and there's no substitute part
