Maytag
Dryer

Model # SDG5701AWQ Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag SDG5701AWQ washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

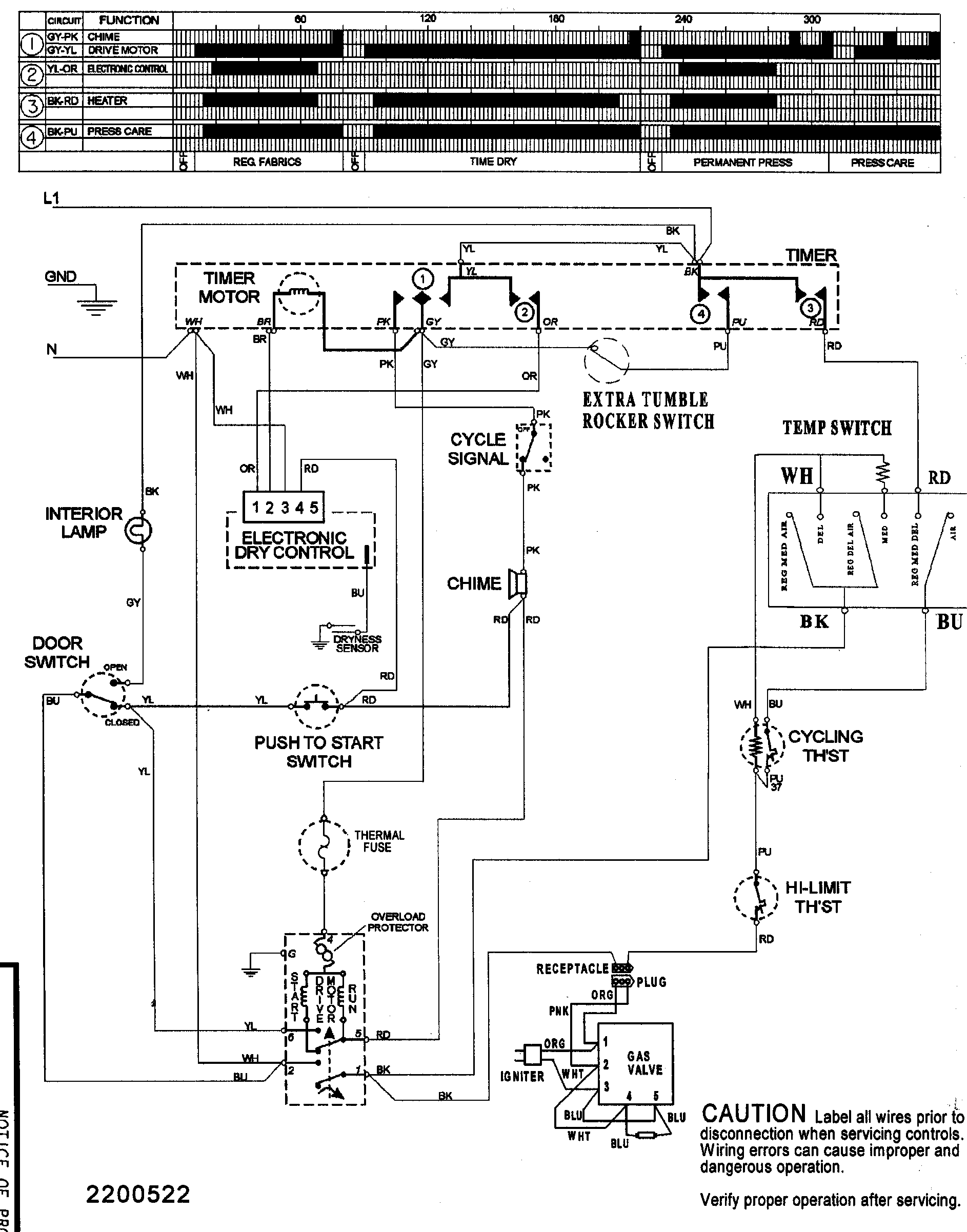

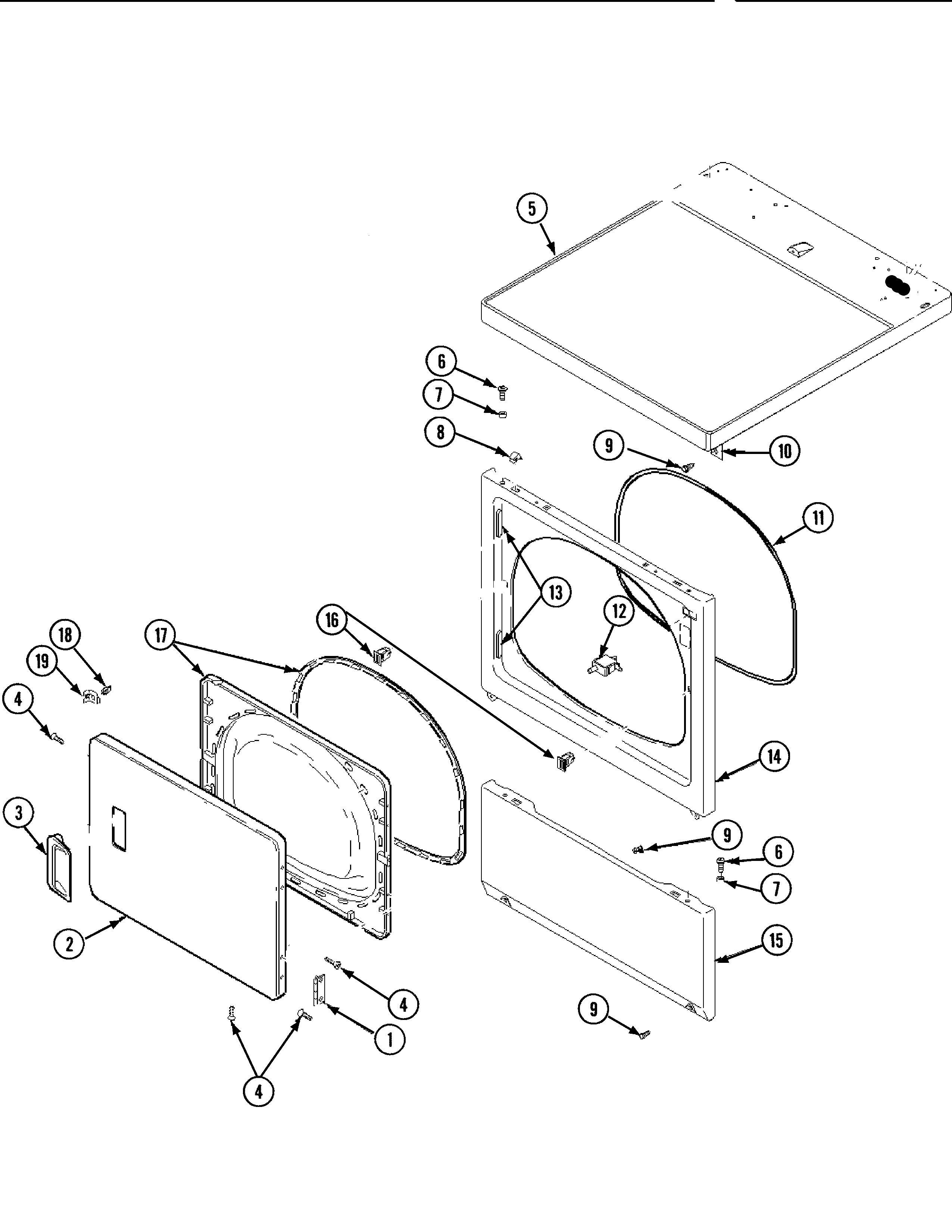

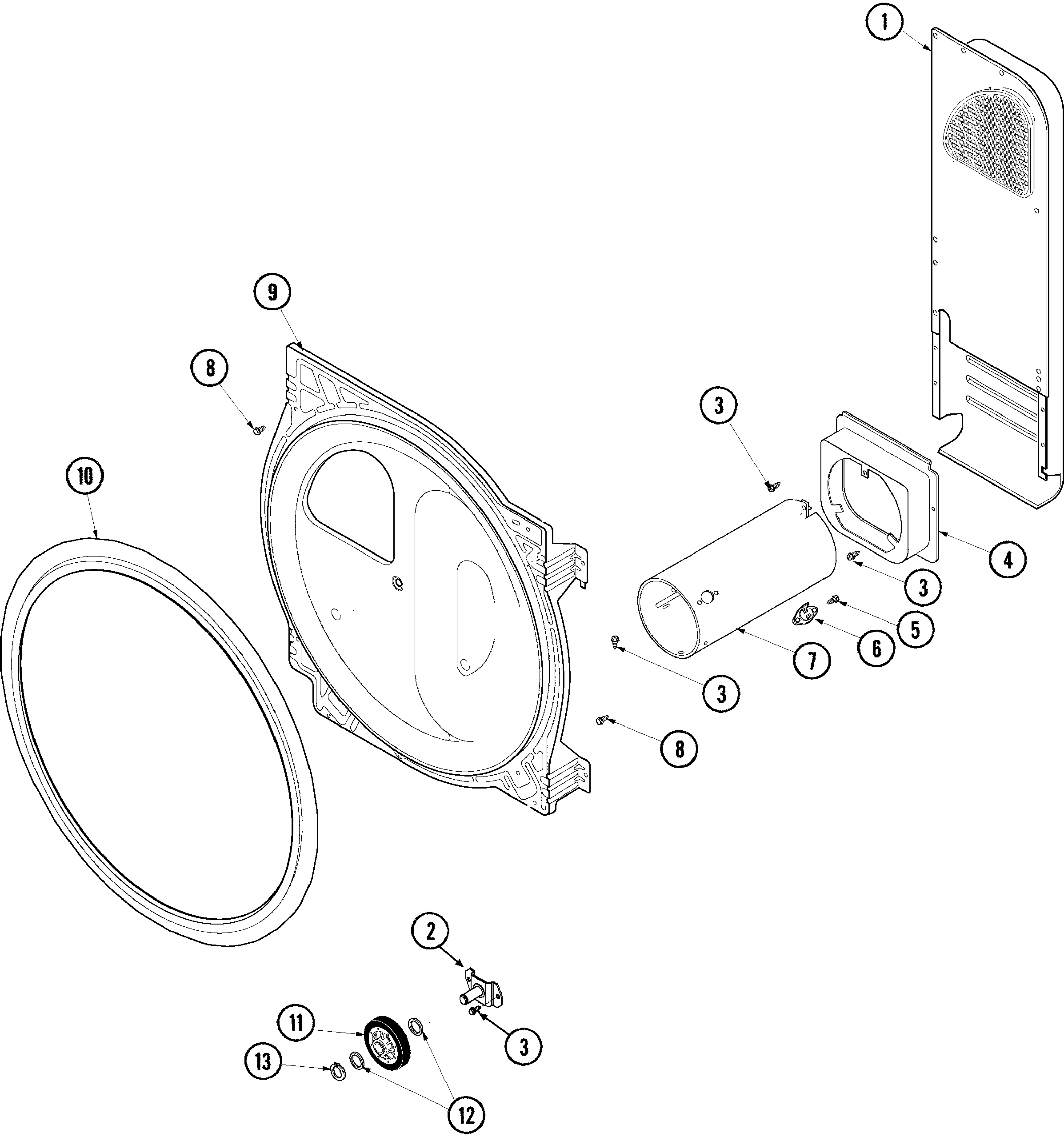

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Dryer Valve Coil Kit 12001349
#8A

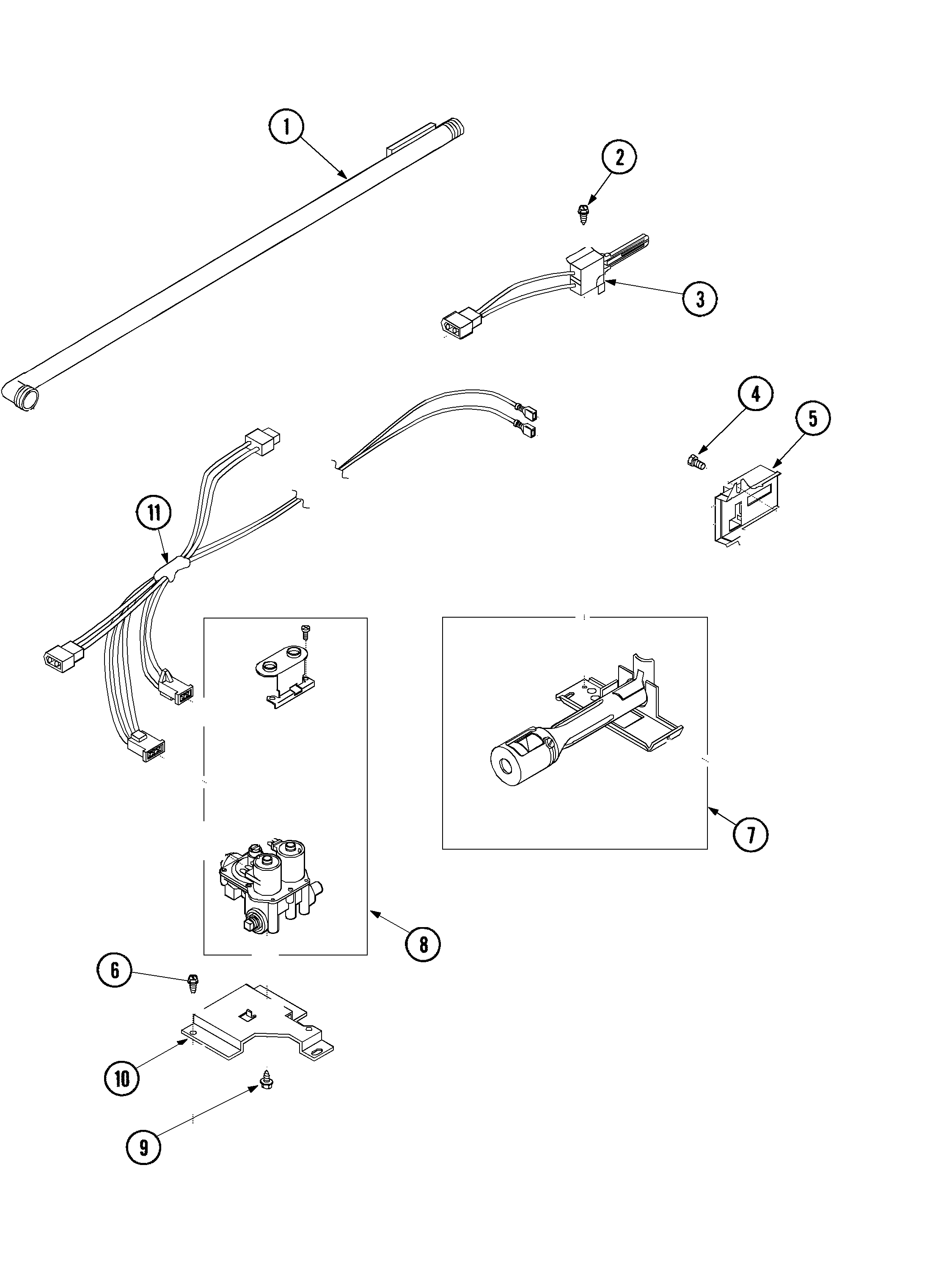

Gas valve & igniter diagram

Dryer valve coil kit

Part #12001349

Replaced by #279834

?
Manufacturer substitution
This part replaces 12001349. Substitute parts can look different from the original.
BEST SELLER
$29.18 |
17% OFF Phone Price : $35.18
In Stock
Thermostat 306910
#12

Motor, fan & belt diagram

Thermostat

Part #306910

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 306910. Substitute parts can look different from the original.
BEST SELLER
$18.96 |
10% OFF Phone Price : $20.96
In Stock
Flame Sensor 56231
#5

Gas valve & igniter diagram

Flame sensor

Part #56231

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 56231. Substitute parts can look different from the original.
BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Dryer Drum Belt 40111201
#1

Motor, fan & belt diagram

Dryer drum belt

Part #40111201

Replaced by #WP40111201

?
Manufacturer substitution
This part replaces 40111201. Substitute parts can look different from the original.
BEST SELLER
$15.11 |
12% OFF Phone Price : $17.11
In Stock
Clamp 58047
#2

Motor, fan & belt diagram

Clamp

Part #58047

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Cylinder Guide 40116501
#11

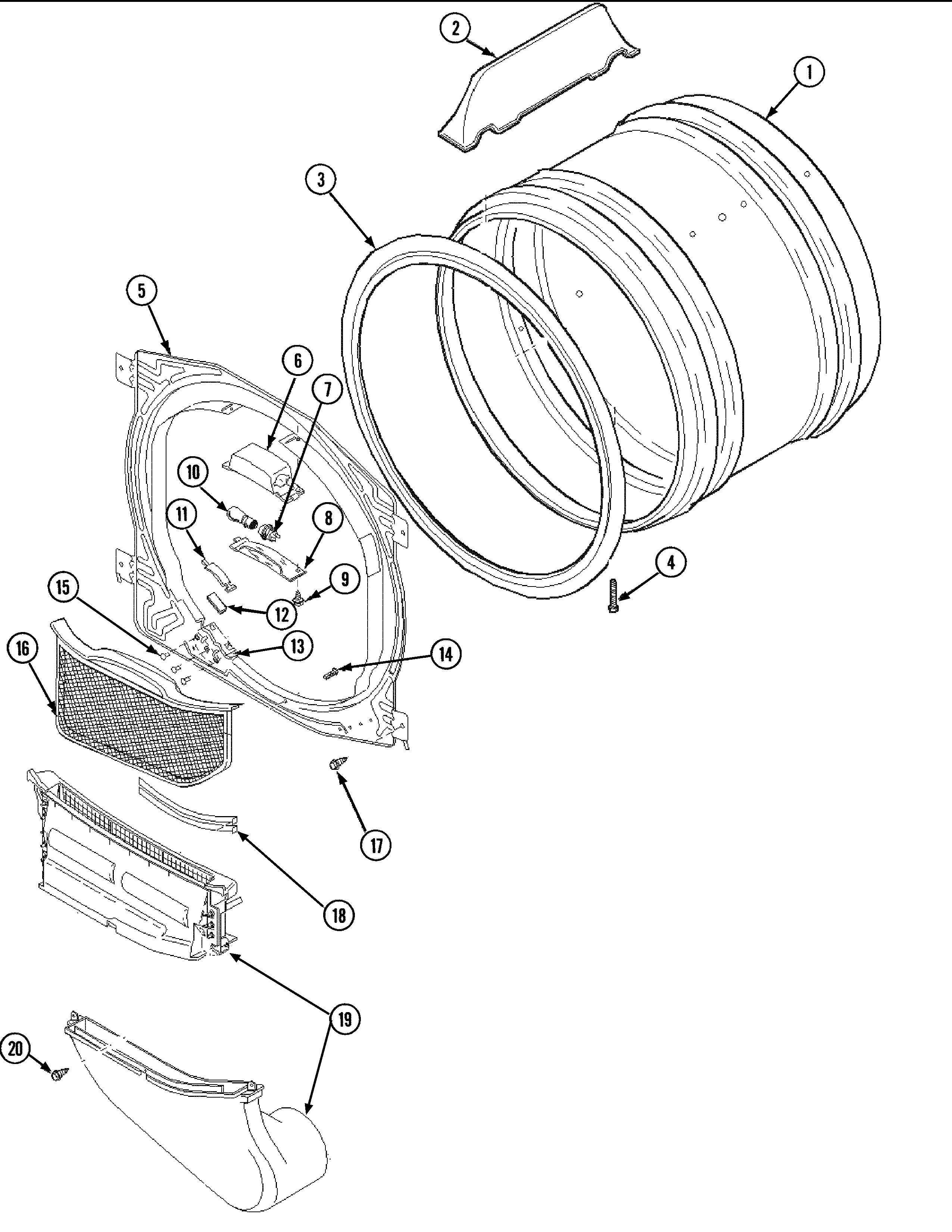

Front bulkhead, air duct & drum diagram

Cylinder guide

Part #40116501

Replaced by #WP37001298

?
Manufacturer substitution
This part replaces 40116501. Substitute parts can look different from the original.
BEST SELLER
$8.94 |
10% OFF Phone Price : $9.94
In Stock
Screw 503688
Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Laundry Appliance Washer 52549
Laundry appliance washer

Part #52549

Replaced by #WP233520

?
Manufacturer substitution
This part replaces 52549. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Drum Glide Bracket 37001036
#13

Front bulkhead, air duct & drum diagram

Dryer drum glide bracket

Part #37001036

Replaced by #WP37001036

?
Manufacturer substitution
This part replaces 37001036. Substitute parts can look different from the original.
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Screw 216423
#8A

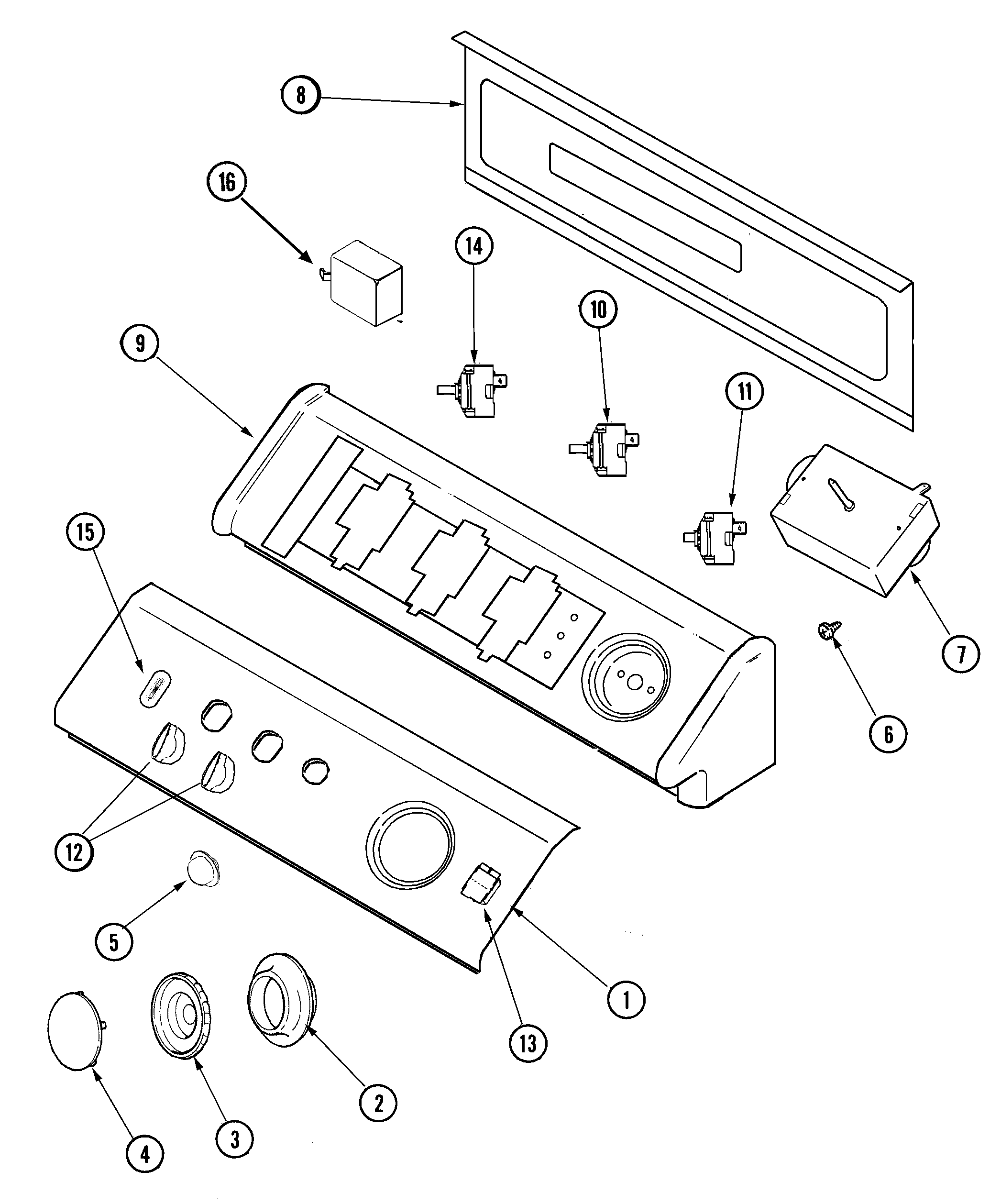

Control panel diagram

Screw

Part #216423

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 216423. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

View all

Why is my dryer making a rattling noise?

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Read more

Why won't my dryer heat?

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Read more

Why won't my dryer door stay shut?

Main causes: damaged door strike, worn door catch…

Read more

Why won't my dryer shut off?

Main causes: bad timer or electronic control board, door switch failure…

Read more

Why doesn't my dryer work?

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…

Read more

Why does my dryer start then stop?

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Read more

Why isn't my dryer getting my laundry dry?

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Read more

Why won't my dryer start?

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Read more
