Model # OH100 Official Amana oil-fired horizontal furnace - oh

Here are the diagrams and repair parts for Official Amana OH100 oil-fired horizontal furnace - oh, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Flue Collar 975-2201
#18

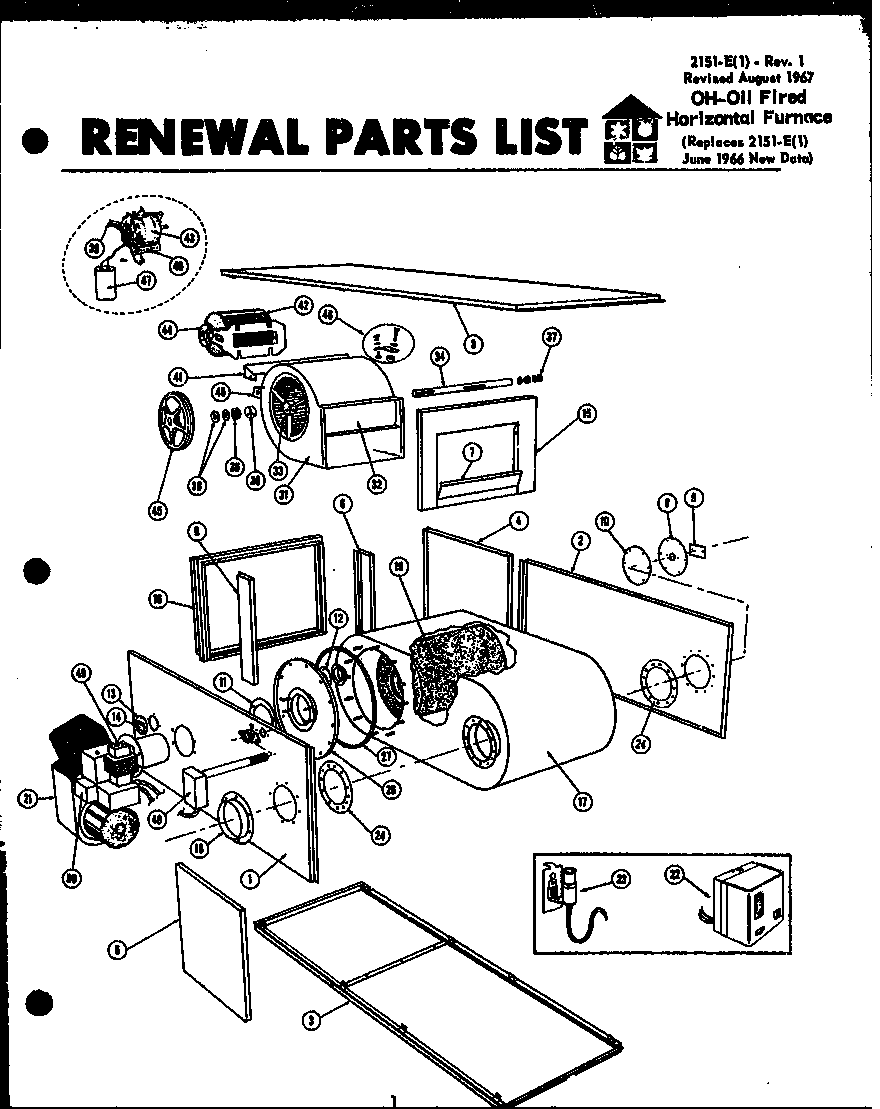

Replacement parts diagram

Flue collar

Part #975-2201

The manufacturer no longer makes this part, and there's no substitute part

Heating Exchanger Assembly 900-4002
#17A

Replacement parts diagram

Heating exchanger assembly

Part #900-4002

The manufacturer no longer makes this part, and there's no substitute part

Plastic Washer 20-5015
#38

Replacement parts diagram

Plastic washer

Part #20-5015

The manufacturer no longer makes this part, and there's no substitute part

Heat-cool Relay 22-9644
#50

Replacement parts diagram

Heat-cool relay

Part #22-9644

The manufacturer no longer makes this part, and there's no substitute part

Cad Cell H-c554-1018; Note 2 - Current Model Is Supplied 21-0831
#23

Replacement parts diagram

Cad cell h-c554-1018; note 2 - current model is supplied

Part #21-0831

The manufacturer no longer makes this part, and there's no substitute part

Corner Post 575-2080
#6A

Replacement parts diagram

Corner post

Part #575-2080

The manufacturer no longer makes this part, and there's no substitute part

Adjustable Tail Piece Assembly 980-0040
#46

Replacement parts diagram

Adjustable tail piece assembly

Part #980-0040

The manufacturer no longer makes this part, and there's no substitute part

Blower Panel - 10-10 577-4860
#15C

Replacement parts diagram

Blower panel - 10-10

Part #577-4860

The manufacturer no longer makes this part, and there's no substitute part

Motor Mounting Support 980-1210
#41A

Replacement parts diagram

Motor mounting support

Part #980-1210

The manufacturer no longer makes this part, and there's no substitute part

Furnace Blower Wheel 20-5034
#33B

Replacement parts diagram

Furnace blower wheel

Part #20-5034

The manufacturer no longer makes this part, and there's no substitute part
