Model # 315271370 Official Craftsman 2-speed reversible drywall gun

Here are the diagrams and repair parts for Official Craftsman 315271370 2-speed reversible drywall gun, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Top Plate 972751-000
#2

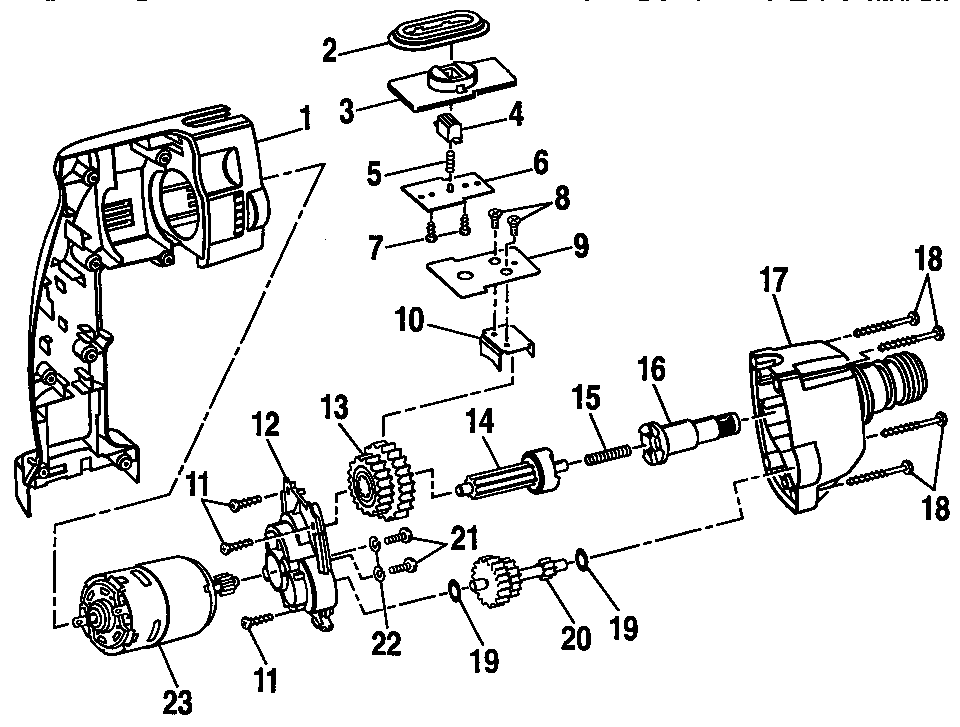

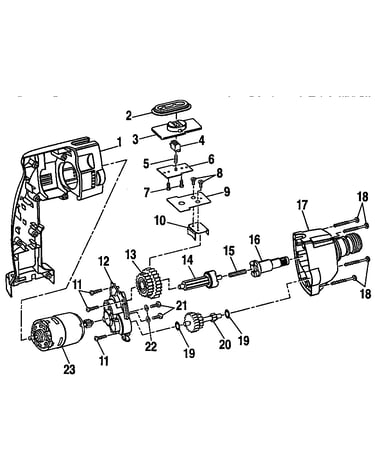

Motor assembly diagram

Top plate

Part #972751-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 972762-000
#18

Motor assembly diagram

Screw

Part #972762-000

The manufacturer no longer makes this part, and there's no substitute part

Hsg Sppt 972284-000
#1

Motor assembly diagram

Hsg sppt

Part #972284-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 972742-000
#11

Motor assembly diagram

Screw

Part #972742-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 972748-000
#7

Motor assembly diagram

Screw

Part #972748-000

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 970813-015
#18

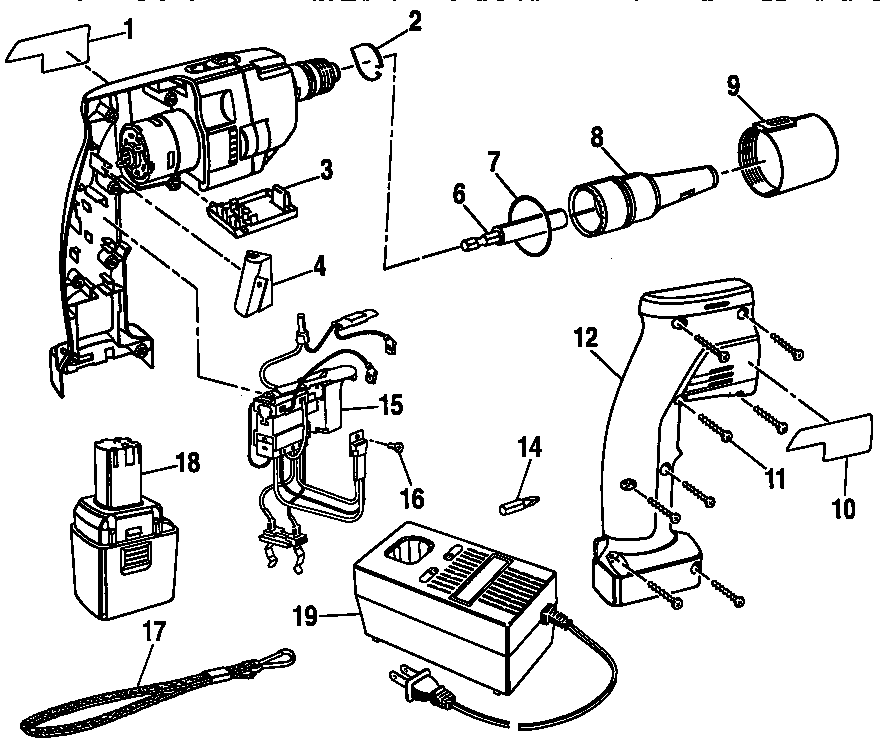

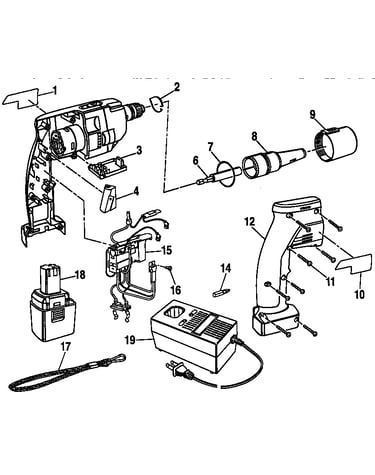

Housing assembly diagram

Battery pack

Part #970813-015

The manufacturer no longer makes this part, and there's no substitute part

Screw 972768-000
#21

Motor assembly diagram

Screw

Part #972768-000

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 972280-001
#10

Housing assembly diagram

Data plate

Part #972280-001

The manufacturer no longer makes this part, and there's no substitute part

Sp Clip 972673-000
#2

Housing assembly diagram

Sp clip

Part #972673-000

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 971294-000
#4

Housing assembly diagram

Heat sink

Part #971294-000

The manufacturer no longer makes this part, and there's no substitute part
