Model # 50GX042300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 50GX042300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

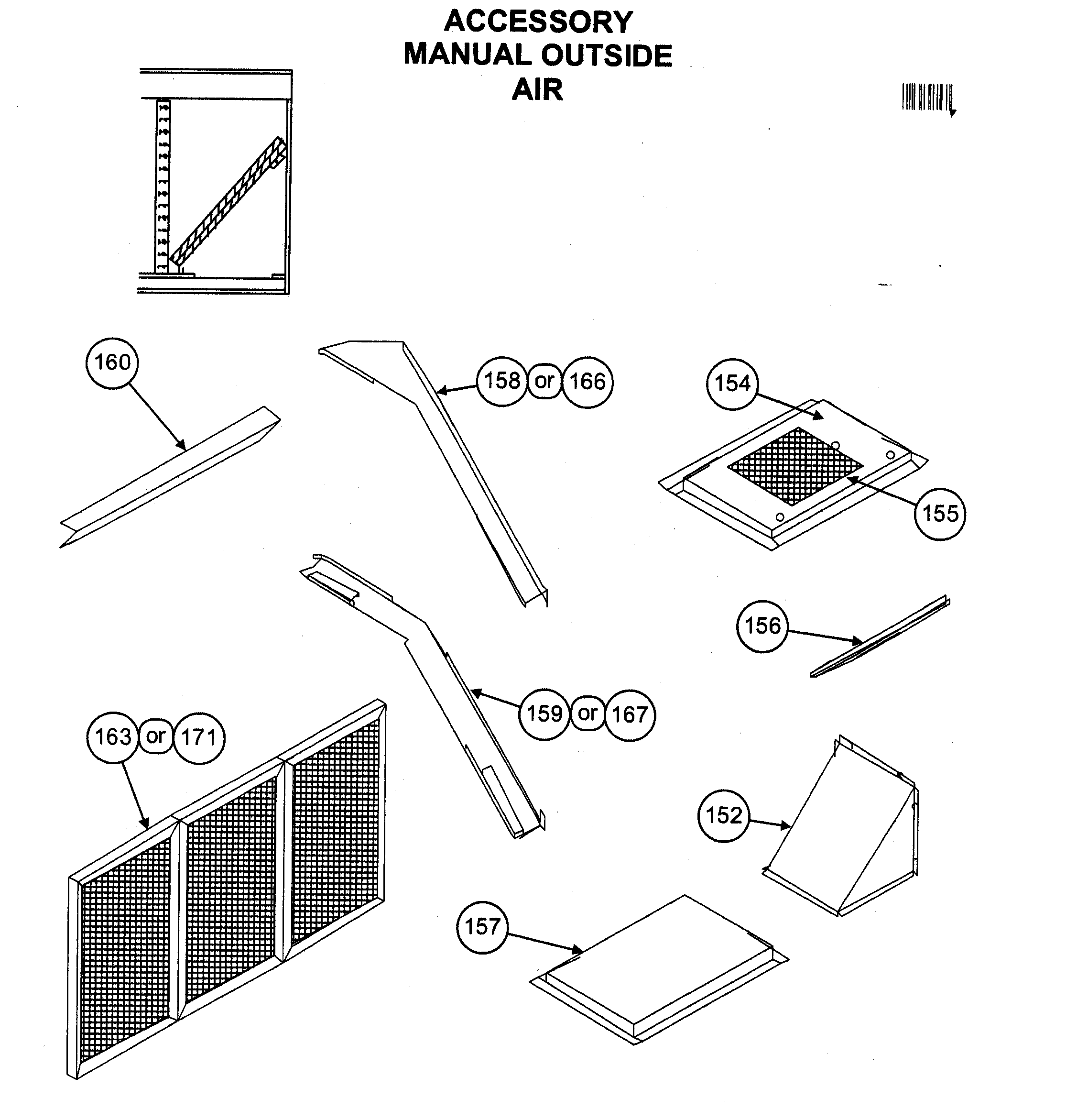

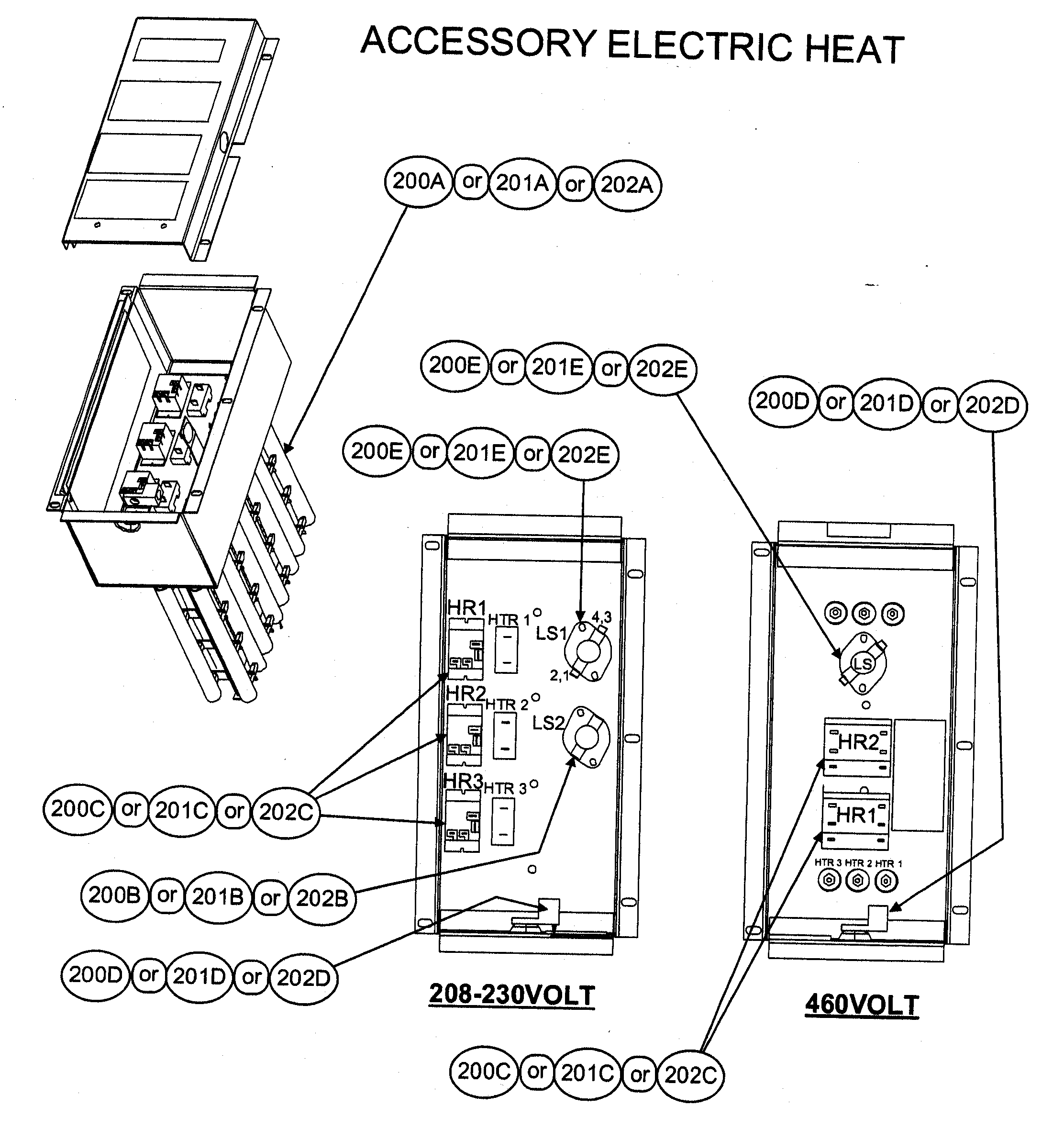

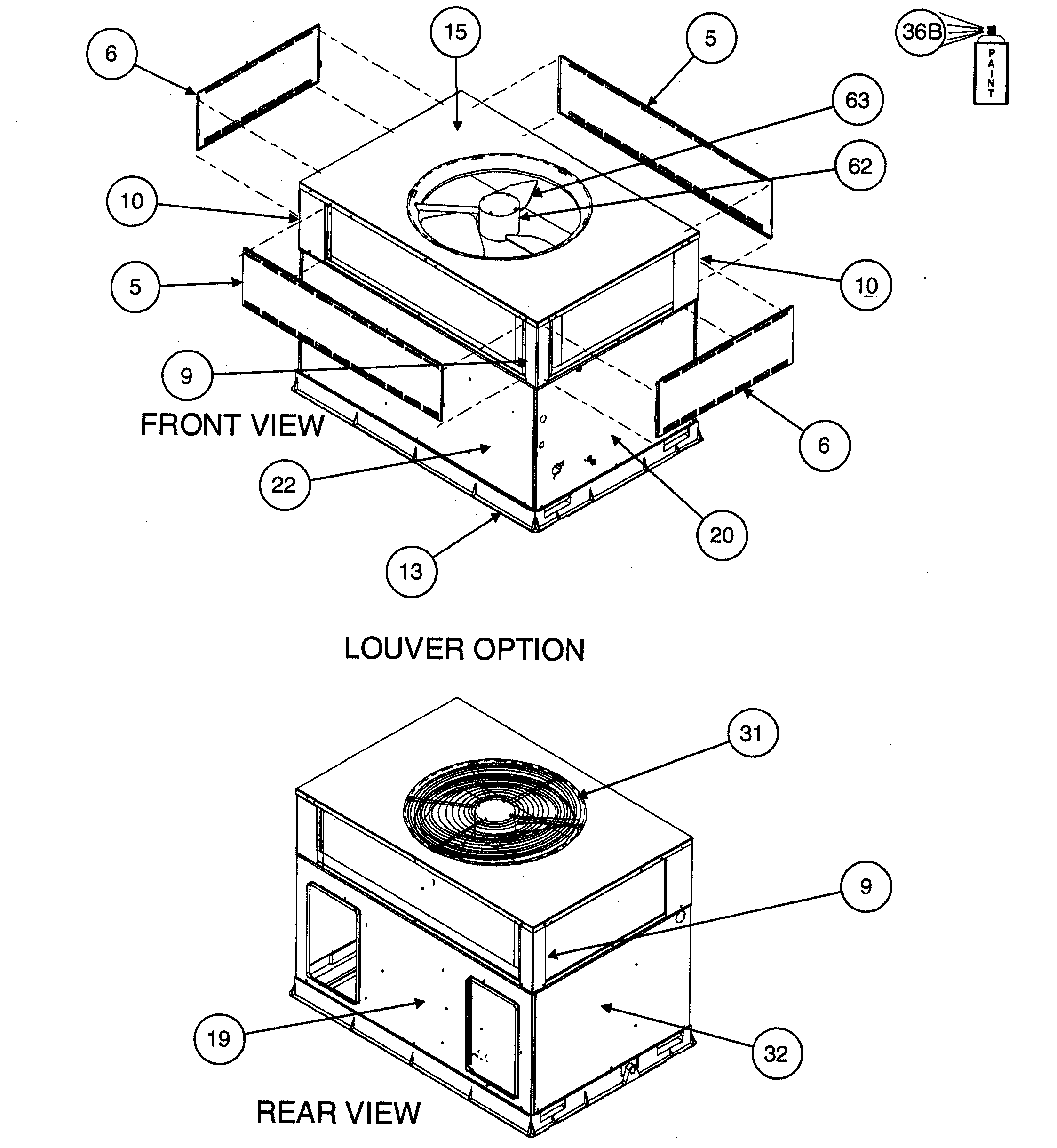

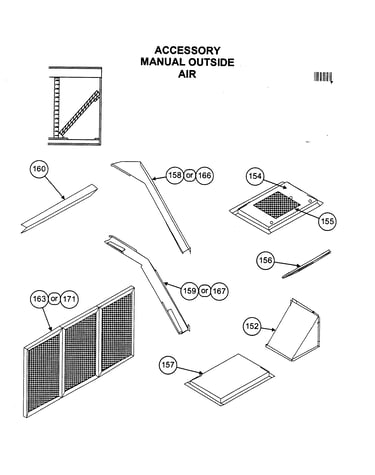

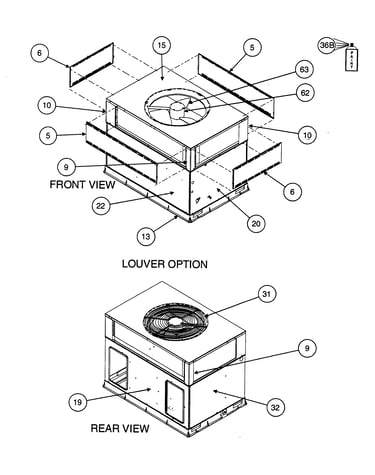

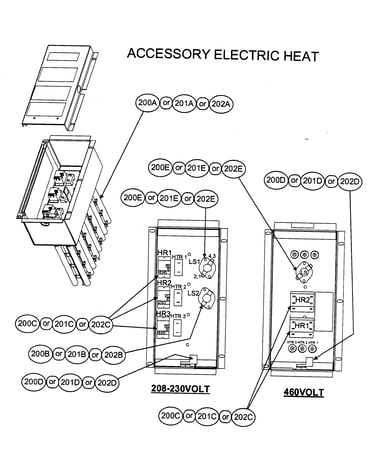

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 95 parts |

#45

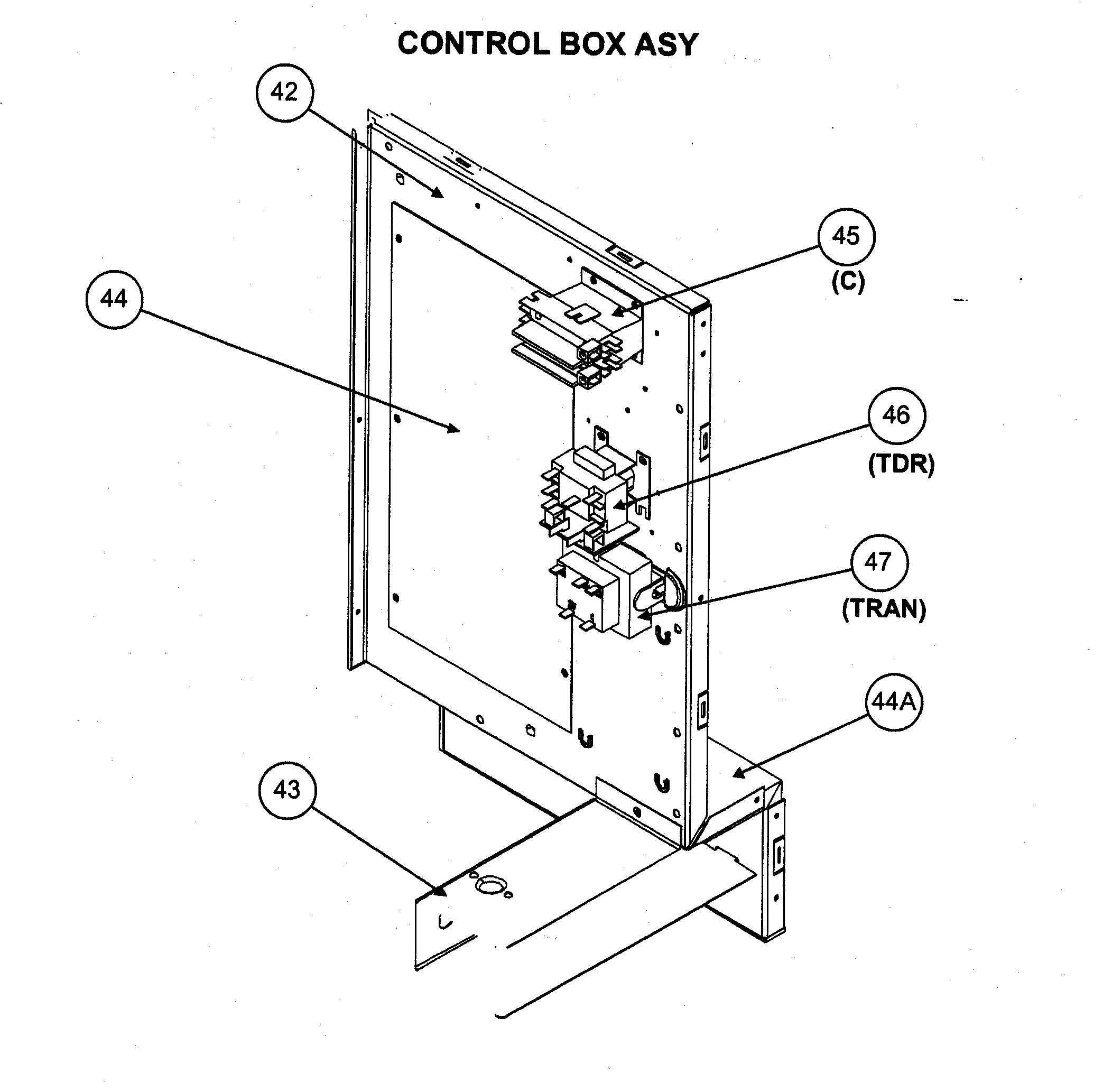

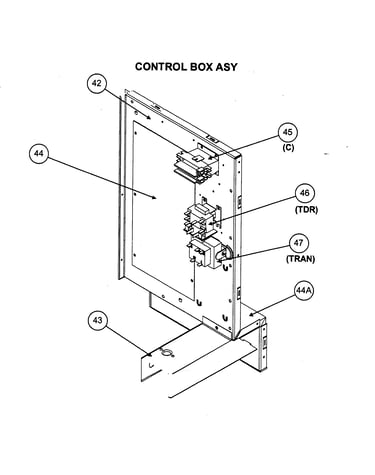

Control box diagram

Contactor

Part #HN51JD024

The manufacturer no longer makes this part, and there's no substitute part

#46

Control box diagram

Rely tim dly

Part #HN67KJ077

The manufacturer no longer makes this part, and there's no substitute part

Central air conditioner condenser fan motor

Part #HC35GE235

$509.50

In Stock

Qty

#14

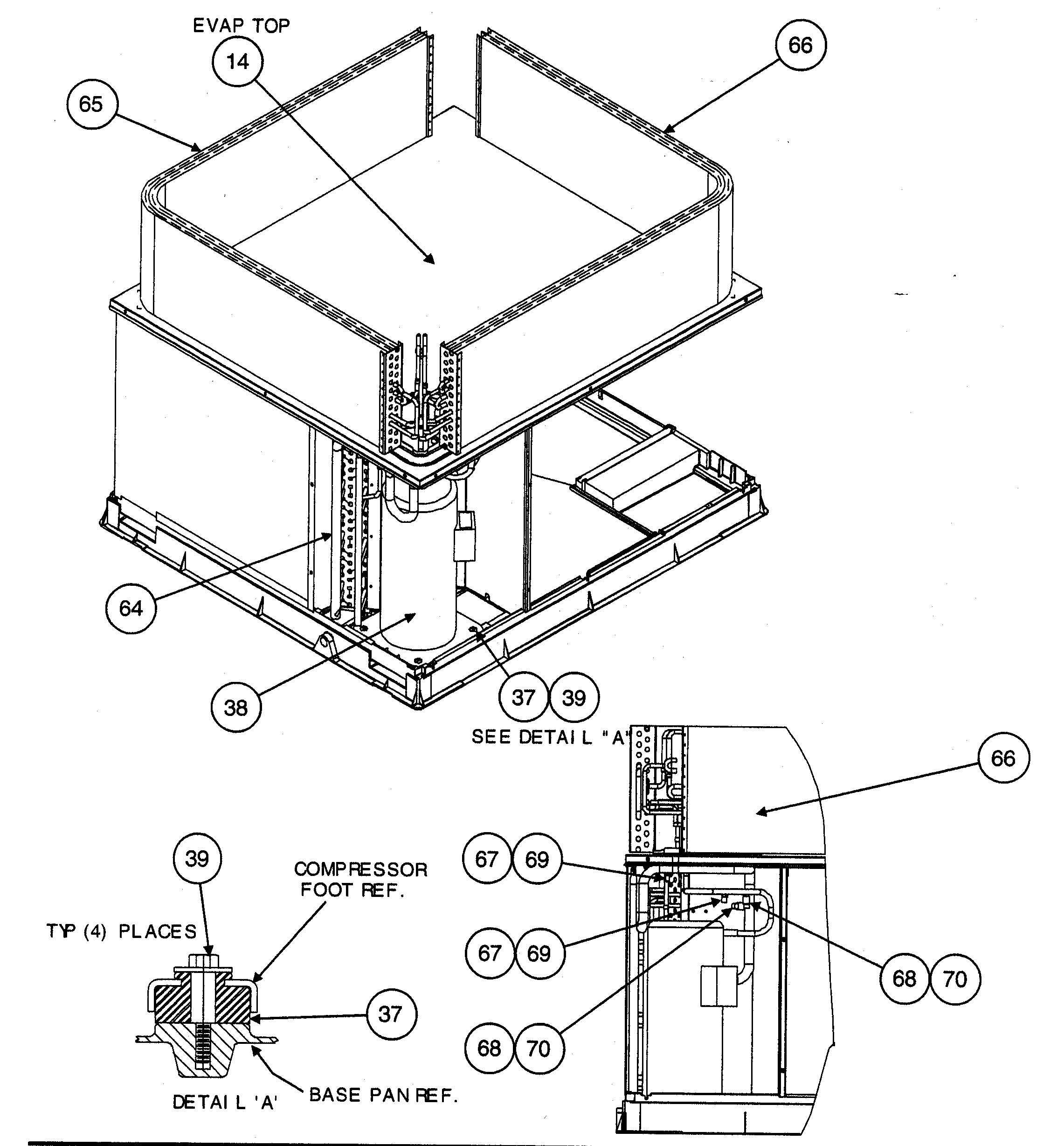

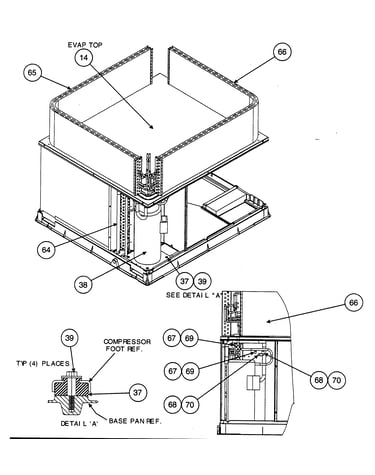

Evaporator diagram

Top, evap

Part #48GS400244

$427.15

In Stock

Qty

Support

Part #48GS500243

$47.16

In Stock

Qty

Central Air Conditioner Wire Harness 9962-0083

#110

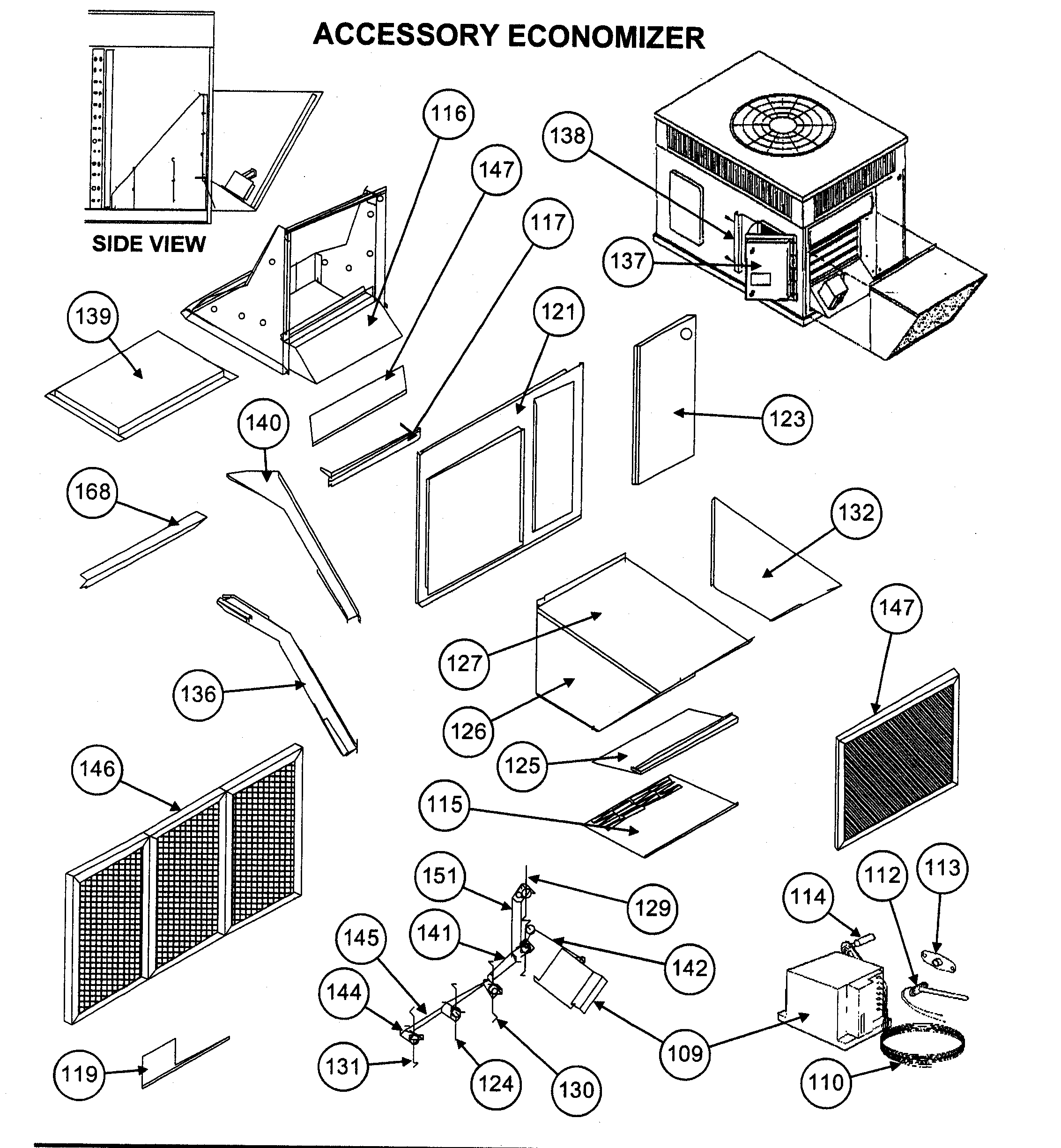

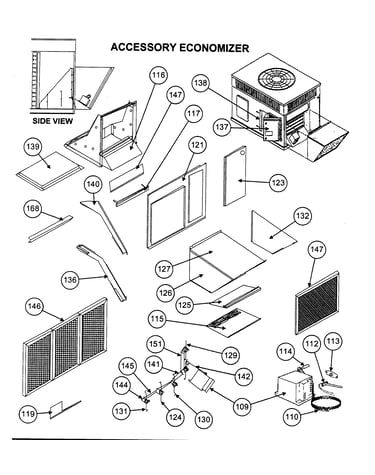

Accessory 1 diagram

Central air conditioner wire harness

Part #9962-0083

$357.73

In Stock

Qty

#31

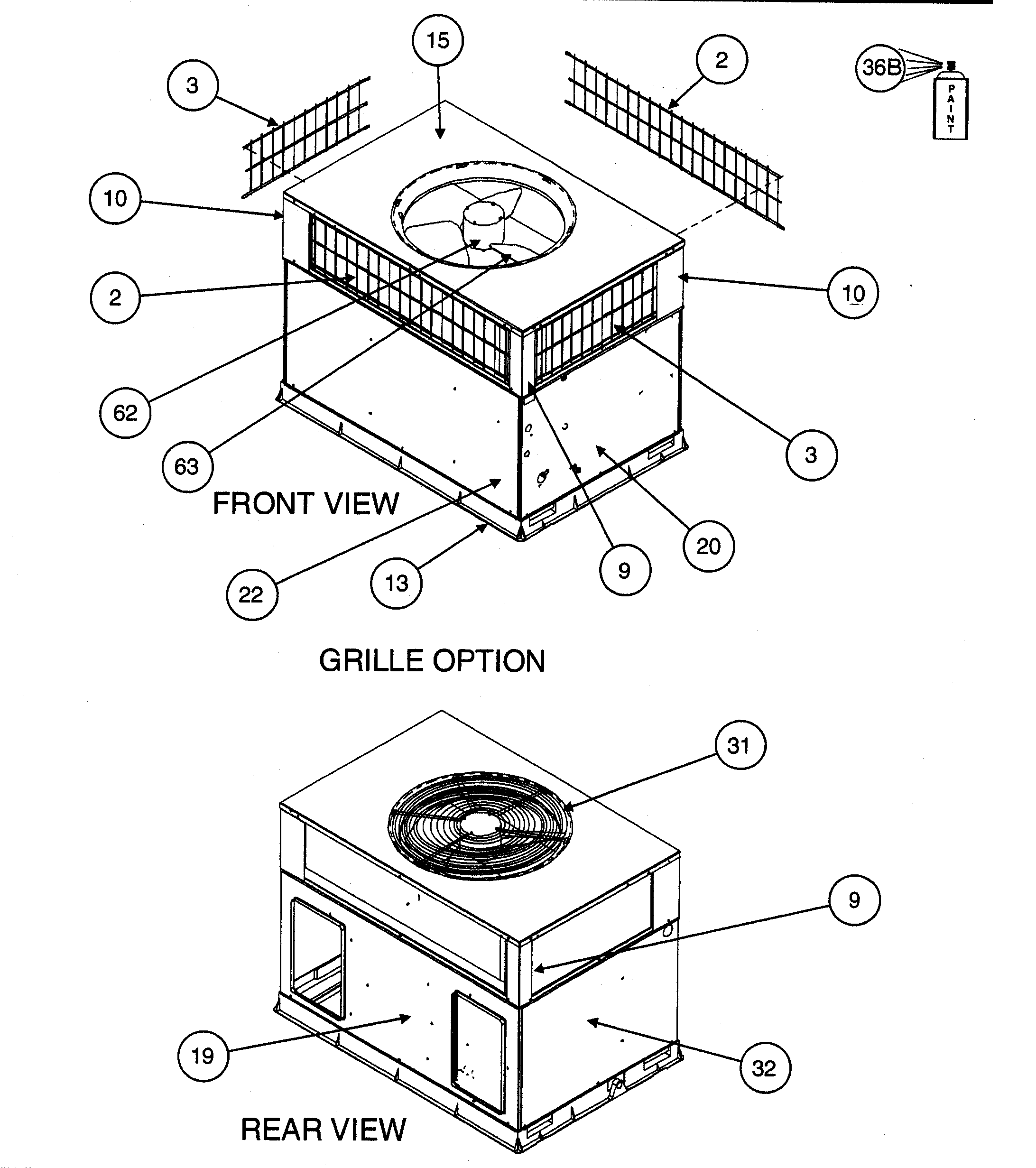

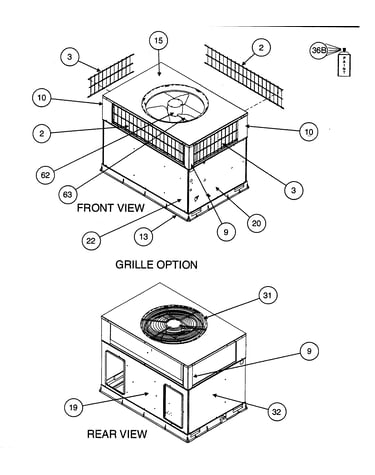

Grille option diagram

Grille

Part #50HJ501200

$163.72

In Stock

Qty

#59

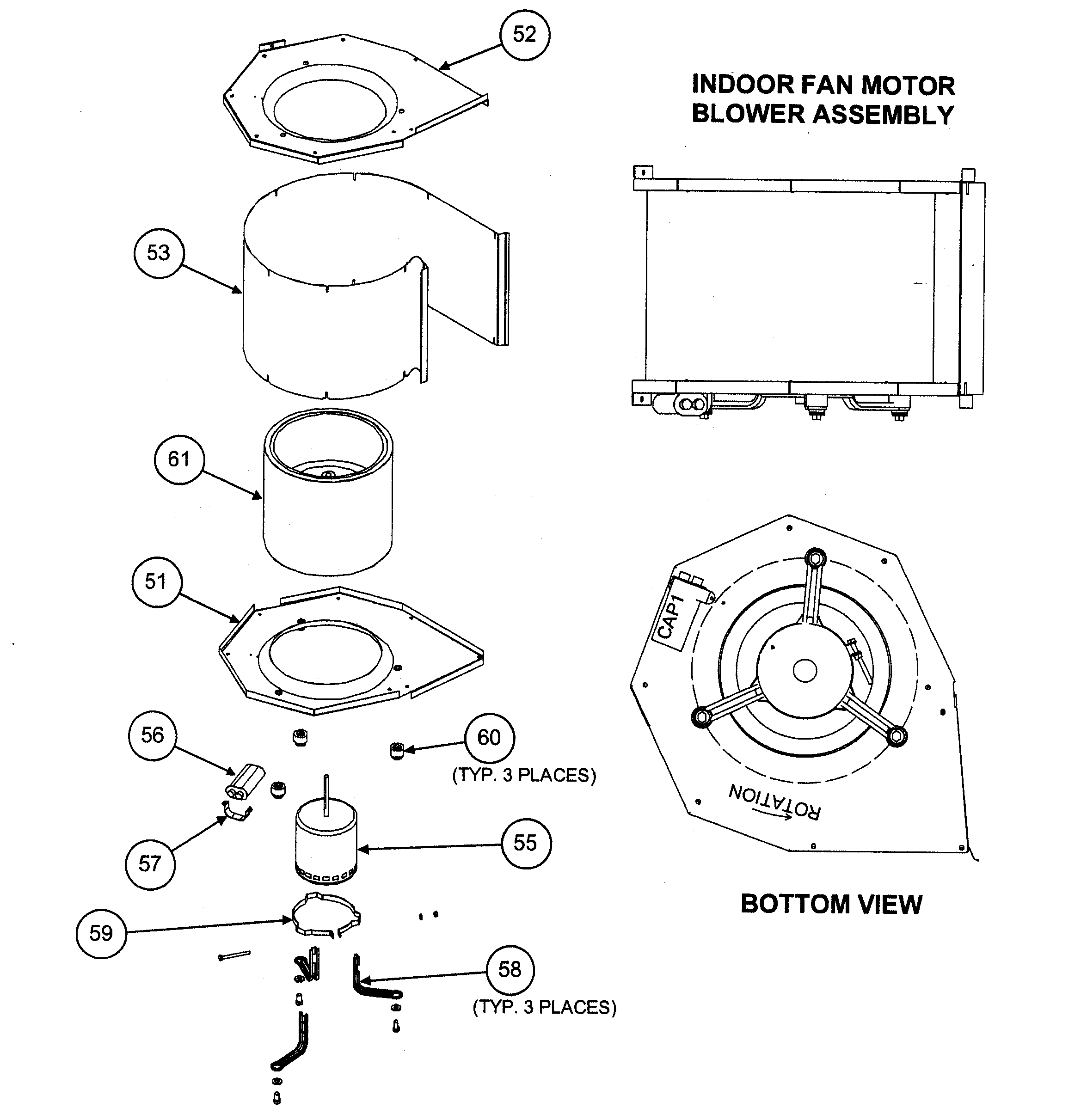

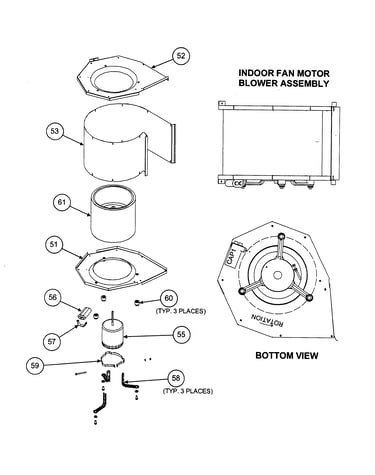

Blower asy diagram

Mtr mnt band

Part #P251-0078

$24.58

In Stock

Qty

#48

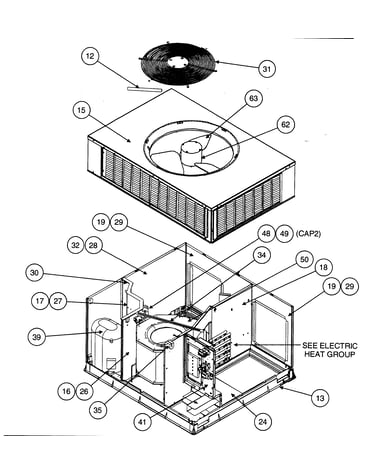

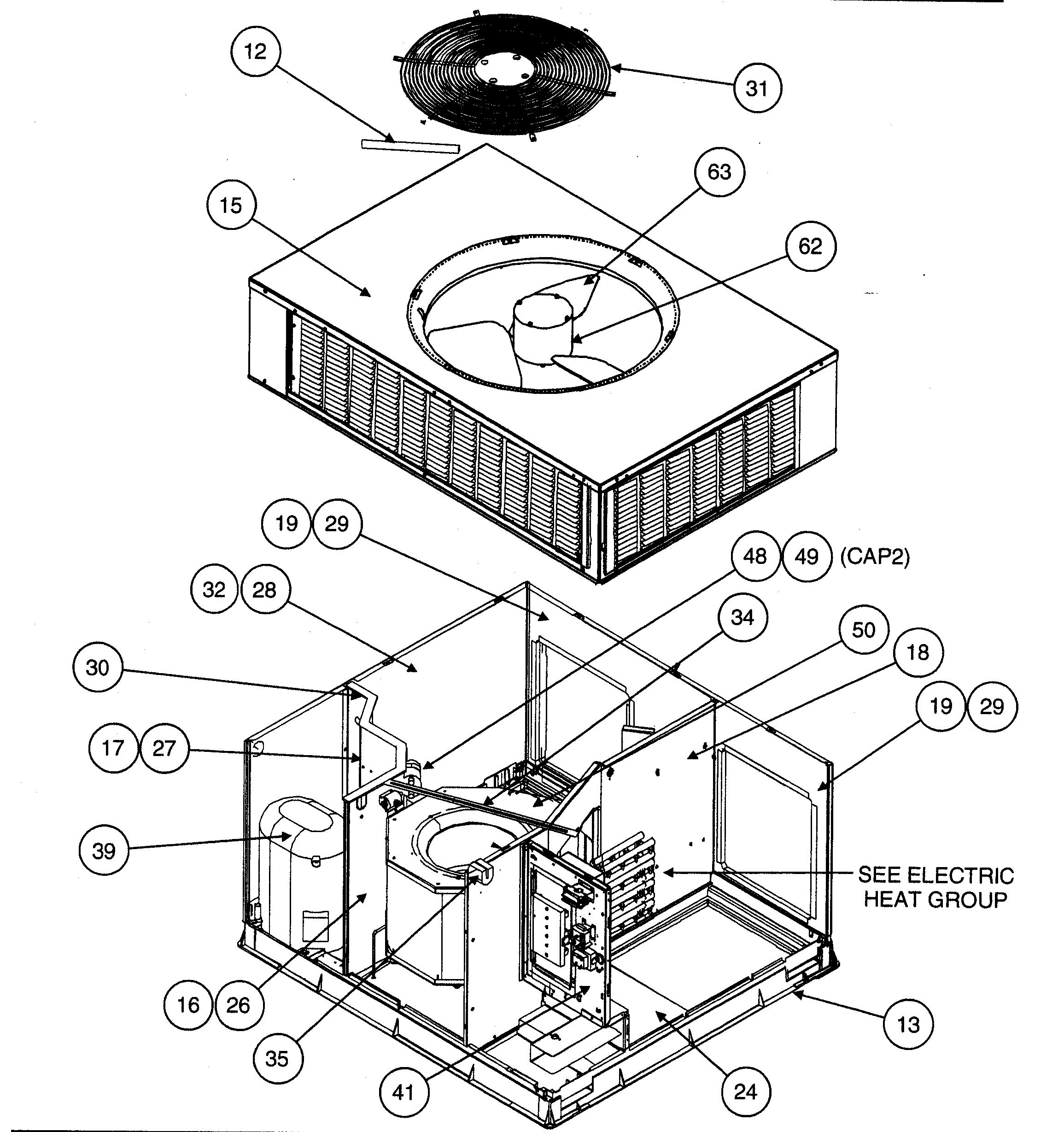

Inside parts diagram

Capacitor

Part #P291-6053

$27.31

In Stock

Qty

#49

Inside parts diagram

Strap cap

Part #P281-0028

$18.83

In Stock

Qty
