Model # AC082N7A1 Official White-Westinghouse room air conditioner - lw34090100

Here are the diagrams and repair parts for Official White-Westinghouse AC082N7A1 room air conditioner - lw34090100, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

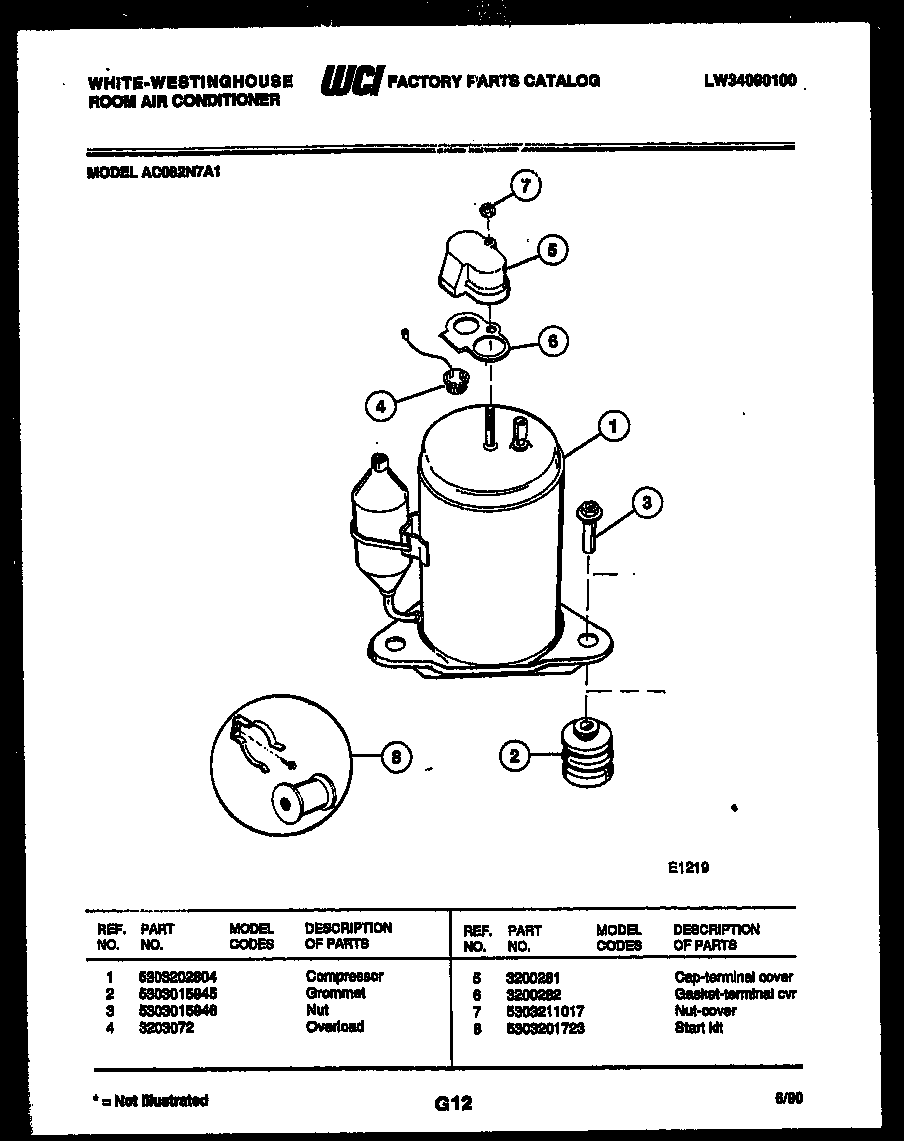

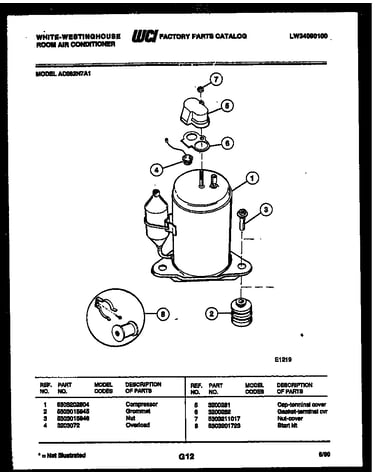

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#12

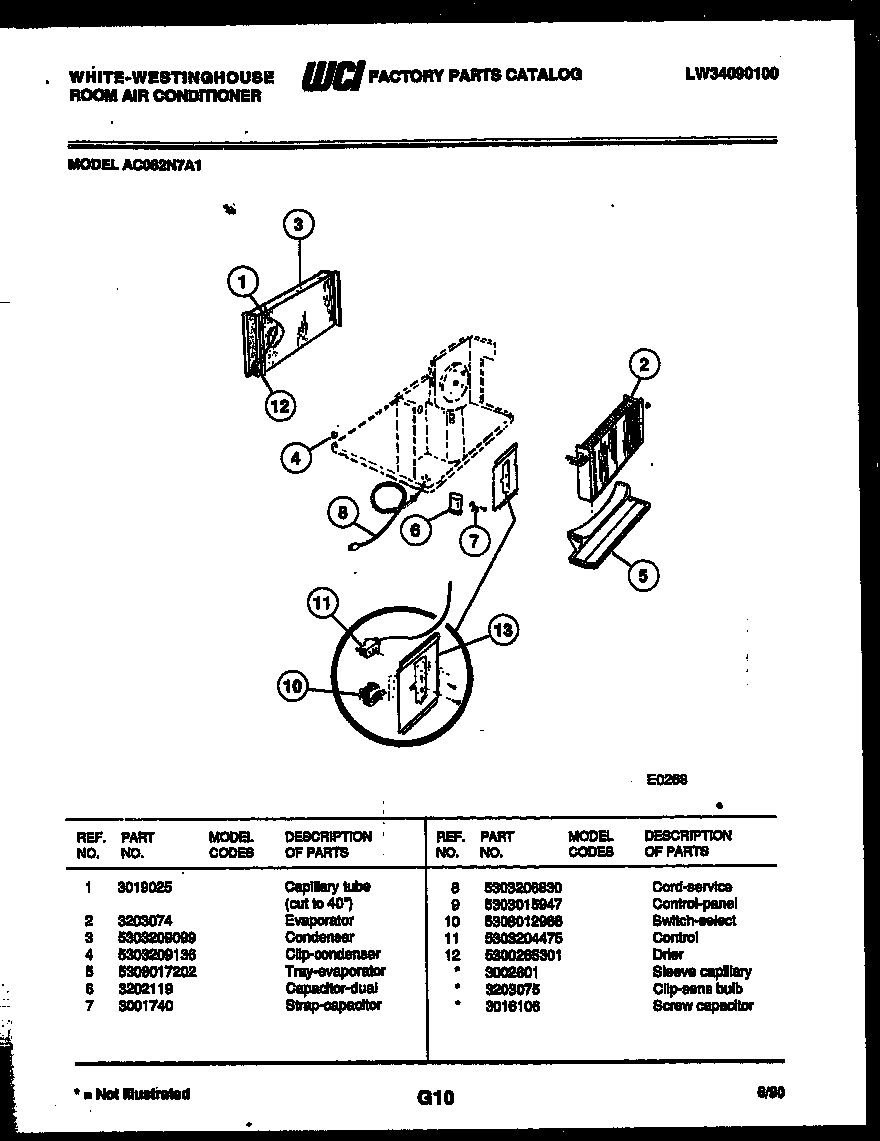

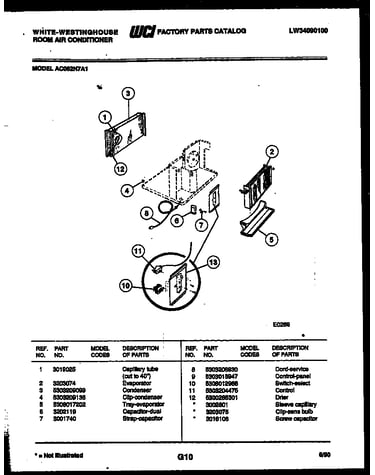

Electrical parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 5308007473
#8

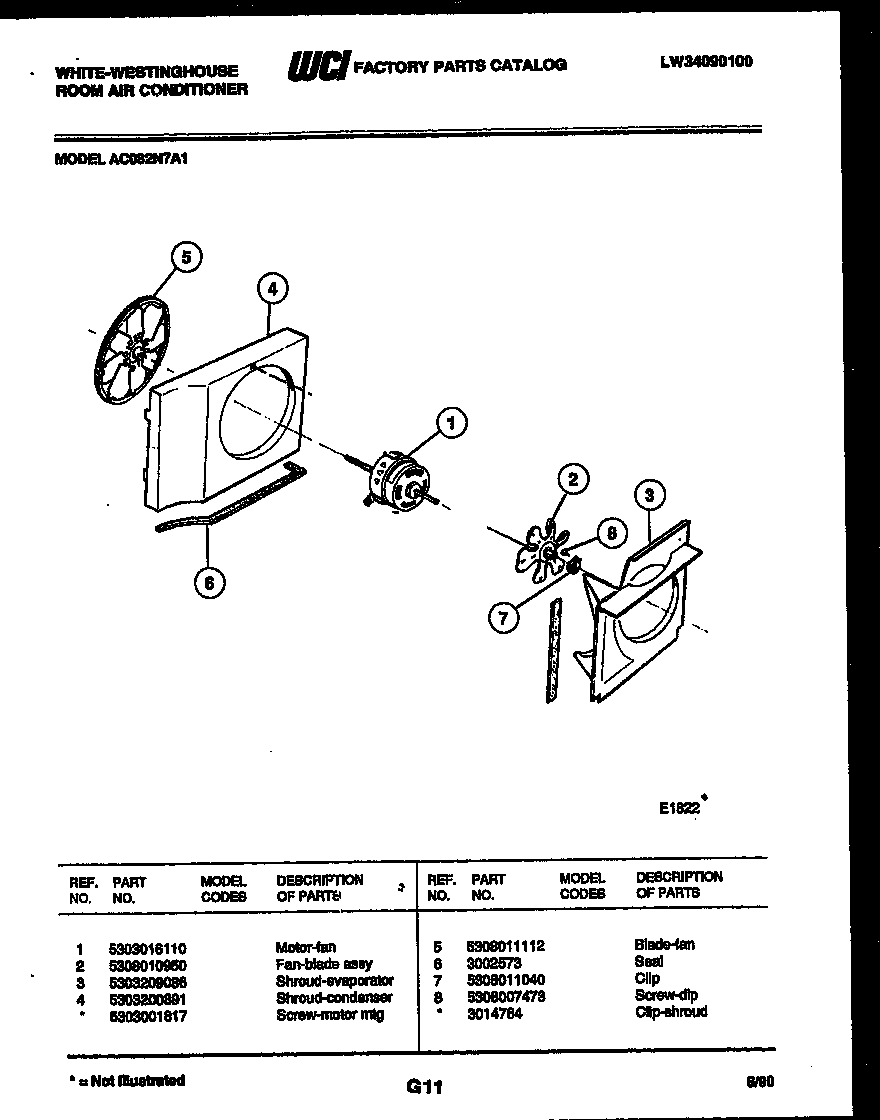

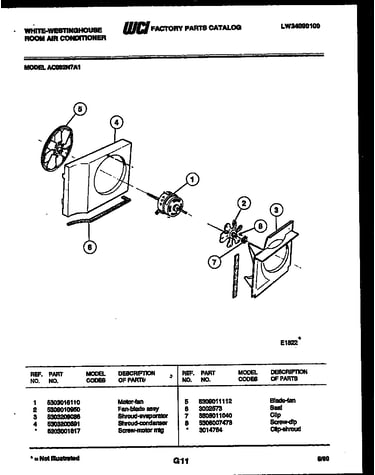

Air handling parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Screw 08012954
#13

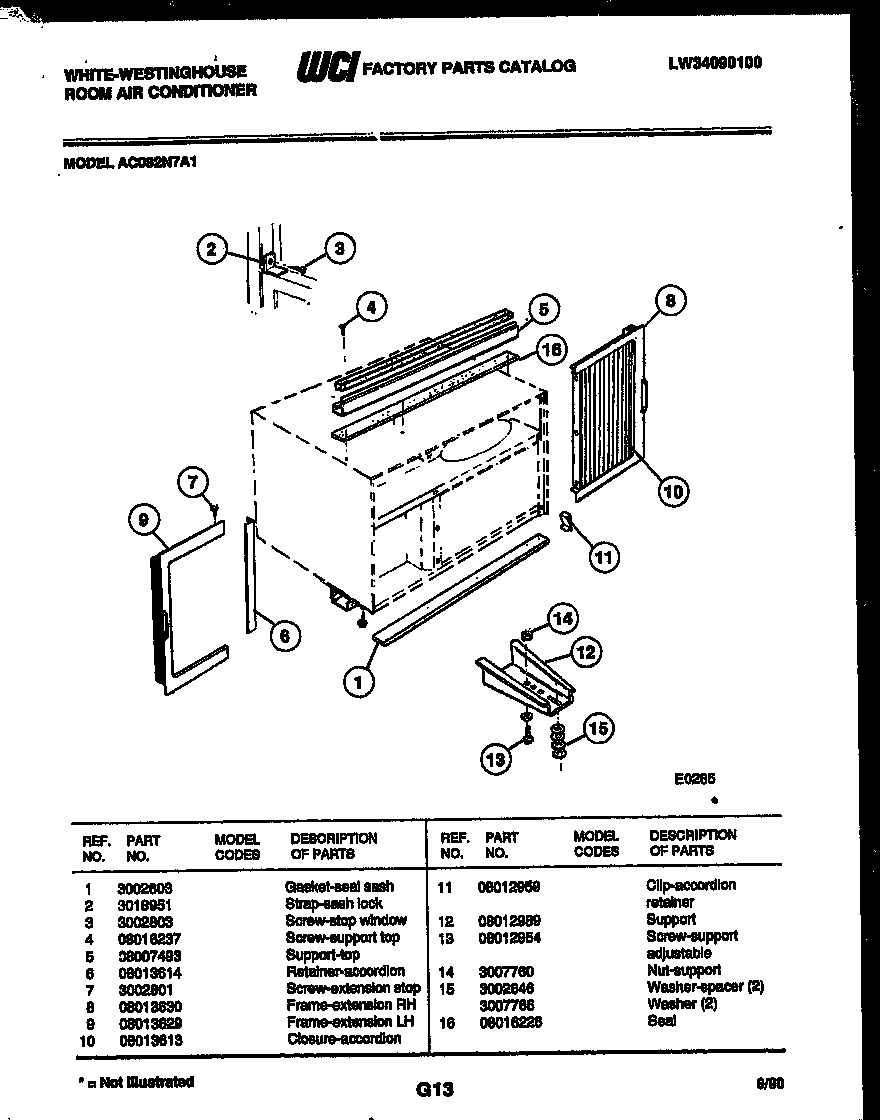

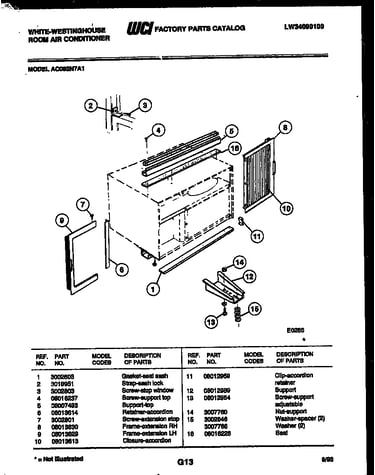

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Washer 3007766
#15A

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#5

Cabinet and installation parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Louver 08013695
#11

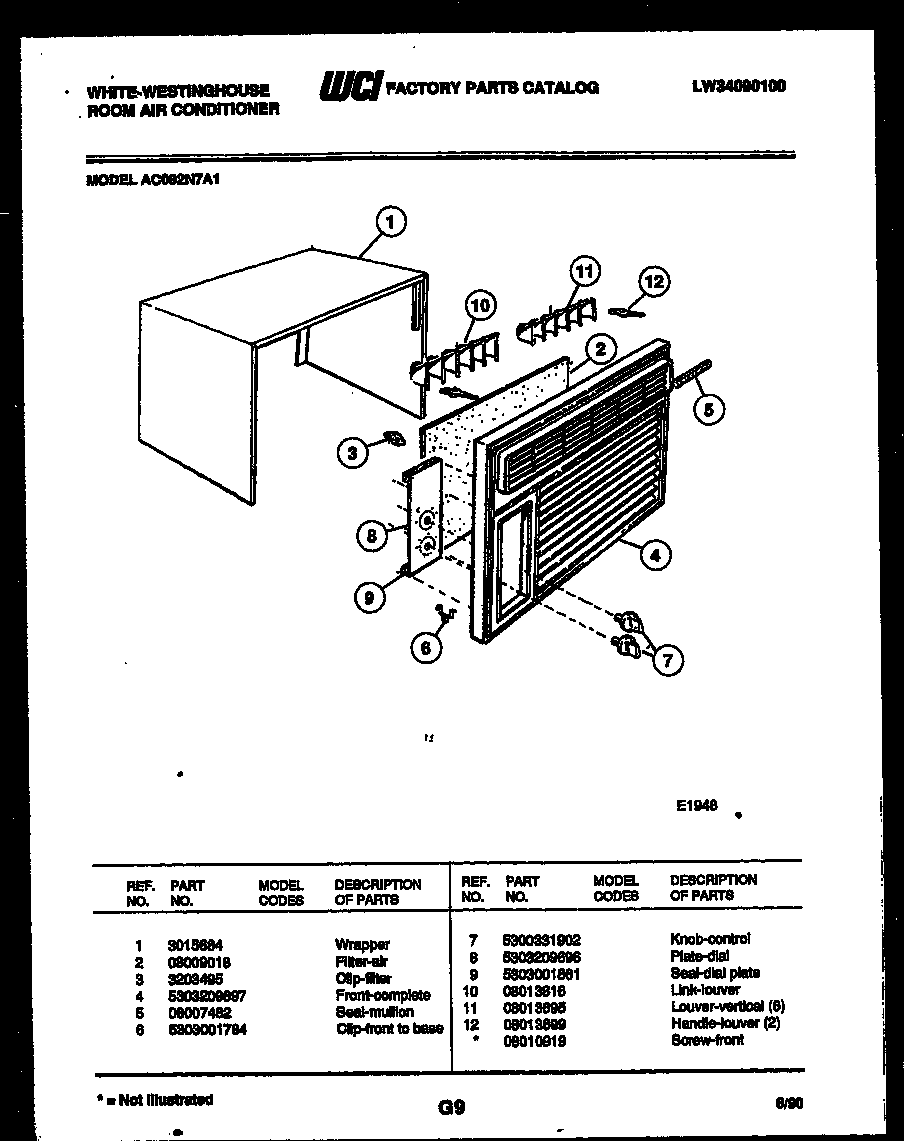

Cabinet parts diagram

Louver

Part #08013695

This item is not returnable
$2.29
In Stock
Gasket 3002603
#1

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Switch 5308012966
#10

Electrical parts diagram

Switch

Part #5308012966

The manufacturer no longer makes this part, and there's no substitute part

Seal 3002573
#6

Air handling parts diagram

Seal

Part #3002573

The manufacturer no longer makes this part, and there's no substitute part

Plate 5303209696
#8

Cabinet parts diagram

Plate

Part #5303209696

The manufacturer no longer makes this part, and there's no substitute part
