DeWalt
Power Grinder

Model # DW880 TYPE 1 Official DeWalt grinder

Here are the diagrams and repair parts for Official DeWalt DW880-TYPE-1 grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Screw 330019-15
#11

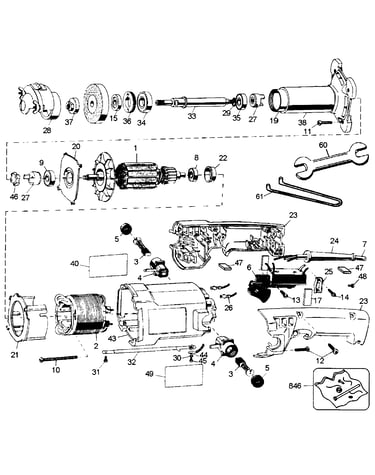

Grinder assy diagram

Screw

Part #330019-15

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 330003-09
Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

Reciprocating Saw Motor Brush Cap 448084-01
#5

Grinder assy diagram

Reciprocating saw motor brush cap

Part #448084-01

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 146637-00
#38

Grinder assy diagram

Sleeve

Part #146637-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 448172-00
#26

Grinder assy diagram

Terminal

Part #448172-00

The manufacturer no longer makes this part, and there's no substitute part

Cord & Swi 157334-02
#6A

Grinder assy diagram

Cord & swi

Part #157334-02

The manufacturer no longer makes this part, and there's no substitute part

Grinder Trigger Switch 5140028-48
#6

Grinder assy diagram

Grinder trigger switch

Part #5140028-48

The manufacturer no longer makes this part, and there's no substitute part

Pad 150844-01
#17

Grinder assy diagram

Pad

Part #150844-01

The manufacturer no longer makes this part, and there's no substitute part

Guard 146589-00
#28

Grinder assy diagram

Guard

Part #146589-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 448079-00
#20

Grinder assy diagram

Plate

Part #448079-00

The manufacturer no longer makes this part, and there's no substitute part
