Fisher & Paykel
Dryer

Model # DG04-US5 Official Fisher & Paykel dryer

Here are the diagrams and repair parts for Official Fisher & Paykel DG04-US5 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

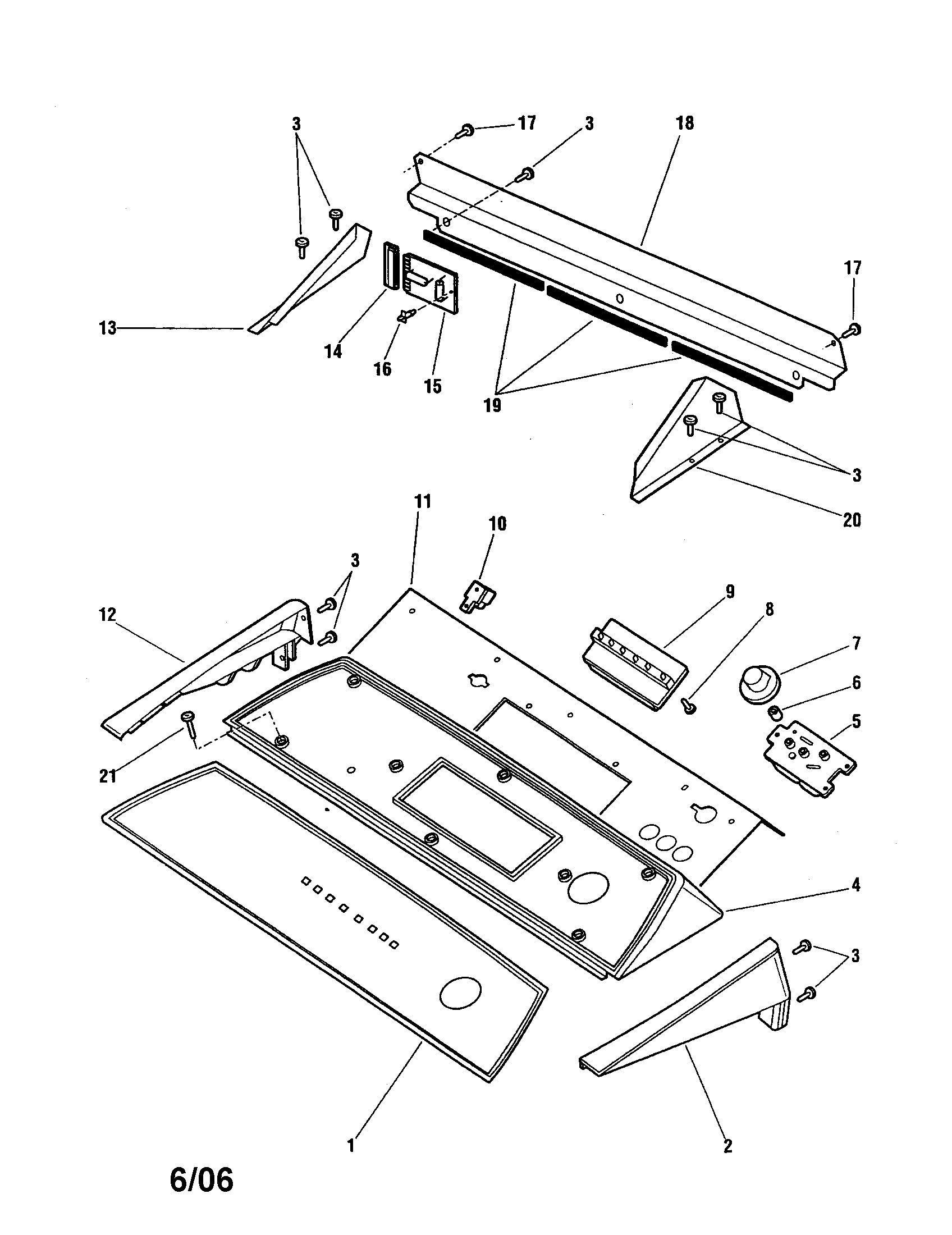

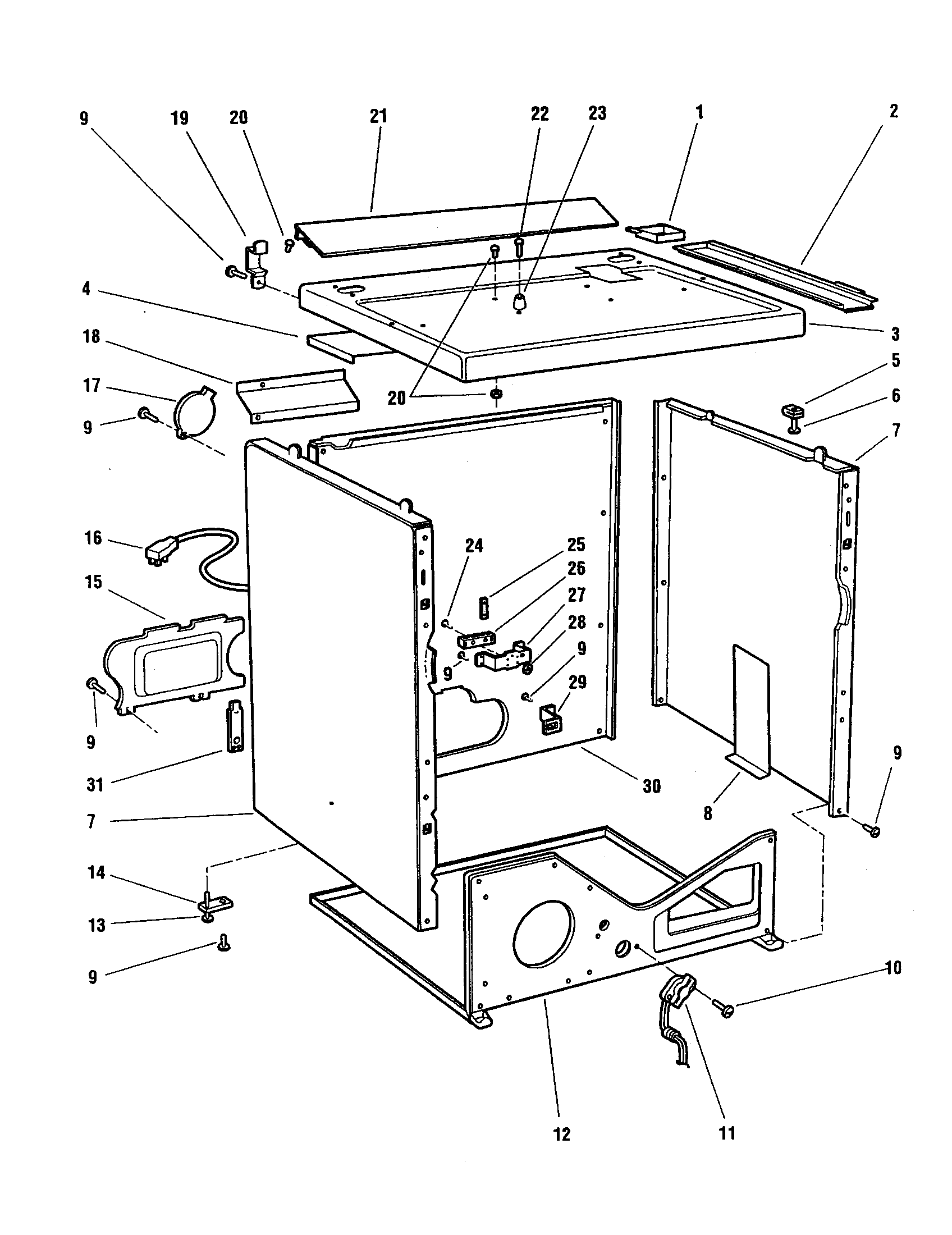

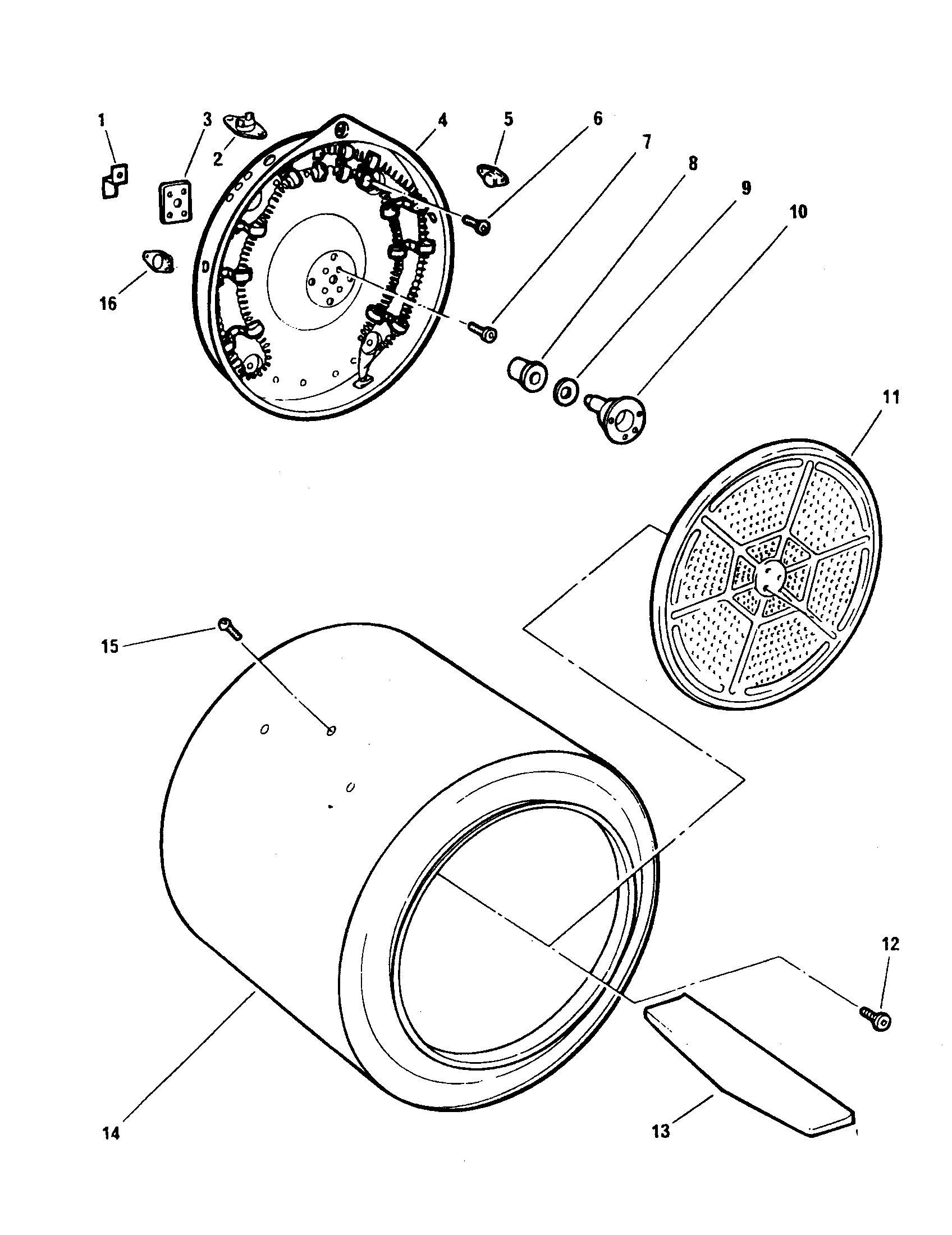

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Duct WE14M79
#13

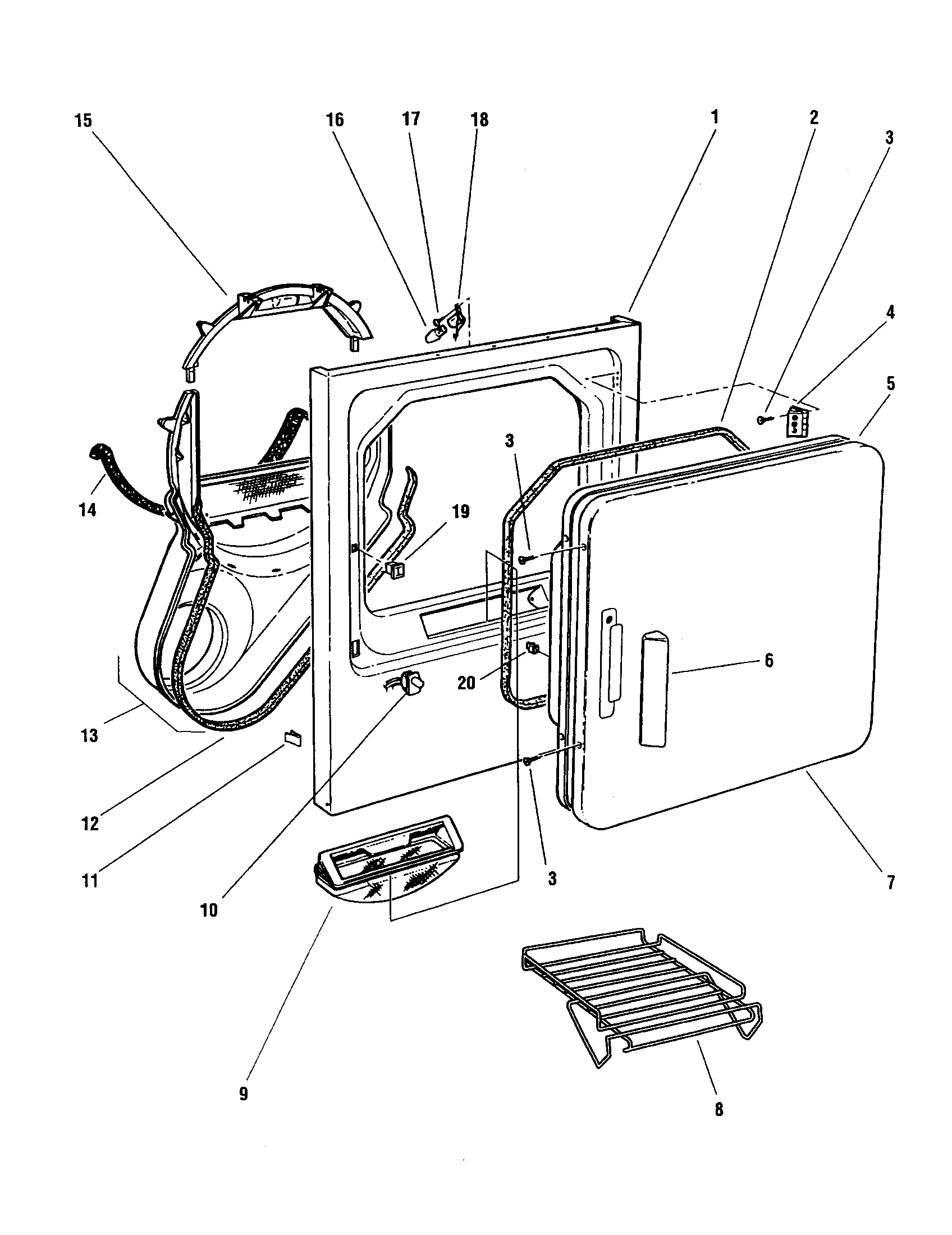

Cabinet front and door diagram

Duct

Part #WE14M79

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M79. Substitute parts can look different from the original.
BEST SELLER
$85.99
7% OFF Phone Price : $91.99
In Stock
Duct WE14M82
#13A

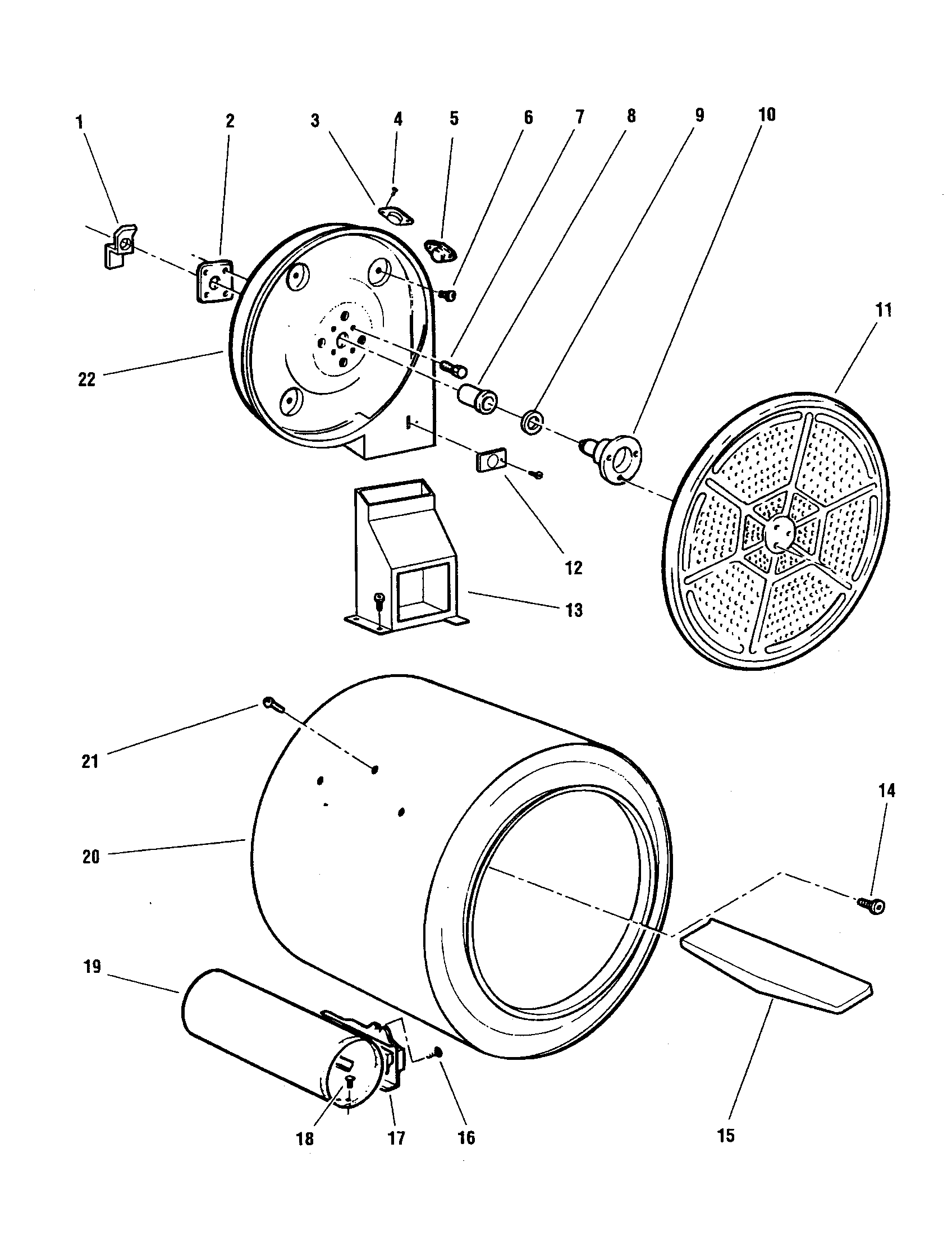

Drum and duct (dg04-us5, dg04-us6) diagram

Duct

Part #WE14M82

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M82. Substitute parts can look different from the original.
BEST SELLER
$85.99
7% OFF Phone Price : $91.99
In Stock
Fisher & Paykel Igniter WE4X739
#12

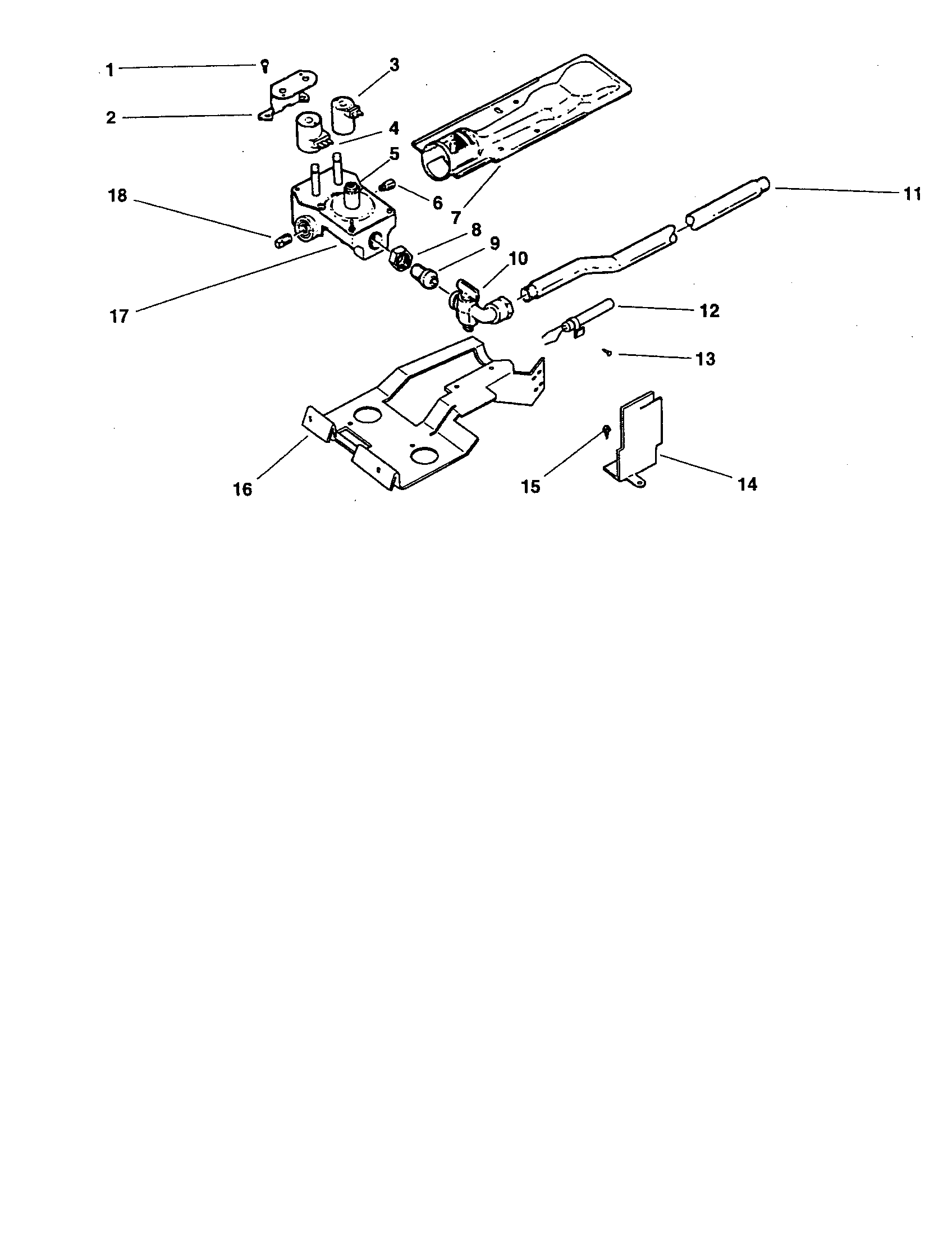

Gas valve and burner diagram

Fisher & paykel igniter

Part #WE4X739

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE4X739. Substitute parts can look different from the original.
BEST SELLER
$42.72
12% OFF Phone Price : $48.72
In Stock
Bearing WE3M15
Bearing

Part #WE3M15

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3M15. Substitute parts can look different from the original.
BEST SELLER
$71.61
8% OFF Phone Price : $77.61
In Stock
Washer WE2X195
Washer

Part #WE2X195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE2X195. Substitute parts can look different from the original.
BEST SELLER
$71.61
8% OFF Phone Price : $77.61
In Stock
Gasket WE1M376
#12

Cabinet front and door diagram

Gasket

Part #WE1M376

Replaced by #WE1M825

?
Manufacturer substitution
This part replaces WE1M376. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.96
13% OFF Phone Price : $7.96
In Stock
Motor And Pulley Assembly WE17M22
#1

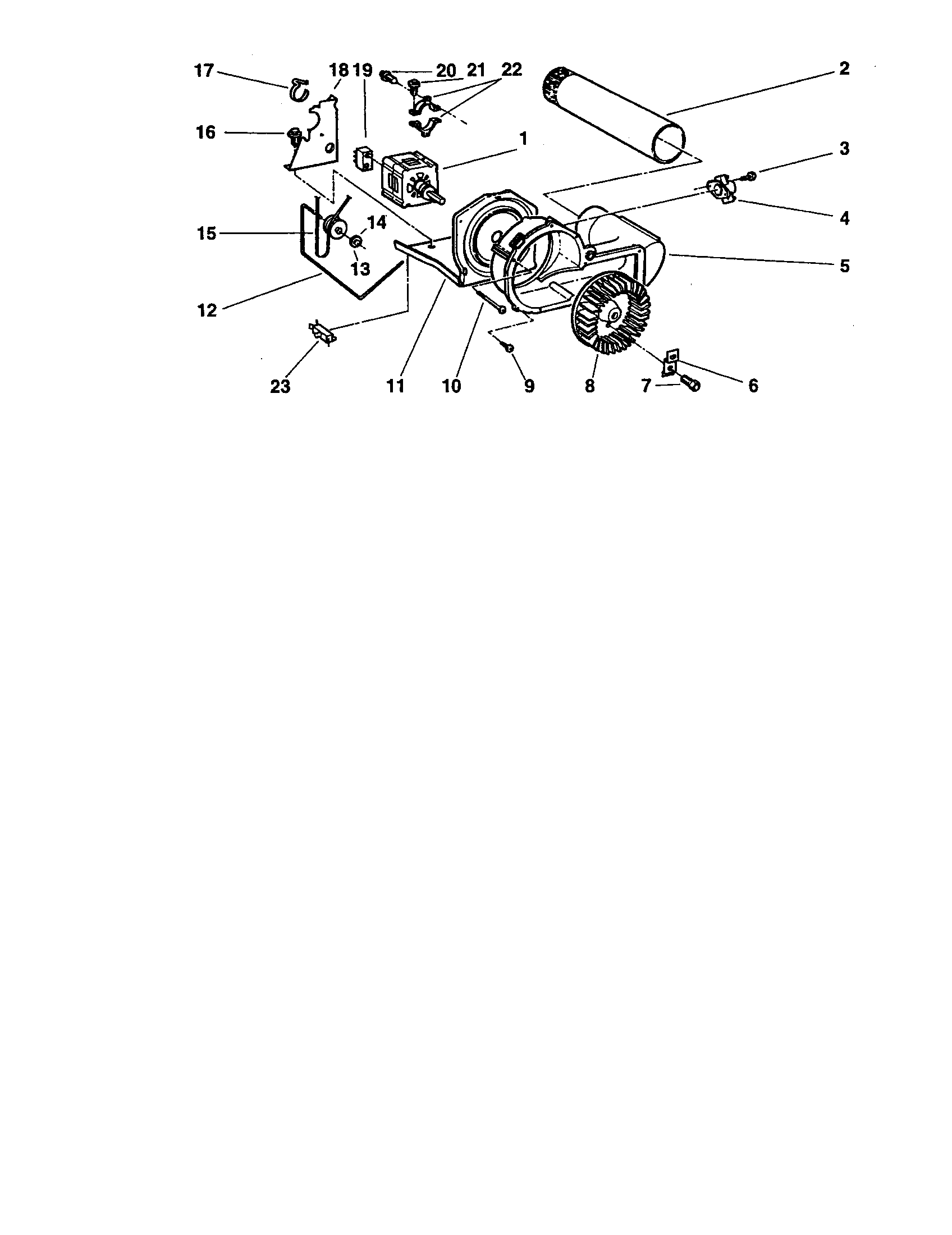

Blower and drive diagram

Motor and pulley assembly

Part #WE17M22

Replaced by #WE17X10010

?
Manufacturer substitution
This part replaces WE17M22. Substitute parts can look different from the original.
BEST SELLER
$223.60
5% OFF Phone Price : $235.60
In Stock
Flame Sensor WE4X448
#17

Drum and duct (dg04-us5, dg04-us6) diagram

Flame sensor

Part #WE4X448

Replaced by #WE4X448

?
Manufacturer substitution
This part replaces WE4X448. Substitute parts can look different from the original.
BEST SELLER
$47.23
11% OFF Phone Price : $53.23
In Stock
Fisher & Paykel Idler Spring WE3M17
#12

Blower and drive diagram

Fisher & paykel idler spring

Part #WE3M17

Replaced by #WE03X20434

?
Manufacturer substitution
This part replaces WE3M17. Substitute parts can look different from the original.
BEST SELLER
$88.73
6% OFF Phone Price : $94.73
In Stock
Coil WE4X693
#3

Gas valve and burner diagram

Coil

Part #WE4X693

Replaced by #WE4X693

?
Manufacturer substitution
This part replaces WE4X693. Substitute parts can look different from the original.
BEST SELLER
$31.40
16% OFF Phone Price : $37.40
In Stock

Most common symptoms to help you fix your dryers

Choose a symptom to see related dryer repairs.

Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, c…

Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive …

Main causes: damaged door strike, worn door catch…

Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, fau…

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failur…

Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure…

Main causes: bad timer or electronic control board, door switch failure…

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door s…
