Central Air Conditioner

Model # EBCC3600MA/P6752114C Official Amana high-efficiency universal blower unit

Here are the diagrams and repair parts for Official Amana EBCC3600MA/P6752114C high-efficiency universal blower unit, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
EBCC3600MA/P6752114C High-Efficiency Universal Blower Unit
Screw M0211017
#2

(d6802001) diagram

Screw

Part #M0211017

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0211017. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Use M2820-15 M0282013
Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Nut M0282009
Nut

Part #M0282009

Replaced by #M0282009

?
Manufacturer substitution
This part replaces M0282009. Substitute parts can look different from the original.
In Stock

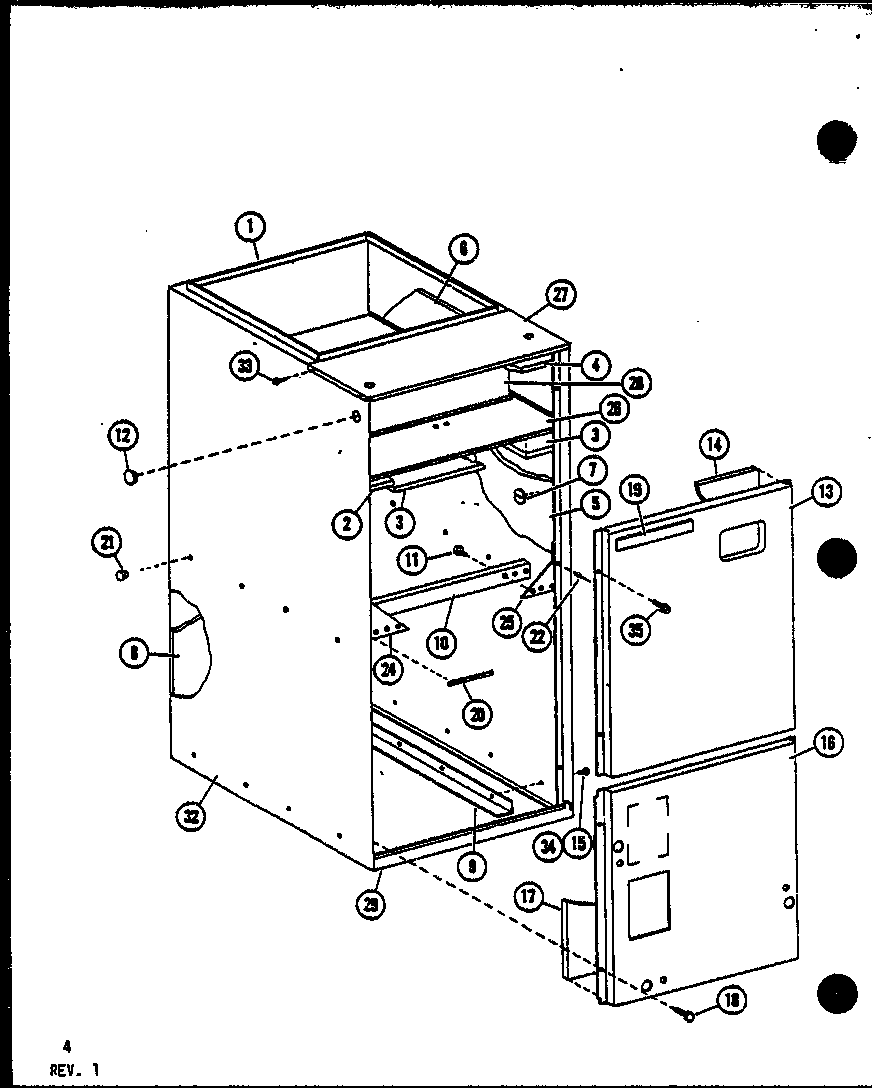

Screw M0267144
#4

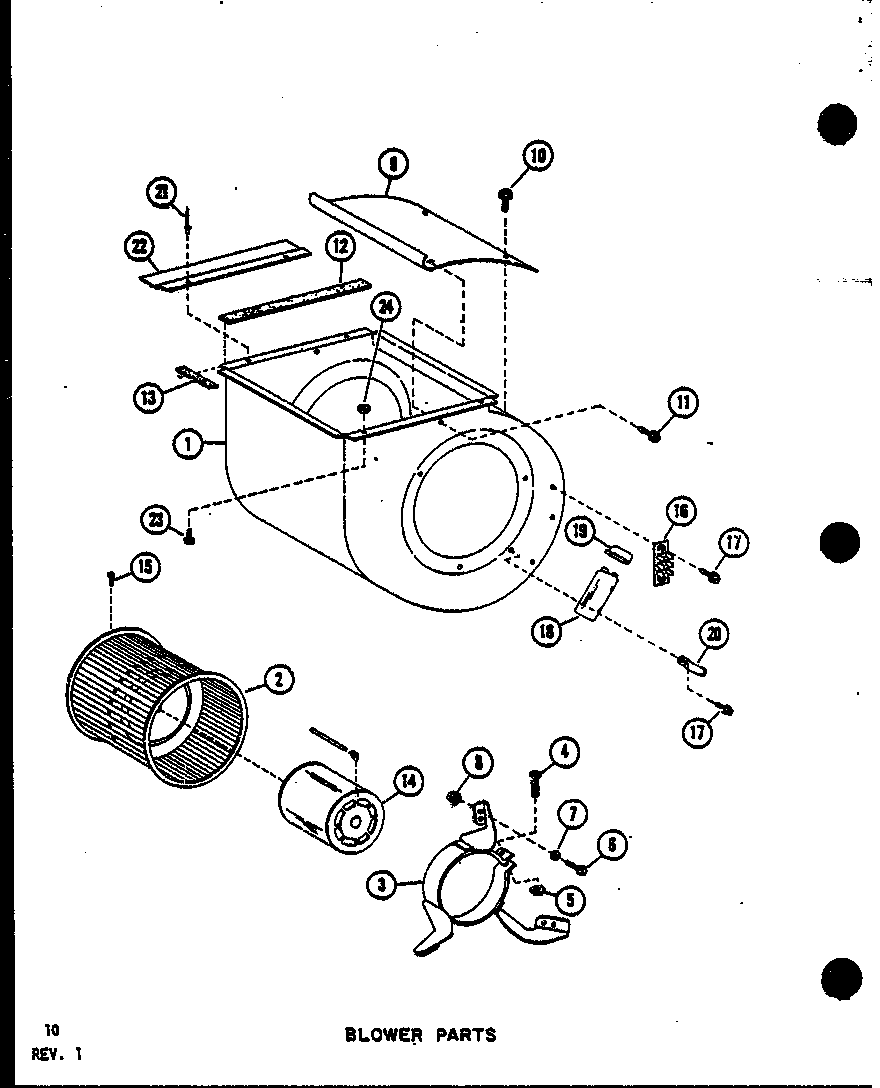

Blower parts (ebcc2400ma/p6752105c) (ebcc3600ma/p6752106c) (ebcc2400ma/p6752113c) (ebcc3600ma/p6752114c) (ebcc4800ma/p6752107c) (ebcc6000ma/p6752108c) diagram

Screw

Part #M0267144

Replaced by #3400241

?
Manufacturer substitution
This part replaces M0267144. Substitute parts can look different from the original.
In Stock
Screw M0211016
#10

Blower parts (ebcc2400ma/p6752105c) (ebcc3600ma/p6752106c) (ebcc2400ma/p6752113c) (ebcc3600ma/p6752114c) (ebcc4800ma/p6752107c) (ebcc6000ma/p6752108c) diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
In Stock

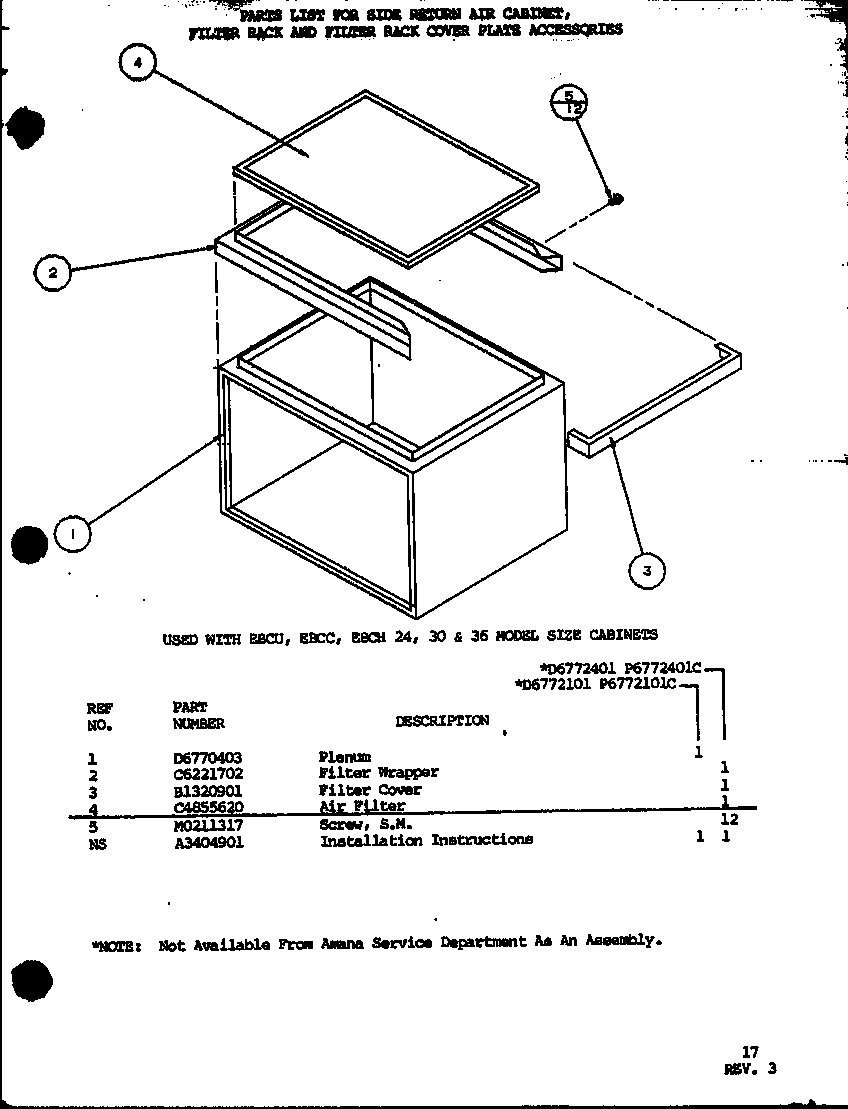

Screw M0211317
Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60
13% OFF Phone Price : $7.60
In Stock

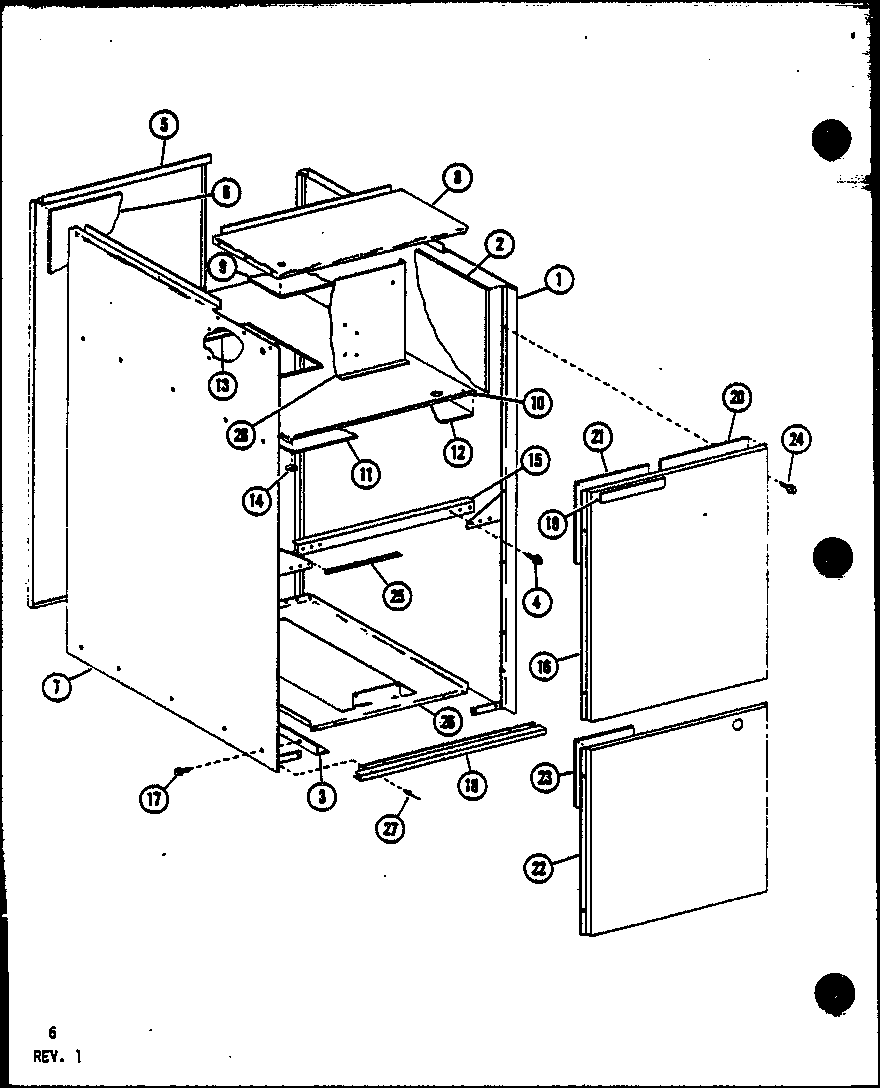

Insulation, Rear C6193215
#6

(ebcc4800ma/p6752107c) (ebcc6000ma/p6752108c) diagram

Insulation, rear

Part #C6193215

The manufacturer no longer makes this part, and there's no substitute part

Capacitor D6711838
#18C

Blower parts (ebcc2400ma/p6752105c) (ebcc3600ma/p6752106c) (ebcc2400ma/p6752113c) (ebcc3600ma/p6752114c) (ebcc4800ma/p6752107c) (ebcc6000ma/p6752108c) diagram

Capacitor

Part #D6711838

The manufacturer no longer makes this part, and there's no substitute part

Side Panel, Right D6781401
#1

(ebcc4800ma/p6752107c) (ebcc6000ma/p6752108c) diagram

Side panel, right

Part #D6781401

The manufacturer no longer makes this part, and there's no substitute part

Plenum D6797602
#1

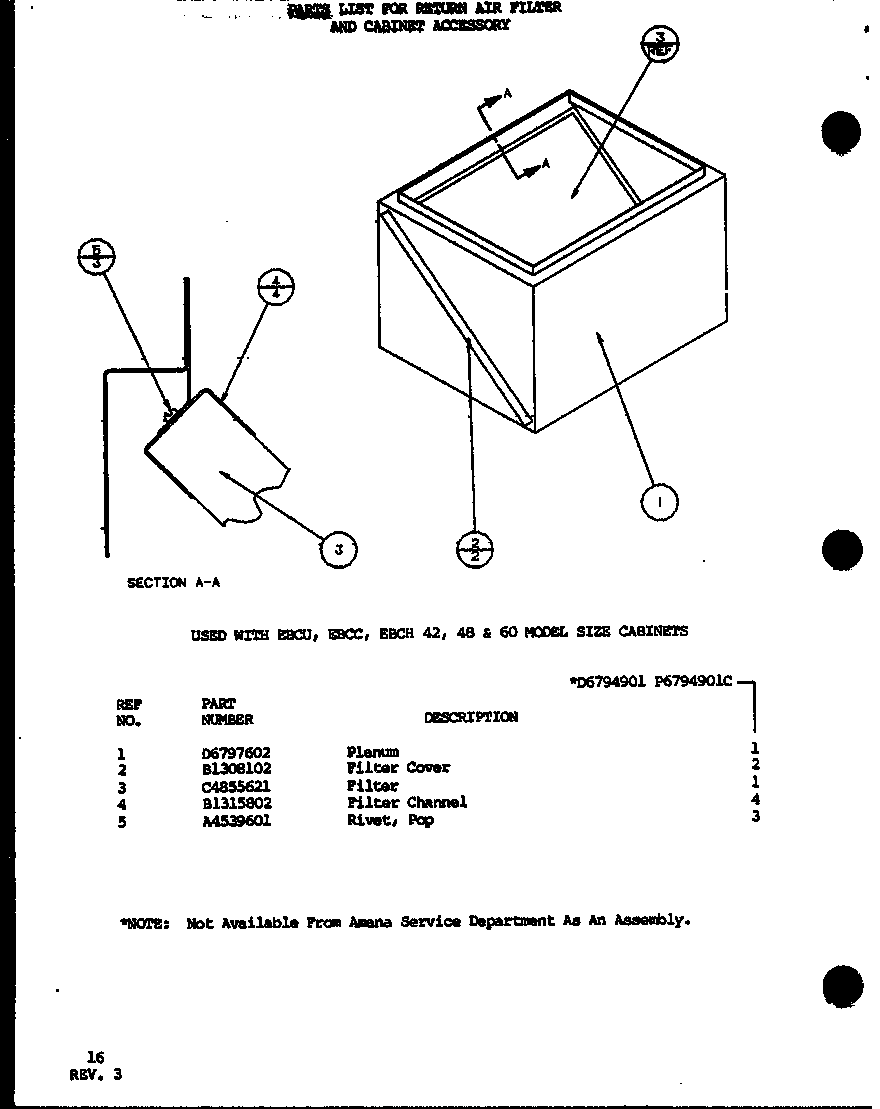

(d6794901/p6794901c) diagram

Plenum

Part #D6797602

The manufacturer no longer makes this part, and there's no substitute part
