Model # 1107207103W10 Official Sears gas dryer

Here are the diagrams and repair parts for Official Sears 1107207103W10 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Maytag Dryer Drum Belt (replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364) 341241
#56

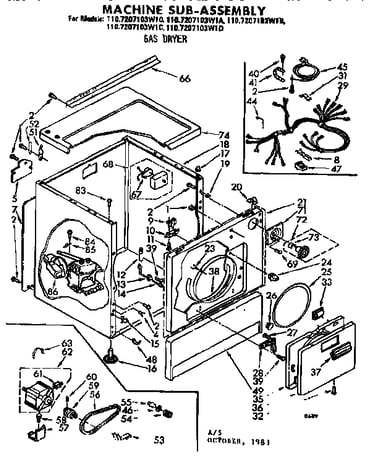

Machine sub-assembly diagram

Maytag dryer drum belt (replaces 2008, 31531589, 349533, 53-1512, 8210, w10127457, w10131364)

Part #341241

BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Bracket 337510
#53

Machine sub-assembly diagram

Bracket

Part #337510

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Pulley 338946
#54

Machine sub-assembly diagram

Pulley

Part #338946

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 338946. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Pulley 347226
#55

Machine sub-assembly diagram

Pulley

Part #347226

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 347226. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Motor 346744
#62

Machine sub-assembly diagram

Motor

Part #346744

Replaced by #279827

?
Manufacturer substitution
This part replaces 346744. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Motor 343234
#62A

Machine sub-assembly diagram

Motor

Part #343234

Replaced by #279827

?
Manufacturer substitution
This part replaces 343234. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Switch 337351
#61

Machine sub-assembly diagram

Switch

Part #337351

Replaced by #279827

?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Blower Wheel 343939
#10

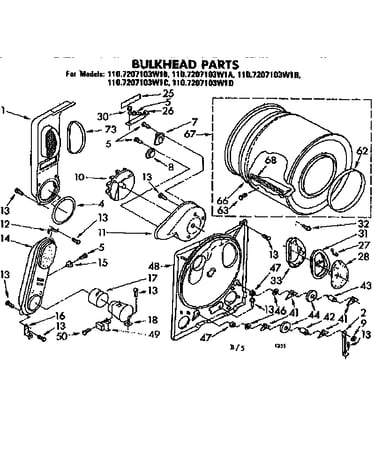

Bulkhead parts diagram

Dryer blower wheel

Part #343939

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 343939. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Dryer Igniter 338900
#21

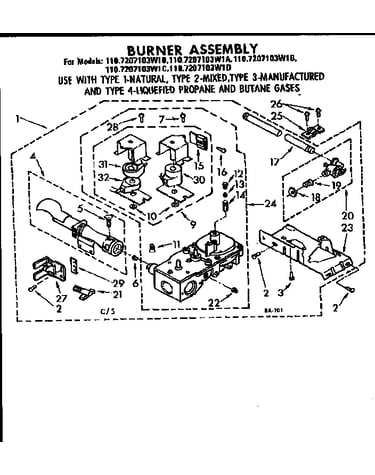

Burner assembly diagram

Dryer igniter

Part #338900

Replaced by #279311

?
Manufacturer substitution
This part replaces 338900. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Igniter Bracket 343128
#27

Burner assembly diagram

Igniter bracket

Part #343128

Replaced by #279311

?
Manufacturer substitution
This part replaces 343128. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
