Model # WMH31017AW0 Official Whirlpool 1.7 cubic foot microwave/hood combo
Here are the diagrams and repair parts for Official Whirlpool WMH31017AW0 1.7 cubic foot microwave/hood combo, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
WMH31017AW0 1.7 Cubic Foot Microwave/Hood Combo
#23

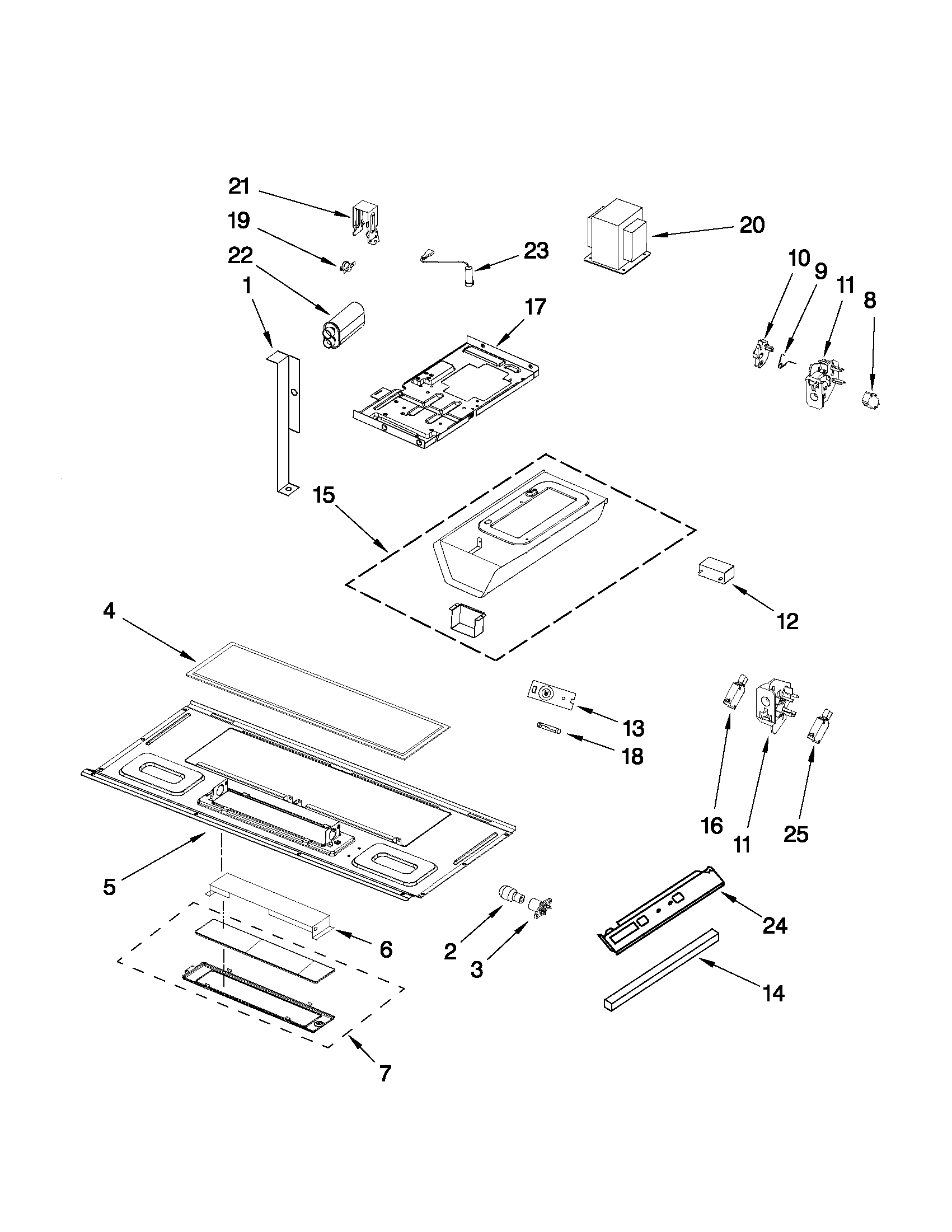

Interior and ventilation parts diagram
Diode
Part #W10245187
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10245187. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#16
Interior and ventilation parts diagram
Microwave door switch
Part #W10269457
Replaced by #W10727360
?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
This item is not returnable
$5.04 |
17% OFF Phone Price : $6.04
In Stock
#22
Interior and ventilation parts diagram
Capacitor
Part #W10343300
Replaced by #W10850446
?
Manufacturer substitution
This part replaces W10343300. Substitute parts can look different from the original.
$94.83 |
6% OFF Phone Price : $100.83
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#3

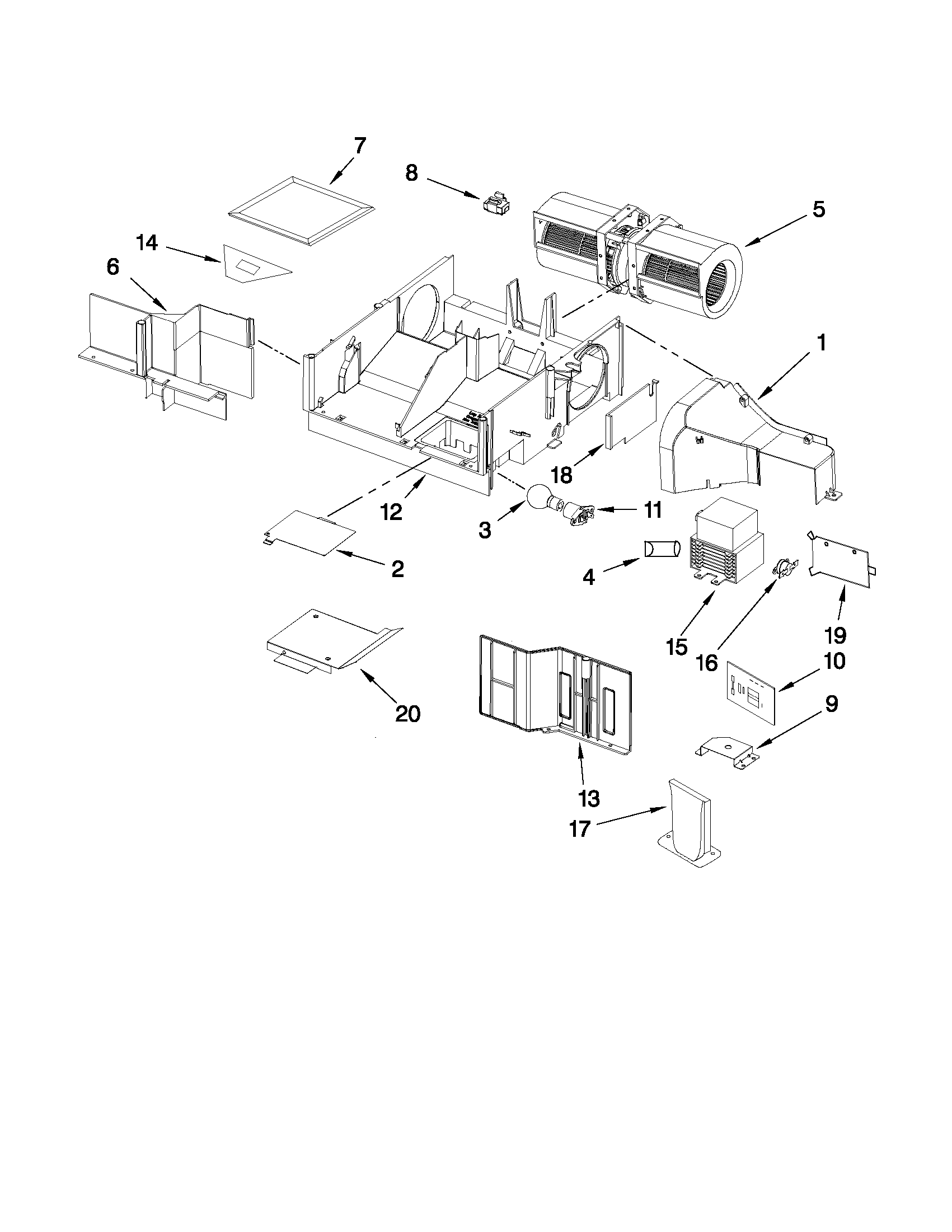

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
#11A
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#8
Interior and ventilation parts diagram
Microwave door interlock switch
Part #W10269460
$39.99 |
13% OFF Phone Price : $45.99
In Stock
#15
Air flow parts diagram
Microwave magnetron
Part #W10216360
Replaced by #W10754299
?
Manufacturer substitution
This part replaces W10216360. Substitute parts can look different from the original.
$183.60 |
6% OFF Phone Price : $195.60
In Stock
#10
Interior and ventilation parts diagram
Cam plate
Part #W10156811
Replaced by #W10562613
?
Manufacturer substitution
This part replaces W10156811. Substitute parts can look different from the original.
$11.59 |
15% OFF Phone Price : $13.59
In Stock
#9
Interior and ventilation parts diagram
Microwave door interlock spring
Part #W10156812
$7.73 |
11% OFF Phone Price : $8.73
In Stock
