Gas Range

Model # 79071543600 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79071543600 gas range, as well as links to manuals and error code tables, if available.

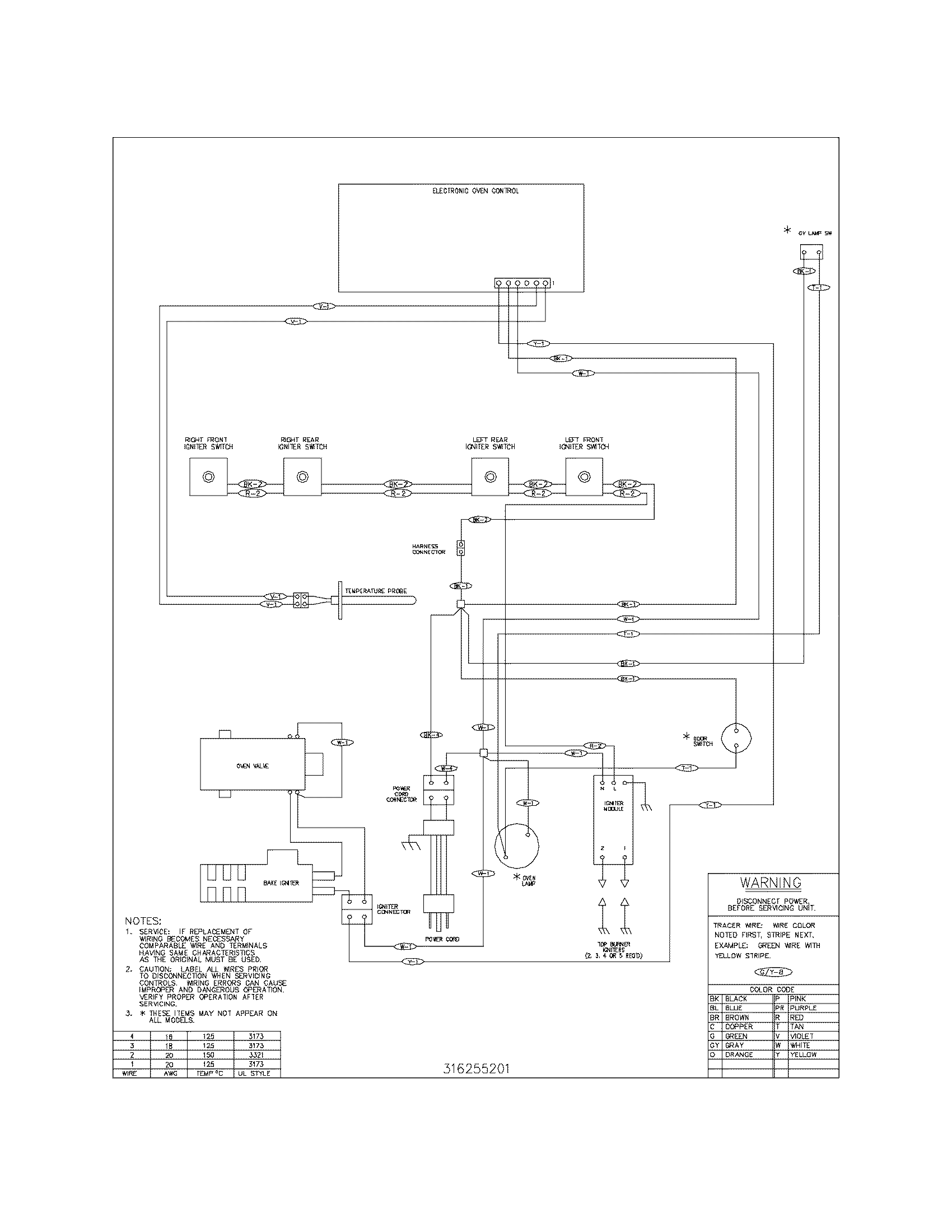

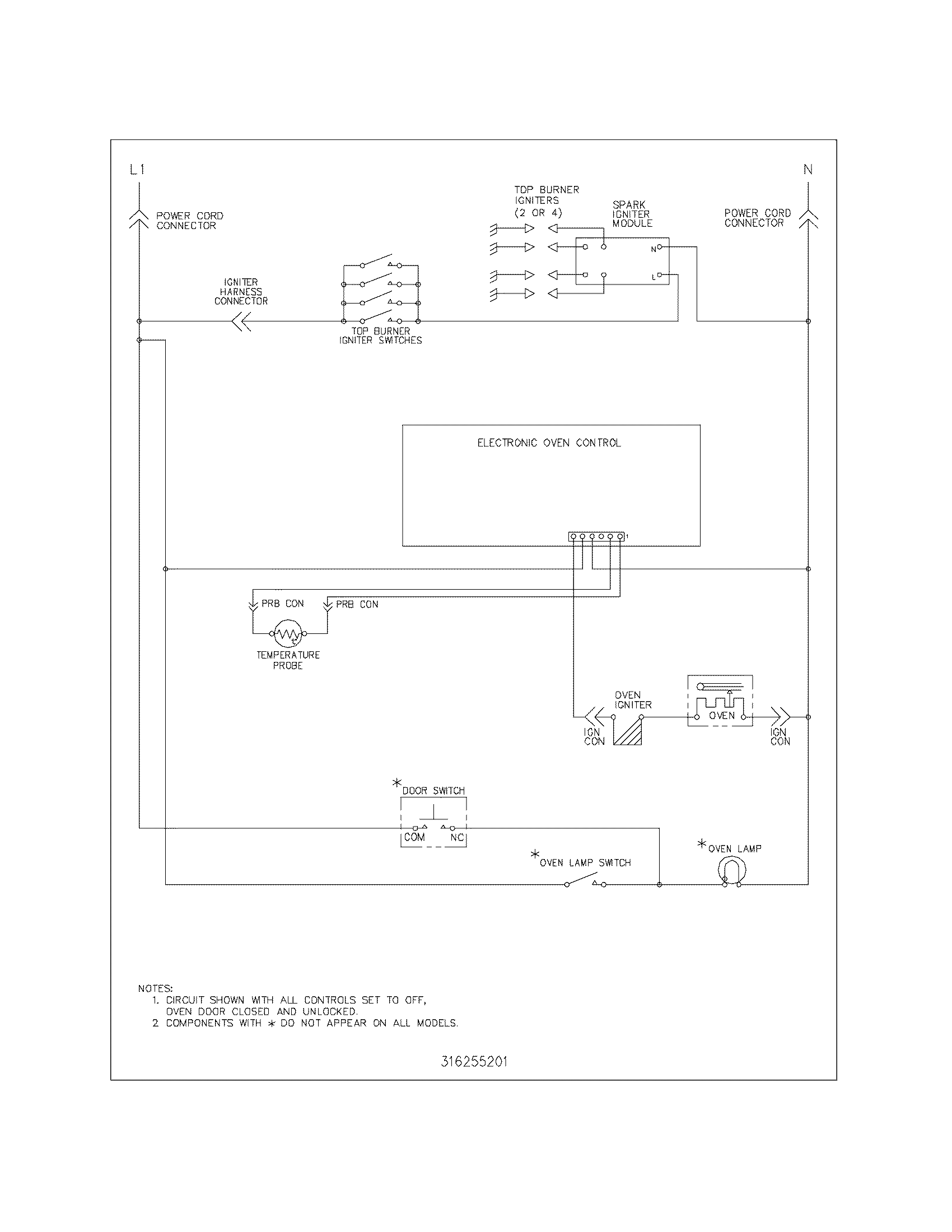

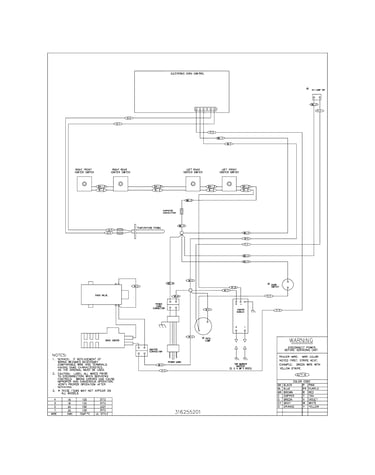

By Schematic
By Part

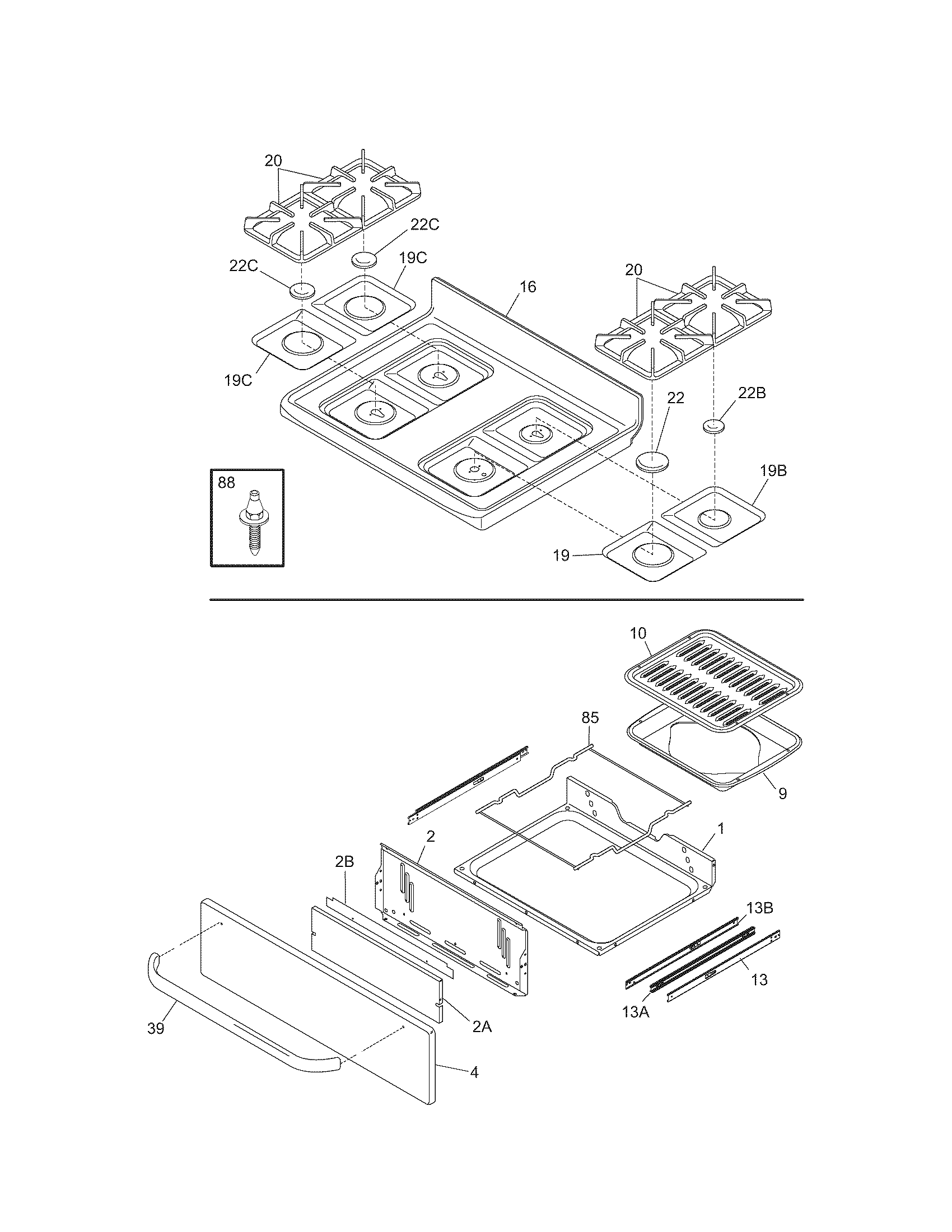

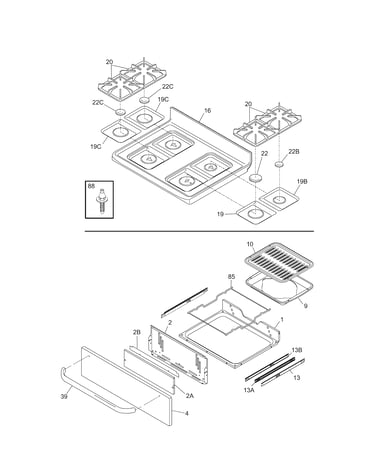

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
79071543600 Ranges
Frigidaire Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

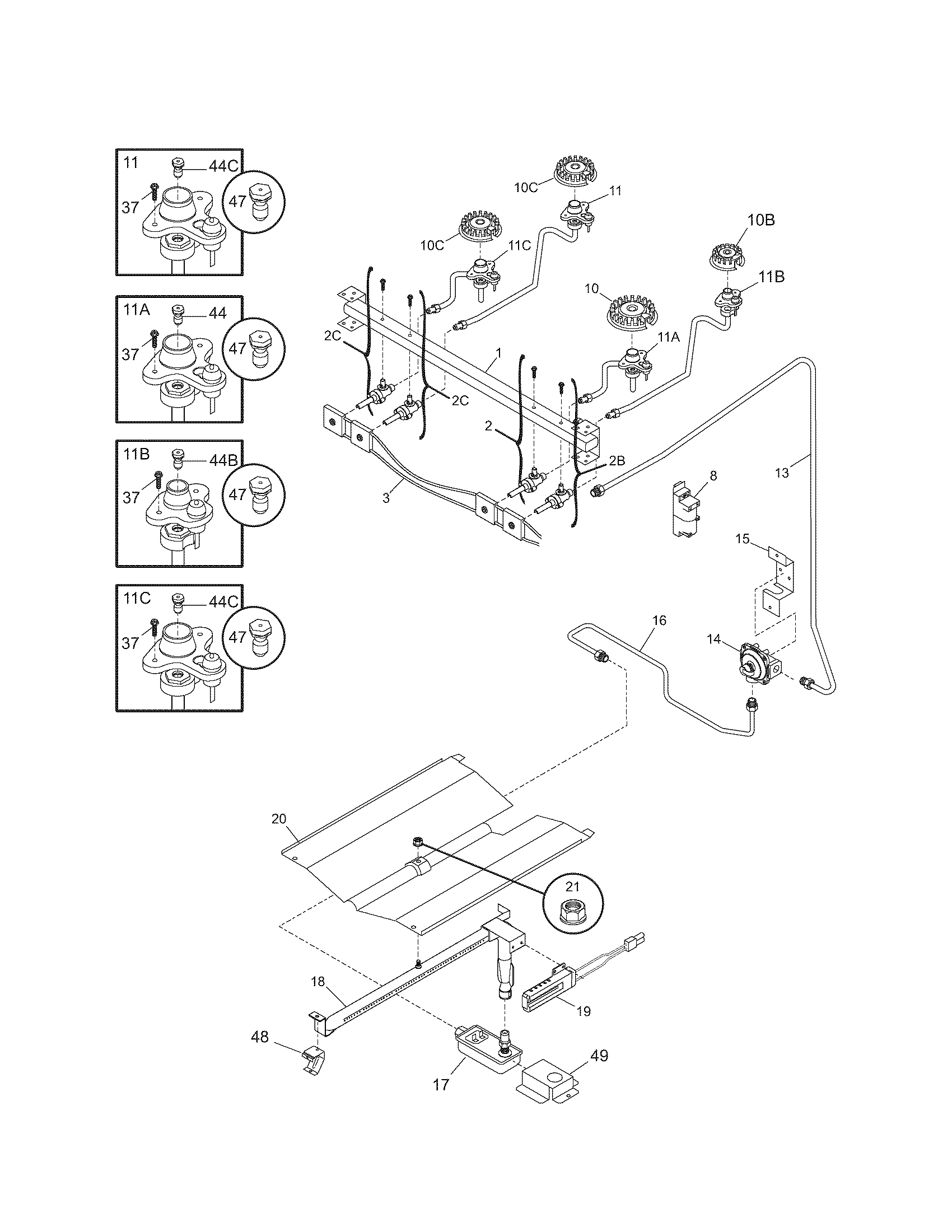

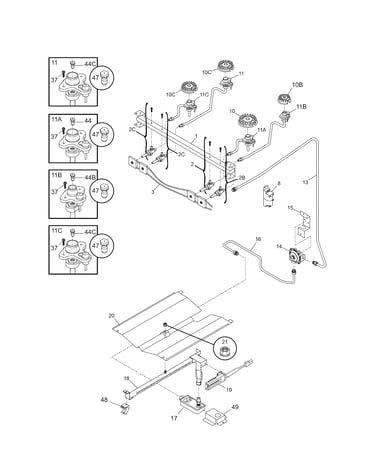

Burner diagram

Frigidaire range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

4.61 (56)
BEST SELLER
$34.33 |
15% OFF Phone Price : $40.33
In Stock
Range Screw (replaces 5304472956, 7316240600) 316240600
#37

Burner diagram

Range screw (replaces 5304472956, 7316240600)

Part #316240600

4.5 (2)
BEST SELLER
$10.22 |
16% OFF Phone Price : $12.22
In Stock
Range Oven Door Inner Glass 316237100
#8

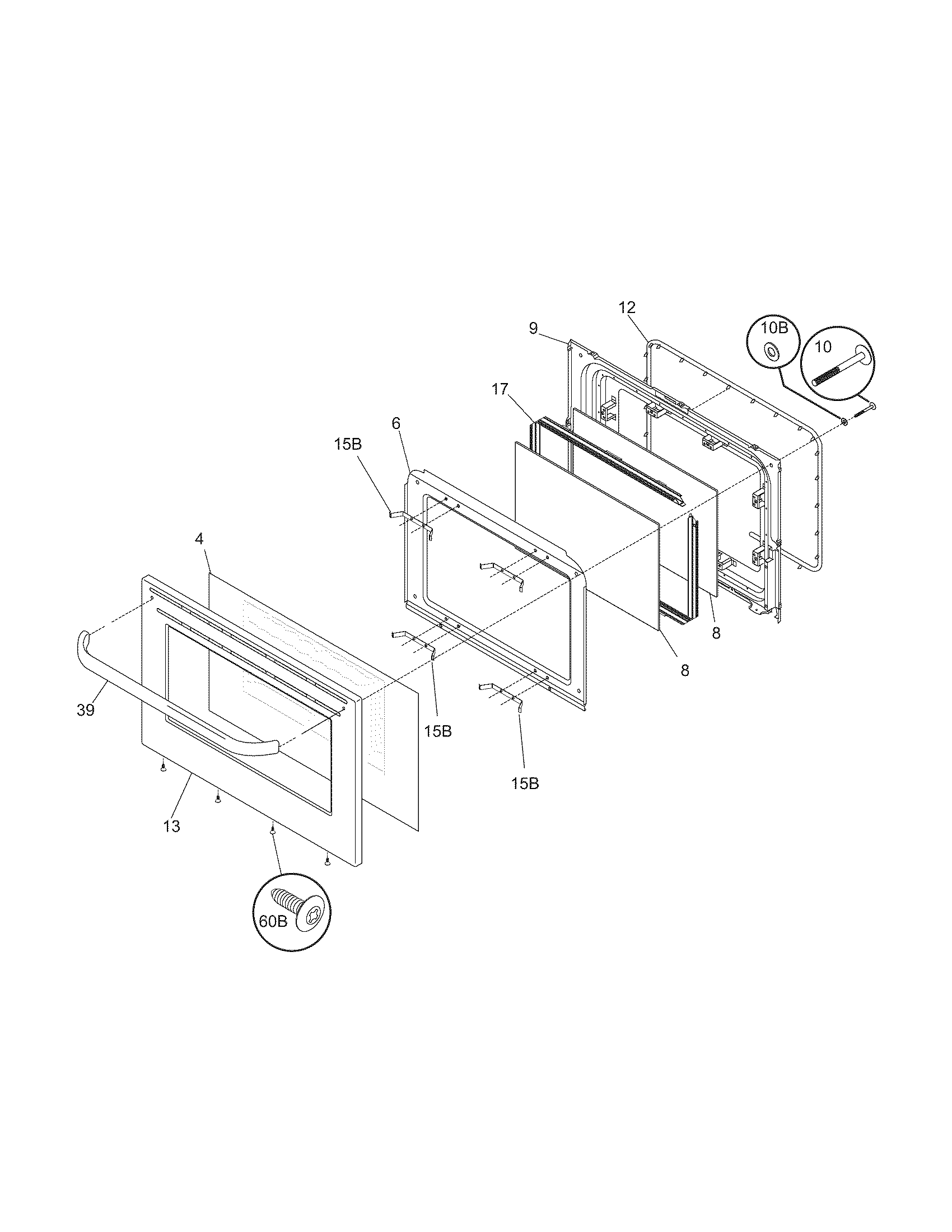

Door diagram

Range oven door inner glass

Part #316237100

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316237100. Substitute parts can look different from the original.
5 (8)
BEST SELLER
$75.14 |
7% OFF Phone Price : $81.14
In Stock
Range Main Control Board With Digital Clock 316222810
#20

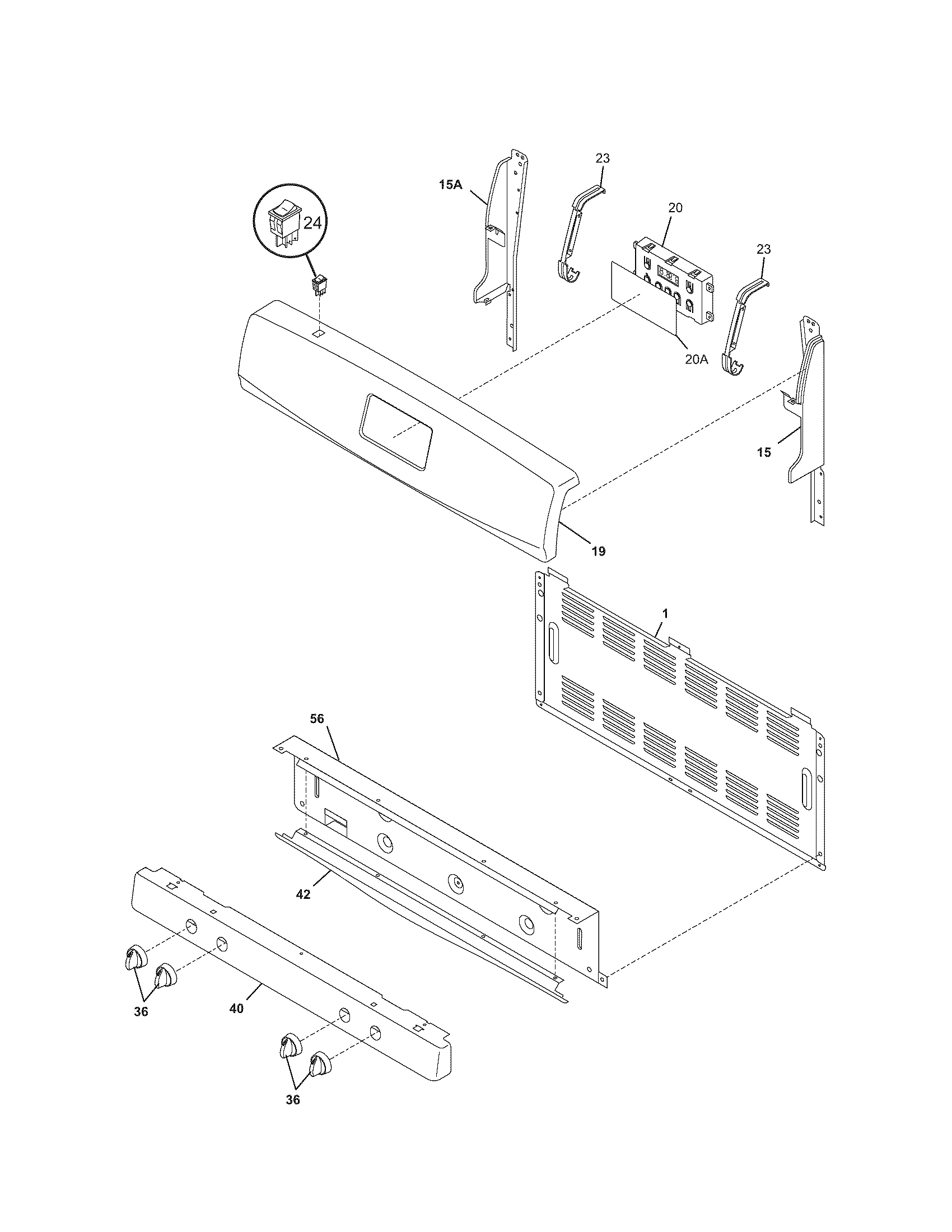

Backguard diagram

Range main control board with digital clock

Part #316222810

Replaced by #5304518661

?
Manufacturer substitution
This part replaces 316222810. Substitute parts can look different from the original.
4 (5)
BEST SELLER
This item is not returnable
$96.51 |
11% OFF Phone Price : $108.51
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$63.90 |
9% OFF Phone Price : $69.90
In Stock
Range Igniter Switch And Harness Assembly (replaces 316219000) 316219004
#3

Burner diagram

Range igniter switch and harness assembly (replaces 316219000)

Part #316219004

5 (2)
BEST SELLER
$96.99 |
11% OFF Phone Price : $108.99
In Stock
Range Surface Burner Knob 316442501
#36

Backguard diagram

Range surface burner knob

Part #316442501

4.78 (18)
BEST SELLER
$44.94 |
12% OFF Phone Price : $50.94
In Stock
Range Surface Burner Igniter And Orifice Holder 316237801
#11A

Burner diagram

Range surface burner igniter and orifice holder

Part #316237801

4.33 (3)
$101.45 |
11% OFF Phone Price : $113.45
In Stock
Oven Probe 316233900
#37

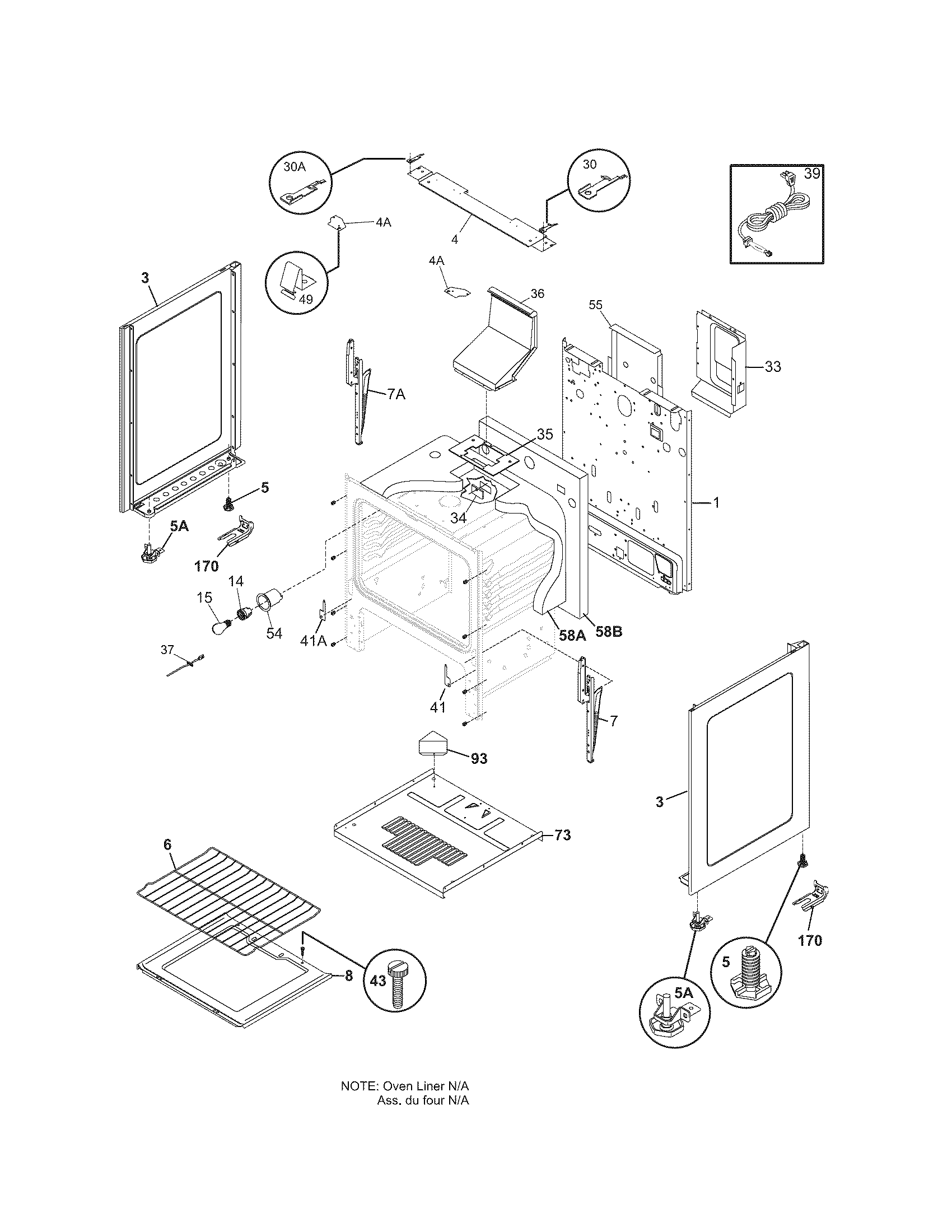

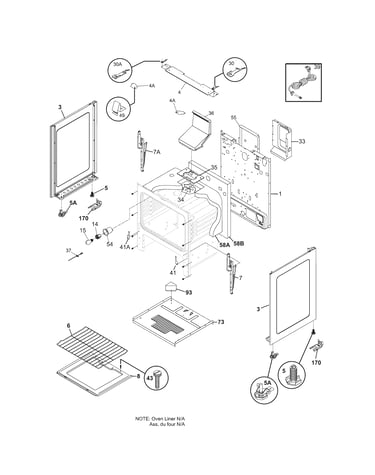

Body diagram

Oven probe

Part #316233900

Replaced by #316233903

?
Manufacturer substitution
This part replaces 316233900. Substitute parts can look different from the original.
3.44 (9)
$28.93 |
17% OFF Phone Price : $34.93
In Stock
Range Sealed Burner Assembly 316206400
#10B

Burner diagram

Range sealed burner assembly

Part #316206400

Replaced by #316206401

?
Manufacturer substitution
This part replaces 316206400. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$54.37 |
10% OFF Phone Price : $60.37
In Stock
