Amana
Electric Wall Oven

Model # AO-24SB-P85567-3S Official Amana wall oven

Here are the diagrams and repair parts for Official Amana AO-24SB-P85567-3S wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Knob R0199085
#1

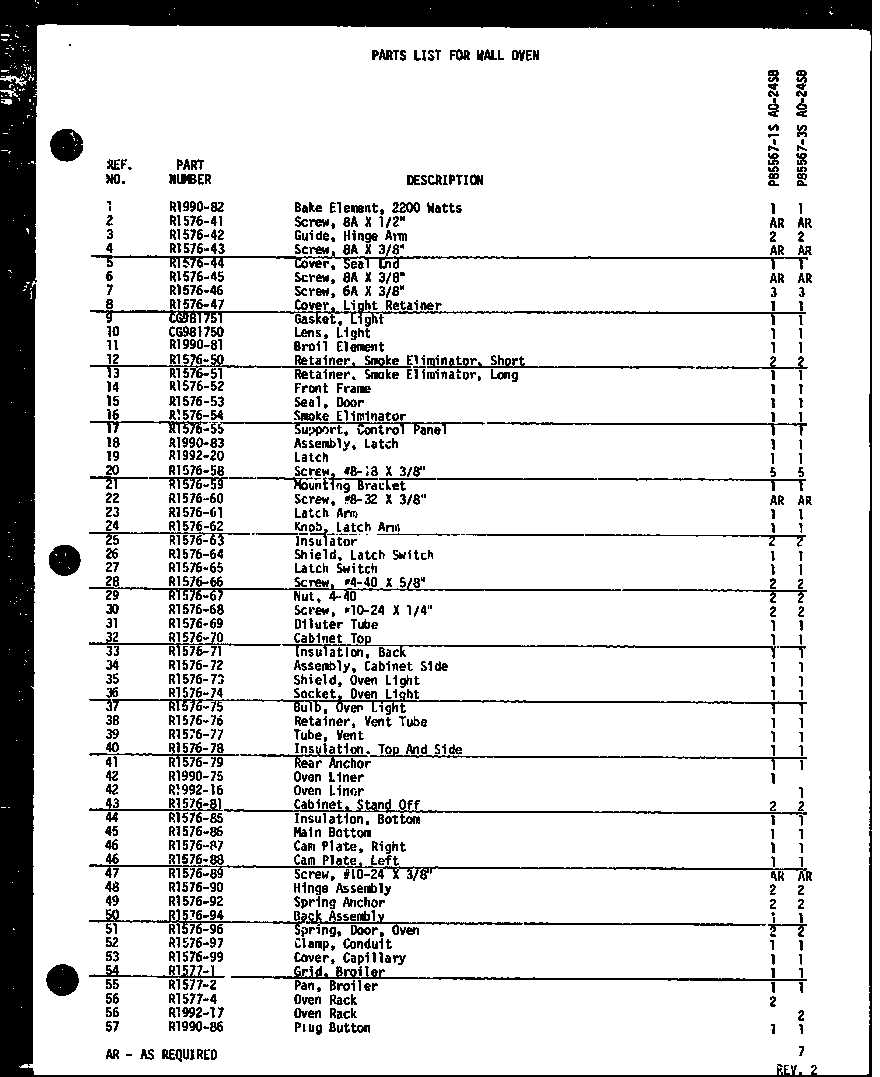

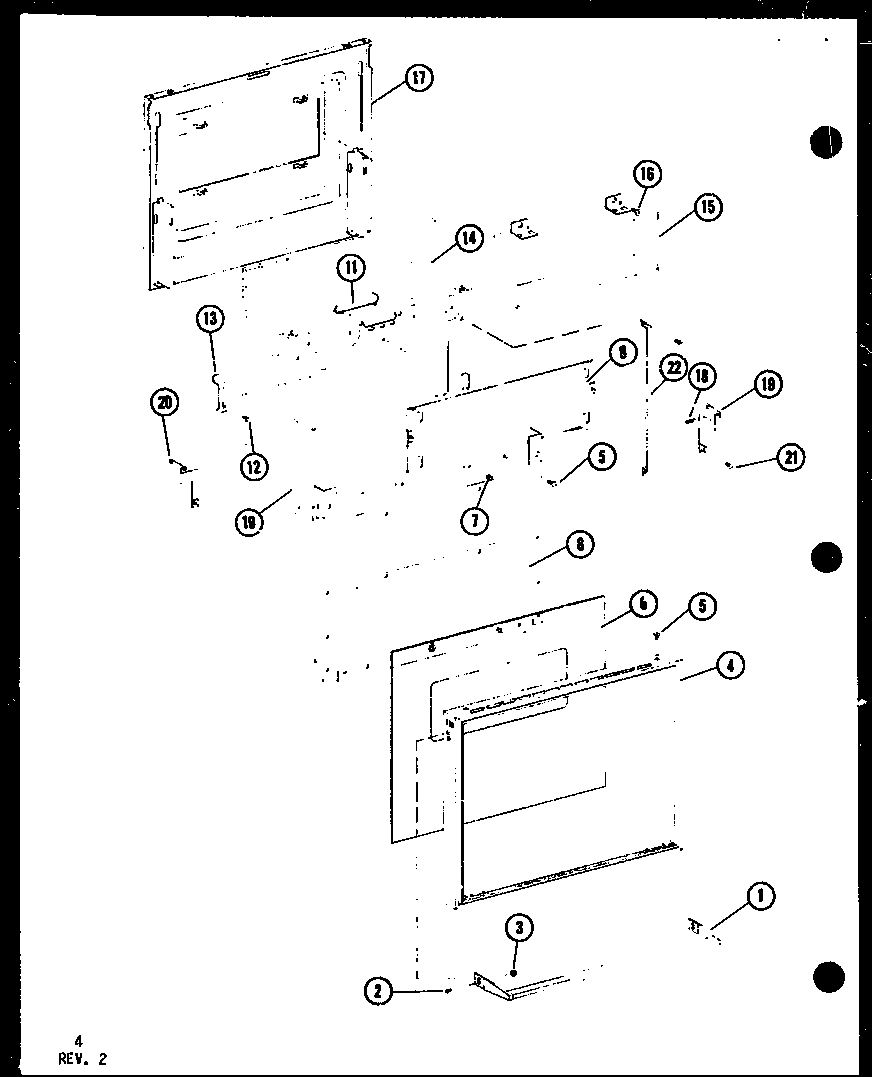

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Knob

Part #R0199085

Replaced by #WP4168403

?
Manufacturer substitution
This part replaces R0199085. Substitute parts can look different from the original.
This item is not returnable
$21.02 |
22% OFF Phone Price : $27.02
In Stock
Screw, #10-24 X 3/4" R0157732
#21

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Screw, #10-24 x 3/4"

Part #R0157732

The manufacturer no longer makes this part, and there's no substitute part

Insulation, Retainer R0157721
#10A

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Insulation, retainer

Part #R0157721

The manufacturer no longer makes this part, and there's no substitute part

Hinge Guide R0157642
Hinge guide

Part #R0157642

The manufacturer no longer makes this part, and there's no substitute part

Terminal Block With Resistor R0157608
#7

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Terminal block with resistor

Part #R0157608

The manufacturer no longer makes this part, and there's no substitute part

Back Assembly R0157695
#32

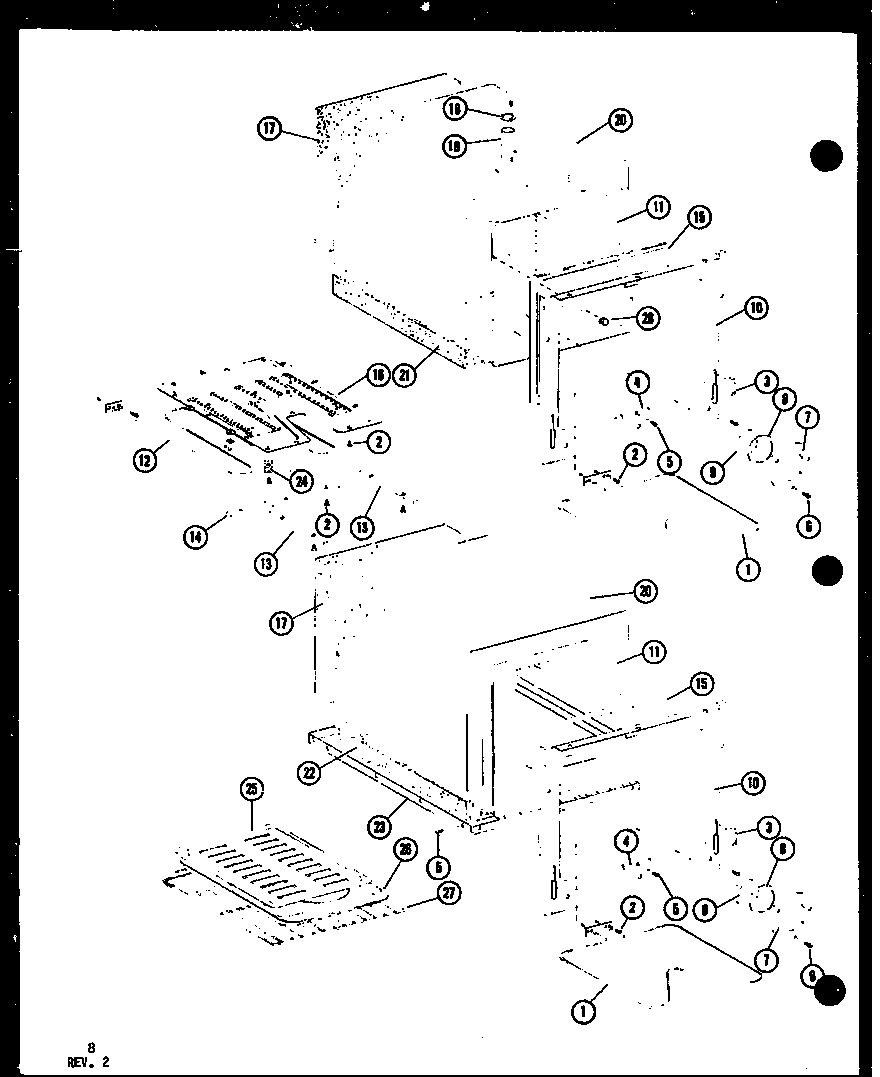

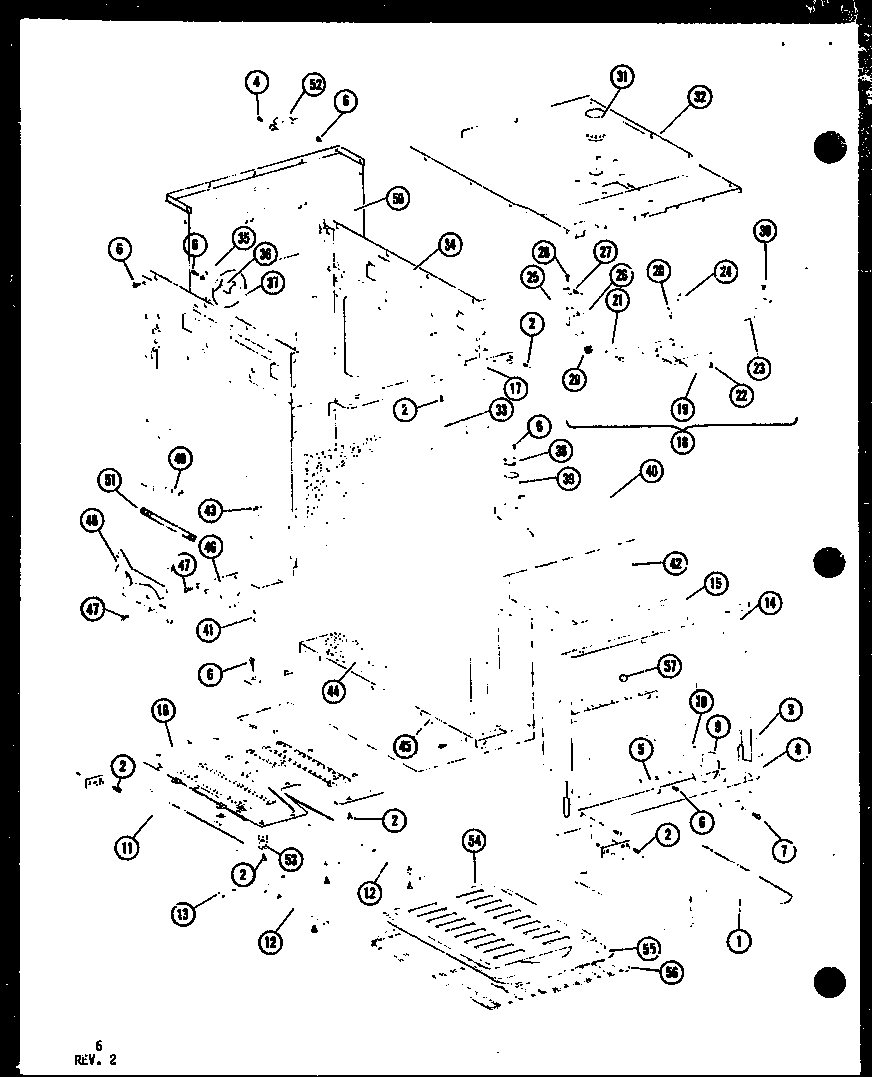

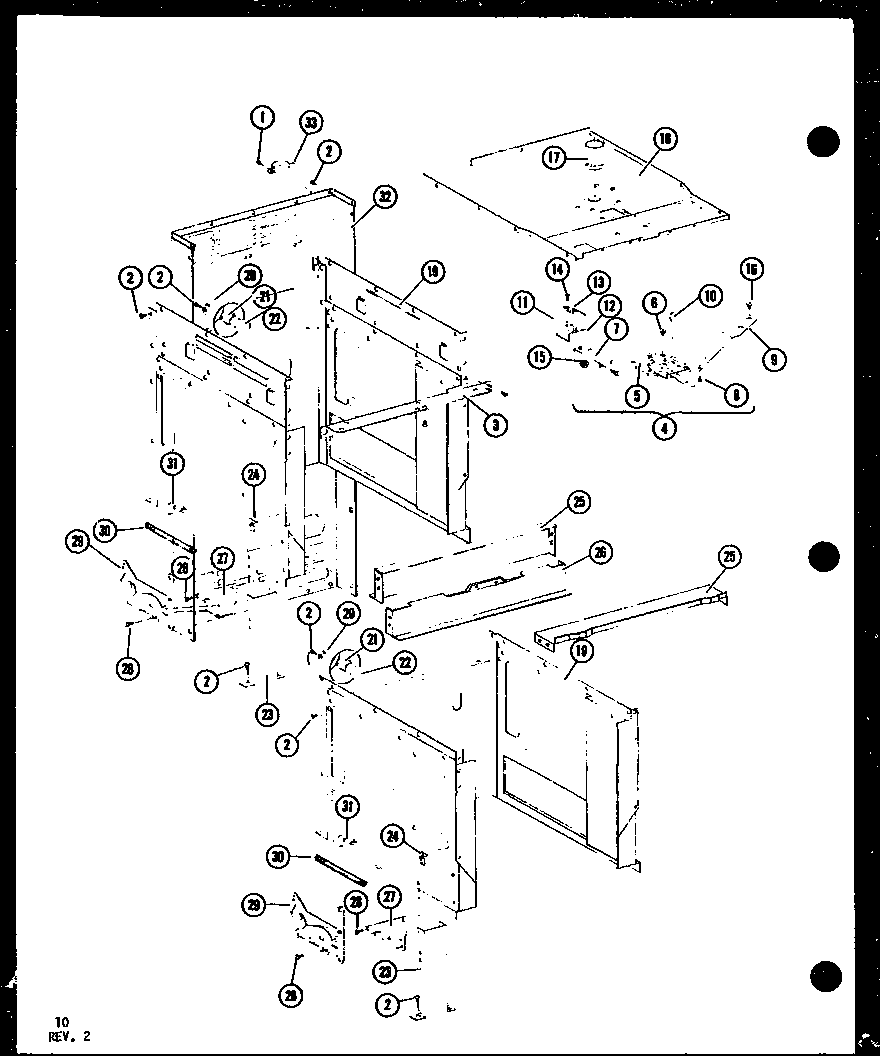

(ao-24db/p85567-2s) diagram

Back assembly

Part #R0157695

The manufacturer no longer makes this part, and there's no substitute part

Shield Latch, Left R0157731
#20

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Shield latch, left

Part #R0157731

The manufacturer no longer makes this part, and there's no substitute part

Gasket, Light CG981751
Gasket, light

Part #CG981751

The manufacturer no longer makes this part, and there's no substitute part

Nut, #8-32 X 3/8" R0157714
#3

(ao-24sb/p85567-1s) (ao-24db/p85567-2s) diagram

Nut, #8-32 x 3/8"

Part #R0157714

The manufacturer no longer makes this part, and there's no substitute part

Screw, #4-40 X 5/8" R0157666
Screw, #4-40 x 5/8"

Part #R0157666

The manufacturer no longer makes this part, and there's no substitute part
