Craftsman
Grass Catcher Attachment

Model # 247240192 Official Craftsman two-bin bagger

Here are the diagrams and repair parts for Official Craftsman 247240192 two-bin bagger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Yard Machines Lawn & Garden Equipment Lock Nut, 5/16-18 (replaces 753-05591) 712-04063
#6

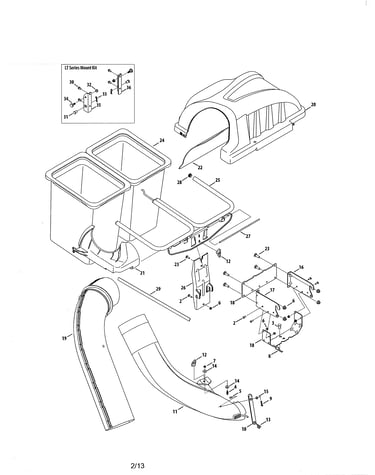

Two bin bagger diagram

Yard machines lawn & garden equipment lock nut, 5/16-18 (replaces 753-05591)

Part #712-04063

BEST SELLER
This item is not returnable
$4.53 |
18% OFF Phone Price : $5.53
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#32

Two bin bagger diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Tractor Self-tapping Screw, 5/16-18 X 3/4-in (replaces 01008620) 710-04484
#30

Two bin bagger diagram

Lawn tractor self-tapping screw, 5/16-18 x 3/4-in (replaces 01008620)

Part #710-04484

BEST SELLER
This item is not returnable
$4.93 |
17% OFF Phone Price : $5.93
In Stock
Craftsman Lawn Mower Deflector Shield (replaces 731-09173) 731-09173A
#11

Two bin bagger diagram

Craftsman lawn mower deflector shield (replaces 731-09173)

Part #731-09173A

$109.88 |
10% OFF Phone Price : $121.88
In Stock
Toro Lawn & Garden Equipment Carriage Bolt (replaces 910-0276, Af-44326) 710-0276
#23

Two bin bagger diagram

Toro lawn & garden equipment carriage bolt (replaces 910-0276, af-44326)

Part #710-0276

This item is not returnable
$5.17 |
16% OFF Phone Price : $6.17
In Stock
Lawn Tractor Bagger Attachment Chute Strap Spring Hook 732-04510A
#13

Two bin bagger diagram

Lawn tractor bagger attachment chute strap spring hook

Part #732-04510A

This item is not returnable
$7.38 |
12% OFF Phone Price : $8.38
In Stock
Lawn Tractor Bagger Attachment Upper Chute 931-04295A
#19

Two bin bagger diagram

Lawn tractor bagger attachment upper chute

Part #931-04295A

Replaced by #931-04295B

?
Manufacturer substitution
This part replaces 931-04295A. Substitute parts can look different from the original.
$143.80 |
8% OFF Phone Price : $155.80
In Stock
Lawn Tractor Hex Bolt 710-3008
#2

Two bin bagger diagram

Lawn tractor hex bolt

Part #710-3008

This item is not returnable
$4.62 |
18% OFF Phone Price : $5.62
In Stock
Ryobi Lawn & Garden Equipment Flat Washer 736-0204
#15

Two bin bagger diagram

Ryobi lawn & garden equipment flat washer

Part #736-0204

This item is not returnable
$5.43 |
16% OFF Phone Price : $6.43
In Stock
Lawn Tractor Bagger Attachment Lower Chute Attachment Pin 711-05049
#4

Two bin bagger diagram

Lawn tractor bagger attachment lower chute attachment pin

Part #711-05049

This item is not returnable
$13.32 |
13% OFF Phone Price : $15.32
In Stock
