Samsung
DVD Player

Model # BD-F5100/ZA-JT04 Official Samsung dvd player

Here are the diagrams and repair parts for Official Samsung BD-F5100-ZA-JT04 dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Television Screw 6003-000282
#12

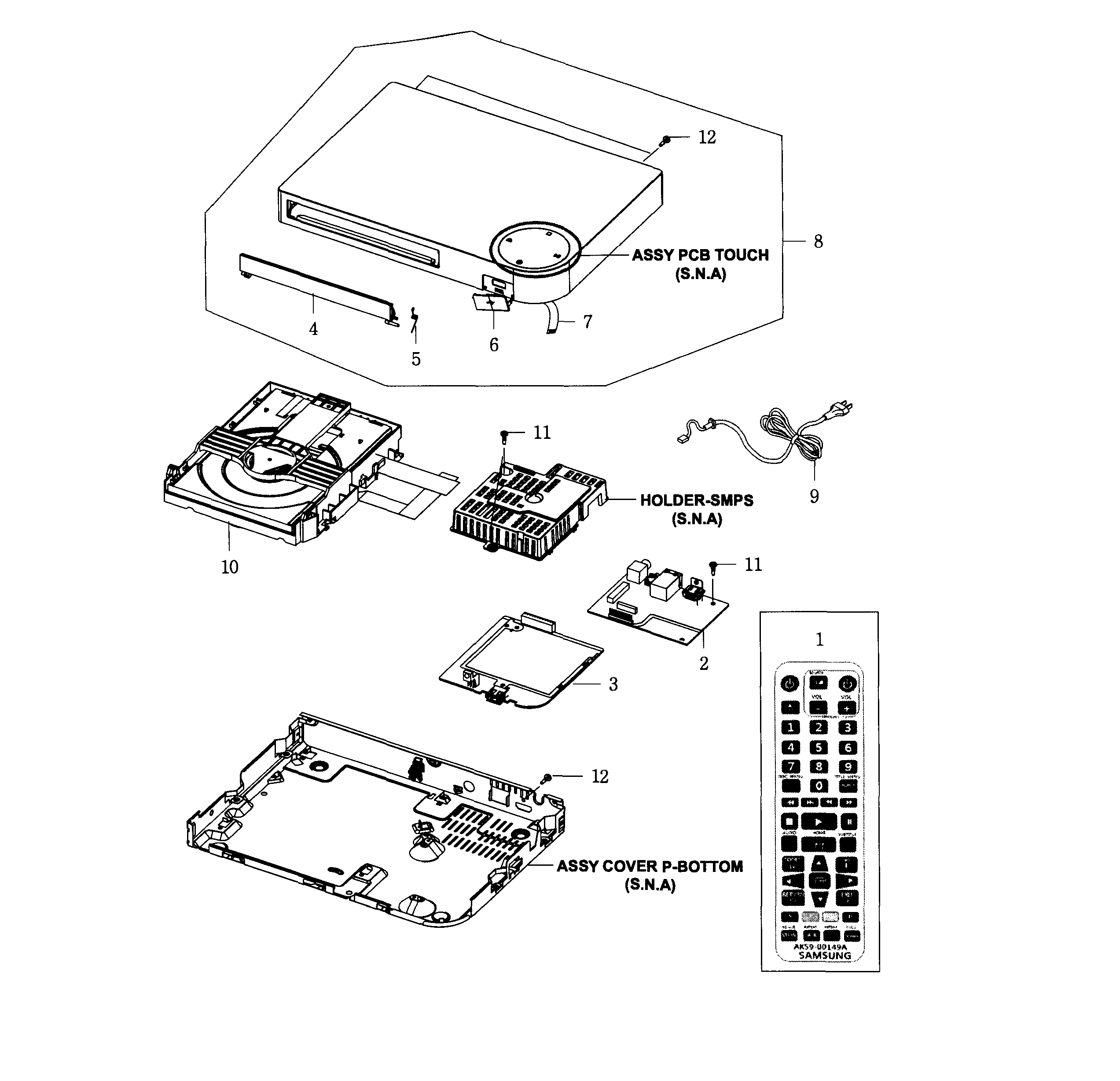

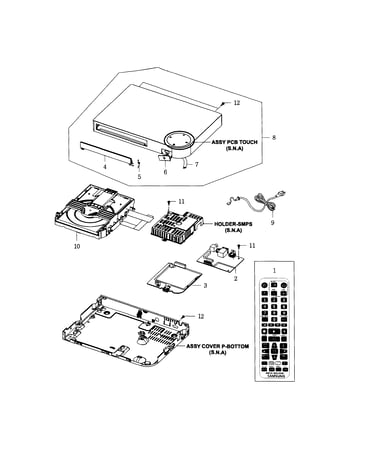

Main assy diagram

Television screw

Part #6003-000282

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1203-006067
#NI

Main assy diagram

Integrated circuit

Part #1203-006067

The manufacturer no longer makes this part, and there's no substitute part

Usb Cover AK63-00958A
#6

Main assy diagram

Usb cover

Part #AK63-00958A

The manufacturer no longer makes this part, and there's no substitute part

Module 0609-001203
#NI

Main assy diagram

Module

Part #0609-001203

The manufacturer no longer makes this part, and there's no substitute part

Cable AK96-01943Y
#7

Main assy diagram

Cable

Part #AK96-01943Y

The manufacturer no longer makes this part, and there's no substitute part

Ic Mask AK11-00028A
#NI

Main assy diagram

Ic mask

Part #AK11-00028A

The manufacturer no longer makes this part, and there's no substitute part

Cover AK63-00943A
#4

Main assy diagram

Cover

Part #AK63-00943A

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1204-003431
#NI

Main assy diagram

Integrated circuit

Part #1204-003431

The manufacturer no longer makes this part, and there's no substitute part

Ic Convert 1203-006455
#NI

Main assy diagram

Ic convert

Part #1203-006455

The manufacturer no longer makes this part, and there's no substitute part

Filter 2901-001506
#NI

Main assy diagram

Filter

Part #2901-001506

The manufacturer no longer makes this part, and there's no substitute part
