Craftsman
Gas Snowblower

Model # 13181925 Official Craftsman 20" snow blower

Here are the diagrams and repair parts for Official Craftsman 13181925 20" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Washer 59289
#29

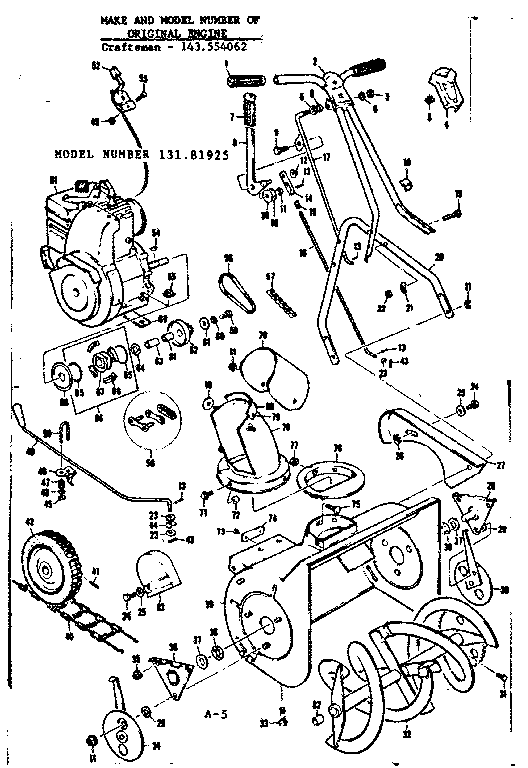

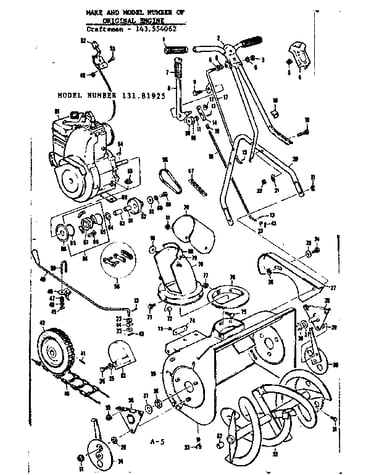

Drive assembly diagram

Washer

Part #59289

Replaced by #532059289

?
Manufacturer substitution
This part replaces 59289. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Husqvarna Lawn Tractor Battery Box 186491
#71

Drive assembly diagram

Husqvarna lawn tractor battery box

Part #186491

The manufacturer no longer makes this part, and there's no substitute part

Screw 423553
#31

Drive assembly diagram

Screw

Part #423553

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Spacer 59304
#63

Drive assembly diagram

Sleeve spacer

Part #59304

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 271172
#33

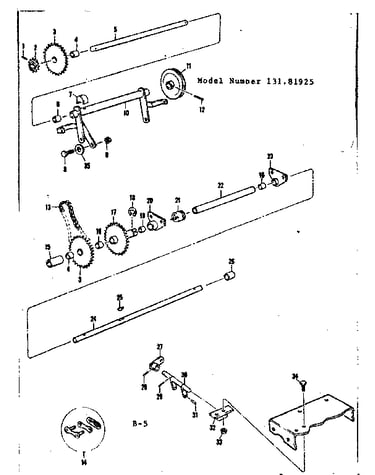

Axle support assembly diagram

Lock nut

Part #271172

The manufacturer no longer makes this part, and there's no substitute part

Belt Guard 59358
#27

Drive assembly diagram

Belt guard

Part #59358

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 59251
#4

Axle support assembly diagram

Sprocket

Part #59251

The manufacturer no longer makes this part, and there's no substitute part

Control 59282
#80

Drive assembly diagram

Control

Part #59282

The manufacturer no longer makes this part, and there's no substitute part

Tire Chain 59367
#40

Drive assembly diagram

Tire chain

Part #59367

The manufacturer no longer makes this part, and there's no substitute part

Washer 59375
#37

Drive assembly diagram

Washer

Part #59375

The manufacturer no longer makes this part, and there's no substitute part
