Thermador
Electric Wall Oven

Model # M271ES01 Official Thermador electric oven

Here are the diagrams and repair parts for Official Thermador M271ES01 electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

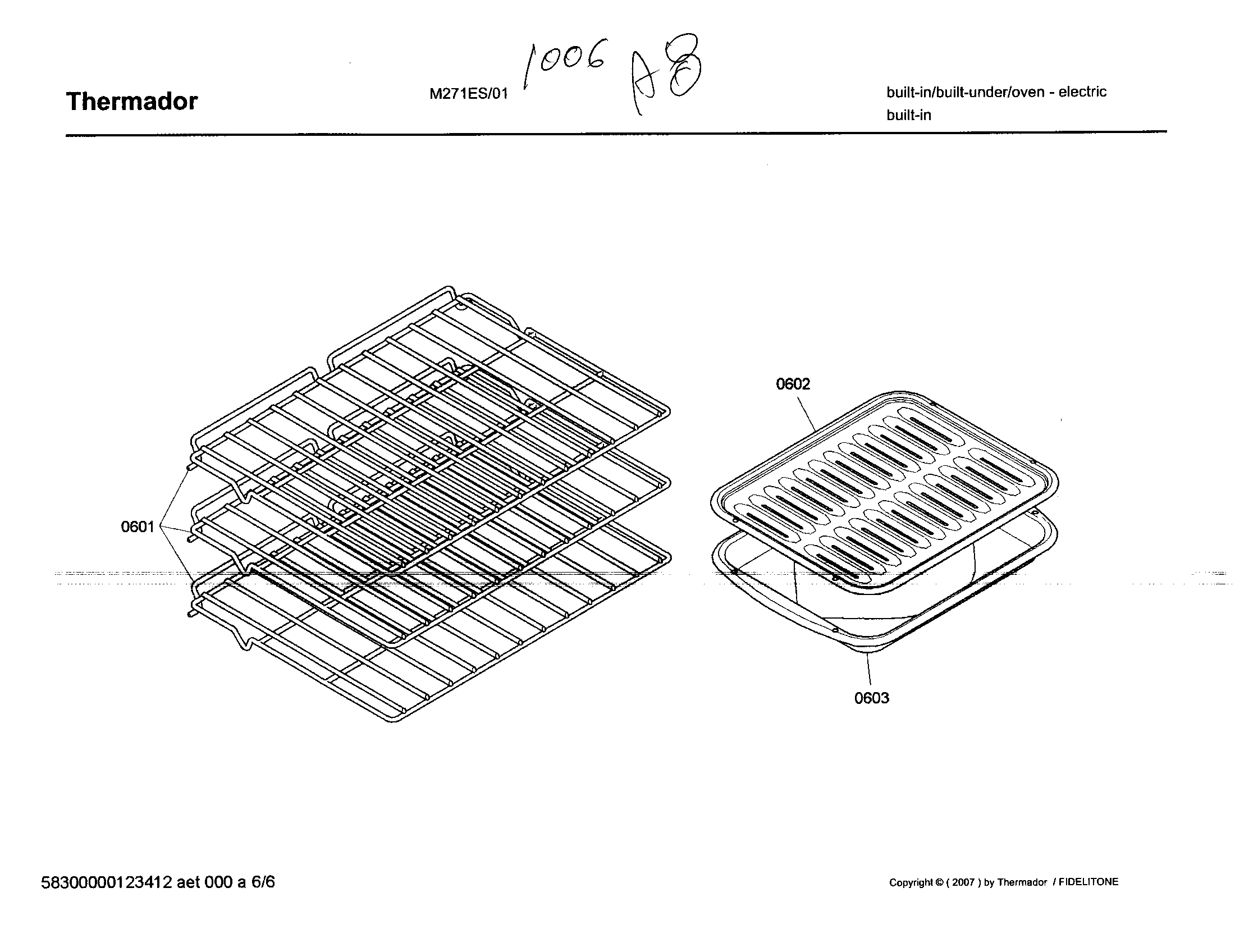

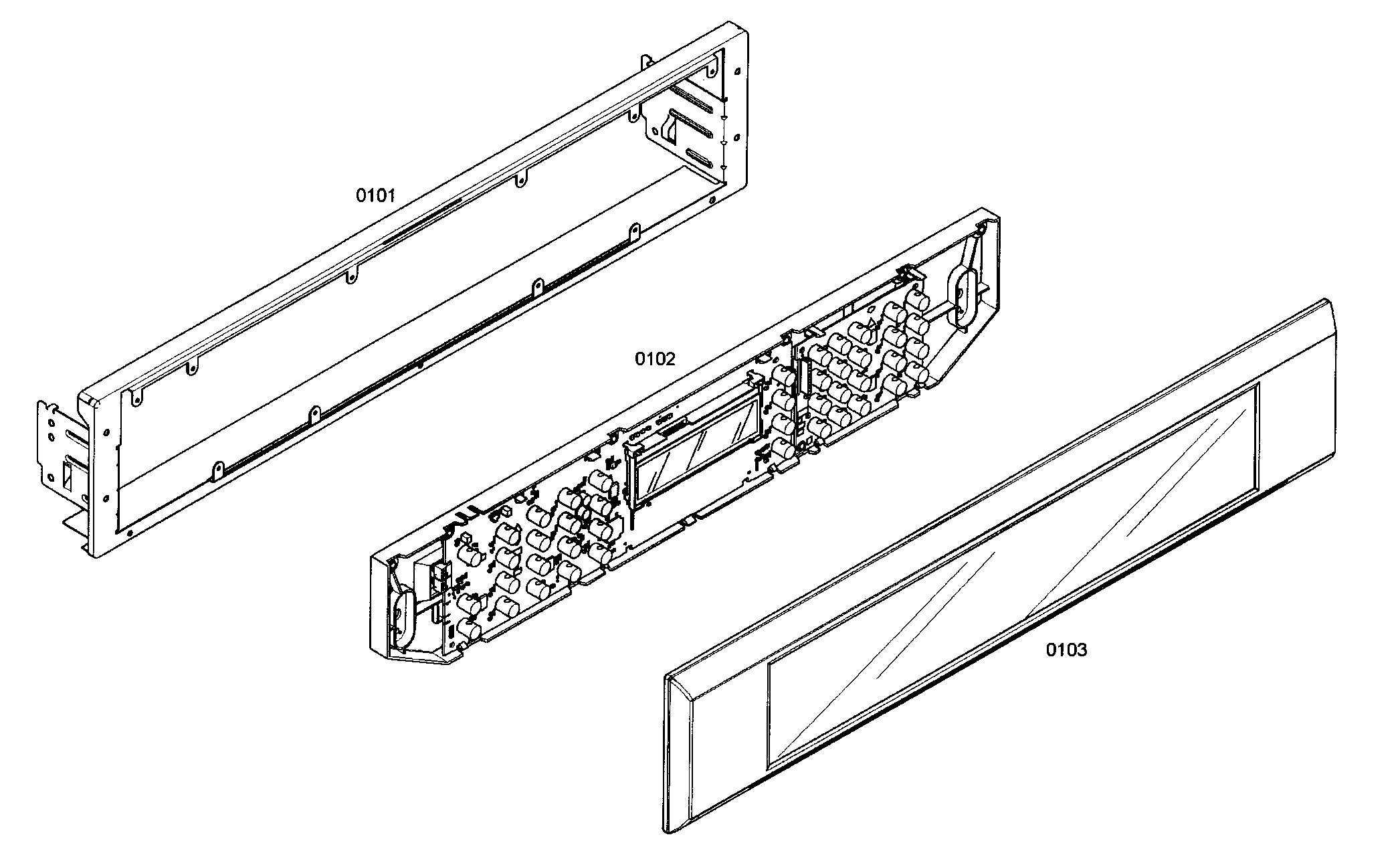

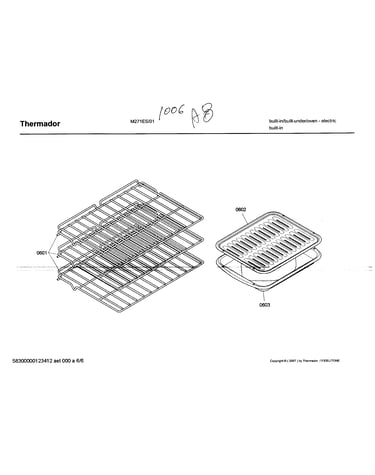

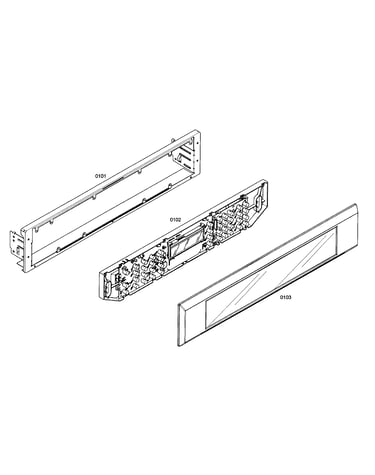

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Sensor 642855
#313

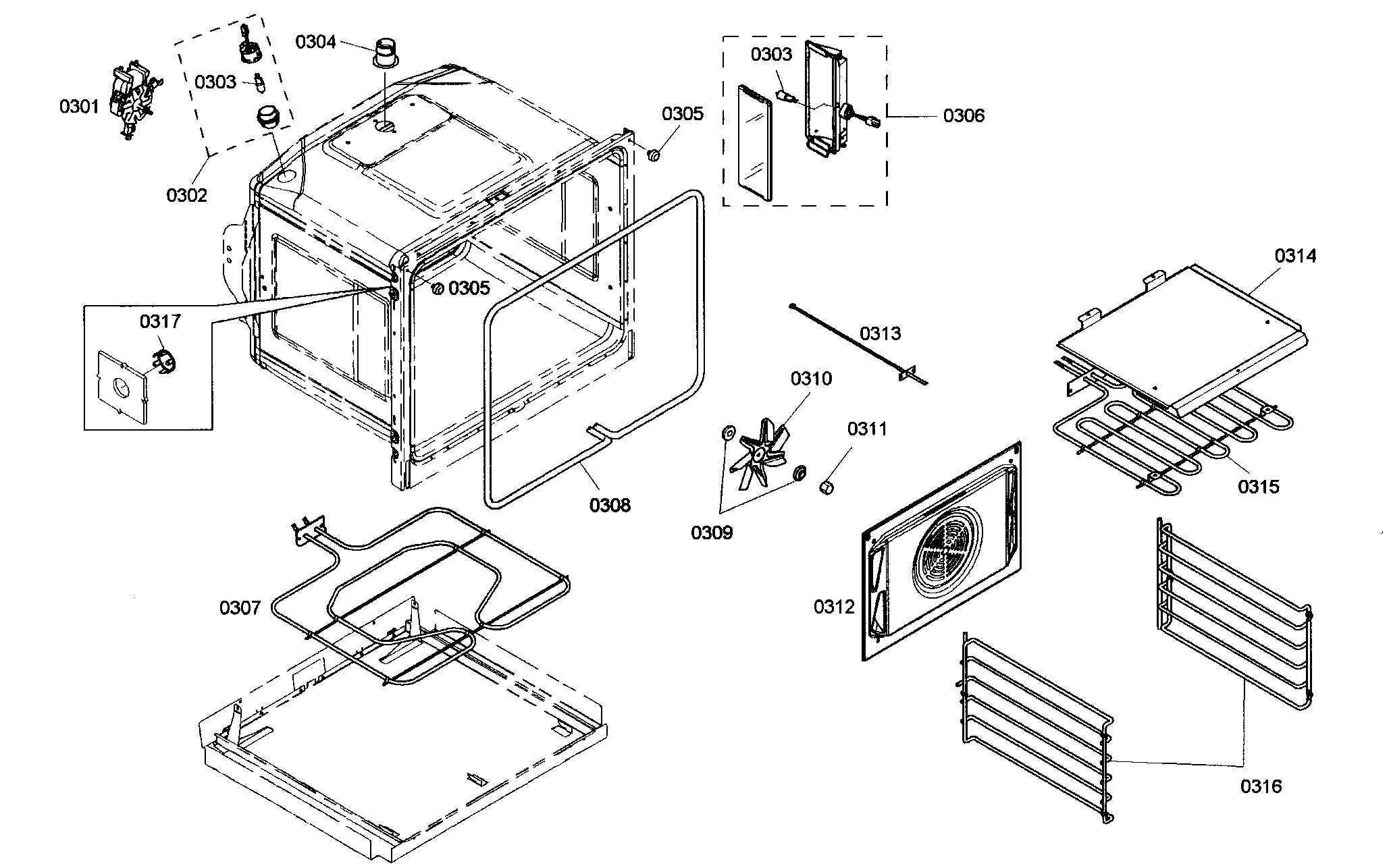

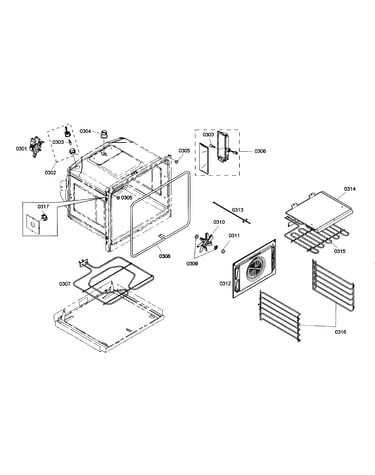

Cabinet parts diagram

Sensor

Part #642855

Replaced by #00642855

?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Power Supply 663802
#204

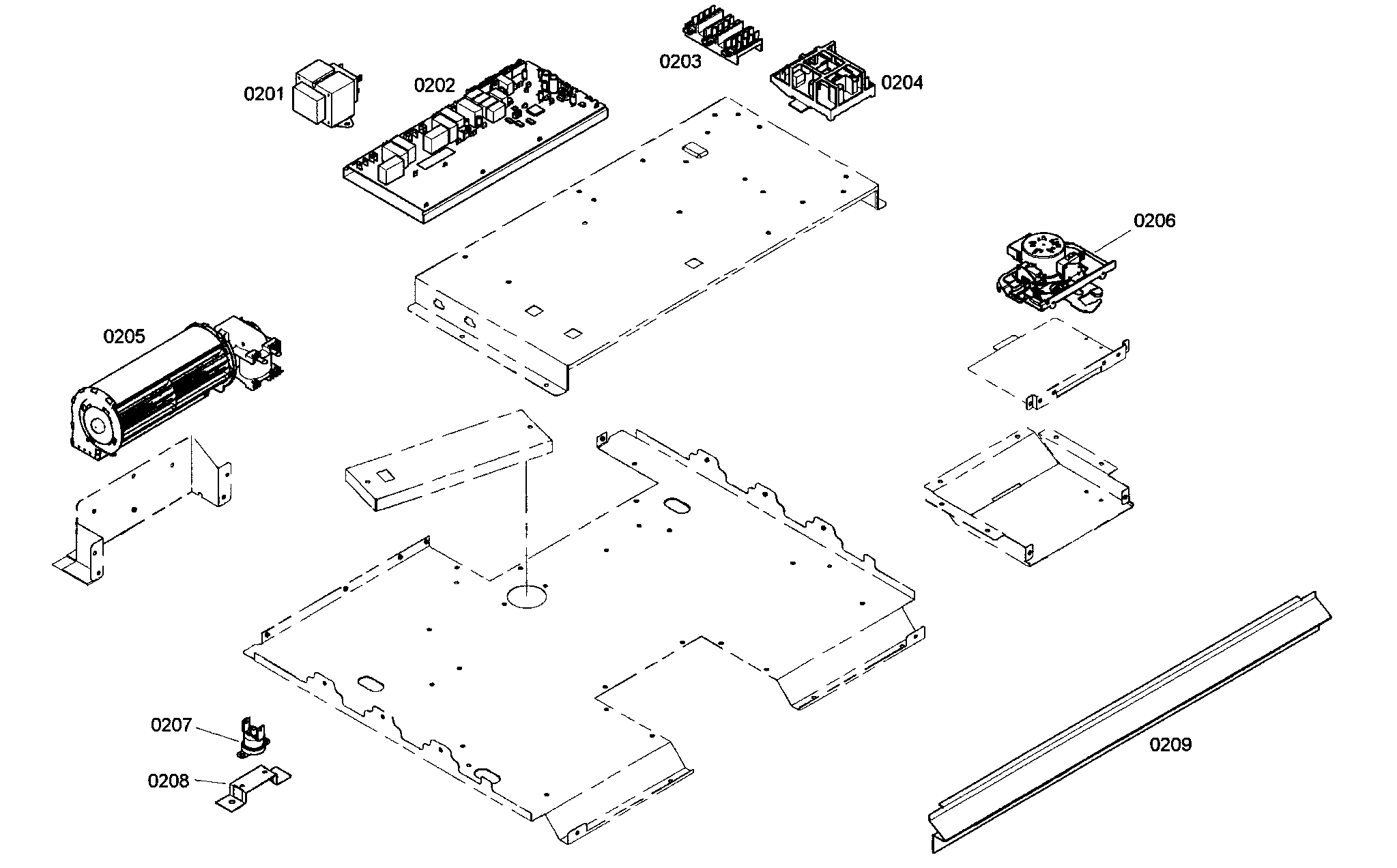

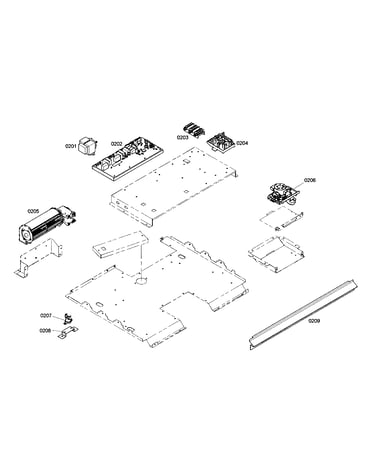

Pcb assy diagram

Power supply

Part #663802

Replaced by #00663802

?
Manufacturer substitution
This part replaces 663802. Substitute parts can look different from the original.
$128.19 |
9% OFF Phone Price : $140.19
In Stock
Door Latch 663804
#206

Pcb assy diagram

Door latch

Part #663804

Replaced by #00751505

?
Manufacturer substitution
This part replaces 663804. Substitute parts can look different from the original.
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Control Module 665997
#202

Pcb assy diagram

Control module

Part #665997

Replaced by #00655359

?
Manufacturer substitution
This part replaces 665997. Substitute parts can look different from the original.
$548.51 |
$12.00 OFF Phone Price : $560.51
In Stock
Spacer 427919
#305

Cabinet parts diagram

Spacer

Part #427919

Replaced by #00427919

?
Manufacturer substitution
This part replaces 427919. Substitute parts can look different from the original.
$19.80
In Stock
Decorative Frame 144656
#508

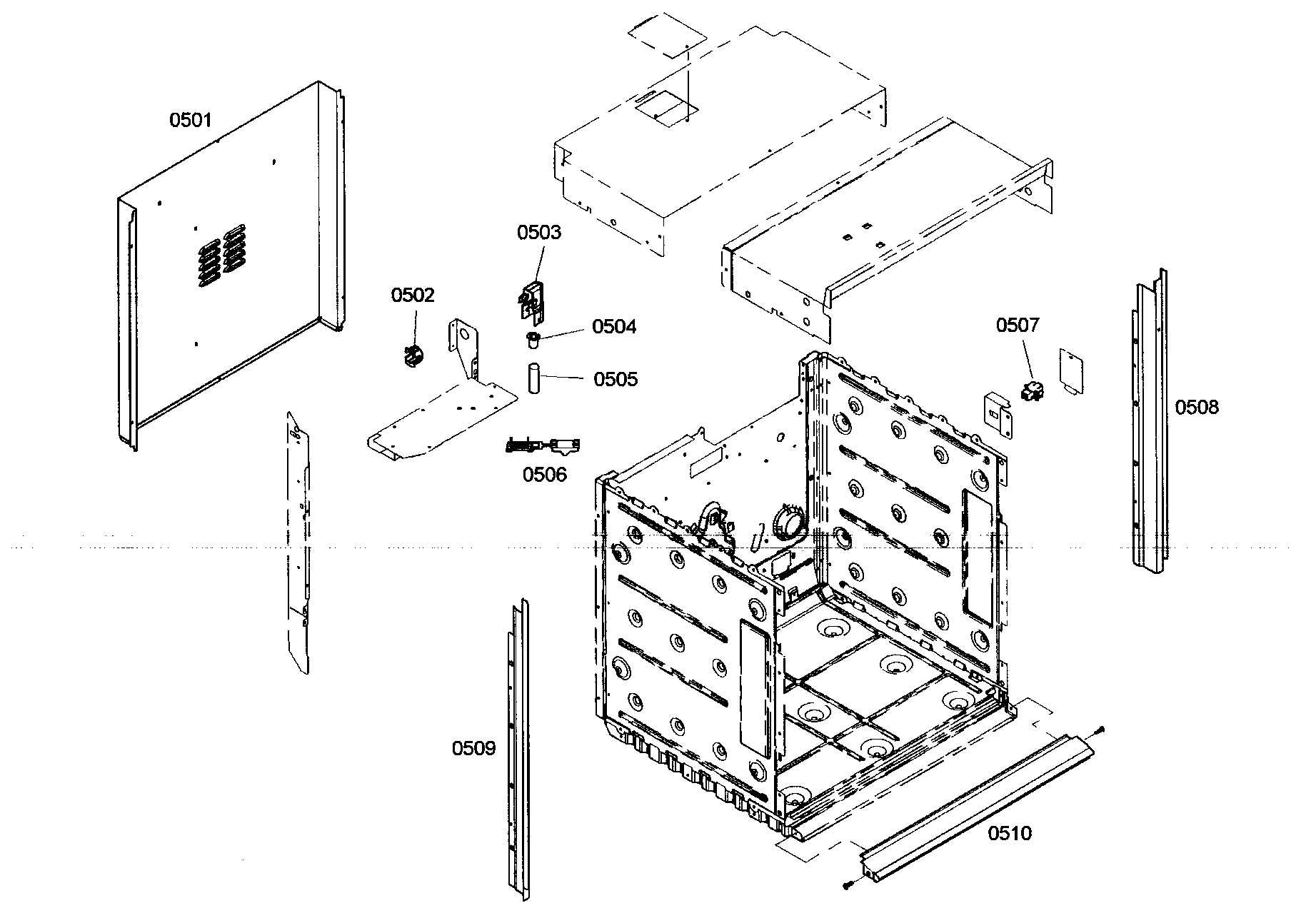

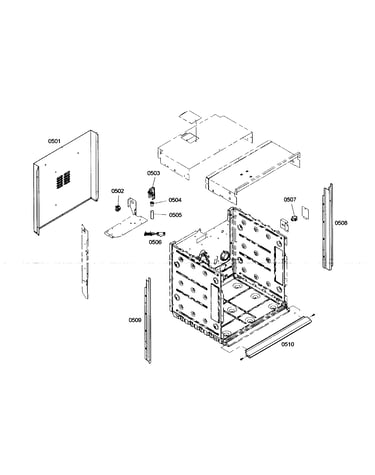

Outside parts diagram

Decorative frame

Part #144656

Replaced by #00682495

?
Manufacturer substitution
This part replaces 144656. Substitute parts can look different from the original.
$192.75
In Stock
Connection 414692
#503

Outside parts diagram

Connection

Part #414692

Replaced by #00414692

?
Manufacturer substitution
This part replaces 414692. Substitute parts can look different from the original.
$49.31
In Stock
Trim Plate 665059
#405

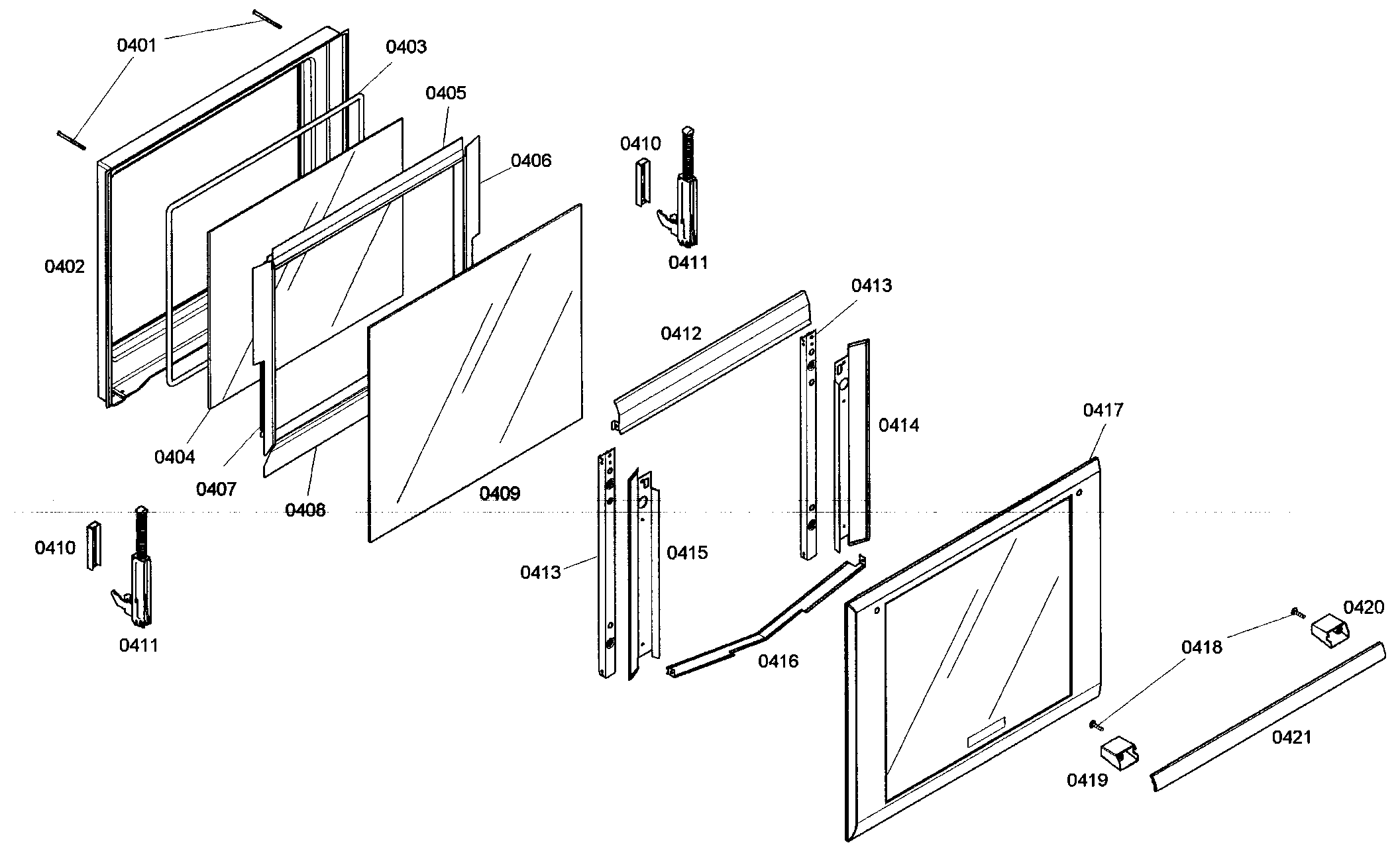

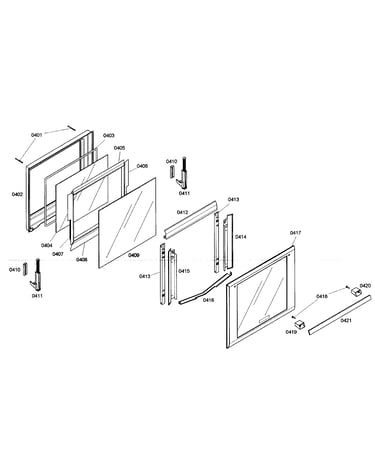

Door assy diagram

Trim plate

Part #665059

Replaced by #00680904

?
Manufacturer substitution
This part replaces 665059. Substitute parts can look different from the original.
$214.01 |
5% OFF Phone Price : $226.01
In Stock
Transformer 663801
#201

Pcb assy diagram

Transformer

Part #663801

Replaced by #00663801

?
Manufacturer substitution
This part replaces 663801. Substitute parts can look different from the original.
$159.12
In Stock
Limiter 642844
#207

Pcb assy diagram

Limiter

Part #642844

Replaced by #00617877

?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
$29.36
In Stock
