Craftsman
Front-Engine Lawn Tractor

Model # 91725150 Official Craftsman garden tractor - 1977

Here are the diagrams and repair parts for Official Craftsman 91725150 garden tractor - 1977, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

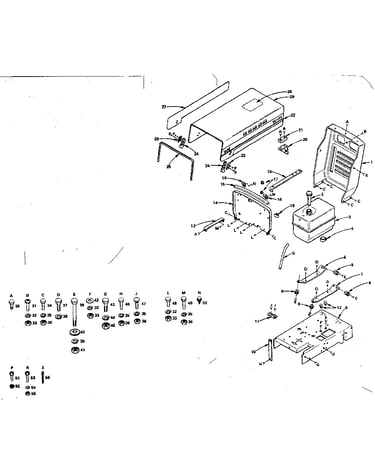

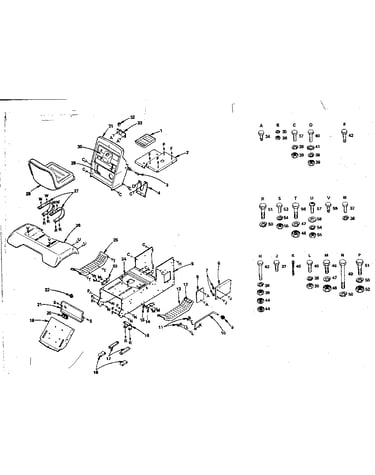

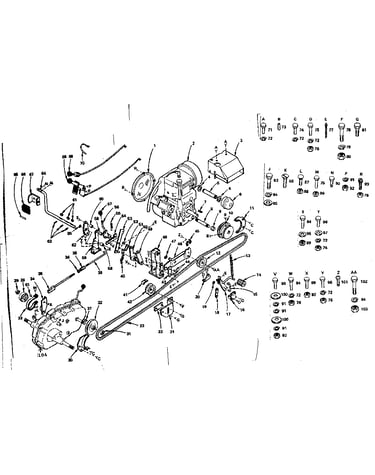

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 268 parts  |
Hub Cap 2118R
#34

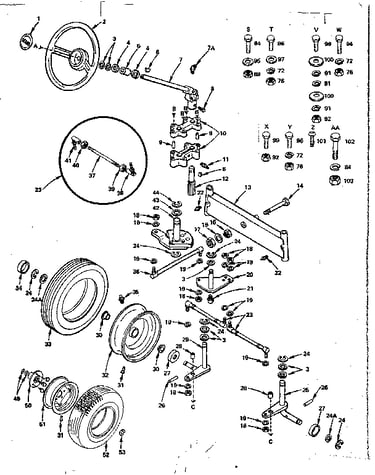

Steering and front axle diagram

Hub cap

Part #2118R

Replaced by #532104757

?
Manufacturer substitution
This part replaces 2118R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Solenoid 103R
#6

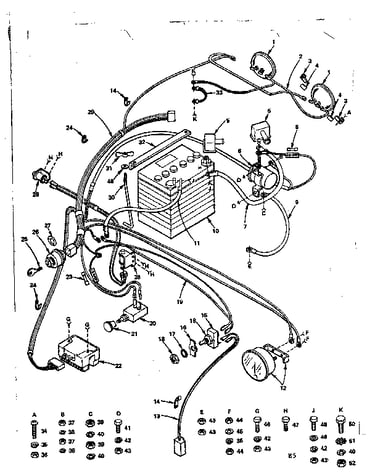

Electrical diagram

Solenoid

Part #103R

Replaced by #532146154

?
Manufacturer substitution
This part replaces 103R. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Starter Switch 4406R
#26

Electrical diagram

Starter switch

Part #4406R

Replaced by #532365402

?
Manufacturer substitution
This part replaces 4406R. Substitute parts can look different from the original.
BEST SELLER
$29.38 |
17% OFF Phone Price : $35.38
In Stock
Hub Bolt 1304H
#54

Steering and front axle diagram

Hub bolt

Part #1304H

Replaced by #596218701

?
Manufacturer substitution
This part replaces 1304H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Ground Cable 8861R
#11

Electrical diagram

Ground cable

Part #8861R

Replaced by #532004207

?
Manufacturer substitution
This part replaces 8861R. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Washer 1552P
#3

Steering and front axle diagram

Washer

Part #1552P

Replaced by #532121749

?
Manufacturer substitution
This part replaces 1552P. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Wheel 9528R
#51

Steering and front axle diagram

Wheel

Part #9528R

Replaced by #532106277

?
Manufacturer substitution
This part replaces 9528R. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Hex Fin Bolt 3034P
Hex fin bolt

Part #3034P

Replaced by #596238601

?
Manufacturer substitution
This part replaces 3034P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Hex Jam Nut 547P
#39

Steering and front axle diagram

Hex jam nut

Part #547P

Replaced by #873700600

?
Manufacturer substitution
This part replaces 547P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
E-ring 5017P
#44

Steering and front axle diagram

E-ring

Part #5017P

Replaced by #812000022

?
Manufacturer substitution
This part replaces 5017P. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
