Model # 13291427901 Official LXI am/fm stereo 8-track player

Here are the diagrams and repair parts for Official LXI 13291427901 am/fm stereo 8-track player, as well as links to manuals and error code tables, if available.

By Schematic

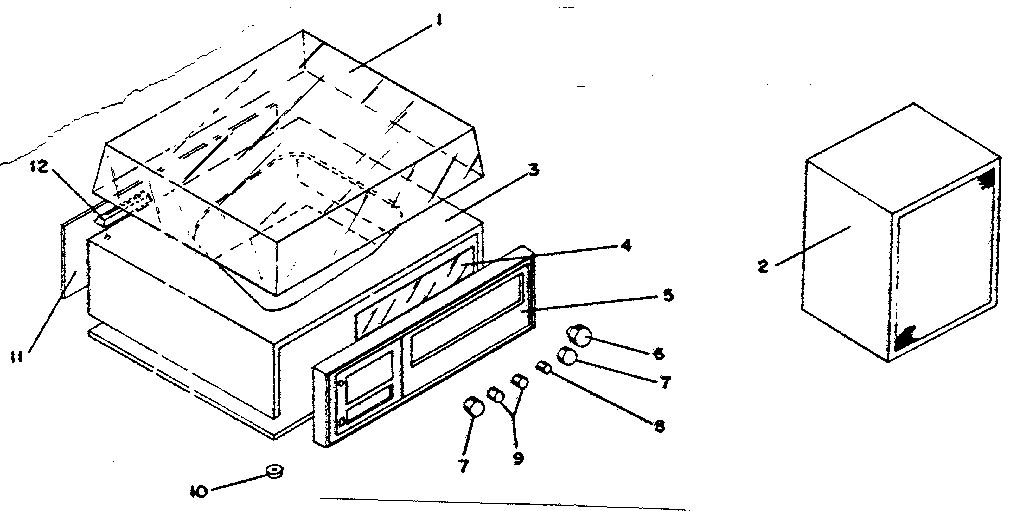

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
13291427901 AM/FM Stereo 8-Track Player
Spring A105824
#36

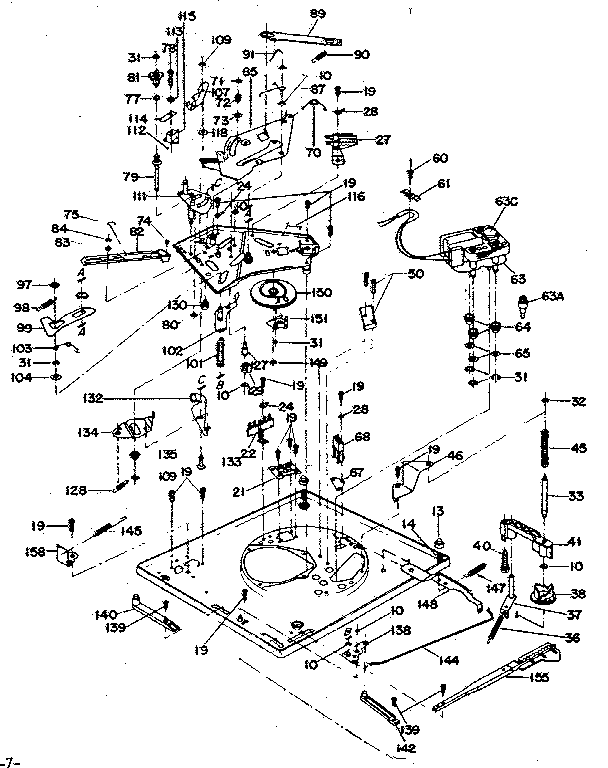

Parts below main plate diagram

Spring

Part #A105824

The manufacturer no longer makes this part, and there's no substitute part

Jockey Arm A105965
#37

Parts below main plate diagram

Jockey arm

Part #A105965

The manufacturer no longer makes this part, and there's no substitute part

Washer A102595
#11

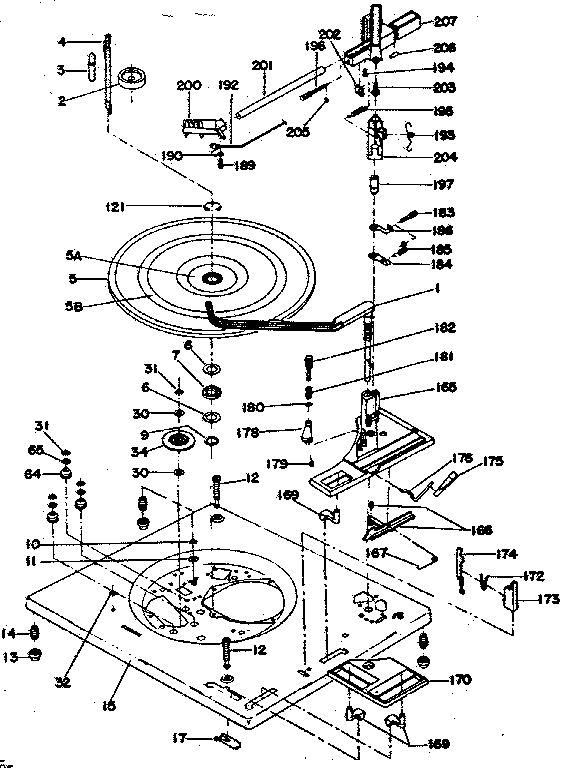

Parts above main plate diagram

Washer

Part #A102595

The manufacturer no longer makes this part, and there's no substitute part

Screw A105263
#60

Parts below main plate diagram

Screw

Part #A105263

The manufacturer no longer makes this part, and there's no substitute part

E-ring 2013019-64
#65

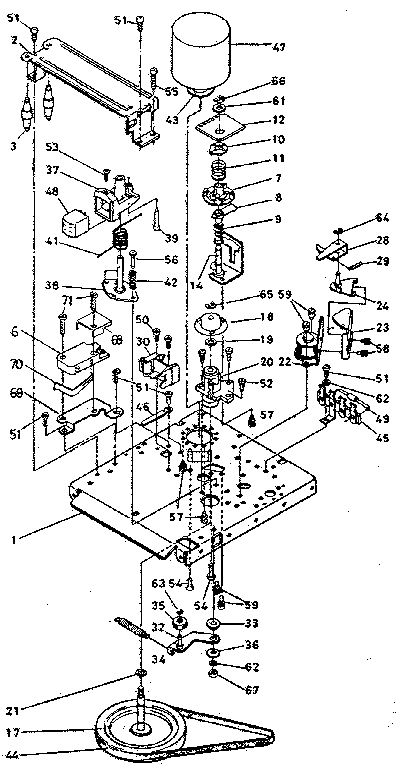

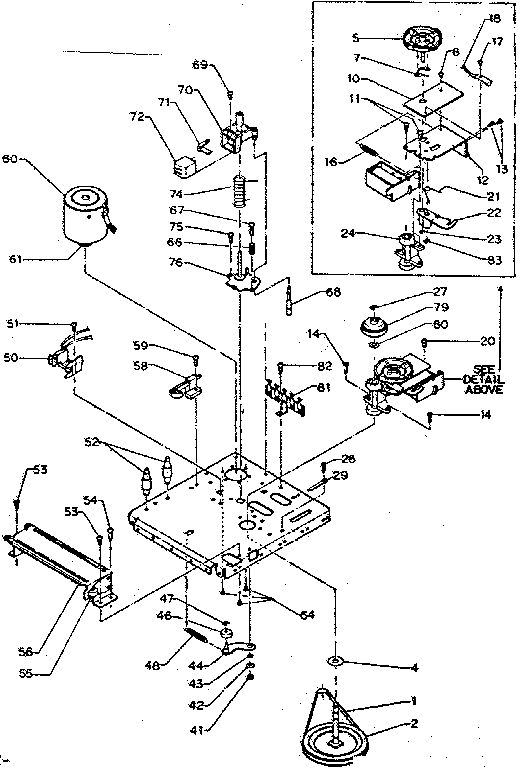

8-track mechanism (tn2012621-6) diagram

E-ring

Part #2013019-64

The manufacturer no longer makes this part, and there's no substitute part

Spring A102623
#98

Parts below main plate diagram

Spring

Part #A102623

The manufacturer no longer makes this part, and there's no substitute part

Retaining Cable A104882
#116

Parts below main plate diagram

Retaining cable

Part #A104882

The manufacturer no longer makes this part, and there's no substitute part

Washer A102237
#113

Parts below main plate diagram

Washer

Part #A102237

The manufacturer no longer makes this part, and there's no substitute part

Screw A105619
#40

Parts below main plate diagram

Screw

Part #A105619

The manufacturer no longer makes this part, and there's no substitute part

Spring A105826
#147

Parts below main plate diagram

Spring

Part #A105826

The manufacturer no longer makes this part, and there's no substitute part
