Model # HP4840S980 Official Maytag water heater
Here are the diagrams and repair parts for Official Maytag HP4840S980 water heater, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts forHP4840S980 Water Heaters
- #1

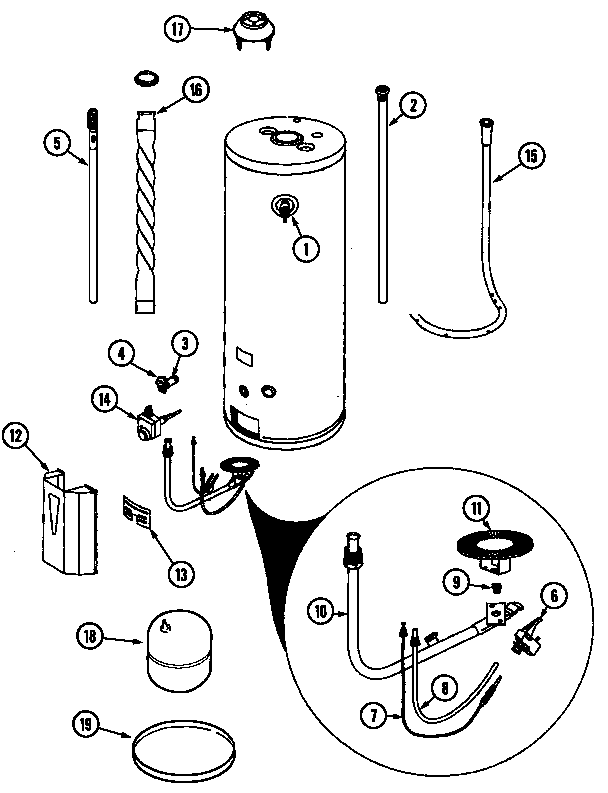

Body diagram
Valve, relief-5/8"shank - series 10Part #66001079
The manufacturer no longer makes this part, and there's no substitute part
- #17
Body diagram
Draft hoodPart #66001032
The manufacturer no longer makes this part, and there's no substitute part
- #9
Body diagram
Orifice, burner (#50) - series 12Part #0230225
The manufacturer no longer makes this part, and there's no substitute part
- #16
Body diagram
Baffle, flue - series 10Part #9000516
The manufacturer no longer makes this part, and there's no substitute part
- #3
Body diagram
Valve, drain-5/8" shank - series 10Part #66001080
The manufacturer no longer makes this part, and there's no substitute part
- #15
Body diagram
Dip tubePart #66001030
The manufacturer no longer makes this part, and there's no substitute part
- #16A
Body diagram
Baffle, flue - series 10Part #9002281
The manufacturer no longer makes this part, and there's no substitute part
- #19
Body diagram
(28") - series 10Part #66001012
The manufacturer no longer makes this part, and there's no substitute part
- #18
Body diagram
Tank, expansion (2 gal.) - series 10Part #66001013
The manufacturer no longer makes this part, and there's no substitute part
- #19A
Body diagram
Manual, use & care (8-yr - series 10Part #66001071
The manufacturer no longer makes this part, and there's no substitute part
