Range/Microwave Combo

Model # 630.002 Official Amana electric range/microwave combo

Here are the diagrams and repair parts for Official Amana 630.002 electric range/microwave combo, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for630.002 Microwaves

  • Bake Element (240 V.) M61D22
    #5A

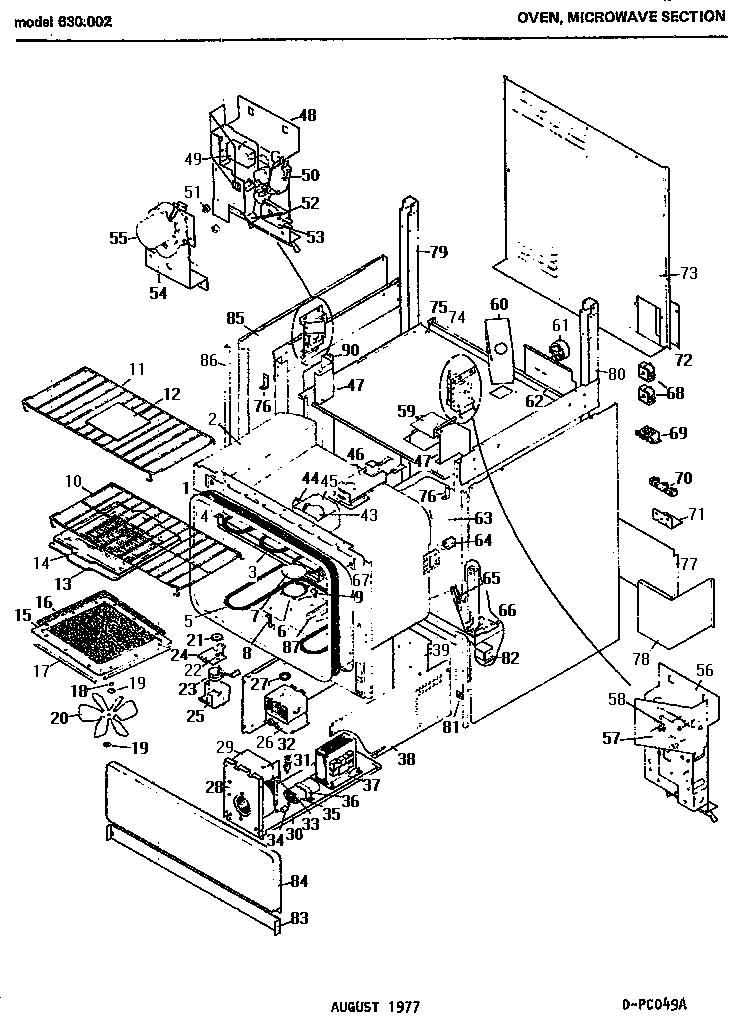

    Oven diagram

    Bake element (240 v.)

    Part #M61D22

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor M10D27
    #35

    Oven diagram

    Capacitor

    Part #M10D27

    The manufacturer no longer makes this part, and there's no substitute part

  • Oven Gasket M25D40
    #1

    Oven diagram

    Oven gasket

    Part #M25D40

    The manufacturer no longer makes this part, and there's no substitute part

  • Lock Motor Assembly M12D27
    #55A

    Oven diagram

    Lock motor assembly

    Part #M12D27

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Shield M72D20
    #5A

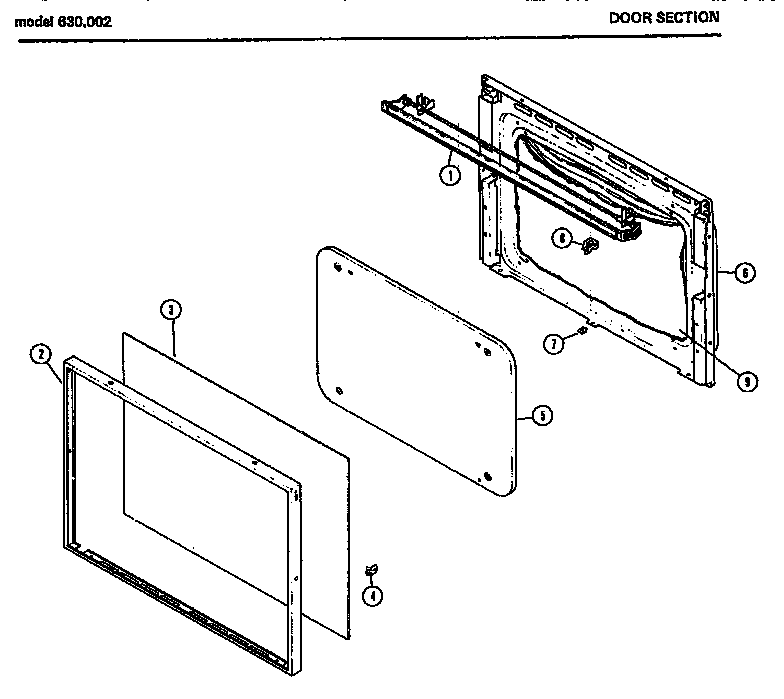

    Door section diagram

    Door shield

    Part #M72D20

    The manufacturer no longer makes this part, and there's no substitute part

  • Clip, Capillary Tube Mtg M2D235
    #8A

    Oven diagram

    Clip, capillary tube mtg

    Part #M2D235

    The manufacturer no longer makes this part, and there's no substitute part

  • Surface Light (fluorescent) M9D41
    #36

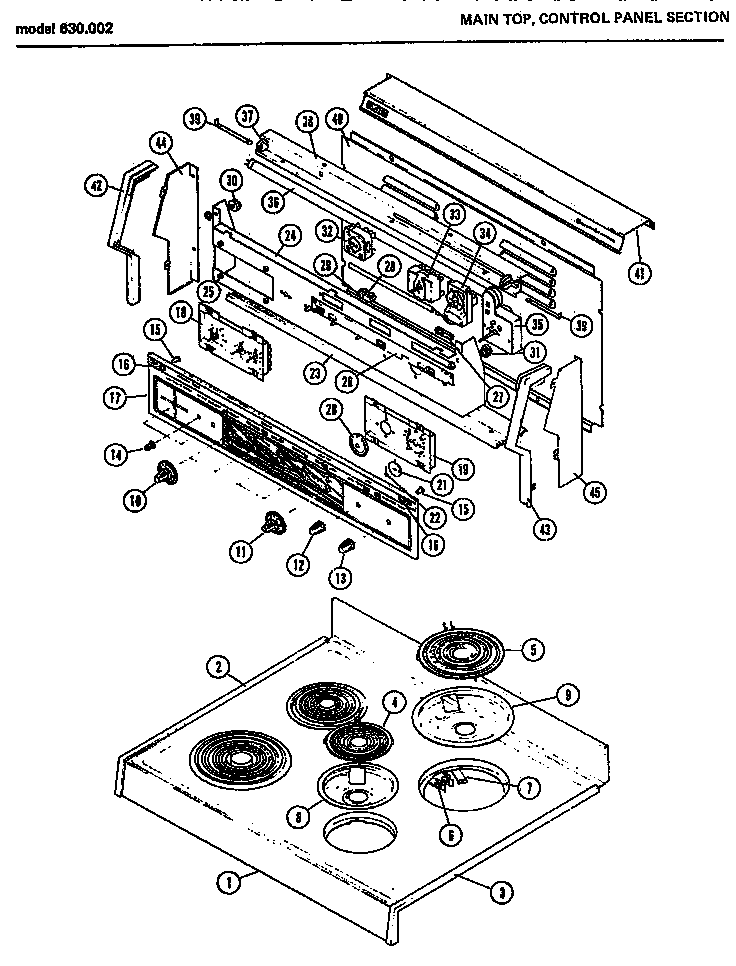

    Main top diagram

    Surface light (fluorescent)

    Part #M9D41

    The manufacturer no longer makes this part, and there's no substitute part

  • Exhaust Duct (oven Vent) M65D74
    #60

    Oven diagram

    Exhaust duct (oven vent)

    Part #M65D74

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner Bowl, Large M44D12
    #9

    Main top diagram

    Burner bowl, large

    Part #M44D12

    The manufacturer no longer makes this part, and there's no substitute part

  • Spacer M2D280
    #51

    Oven diagram

    Spacer

    Part #M2D280

    The manufacturer no longer makes this part, and there's no substitute part
