Model # 1106407702 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 1106407702 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

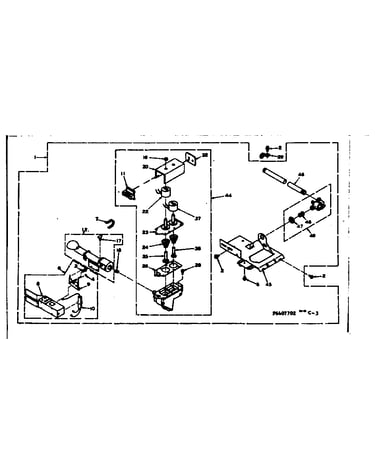

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1106407702 Gas Dryer

  • Switch 296141
    #58

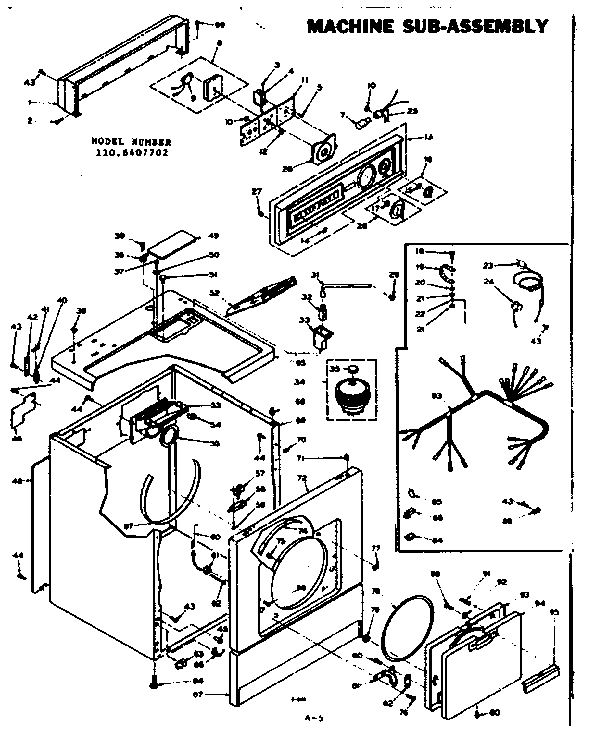

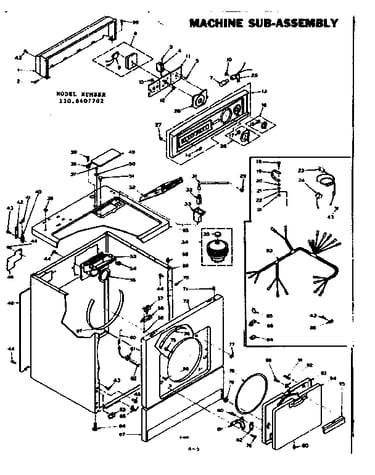

    Machine sub-assembly diagram

    Switch

    Part #296141

    Replaced by #W10820036

    ?
    Manufacturer substitution
    This part replaces 296141. Substitute parts can look different from the original.
    3.71 (7)
    BEST SELLER
    $21.46 |
    22% OFF Phone Price : $27.46
    In Stock
  • Lever 295998
    #57

    Machine sub-assembly diagram

    Lever

    Part #295998

    Replaced by #WP691581

    ?
    Manufacturer substitution
    This part replaces 295998. Substitute parts can look different from the original.
    5 (9)
    BEST SELLER
    This item is not returnable
    $6.77 |
    13% OFF Phone Price : $7.77
    In Stock
  • Dryer Cabinet Clip 98234
    #70

    Machine sub-assembly diagram

    Dryer cabinet clip

    Part #98234

    Replaced by #WP98234

    ?
    Manufacturer substitution
    This part replaces 98234. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $7.39 |
    12% OFF Phone Price : $8.39
    In Stock
  • Terminal Block 230148

    #NI

    All parts diagram

    Terminal block

    Part #230148

    Replaced by #279320

    ?
    Manufacturer substitution
    This part replaces 230148. Substitute parts can look different from the original.
    5 (1)
    BEST SELLER
    $33.15 |
    15% OFF Phone Price : $39.15
    In Stock
  • Clamp 232402
    #41

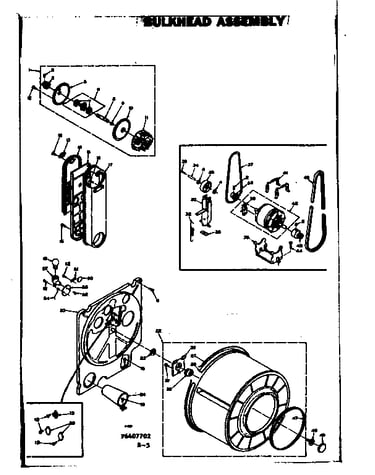

    Bulkhead assembly diagram

    Clamp

    Part #232402

    Replaced by #WP660658

    ?
    Manufacturer substitution
    This part replaces 232402. Substitute parts can look different from the original.
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Bumper 297787
    #75

    Machine sub-assembly diagram

    Bumper

    Part #297787

    Replaced by #279220

    ?
    Manufacturer substitution
    This part replaces 297787. Substitute parts can look different from the original.
    1 (1)
    This item is not returnable
    $18.38 |
    10% OFF Phone Price : $20.38
    In Stock
  • Clip Panel 297865
    #63

    Machine sub-assembly diagram

    Clip panel

    Part #297865

    Replaced by #279638

    ?
    Manufacturer substitution
    This part replaces 297865. Substitute parts can look different from the original.
    3 (4)
    This item is not returnable
    $6.36 |
    14% OFF Phone Price : $7.36
    In Stock
  • Door Seal 234800
    #78

    Machine sub-assembly diagram

    Door seal

    Part #234800

    Replaced by #W11613302

    ?
    Manufacturer substitution
    This part replaces 234800. Substitute parts can look different from the original.
    $59.29
    In Stock
  • Screw 98614
    #36

    Bulkhead assembly diagram

    Screw

    Part #98614

    Replaced by #WP356418

    ?
    Manufacturer substitution
    This part replaces 98614. Substitute parts can look different from the original.
    This item is not returnable
    $4.31 |
    19% OFF Phone Price : $5.31
    In Stock
  • Sears Washer Lid Bumper 238614
    #45

    Machine sub-assembly diagram

    Sears washer lid bumper

    Part #238614

    $147.50
    In Stock
