Model # MC-V752200 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V752200 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

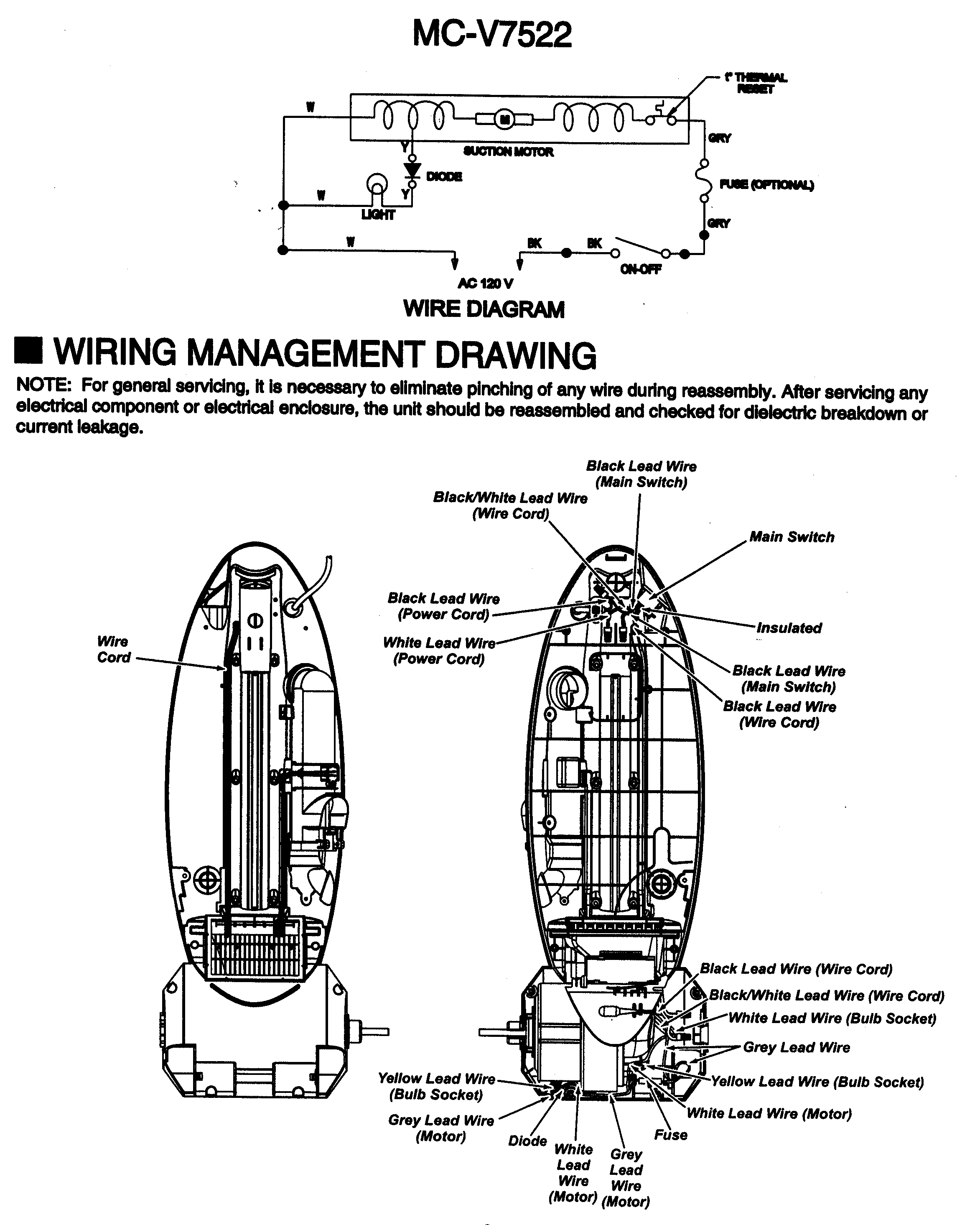

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Panasonic Switch AC01EYVZV06
#C-2

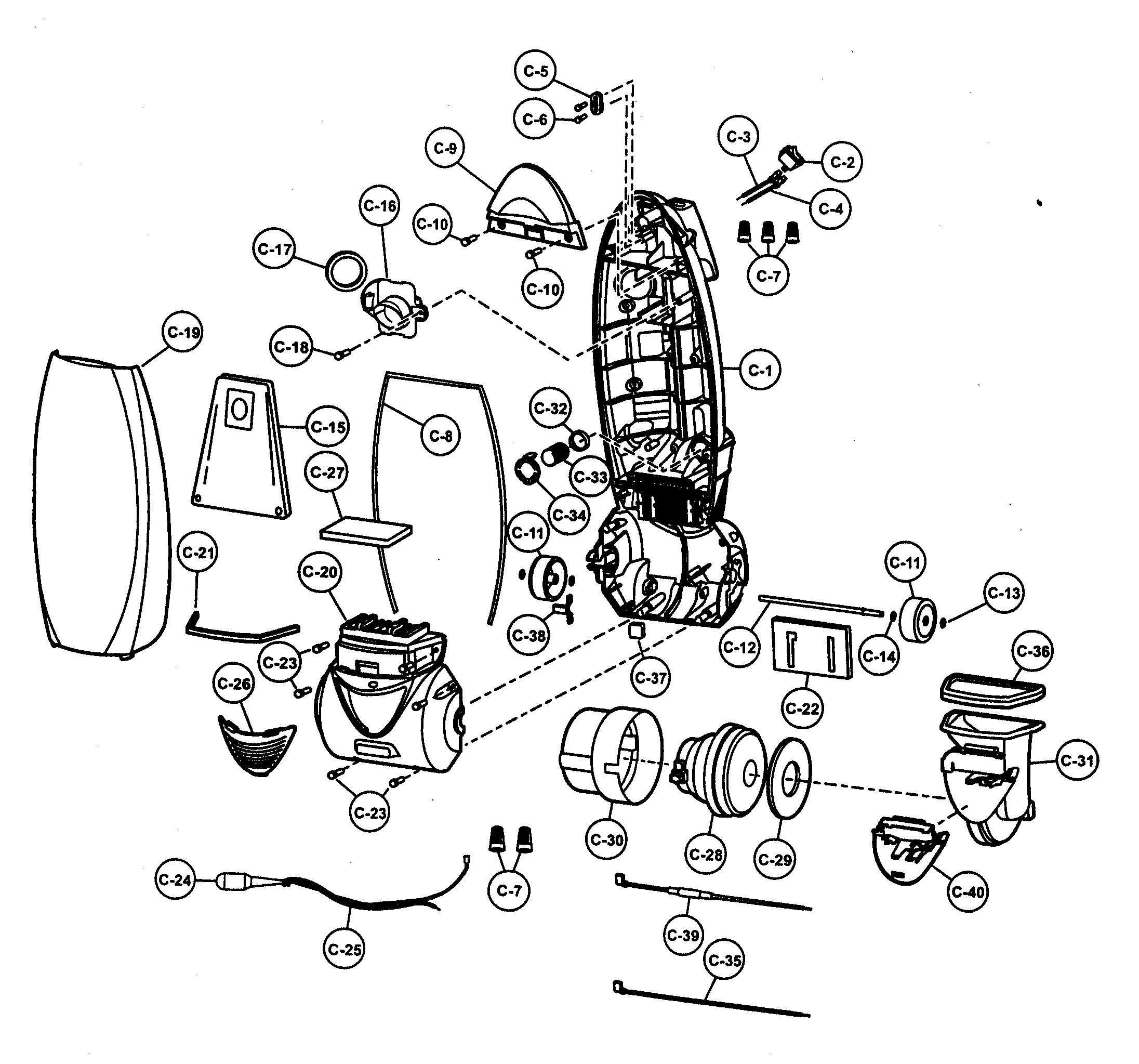

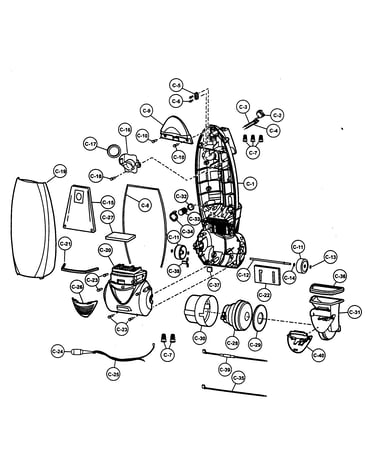

Motor housing/motor/body diagram

Panasonic switch

Part #AC01EYVZV06

$10.49
In Stock
Panasonic Cover AC02HBDNZV07
#D-13

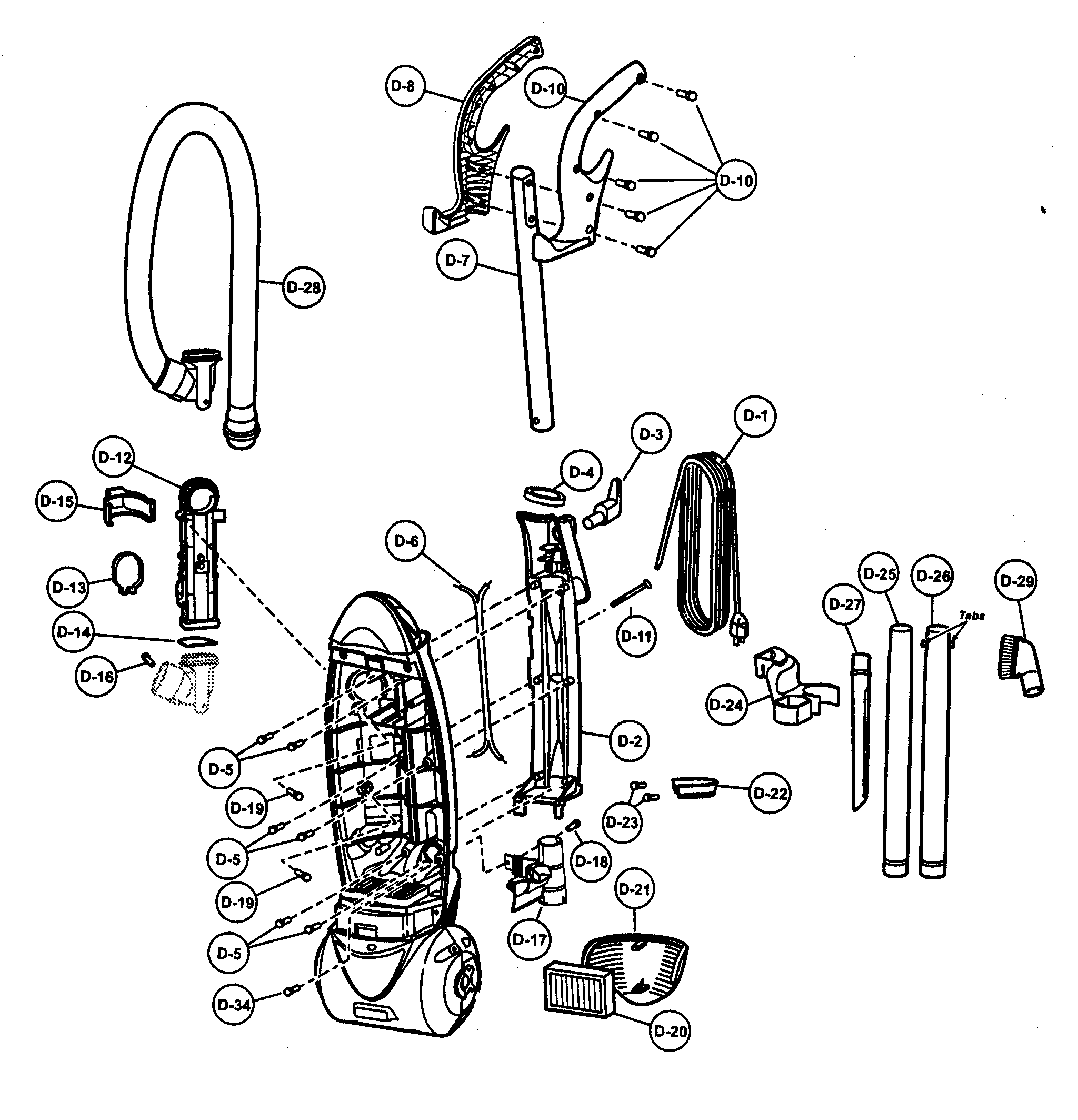

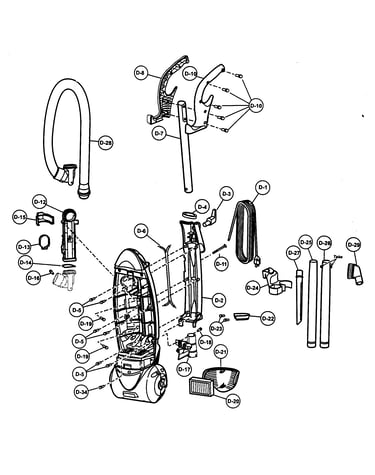

Body/hanlde/rear dust cpmpartment diagram

Panasonic cover

Part #AC02HBDNZV07

This item is not returnable
$5.49
In Stock
Panasonic Socket AC93HBYMZ000
#C-25

Motor housing/motor/body diagram

Panasonic socket

Part #AC93HBYMZ000

$19.49
In Stock
Panasonic Screw AXTN410BFP
#A-16

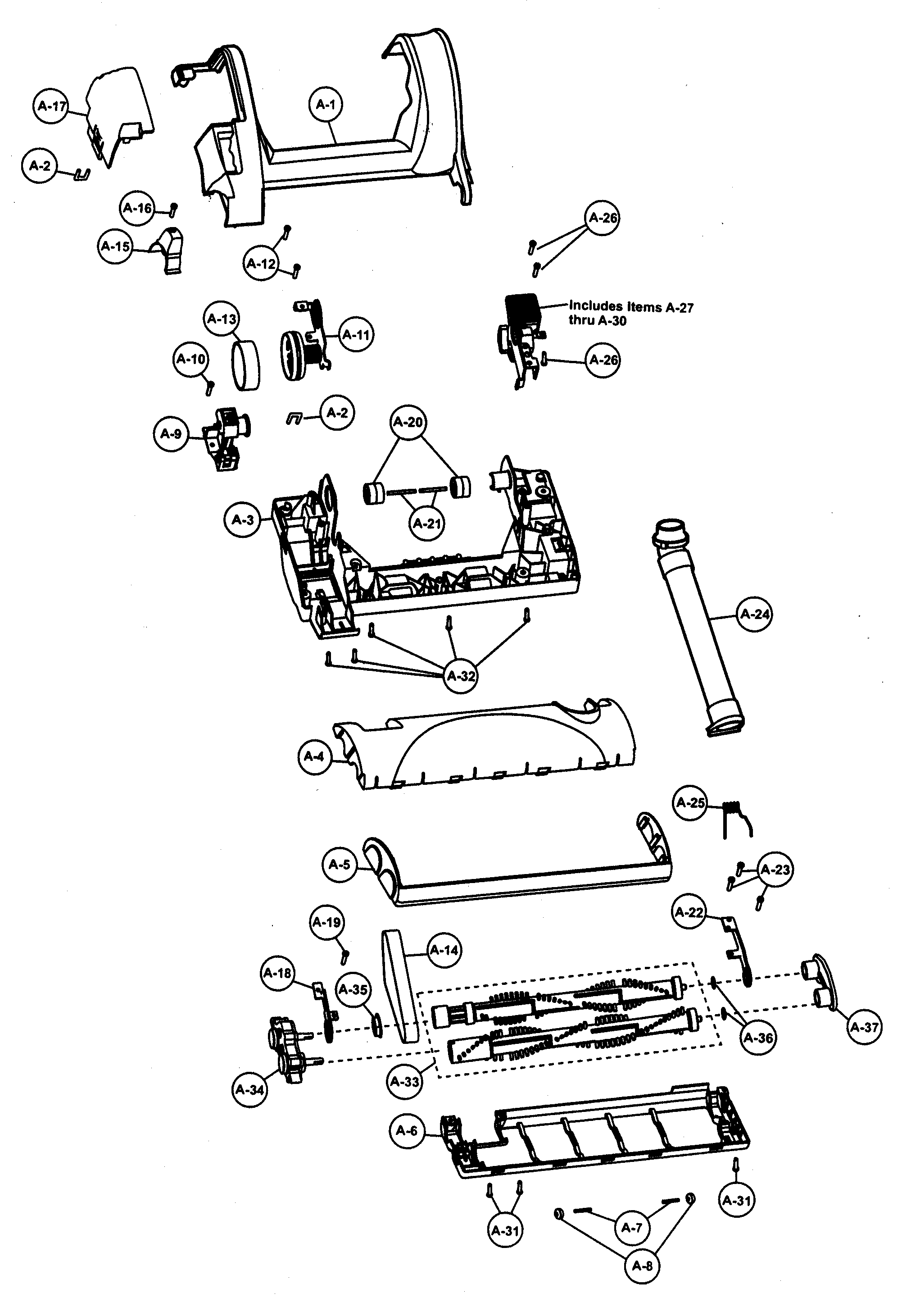

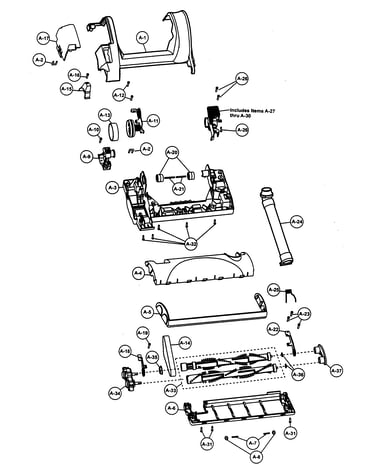

Nozzle housing diagram

Panasonic screw

Part #AXTN410BFP

This item is not returnable
$7.49
In Stock
Panasonic Protector AC69KJMZV07
#C-32

Motor housing/motor/body diagram

Panasonic protector

Part #AC69KJMZV07

$17.49
In Stock
Panasonic Panasonic Motor Case AC09FBDNZB15
#C-20

Motor housing/motor/body diagram

Panasonic panasonic motor case

Part #AC09FBDNZB15

$38.49
In Stock
Panasonic Guard AC10ABDNZV07
#A-5

Nozzle housing diagram

Panasonic guard

Part #AC10ABDNZV07

$24.99
In Stock
Panasonic Holder AC29FBDN4W03
#C-40

Motor housing/motor/body diagram

Panasonic holder

Part #AC29FBDN4W03

$15.49
In Stock
Panasonic Lowr Plate AC27ABYMZV07
#A-3

Nozzle housing diagram

Panasonic lowr plate

Part #AC27ABYMZV07

$46.99
In Stock
Panasonic Panasonic Own Manual AC01ZBYRZ000
#NI

Nozzle housing diagram

Panasonic panasonic own manual

Part #AC01ZBYRZ000

$8.49
In Stock
