Model # 143386152 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143386152 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

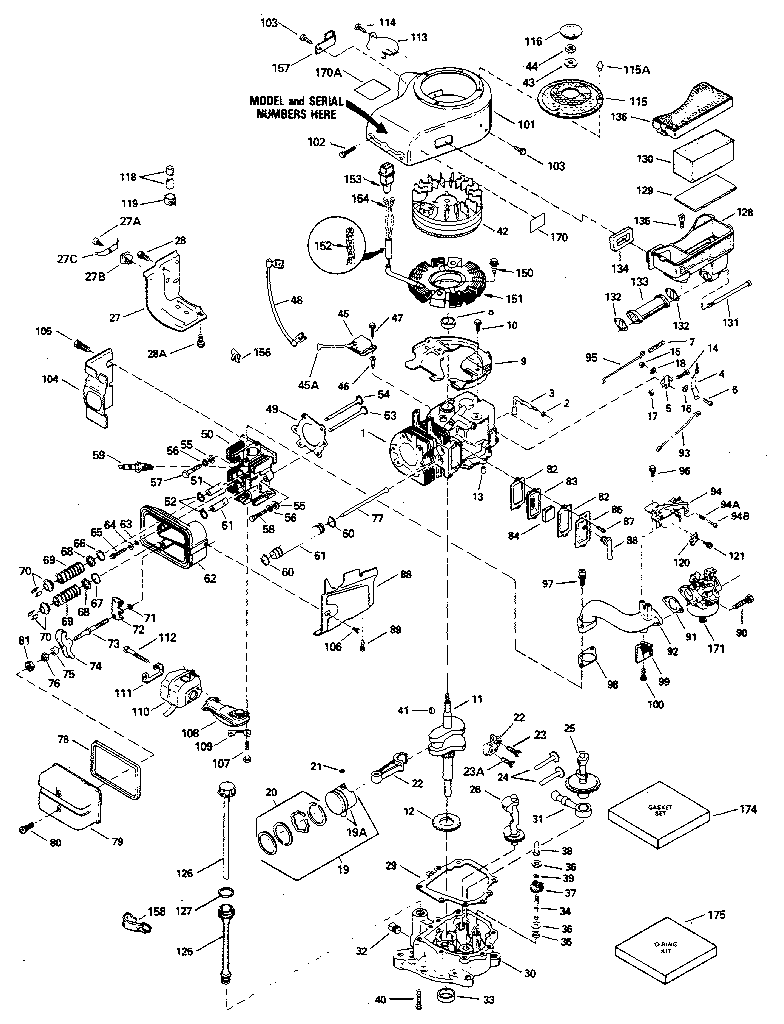

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Lawn Mower O-ring 631028
#25

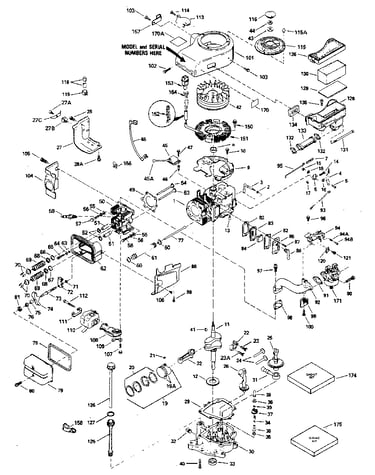

Replacement parts diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Replacement parts diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#119

Replacement parts diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lamination 35135
#45

Replacement parts diagram

Lamination

Part #35135

Replaced by #35135B

?
Manufacturer substitution
This part replaces 35135. Substitute parts can look different from the original.
$58.79 |
9% OFF Phone Price : $64.79
In Stock
Lauson Lawn & Garden Equipment Engine Carburetor Rebuild Kit 632347
#31

Replacement parts diagram

Lauson lawn & garden equipment engine carburetor rebuild kit

Part #632347

This item is not returnable
$21.69 |
22% OFF Phone Price : $27.69
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#16

Replacement parts diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
Back Order
Lawn & Garden Equipment Torx Screw 30063
Lawn & garden equipment torx screw

Part #30063

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Lawn & Garden Equipment Engine Alternator 611104
#151

Replacement parts diagram

Lawn & garden equipment engine alternator

Part #611104

$89.50 |
6% OFF Phone Price : $95.50
In Stock
Lawn & Garden Equipment Engine Screw 28942
#121

Replacement parts diagram

Lawn & garden equipment engine screw

Part #28942

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 35317
#29

Replacement parts diagram

Gasket

Part #35317

This item is not returnable
$5.46
In Stock
