Whirlpool
Top-Mount Refrigerator

Model # 3ET22DKXDW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 3ET22DKXDW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

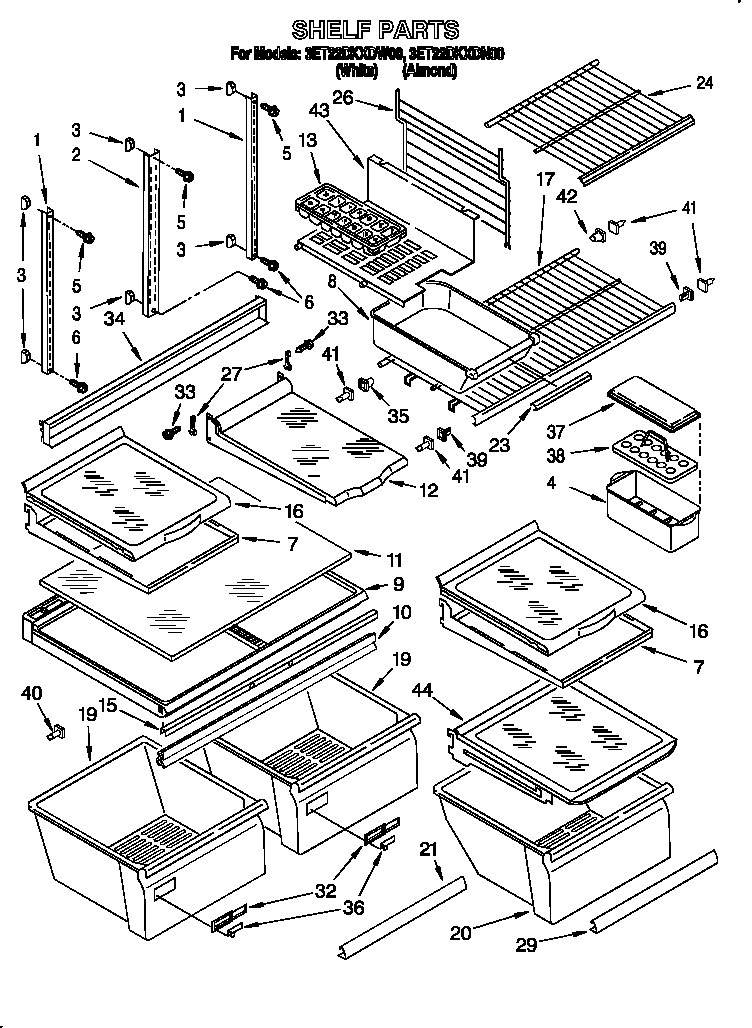

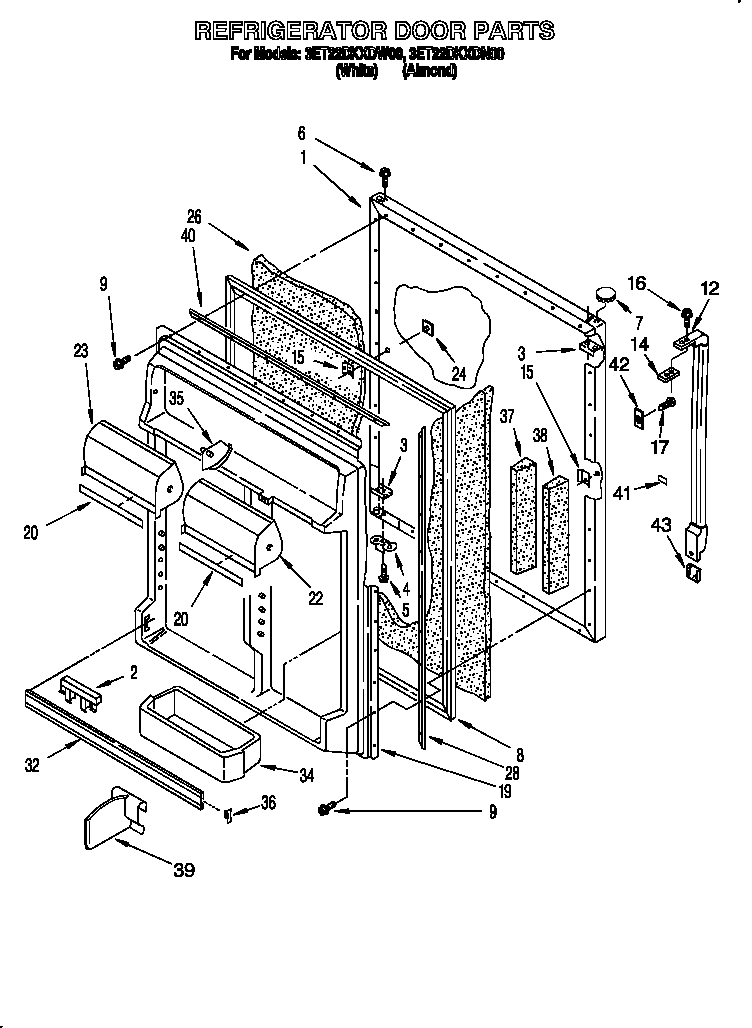

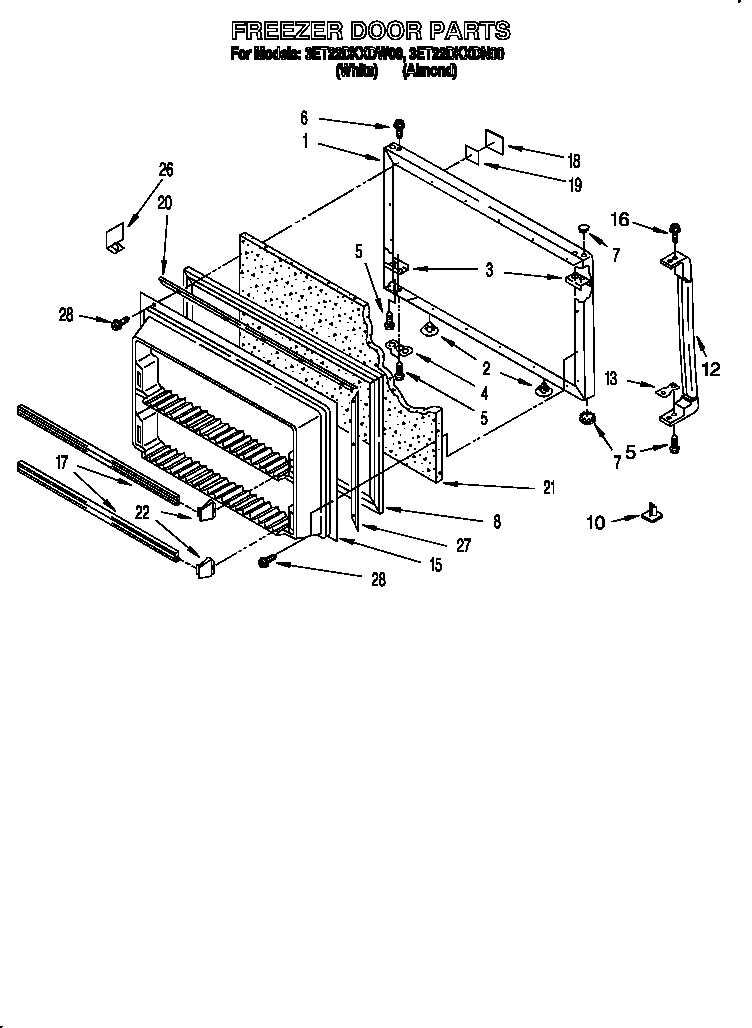

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 271 parts  |
Refrigerator Light Switch 1118894
#11

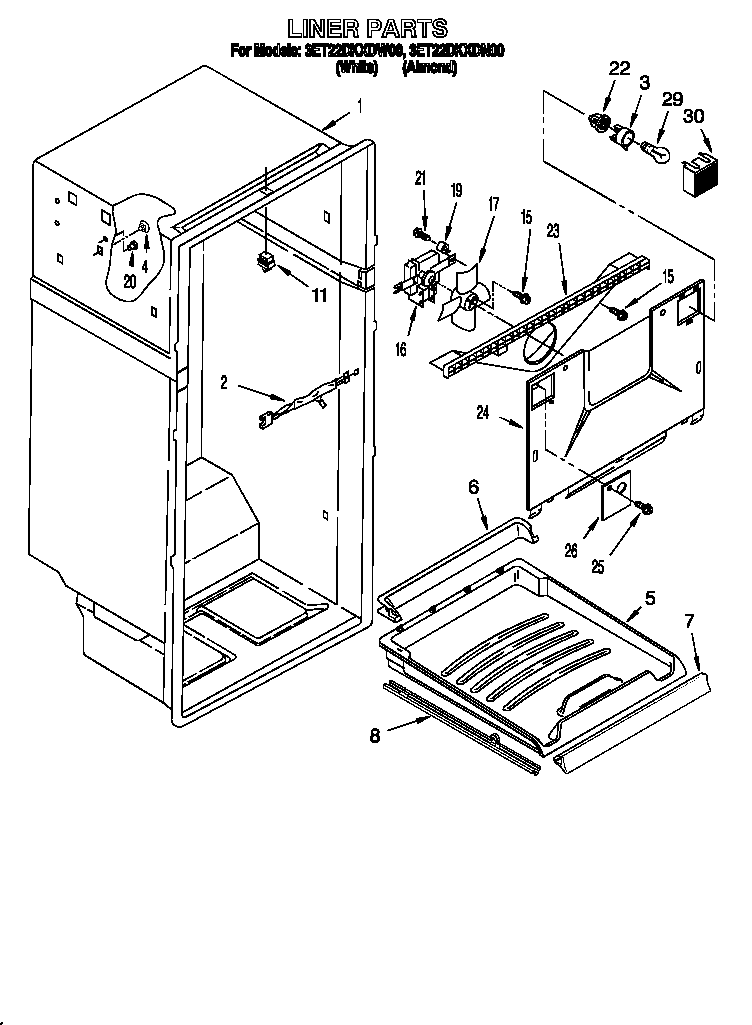

Liner diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 2174865
#27

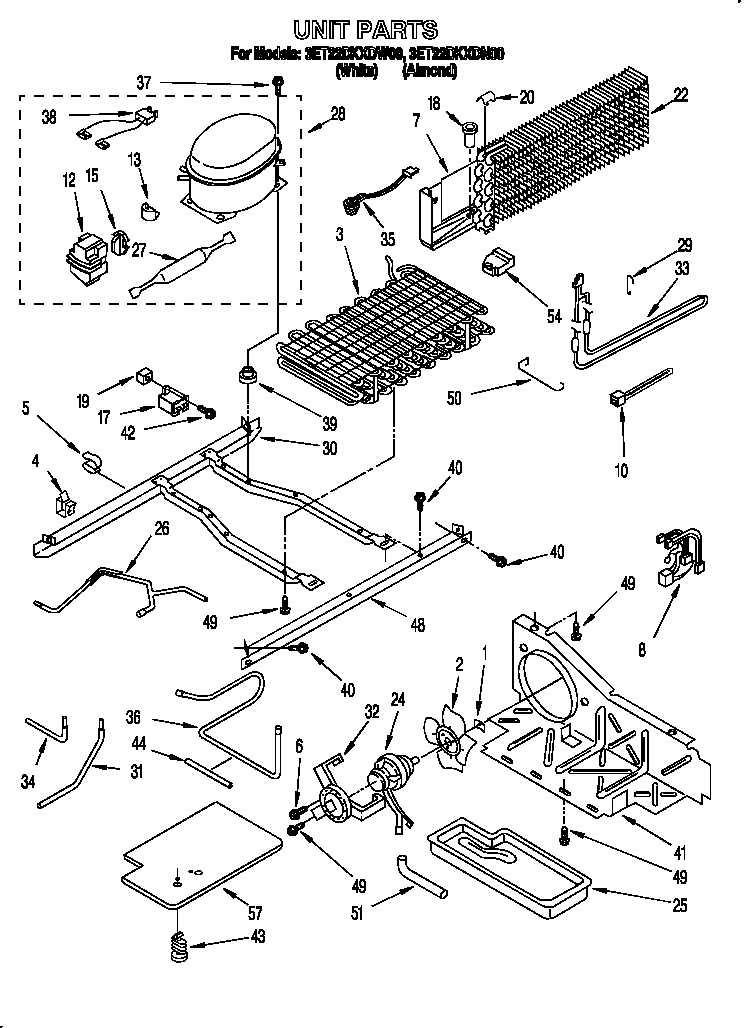

Unit diagram

Drier tube

Part #2174865

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2174865. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Door Switch 2149705
#3

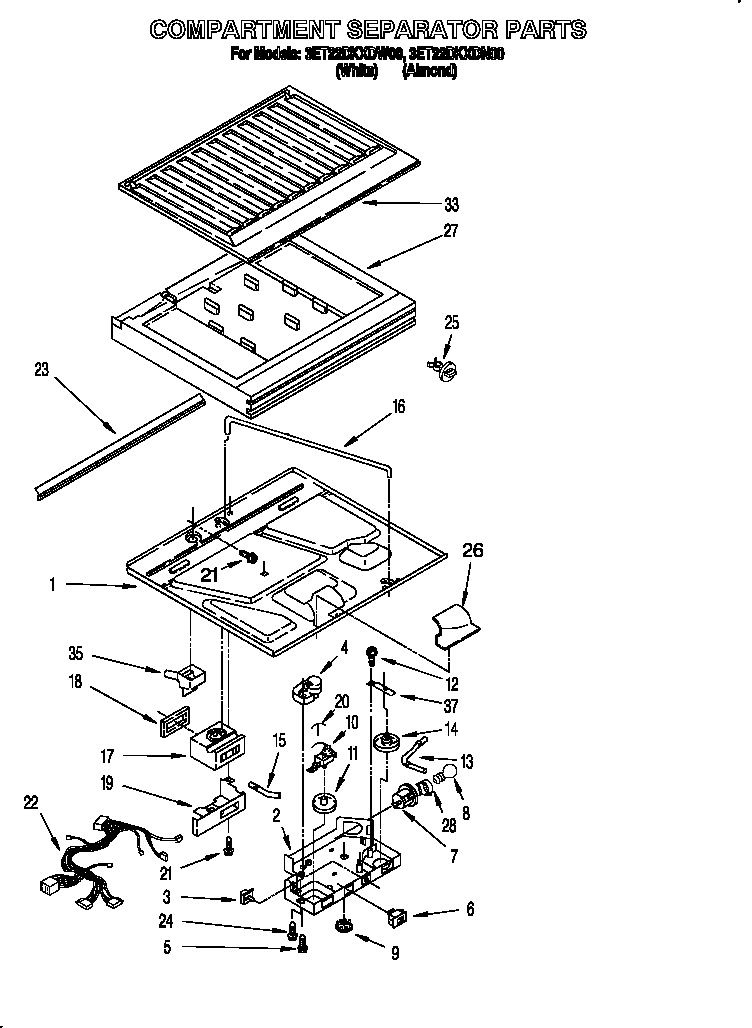

Compartment separator diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Fitting 2174759
#23

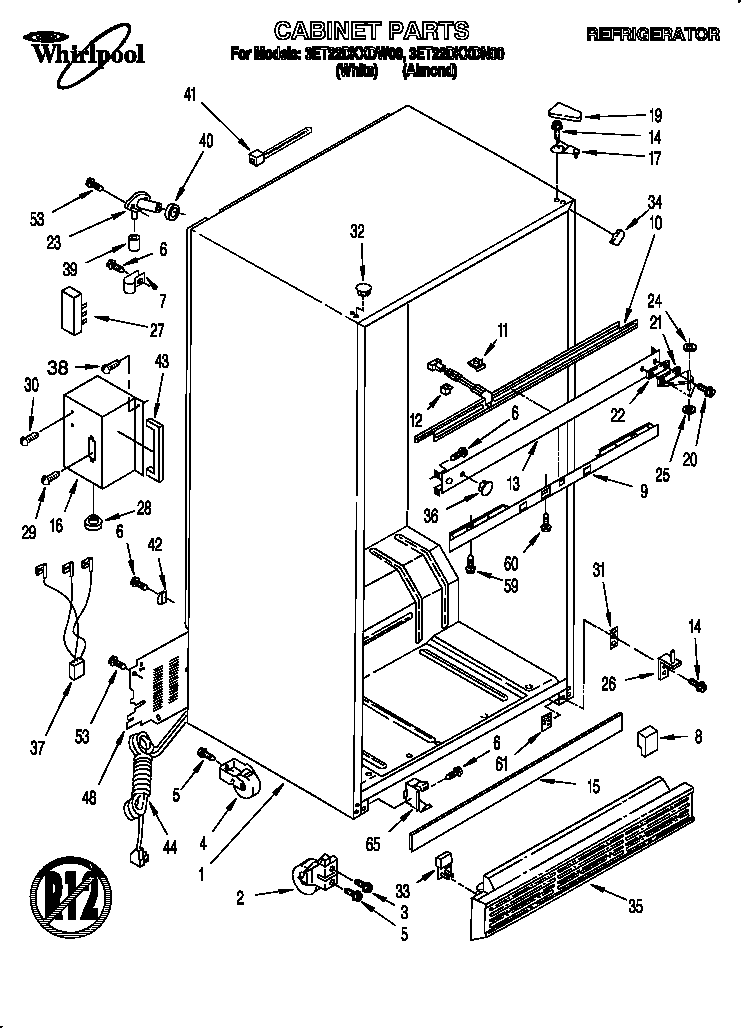

Cabinet diagram

Refrigerator fitting

Part #2174759

Replaced by #WP2196157

?
Manufacturer substitution
This part replaces 2174759. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
Spray Paint (white) 350930

#NI

All parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 489242
Screw

Part #489242

Replaced by #WP489478

?
Manufacturer substitution
This part replaces 489242. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Service Valve 978025

#NI

All parts diagram

Refrigerator service valve

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
Dacor Refrigerator Compressor Tubing Kit (replaces 482331) 876765
#28A

Unit diagram

Dacor refrigerator compressor tubing kit (replaces 482331)

Part #876765

$31.69 |
16% OFF Phone Price : $37.69
In Stock
Sears Refrigerator Service Valve 978026

#NI

All parts diagram

Sears refrigerator service valve

Part #978026

$34.19 |
15% OFF Phone Price : $40.19
In Stock
