Kenmore
Room Air Conditioner

Model # 58072056200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072056200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Room Air Conditioner Air Filter (replaces 5231ar2148d, 5231ar2148g) 5231AR2148A
#4-A

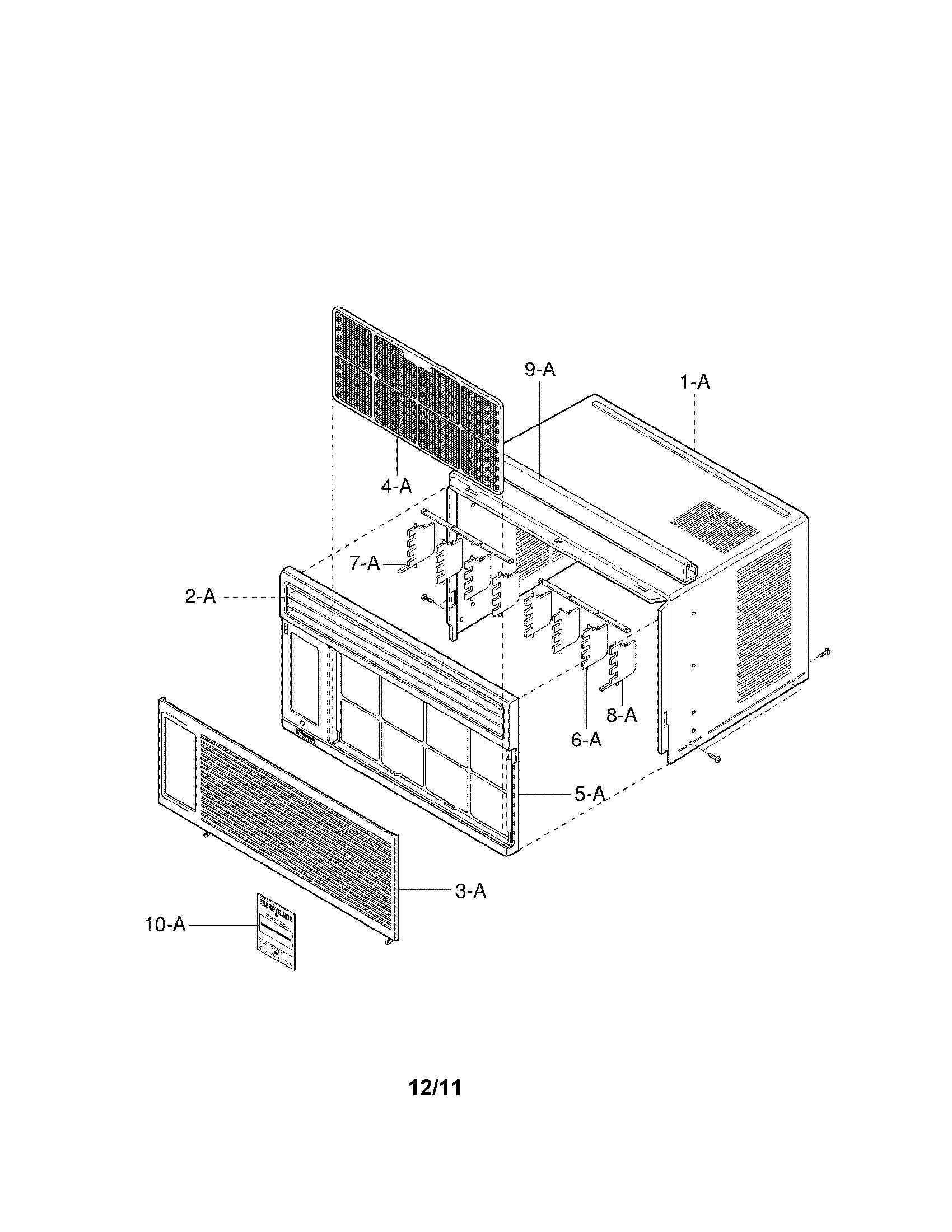

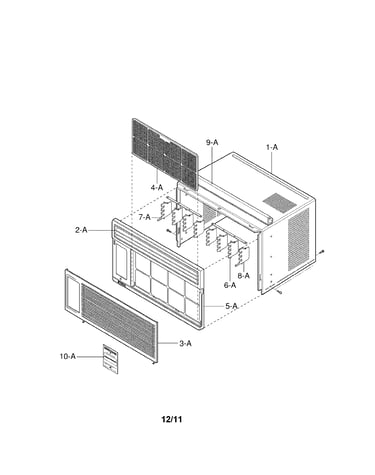

Cabinet and front grille assembly parts diagram

Room air conditioner air filter (replaces 5231ar2148d, 5231ar2148g)

Part #5231AR2148A

Replaced by #5231AR2148R

?
Manufacturer substitution
This part replaces 5231AR2148A. Substitute parts can look different from the original.
$14.51
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

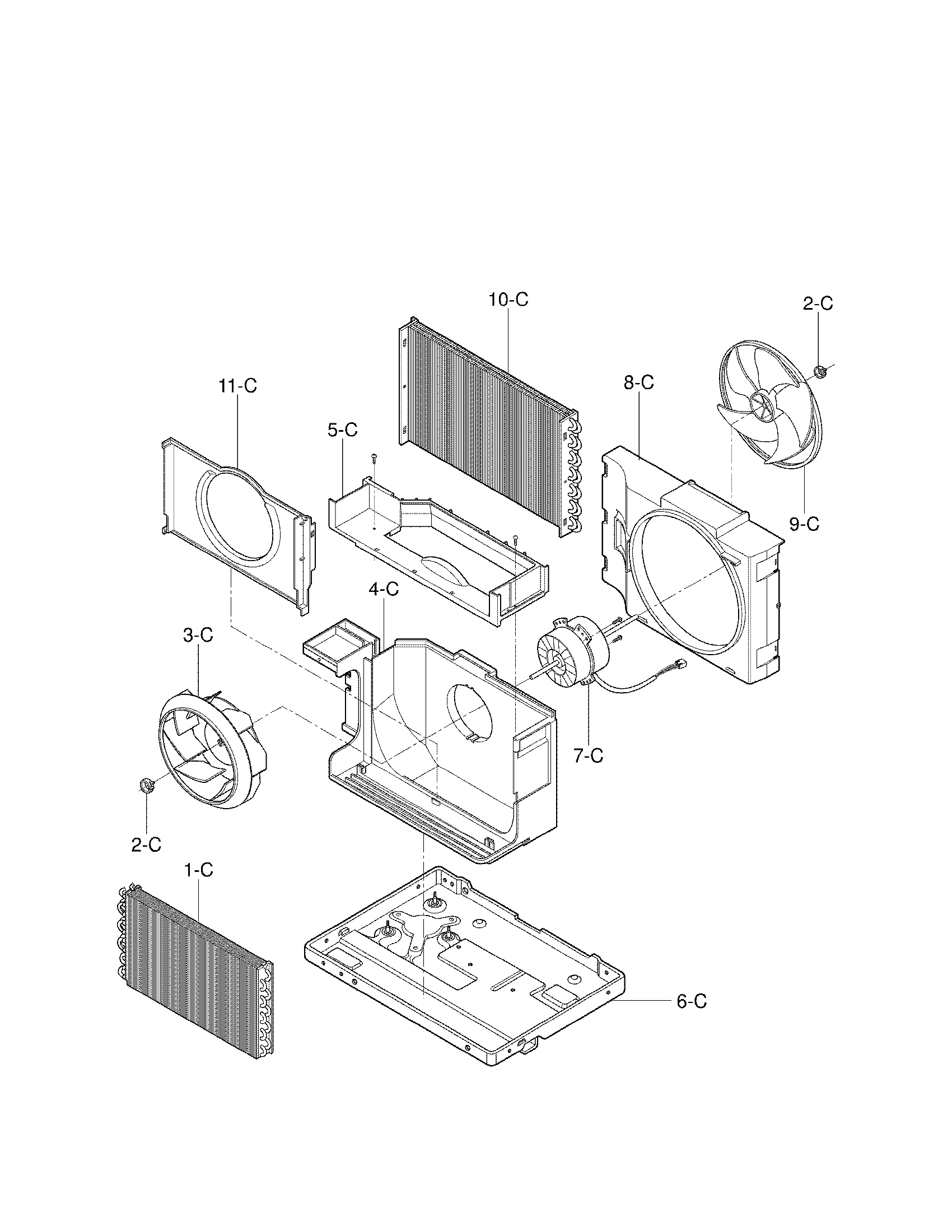

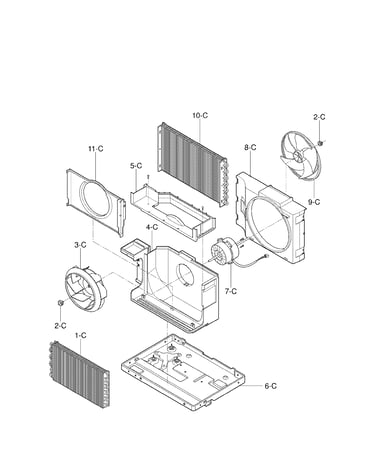

Air handling and cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Window Lock Bracket 4810A30113A
#3-E

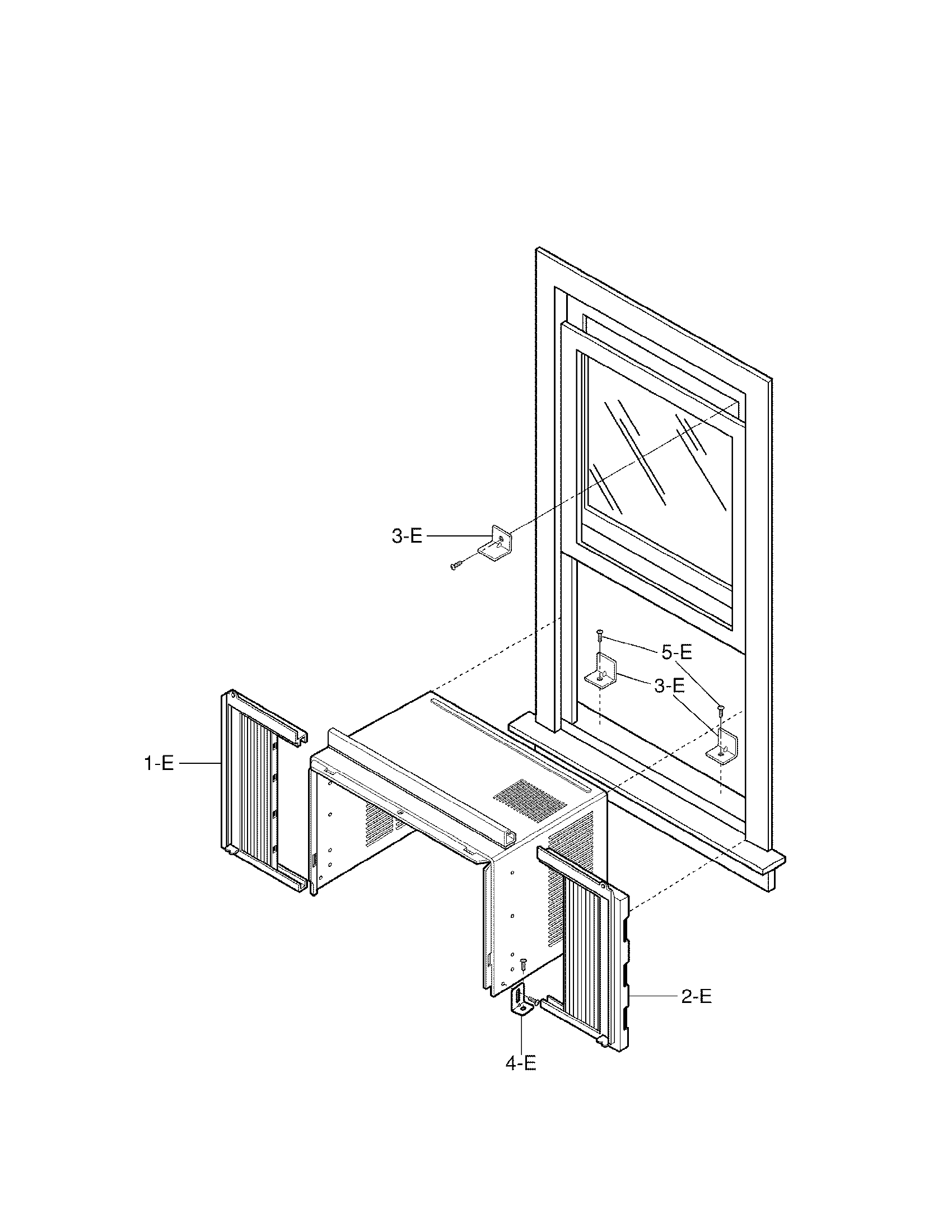

Installation kit assembly parts diagram

Room air conditioner window lock bracket

Part #4810A30113A

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Capacitor 6120AR2359V
#8-B

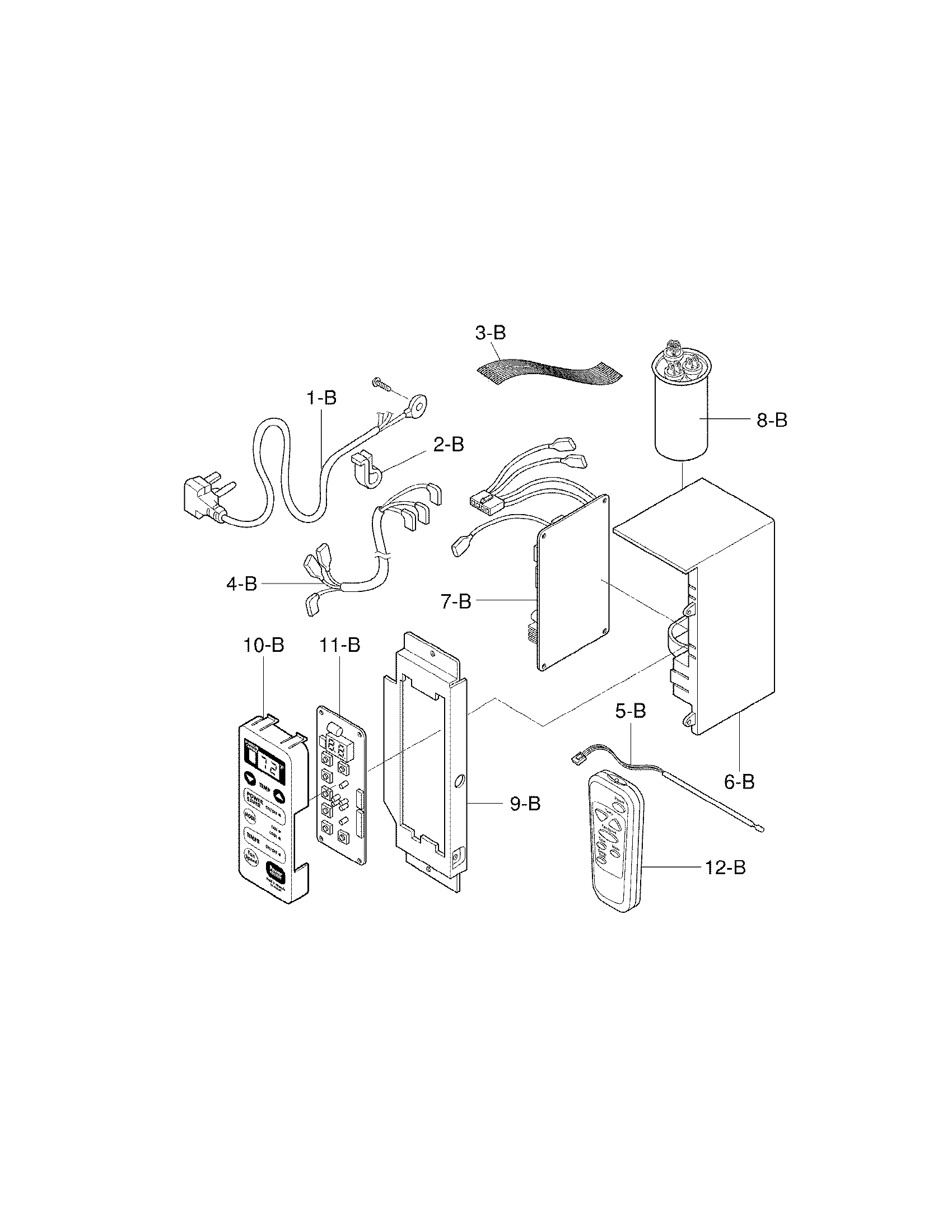

Control box assembly parts diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
17% OFF Phone Price : $35.57
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#9-D

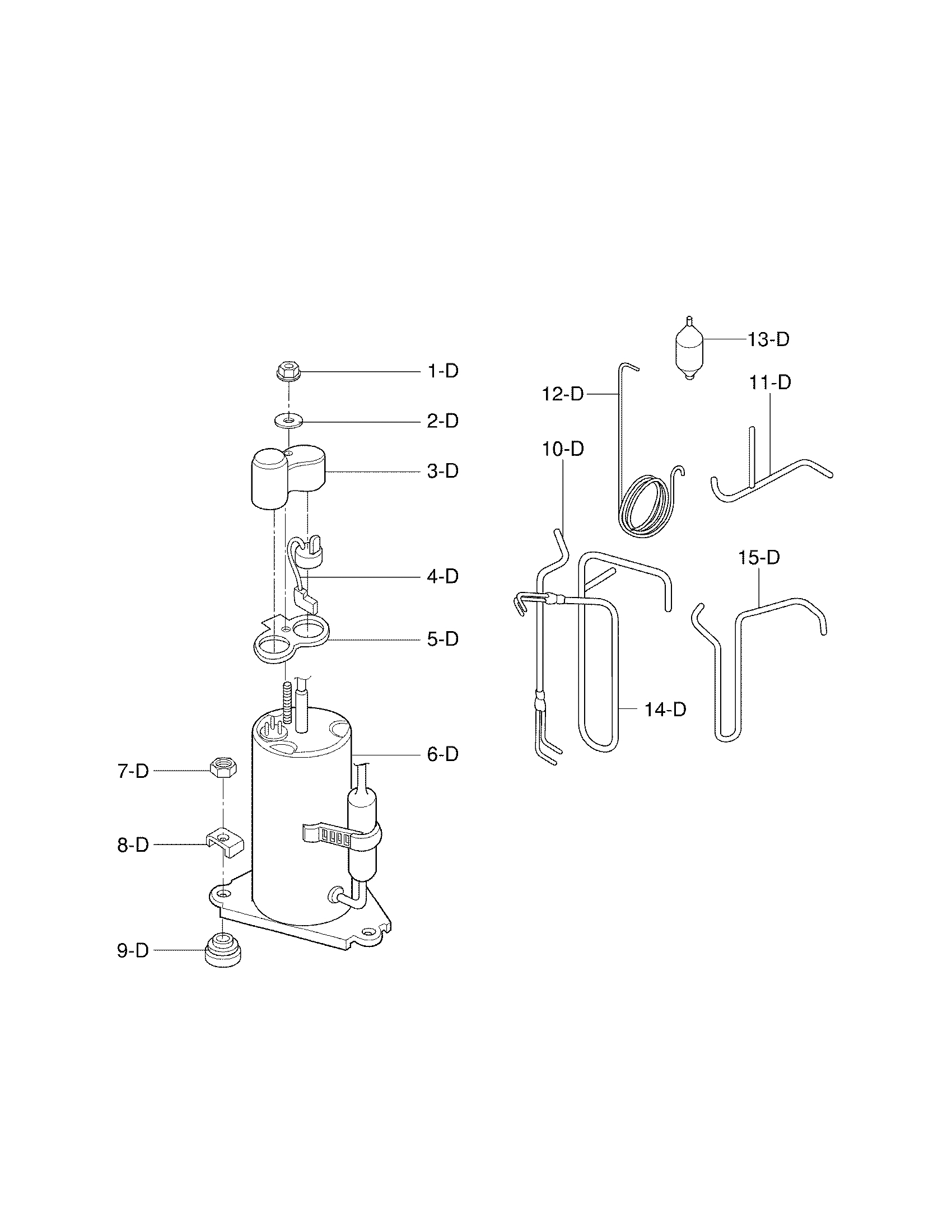

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Zenith Tube 5211A10063C
#10-D

Compressor parts diagram

Zenith tube

Part #5211A10063C

$14.51
In Stock
Lg Holder Piece 4H01254A
#2-B

Control box assembly parts diagram

Lg holder piece

Part #4H01254A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Screw 1TTG0402618
#5-E

Installation kit assembly parts diagram

Room air conditioner screw

Part #1TTG0402618

This item is not returnable
$4.51
In Stock
Nut 4H00947A
#1-D

Compressor parts diagram

Nut

Part #4H00947A

This item is not returnable
$4.51
In Stock
Lead Wire 6850A90001F
#3-B

Control box assembly parts diagram

Lead wire

Part #6850A90001F

This item is not returnable
$4.06
In Stock
