Model # ZIF36NMDLH Official GE freezer - m series

Here are the diagrams and repair parts for Official GE ZIF36NMDLH freezer - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

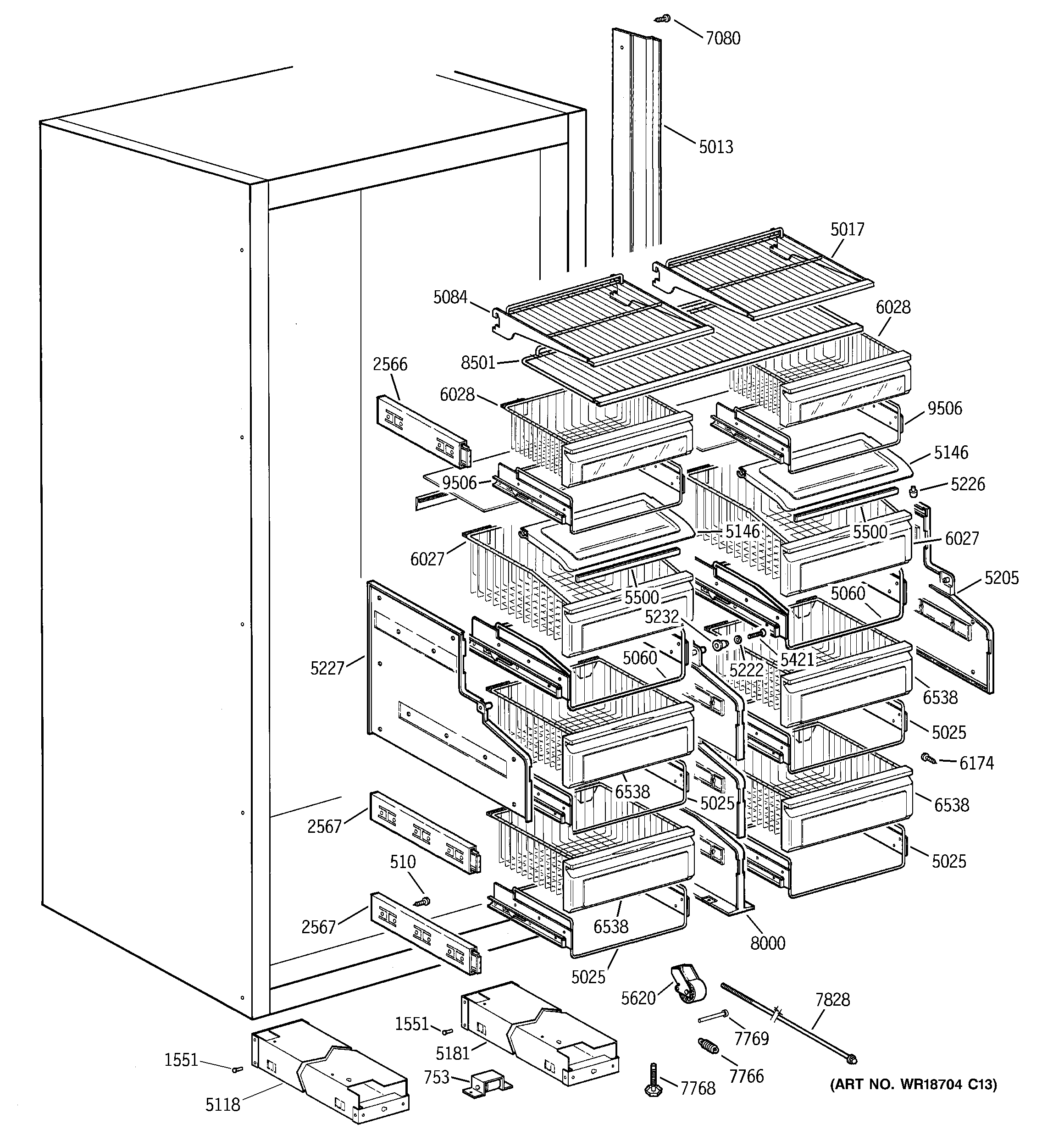

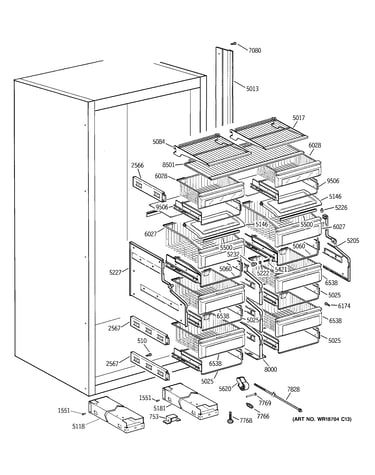

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |
Refrigerator Ice Maker WR30X10012
#820

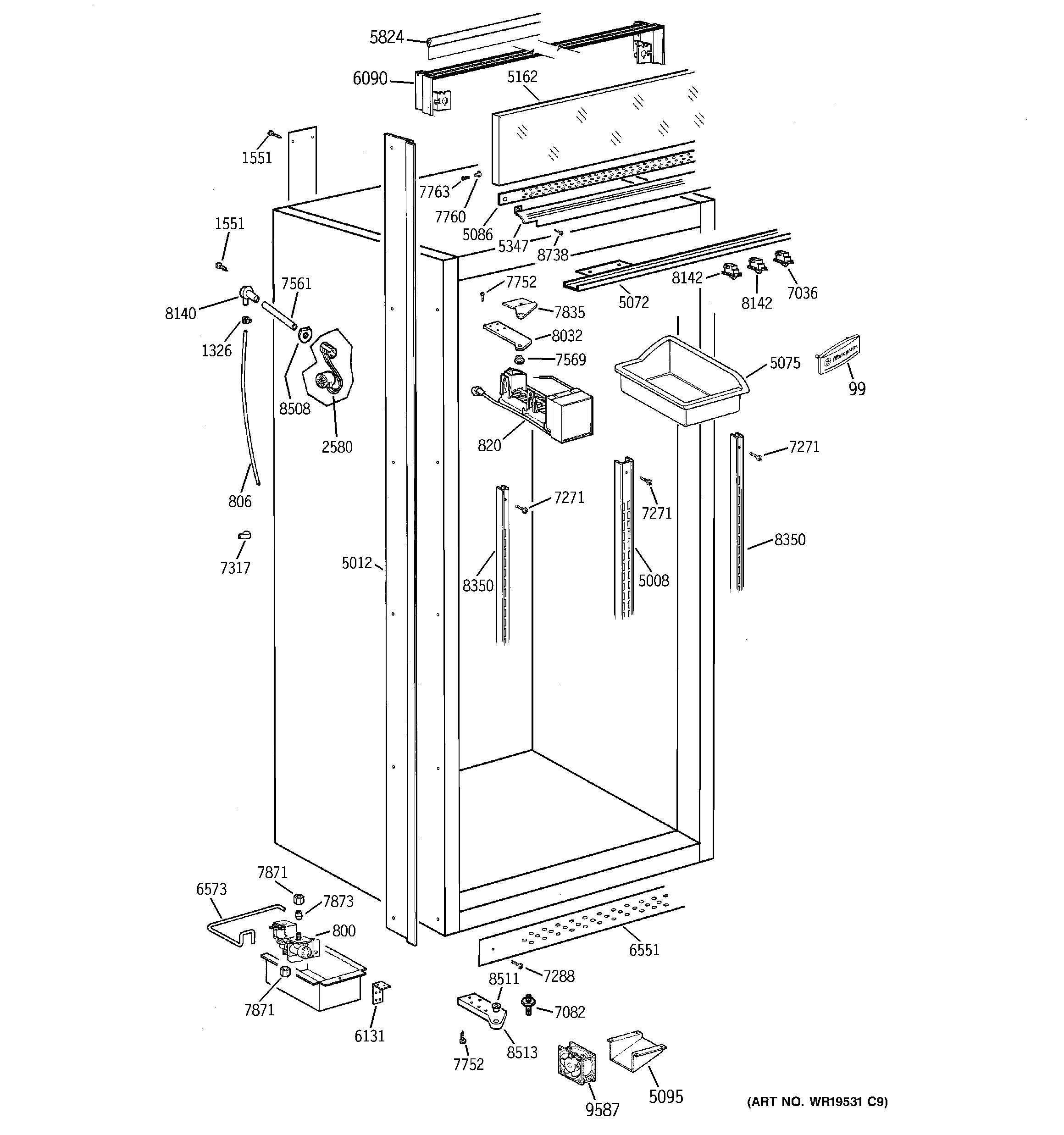

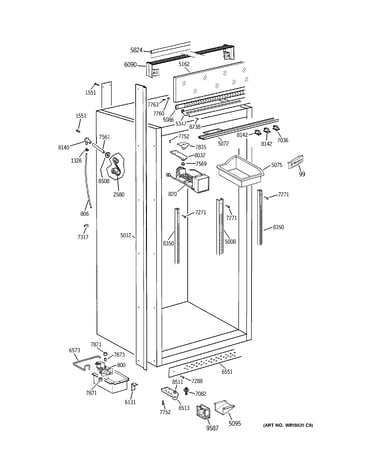

Cabinet parts (2) diagram

Refrigerator ice maker

Part #WR30X10012

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR30X10012. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Dryer Filter WR86X0096
#740

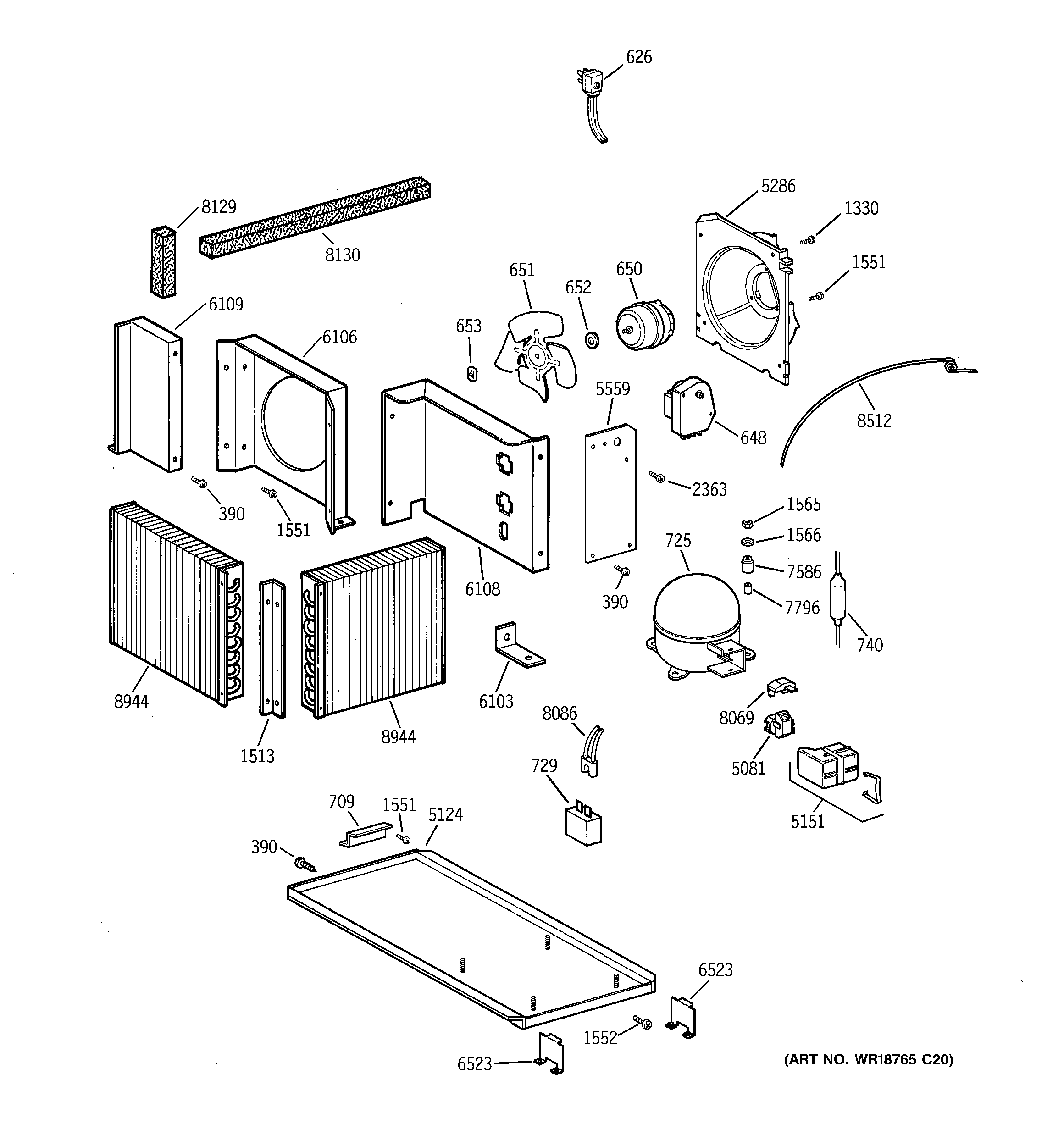

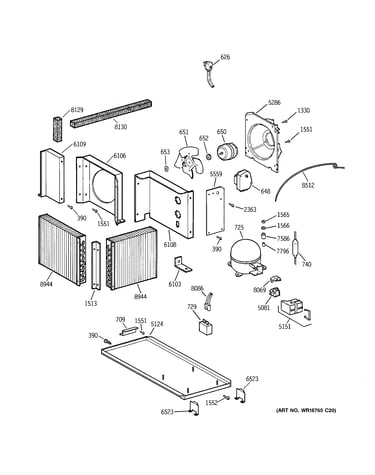

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#7692

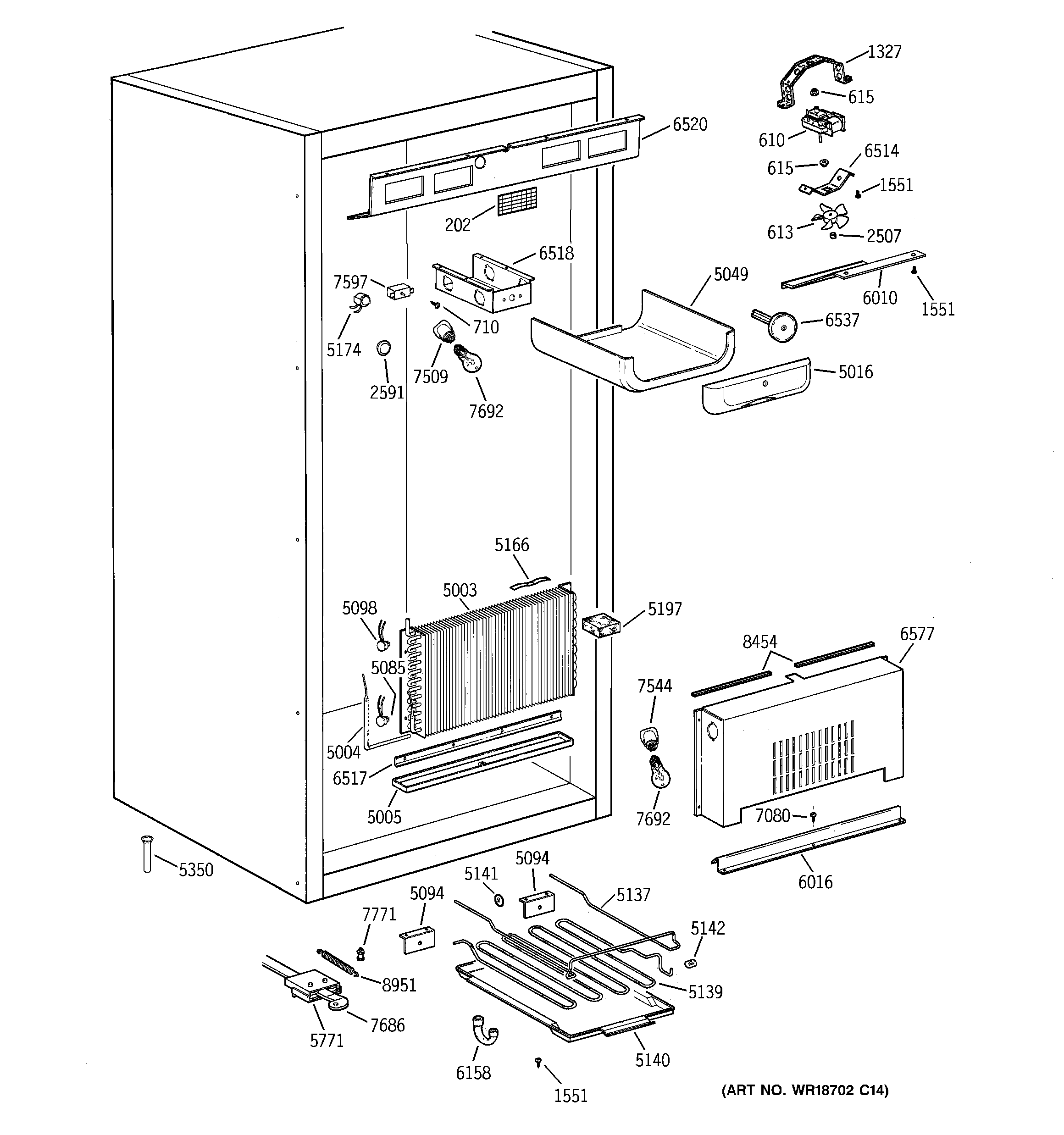

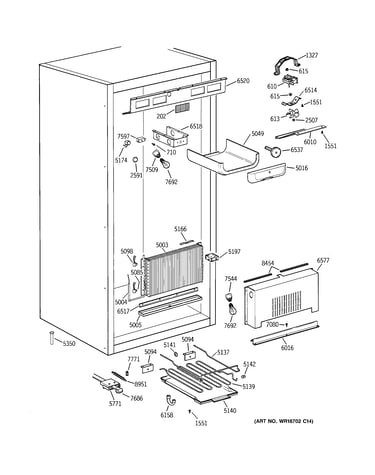

Cabinet parts (1) diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Freezer Compressor WR87X10035
#725

Unit parts diagram

Freezer compressor

Part #WR87X10035

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X10035. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Water Valve WR57X0110
#800

Cabinet parts (2) diagram

Water valve

Part #WR57X0110

Replaced by #WR57X10033

?
Manufacturer substitution
This part replaces WR57X0110. Substitute parts can look different from the original.
BEST SELLER
$39.92 |
13% OFF Phone Price : $45.92
In Stock
Defrost Control WR09X0502
#648

Unit parts diagram

Defrost control

Part #WR09X0502

Replaced by #WR9X483

?
Manufacturer substitution
This part replaces WR09X0502. Substitute parts can look different from the original.
BEST SELLER
$42.02 |
12% OFF Phone Price : $48.02
In Stock
Evaporator Fan Blade WR60X10055
#613

Cabinet parts (1) diagram

Evaporator fan blade

Part #WR60X10055

Replaced by #WR60X10205

?
Manufacturer substitution
This part replaces WR60X10055. Substitute parts can look different from the original.
$13.92 |
13% OFF Phone Price : $15.92
In Stock
Motor Ac.dc WR60X10048
#650

Unit parts diagram

Motor ac.dc

Part #WR60X10048

Replaced by #WR60X10348

?
Manufacturer substitution
This part replaces WR60X10048. Substitute parts can look different from the original.
$81.44 |
7% OFF Phone Price : $87.44
In Stock
Grommet WR02X11631
#8140

Cabinet parts (2) diagram

Grommet

Part #WR02X11631

Replaced by #WR2X8474

?
Manufacturer substitution
This part replaces WR02X11631. Substitute parts can look different from the original.
$10.24 |
16% OFF Phone Price : $12.24
In Stock
Door Gasket WR24X10150
#8520

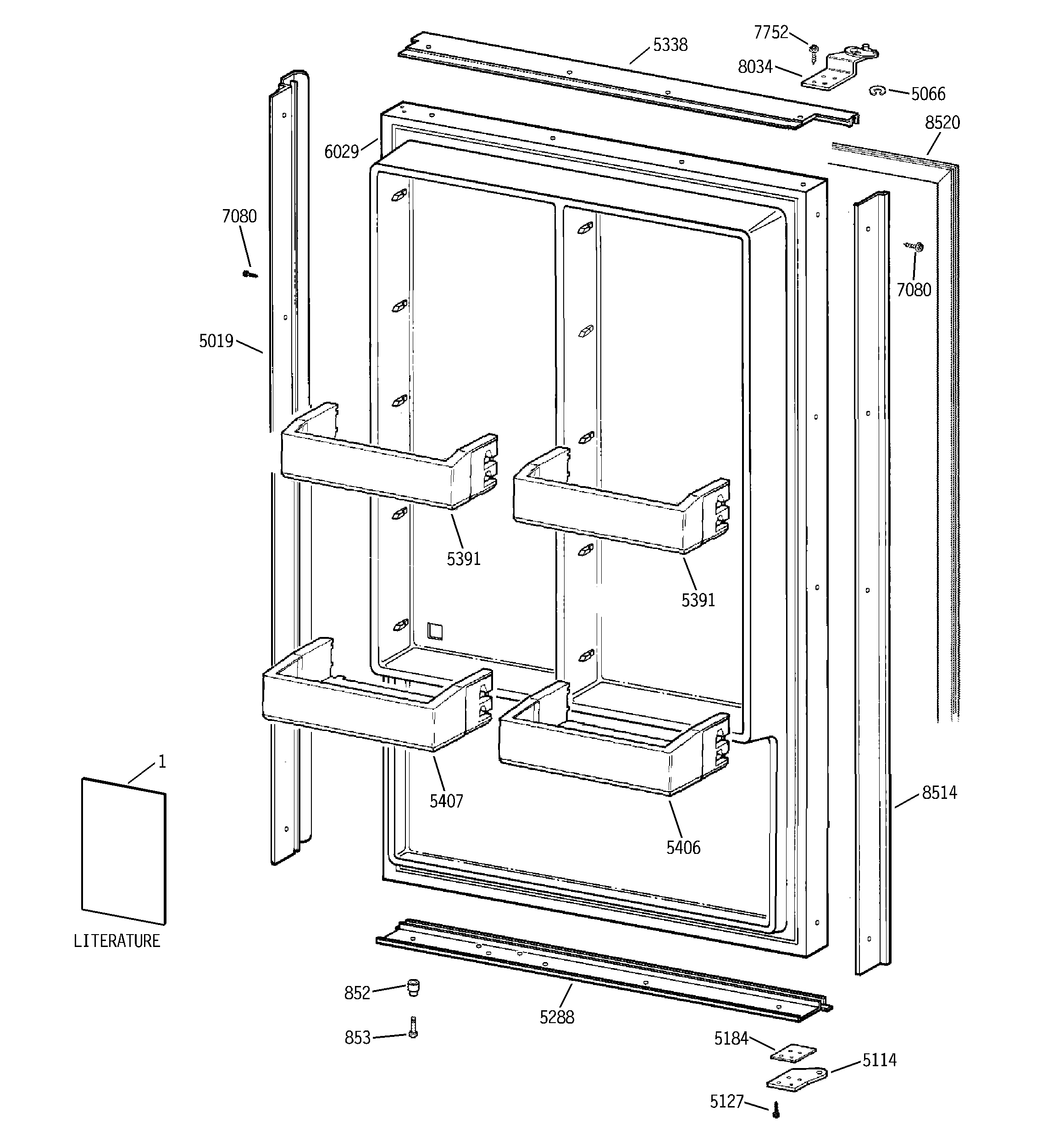

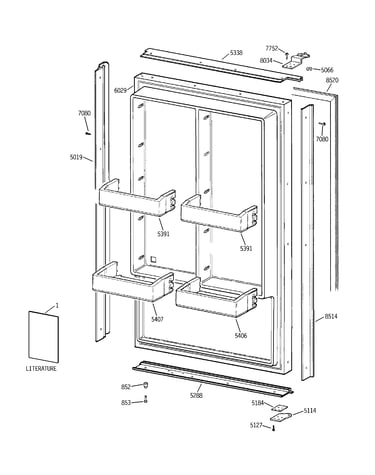

Freezer door diagram

Door gasket

Part #WR24X10150

Replaced by #WR78X20986

?
Manufacturer substitution
This part replaces WR24X10150. Substitute parts can look different from the original.
$100.24 |
11% OFF Phone Price : $112.24
In Stock
