Model # 11324280 Official Craftsman 8" tilting arbor bench saw

Here are the diagrams and repair parts for Official Craftsman 11324280 8" tilting arbor bench saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

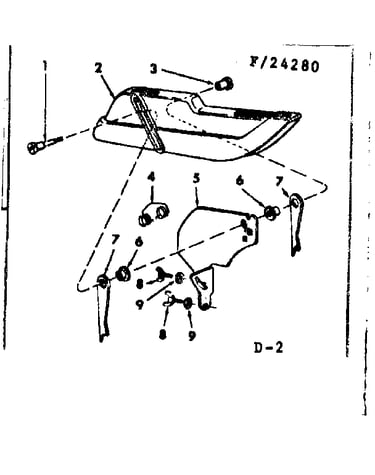

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Emerson Table Saw Arbor Nut 6362
#76

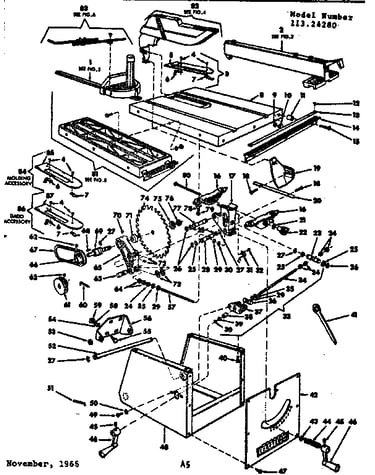

Unit breakdown diagram

Emerson table saw arbor nut

Part #6362

The manufacturer no longer makes this part, and there's no substitute part

Screw 144627
#4

Unit breakdown diagram

Screw

Part #144627

The manufacturer no longer makes this part, and there's no substitute part

Crank Assembly 62005
#46

Unit breakdown diagram

Crank assembly

Part #62005

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 60063
#73

Unit breakdown diagram

Plain washer

Part #60063

The manufacturer no longer makes this part, and there's no substitute part

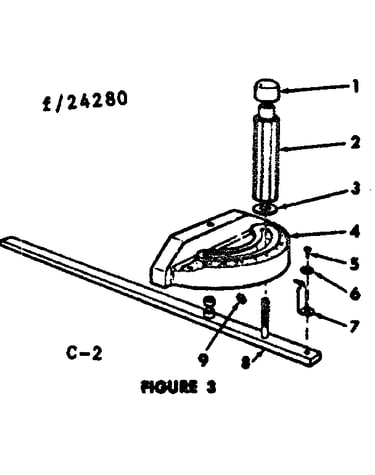

Miter Gauge 62001
#1

Unit breakdown diagram

Miter gauge

Part #62001

The manufacturer no longer makes this part, and there's no substitute part

Fence Lock 62054
#19

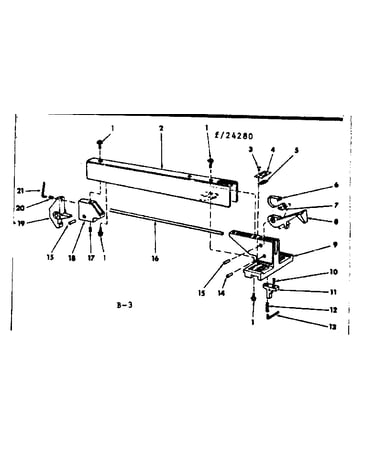

Fence assembly diagram

Fence lock

Part #62054

The manufacturer no longer makes this part, and there's no substitute part

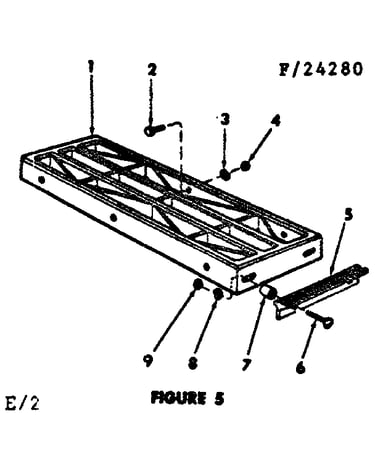

Table Extnsn 62058
#1

Table extension diagram

Table extnsn

Part #62058

The manufacturer no longer makes this part, and there's no substitute part

Side Ext Asm 9-24297
#81

Unit breakdown diagram

Side ext asm

Part #9-24297

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 60007
Machine screw

Part #60007

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 113111
#4

Table extension diagram

Hex nut

Part #113111

The manufacturer no longer makes this part, and there's no substitute part
