Model # 16743730 Official Sears swimming pool water filter

Here are the diagrams and repair parts for Official Sears 16743730 swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Cover Clamp 066-6205
#25

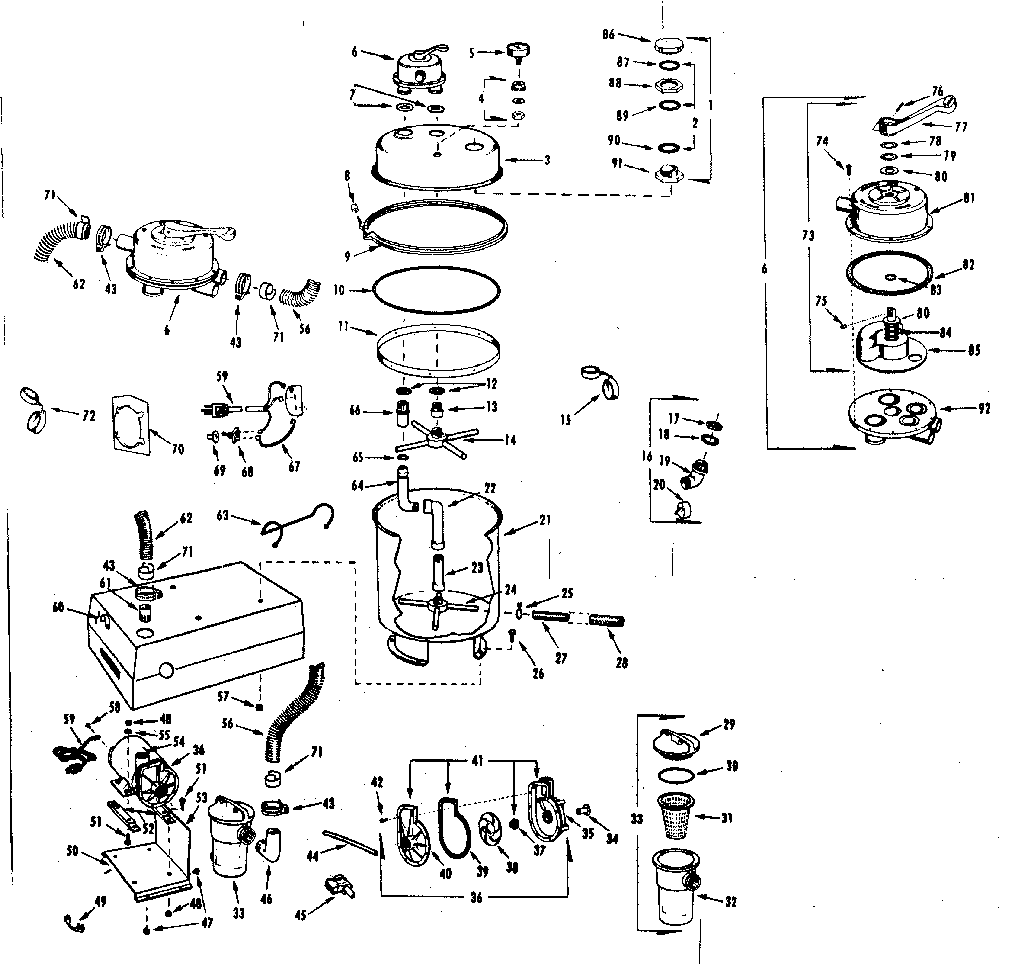

Replacement parts diagram

Cover clamp

Part #066-6205

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 446188
#55

Replacement parts diagram

Flat washer

Part #446188

The manufacturer no longer makes this part, and there's no substitute part

Motor 01-4074
#54

Replacement parts diagram

Motor

Part #01-4074

The manufacturer no longer makes this part, and there's no substitute part

Nut 098-7116
#88

Replacement parts diagram

Nut

Part #098-7116

The manufacturer no longer makes this part, and there's no substitute part

Nut 120375
#48

Replacement parts diagram

Nut

Part #120375

The manufacturer no longer makes this part, and there's no substitute part

Gasket 038-3432
#90

Replacement parts diagram

Gasket

Part #038-3432

The manufacturer no longer makes this part, and there's no substitute part

Switch Cover 031-3301
#69

Replacement parts diagram

Switch cover

Part #031-3301

The manufacturer no longer makes this part, and there's no substitute part

Basket 06-1006
#31

Replacement parts diagram

Basket

Part #06-1006

The manufacturer no longer makes this part, and there's no substitute part

Handle Pin 055-3711
#76

Replacement parts diagram

Handle pin

Part #055-3711

The manufacturer no longer makes this part, and there's no substitute part

Gauge 265-1065
#5

Replacement parts diagram

Gauge

Part #265-1065

The manufacturer no longer makes this part, and there's no substitute part
