Jenn-Air
Electric Wall Oven

Model # W30400BC Official Jenn-Air electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air W30400BC electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

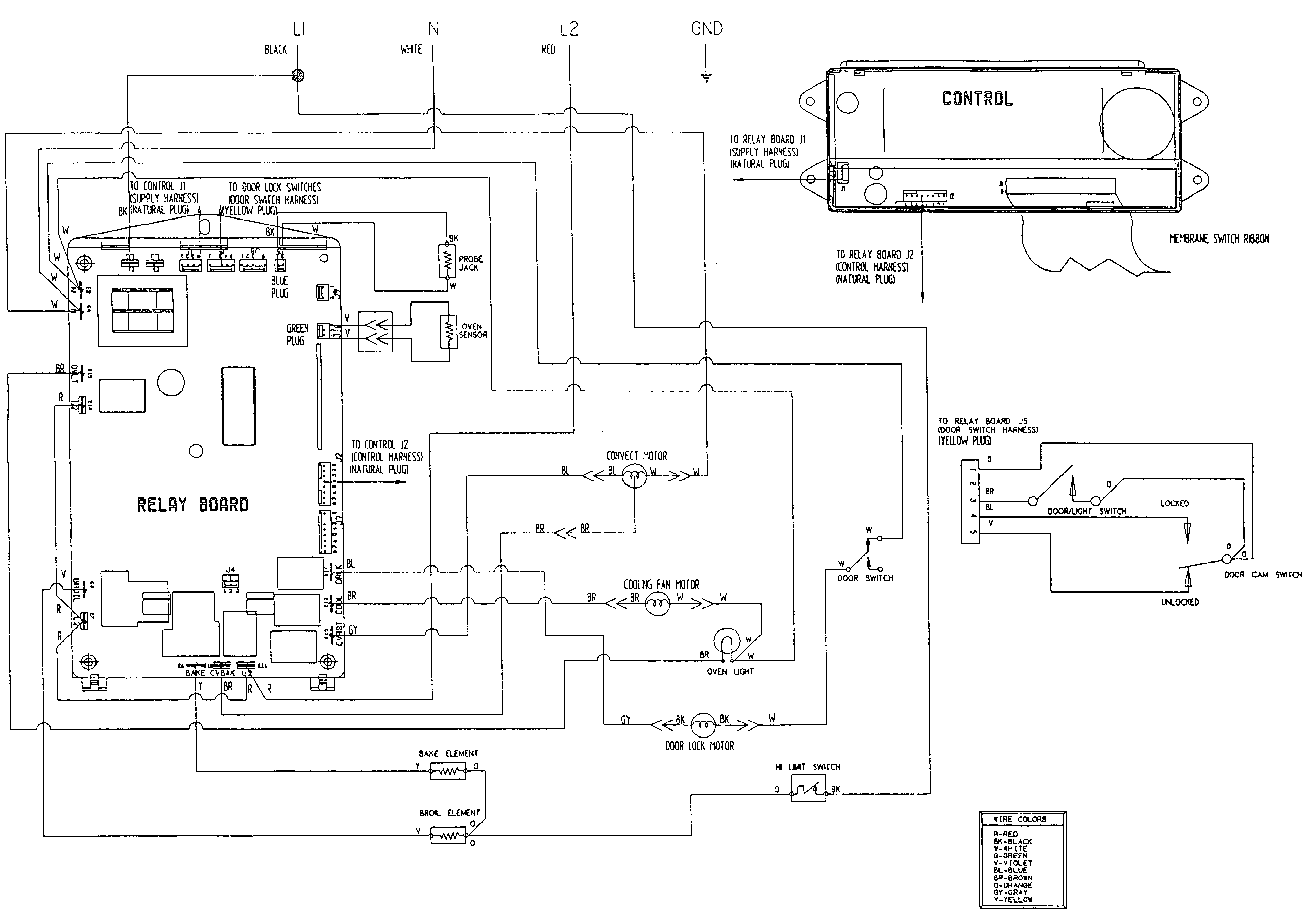

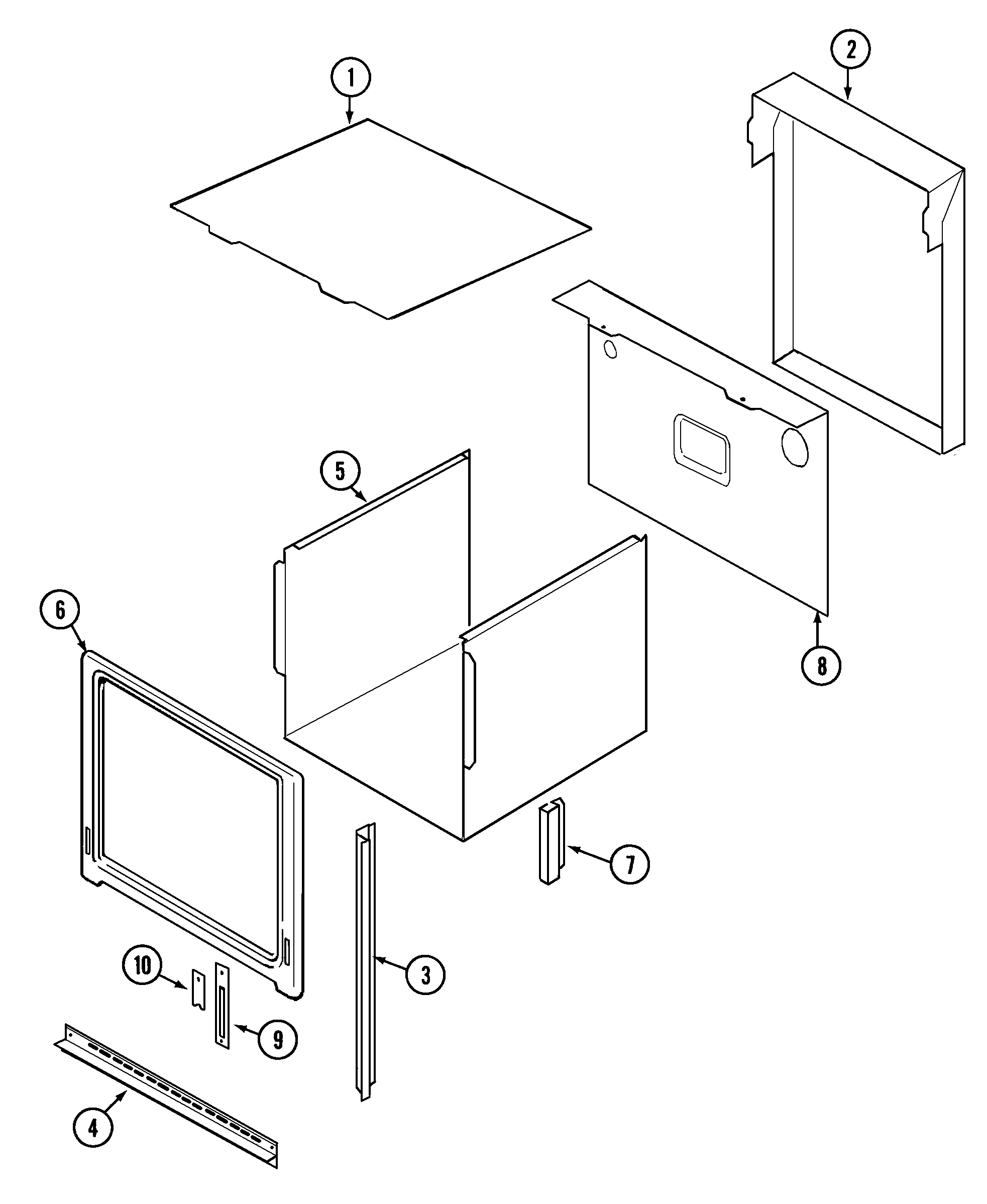

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Oven Sensor 704657
#12

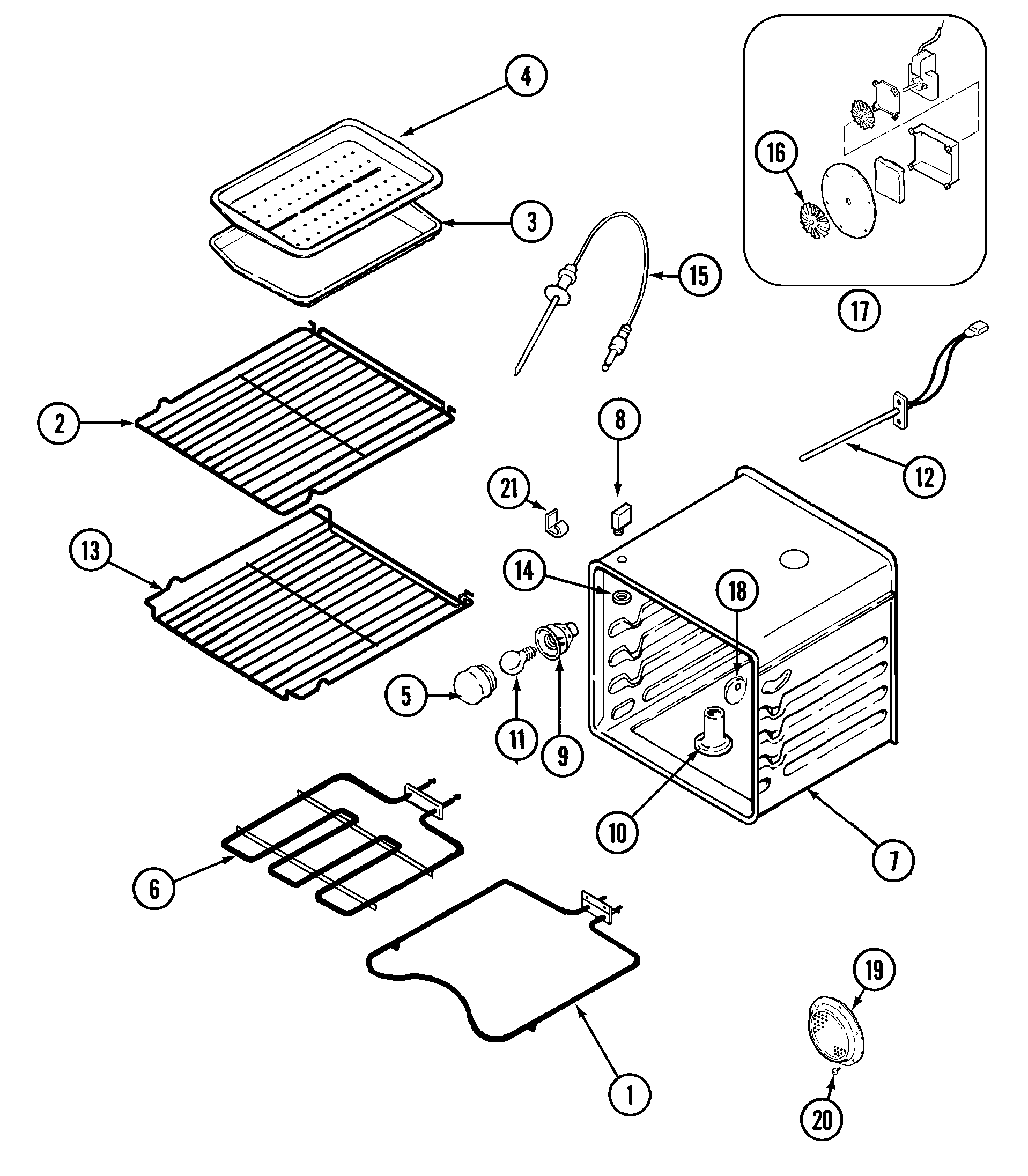

Oven diagram

Oven sensor

Part #704657

Replaced by #12001656

?
Manufacturer substitution
This part replaces 704657. Substitute parts can look different from the original.
BEST SELLER
$36.94 |
14% OFF Phone Price : $42.94
In Stock
Range Oven Control Board And Clock 71001799
#3

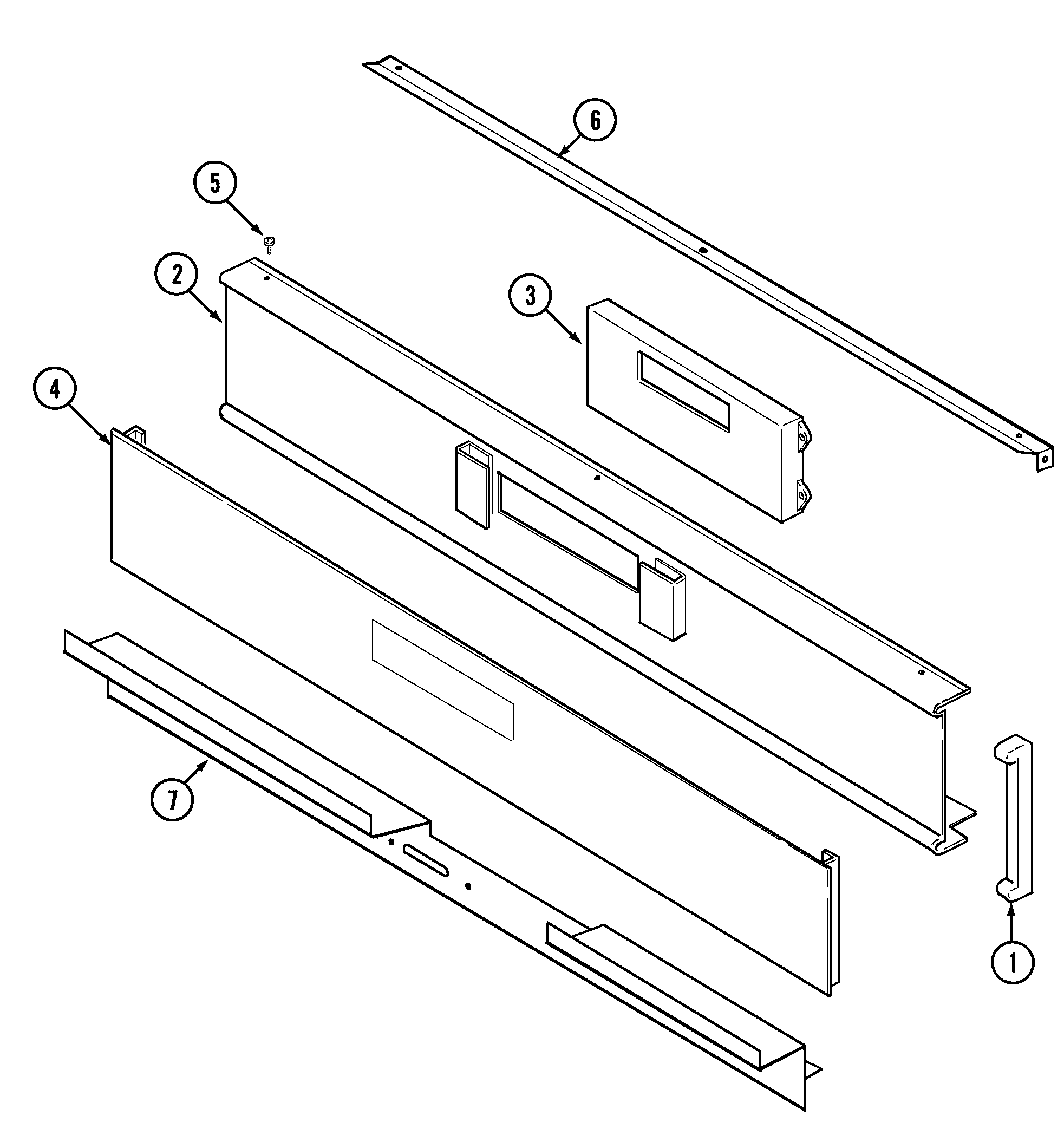

Control panel diagram

Range oven control board and clock

Part #71001799

Replaced by #WP71001799

?
Manufacturer substitution
This part replaces 71001799. Substitute parts can look different from the original.
BEST SELLER
$226.62 |
5% OFF Phone Price : $238.62
In Stock
Wall Oven Door Hinge 74008014
#5

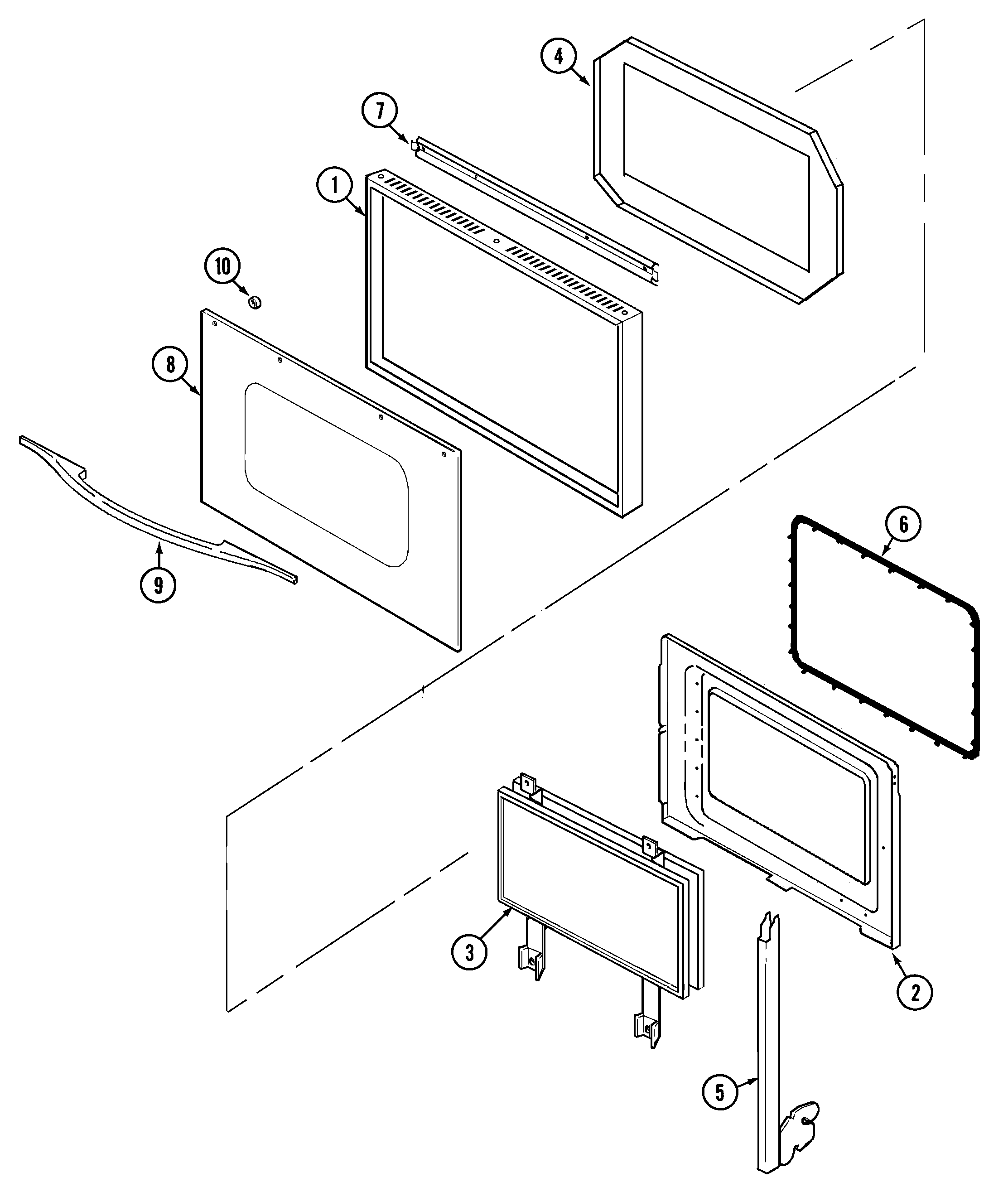

Door diagram

Wall oven door hinge

Part #74008014

Replaced by #WP74008014

?
Manufacturer substitution
This part replaces 74008014. Substitute parts can look different from the original.
BEST SELLER
$67.72 |
8% OFF Phone Price : $73.72
In Stock
Door Switch 71001129
#3

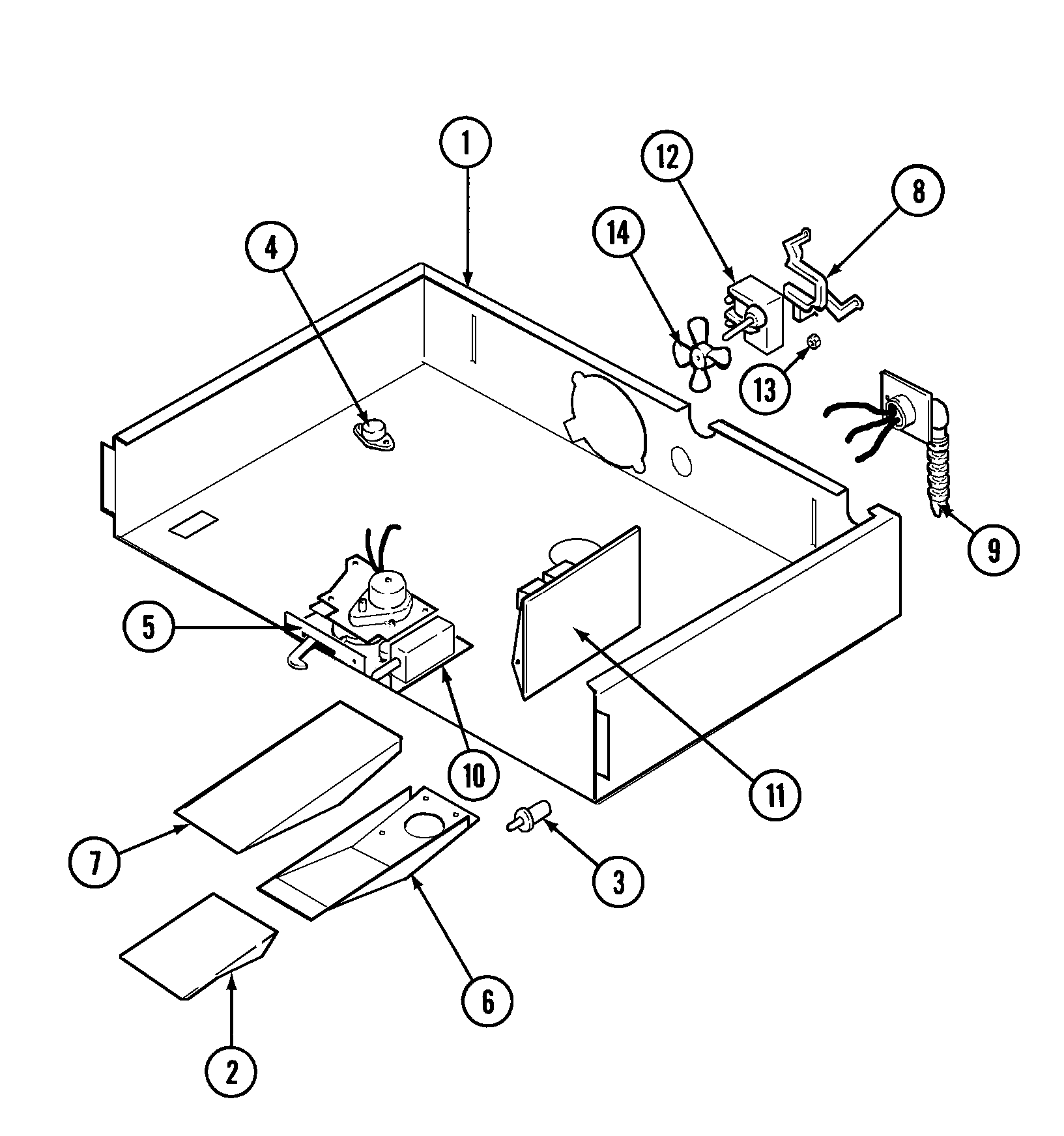

Internal controls diagram

Door switch

Part #71001129

Replaced by #WB24T10147

?
Manufacturer substitution
This part replaces 71001129. Substitute parts can look different from the original.
This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Bake Element 71001638
#1

Oven diagram

Bake element

Part #71001638

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 71001638. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Screw 706189
Screw

Part #706189

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 706189. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
"switch, Hi-l" 702548
#4

Internal controls diagram

"switch, hi-l"

Part #702548

Replaced by #WP7403P899-60

?
Manufacturer substitution
This part replaces 702548. Substitute parts can look different from the original.
$88.32 |
6% OFF Phone Price : $94.32
In Stock
Oven Rack 71001862
#2

Oven diagram

Oven rack

Part #71001862

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Range High-limit Thermostat 71001844
#4A

Internal controls diagram

Range high-limit thermostat

Part #71001844

Replaced by #WP71001844

?
Manufacturer substitution
This part replaces 71001844. Substitute parts can look different from the original.
$88.79 |
6% OFF Phone Price : $94.79
In Stock
Oven Rack 71001865
#13

Oven diagram

Oven rack

Part #71001865

Replaced by #WPW10282527

?
Manufacturer substitution
This part replaces 71001865. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock

Most common symptoms to help you fix your wall oven

Choose a symptom to see related wall oven repairs.

View all

Why won't my wall oven door unlock?

Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…

Read more

Why won't my wall oven bake?

Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…

Read more

Why isn't my wall oven at the temperature I set?

Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…

Read more

Why won't my wall oven heat?

Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…

Read more

Why doesn't my wall oven work?

Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…

Read more

Why won't my wall oven broil?

Main causes: broken broil element, faulty broil burner igniter, control system failure…

Read more
