White-Westinghouse
Electric Range

Model # KF330JDD4 Official White-Westinghouse electric range - 5995208047

Here are the diagrams and repair parts for Official White-Westinghouse KF330JDD4 electric range - 5995208047, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

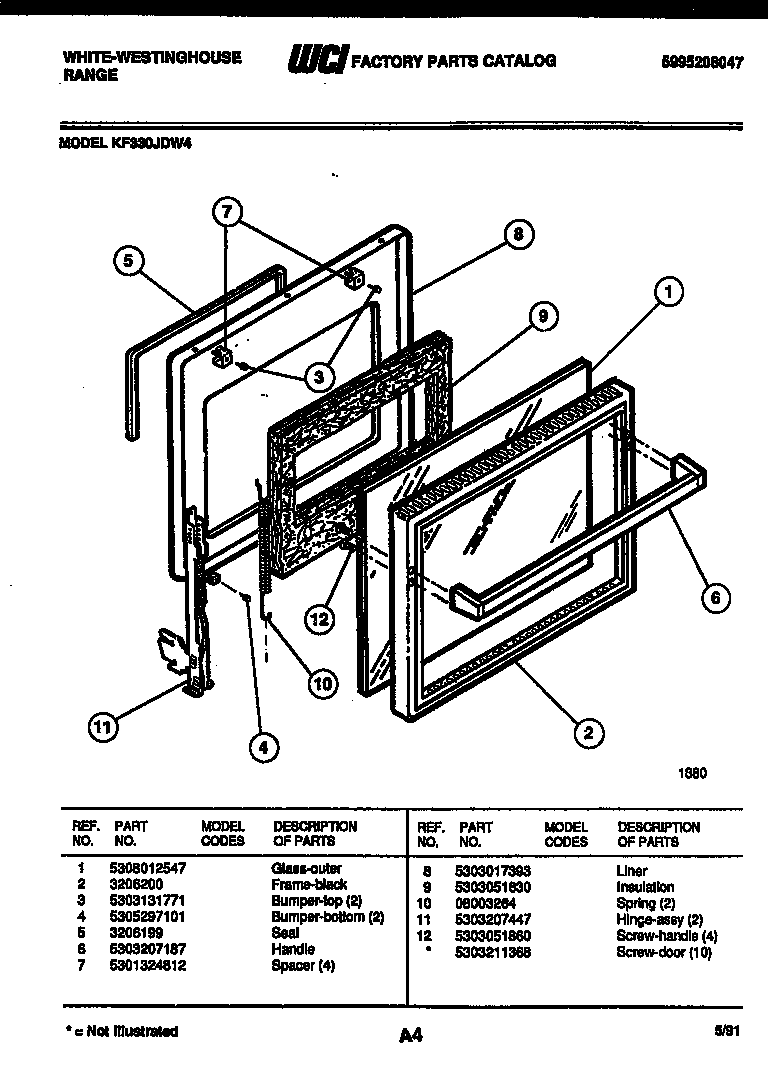

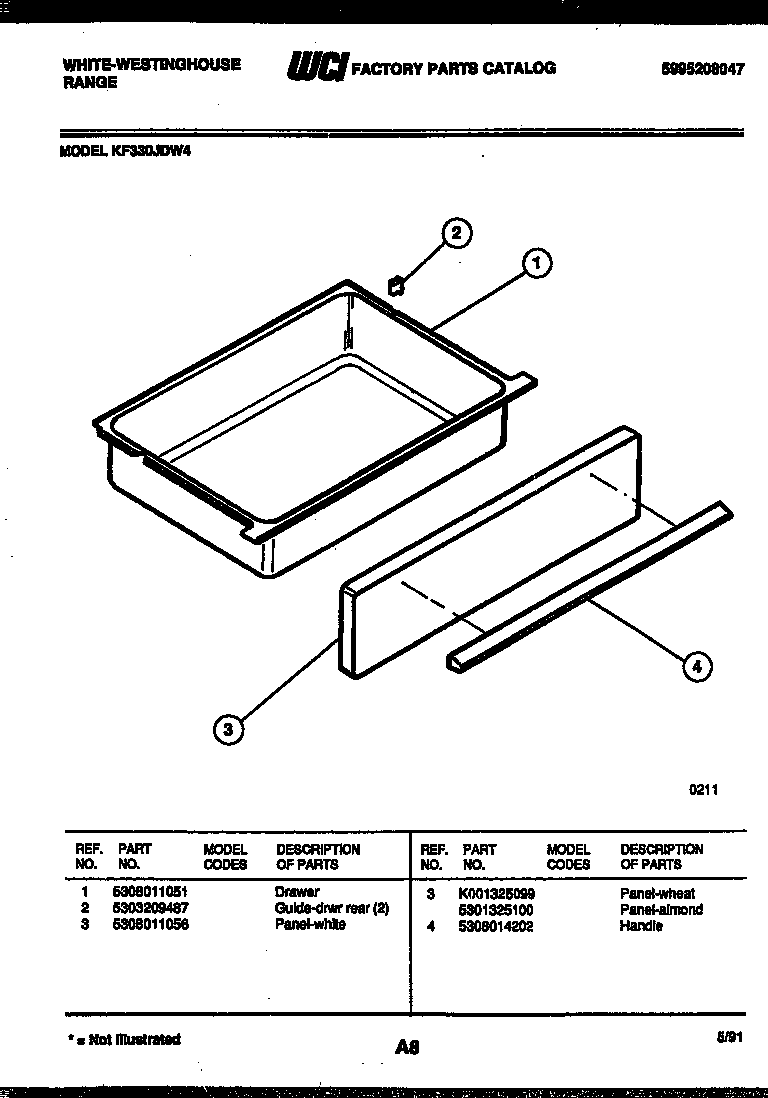

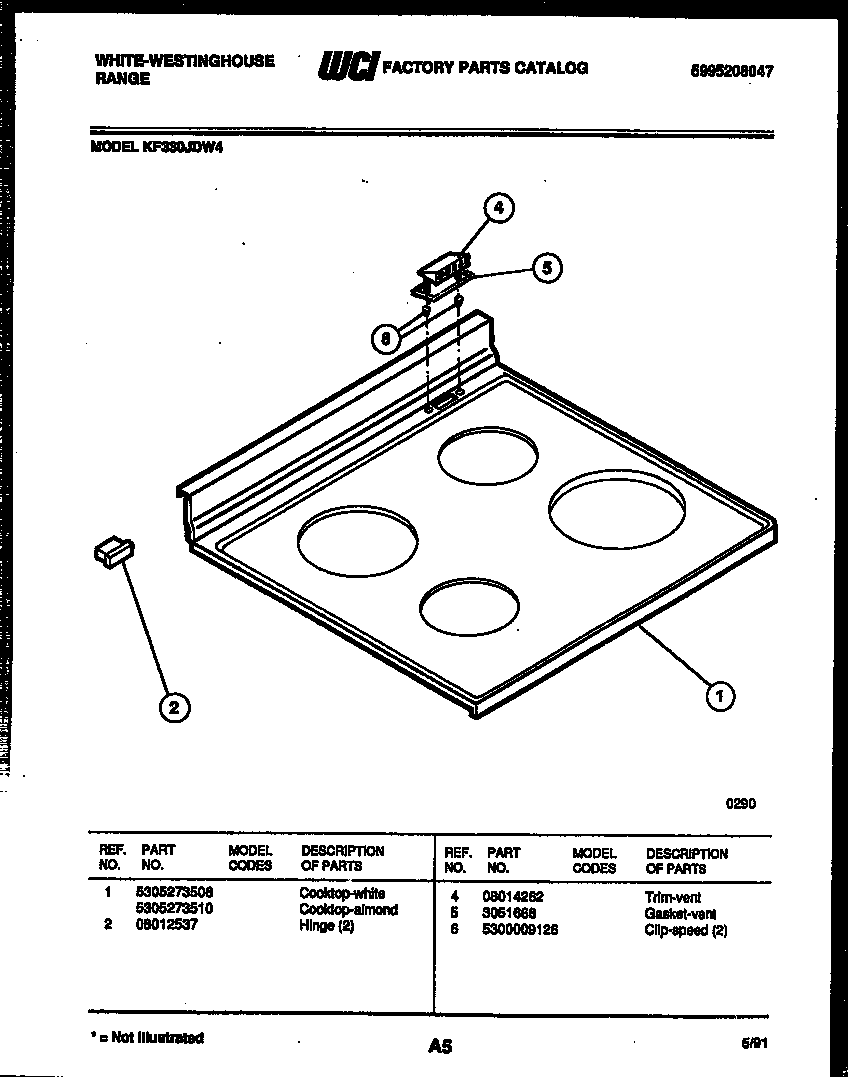

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Block 5306563359
#18

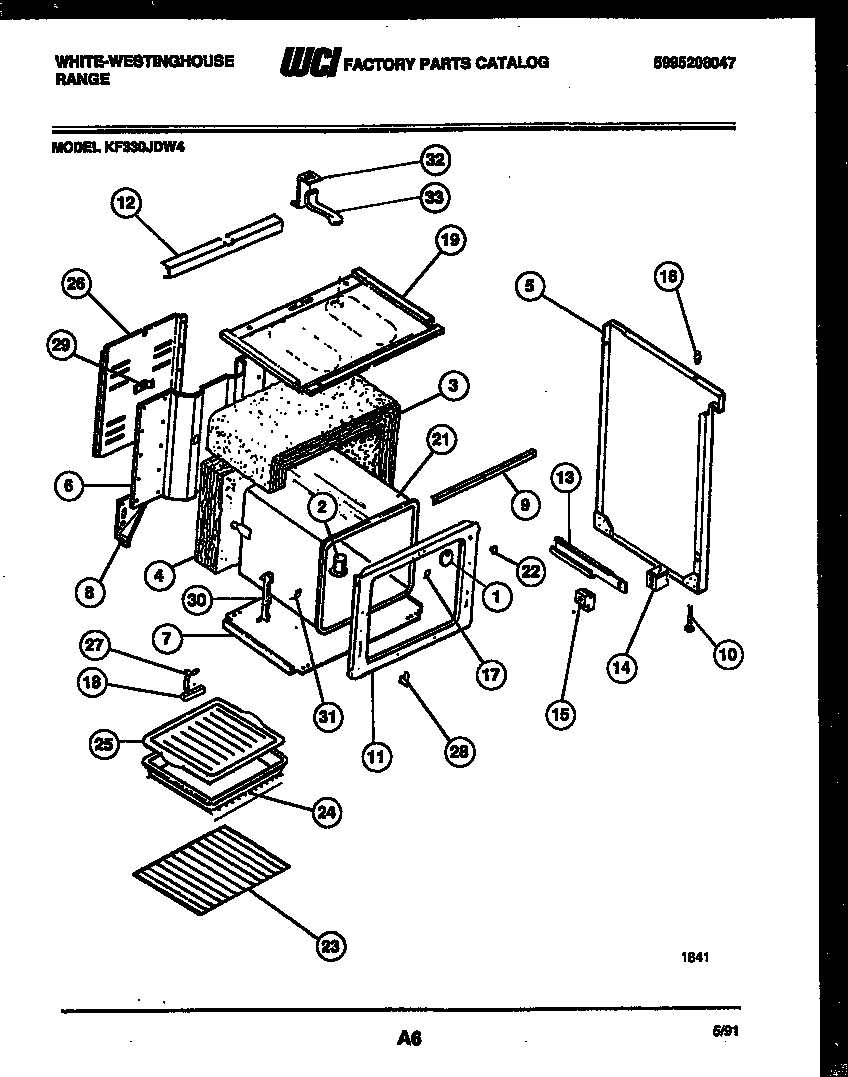

Body parts diagram

Block

Part #5306563359

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5306563359. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Bake Element (replaces 000212004, 001311298, 001312853, 08002858, 09990061, 1311298, 1312852, 1312853, 3051519, 316075101, 8002858, K001311298, K001312853, K1311298, K1312852, K1312853, Q000212004) 5303051519
#5

Broiler parts diagram

Range bake element (replaces 000212004, 001311298, 001312853, 08002858, 09990061, 1311298, 1312852, 1312853, 3051519, 316075101, 8002858, k001311298, k001312853, k1311298, k1312852, k1312853, q000212004)

Part #5303051519

BEST SELLER
$38.79 |
13% OFF Phone Price : $44.79
In Stock
Switch-8" El 5301313767
#2A

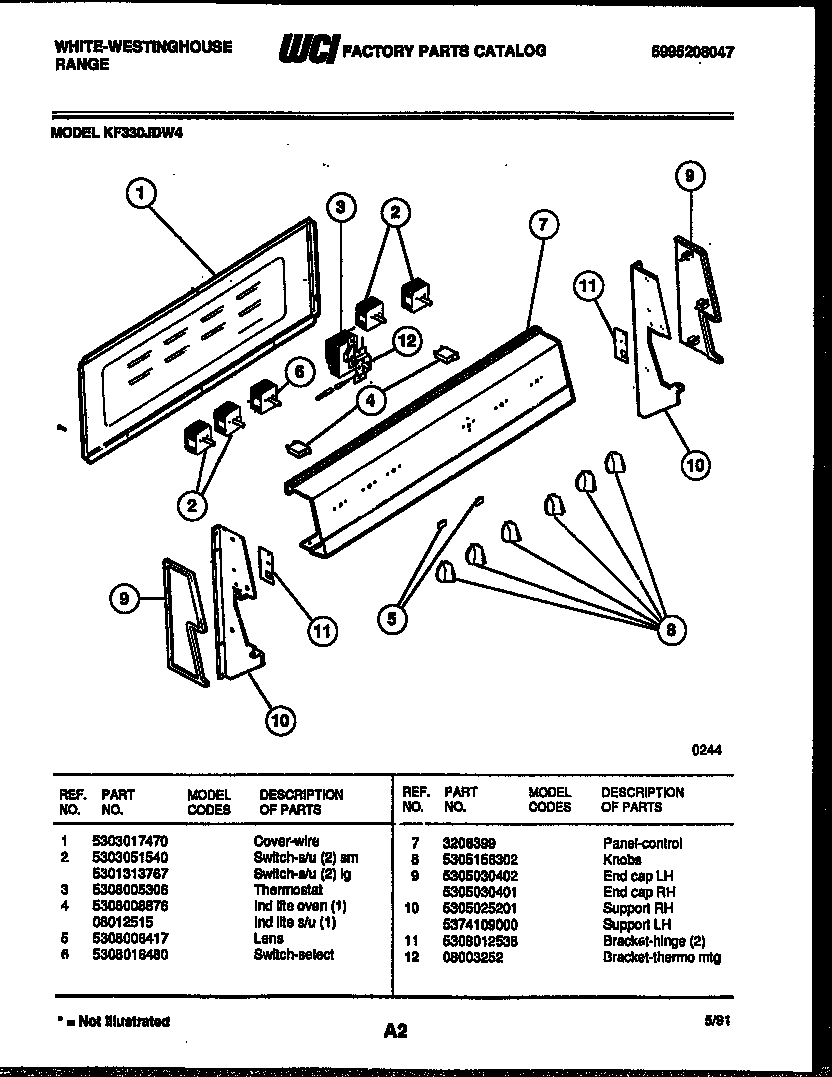

Control panel diagram

Switch-8" el

Part #5301313767

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5301313767. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Switch 5303051540
#2

Control panel diagram

Switch

Part #5303051540

Replaced by #5303935086

?
Manufacturer substitution
This part replaces 5303051540. Substitute parts can look different from the original.
$41.02 |
13% OFF Phone Price : $47.02
In Stock
Rack 5303131973
#23

Body parts diagram

Rack

Part #5303131973

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 5303131973. Substitute parts can look different from the original.
$36.71 |
14% OFF Phone Price : $42.71
In Stock
Range Broil Element 5303051516
#4

Broiler parts diagram

Range broil element

Part #5303051516

$138.69 |
8% OFF Phone Price : $150.69
In Stock
Support 5305025201
#10

Control panel diagram

Support

Part #5305025201

$13.99
In Stock
Wall Oven Door Hinge Receiver 3201631
#30

Body parts diagram

Wall oven door hinge receiver

Part #3201631

$114.40
In Stock
Guide 3051654
#15

Body parts diagram

Guide

Part #3051654

Replaced by #318161600

?
Manufacturer substitution
This part replaces 3051654. Substitute parts can look different from the original.
$67.36
In Stock
Insert Broil 3205234
#25

Body parts diagram

Insert broil

Part #3205234

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 3205234. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
