Model # DSC-HX9VB Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX9VB digital camera, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
DSC-HX9VB Digital Camera
A-137 Pcb A1818411A
#54

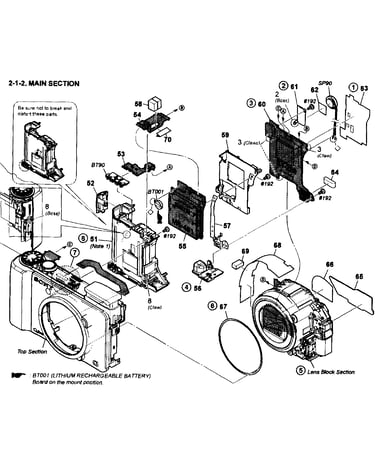

Main section diagram

A-137 pcb

Part #A1818411A

$16.51
In Stock
Sony Rear Cabinet X25810071
#8

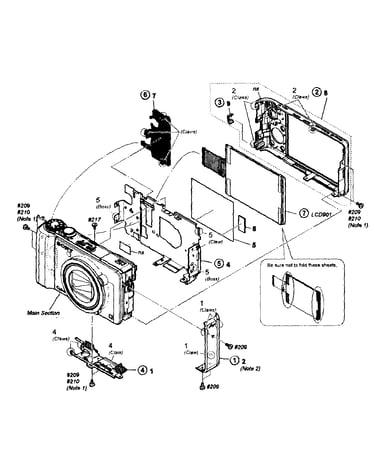

Rear section diagram

Sony rear cabinet

Part #X25810071

$34.10
In Stock
Main Frame 427705001
#4

Rear section diagram

Main frame

Part #427705001

$17.26
In Stock
Sony Cabinet Block A1818555A
#101

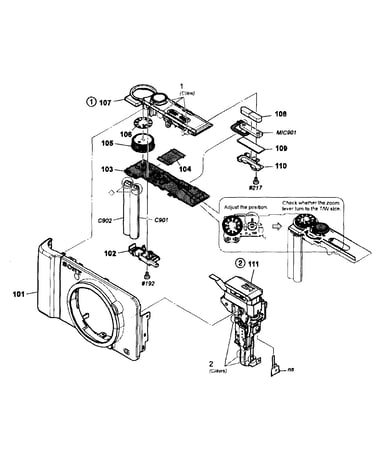

Front section diagram

Sony cabinet block

Part #A1818555A

$82.12
In Stock
Lens 884887801
#151

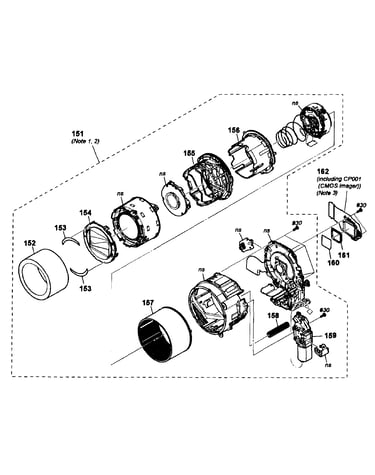

Lens block diagram

Lens

Part #884887801

$177.63
In Stock
Gear Case A1802348A
#159

Lens block diagram

Gear case

Part #A1802348A

$22.31
In Stock
Cushion 428745401
#58

Main section diagram

Cushion

Part #428745401

This item is not returnable
$2.65
In Stock
Rl-115 Pcb 188411911
#104

Front section diagram

Rl-115 pcb

Part #188411911

This item is not returnable
$5.65
In Stock
Tape 428719701
#70

Main section diagram

Tape

Part #428719701

This item is not returnable
$4.80
In Stock
Retaining 427704701
#57

Main section diagram

Retaining

Part #427704701

This item is not returnable
$7.22
In Stock
