Gas Wall Oven

Model # PKO191 Official Modern Maid gas wall oven

Here are the diagrams and repair parts for Official Modern Maid PKO191 gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

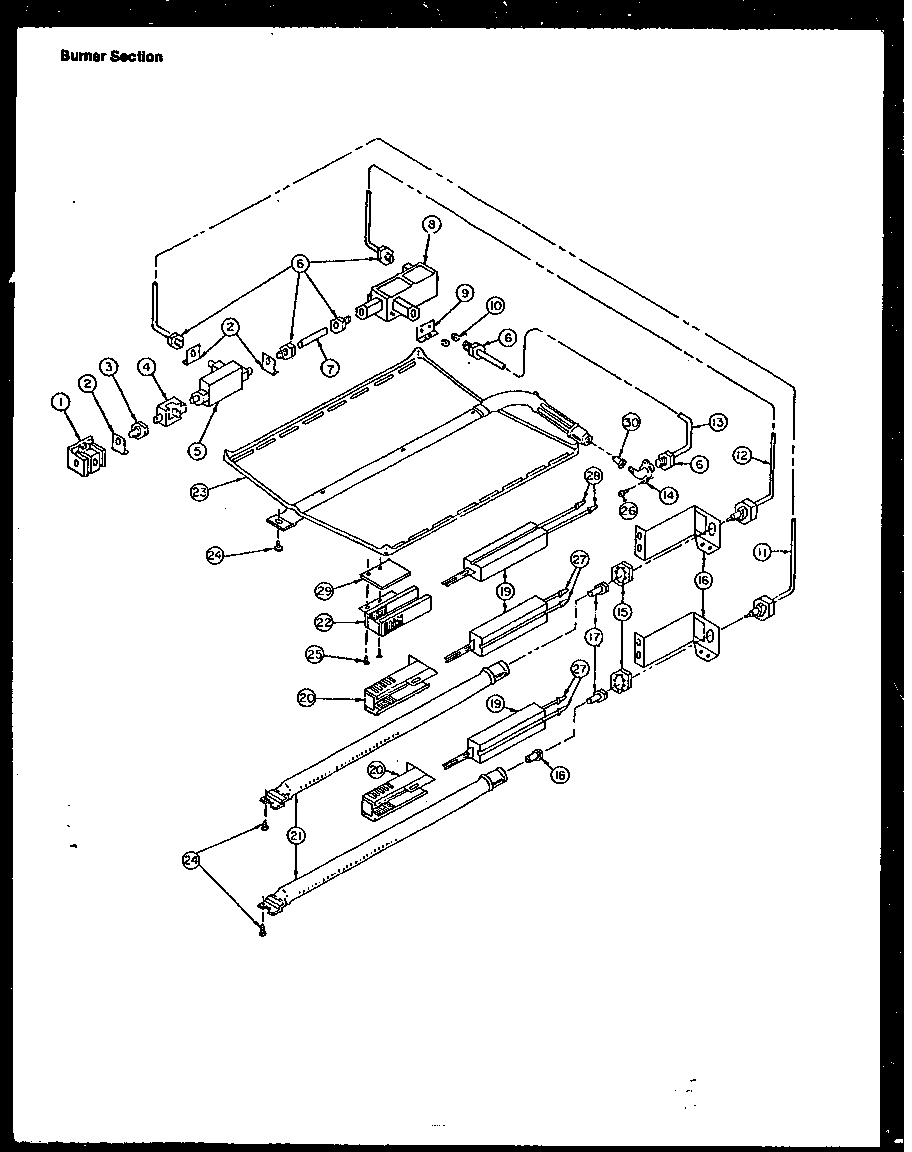

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 127 parts  |
Lower Oven Flue Duct, Back 69-053146-02-0

#NI

All parts diagram

Lower oven flue duct, back

Part #69-053146-02-0

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 07-042600-04-B
#2

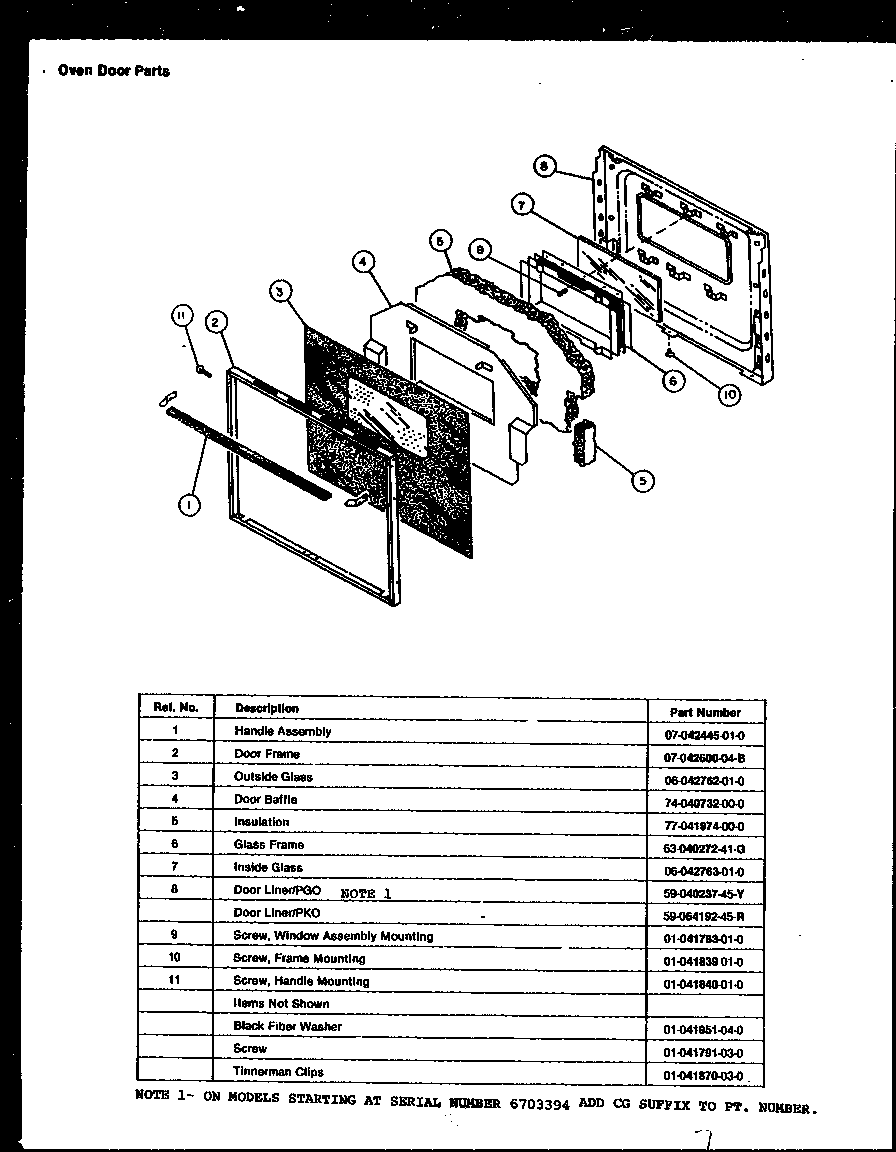

Oven door parts diagram

Door frame

Part #07-042600-04-B

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Bulb Shield, Upper 74-040873-00-0

#NI

All parts diagram

Thermostat bulb shield, upper

Part #74-040873-00-0

The manufacturer no longer makes this part, and there's no substitute part

Bottom Plate Spacer 73-040900-00-0

#NI

All parts diagram

Bottom plate spacer

Part #73-040900-00-0

The manufacturer no longer makes this part, and there's no substitute part

Screw 01-041791-03-0

#NI

All parts diagram

Screw

Part #01-041791-03-0

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Disconnect 73-052487-00-0
#4

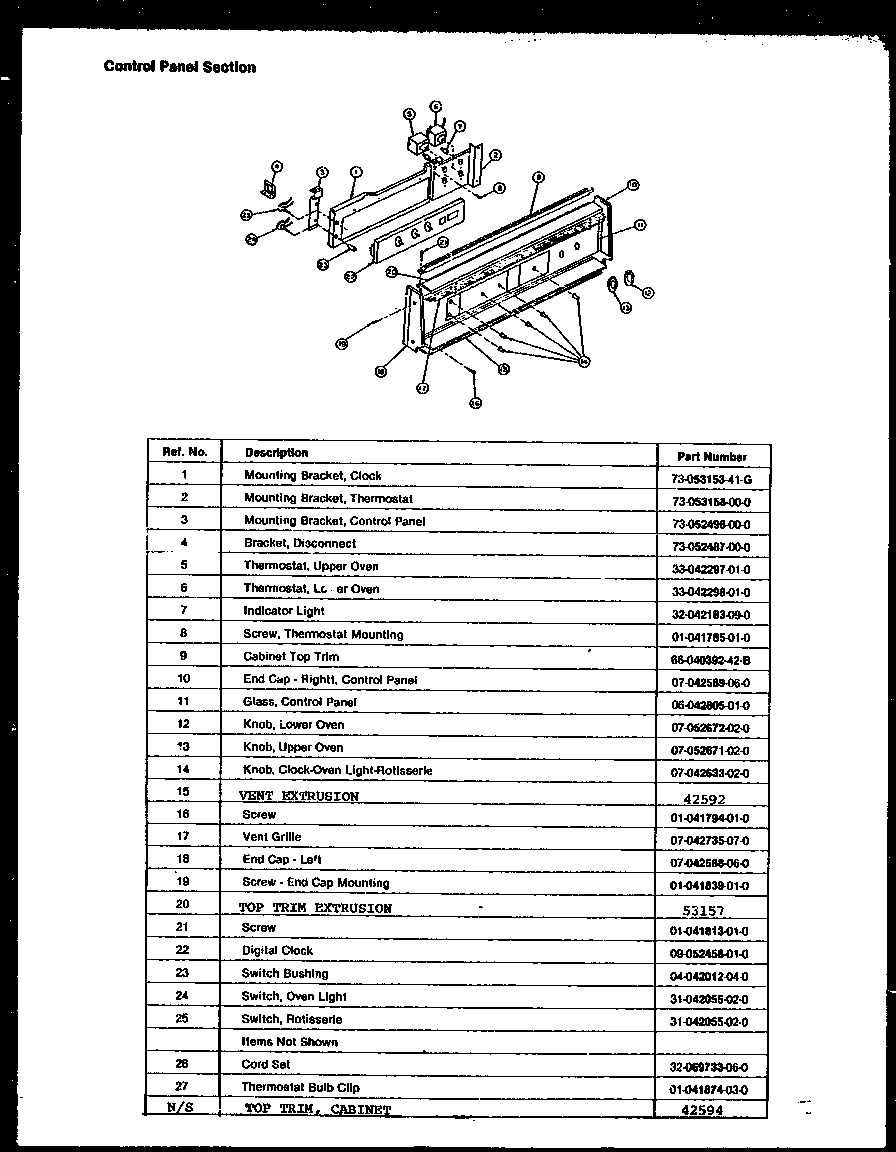

Controls diagram

Bracket, disconnect

Part #73-052487-00-0

The manufacturer no longer makes this part, and there's no substitute part

Lower Flue Cover, Bottom 75-040695-00-0
#24

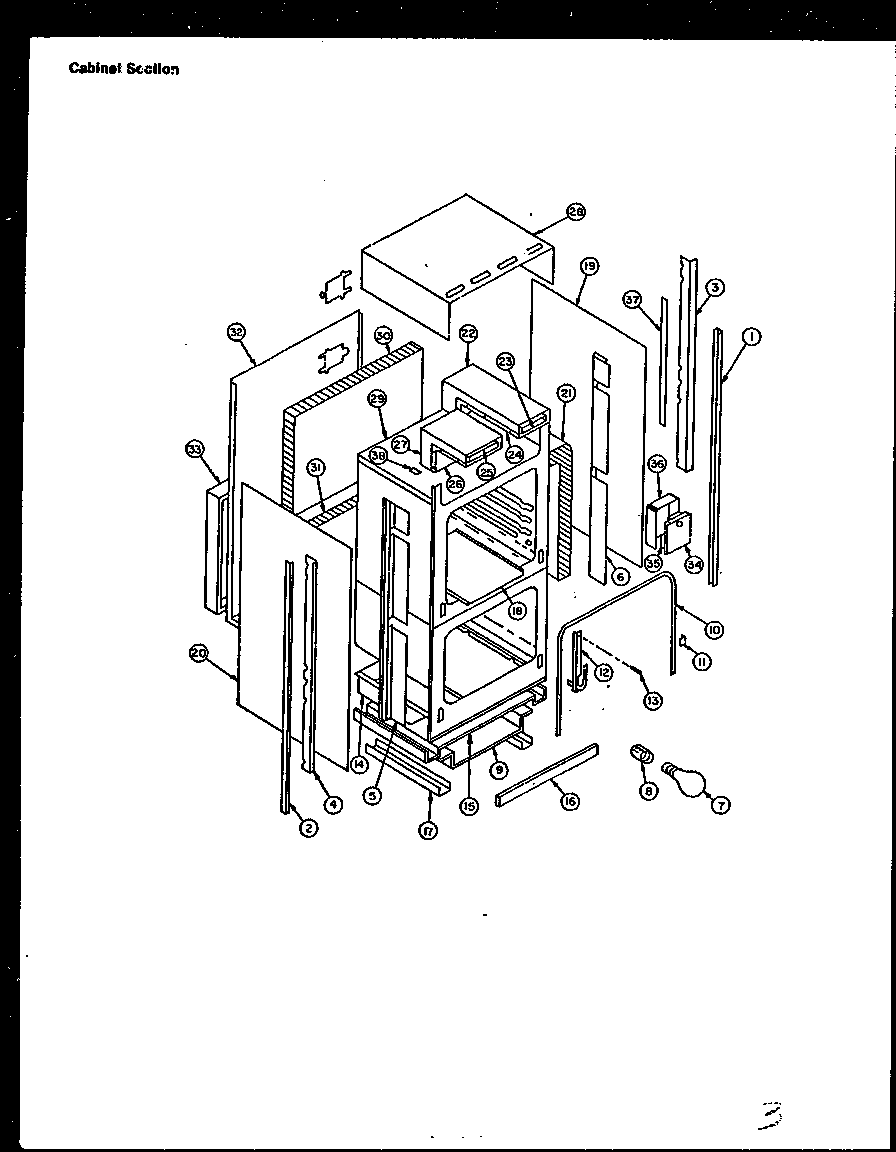

Cabinet section diagram
