Model # JGB735DP1WW Official GE gas range

Here are the diagrams and repair parts for Official GE JGB735DP1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

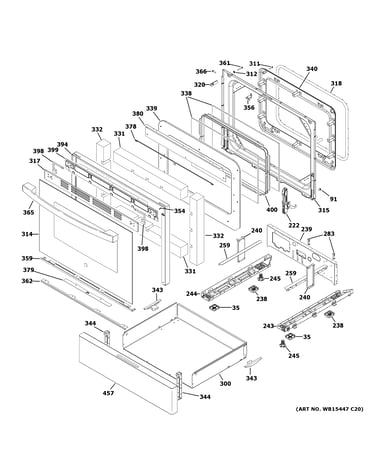

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 180 parts  |
40a15bulb STD372401
#235

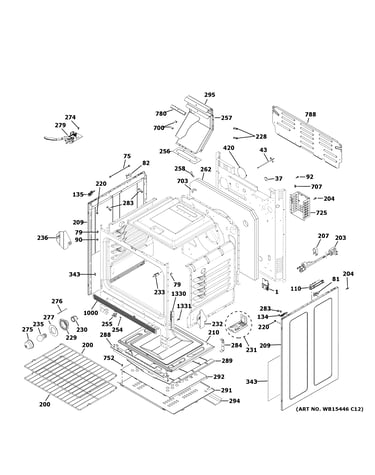

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Oven Burner Igniter WB13X25500
#218

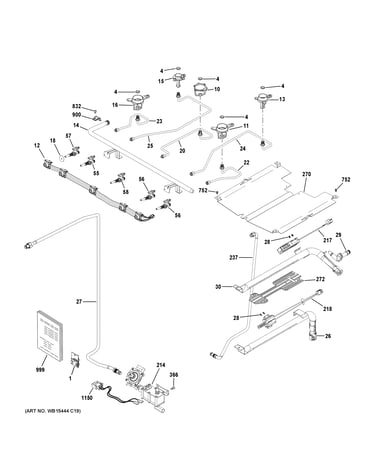

Gas & burner parts diagram

Range oven burner igniter

Part #WB13X25500

BEST SELLER
$75.80 |
7% OFF Phone Price : $81.80
In Stock
Range Surface Burner Cap WB28K10222
#153

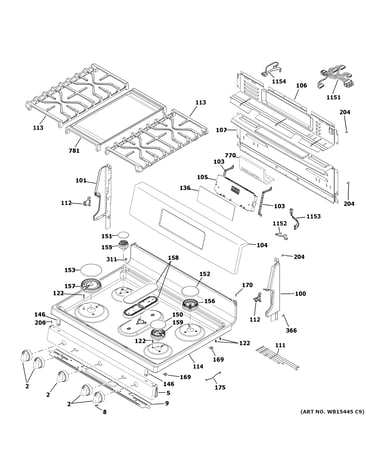

Control panel & cooktop diagram

Range surface burner cap

Part #WB28K10222

BEST SELLER
$17.80 |
10% OFF Phone Price : $19.80
In Stock
Range Extra Large Surface Burner, 18,000-btu WB16X24722
#157

Control panel & cooktop diagram

Range extra large surface burner, 18,000-btu

Part #WB16X24722

BEST SELLER
This item is not returnable
$29.95 |
17% OFF Phone Price : $35.95
In Stock
Range Oven Control Board WB27X37998
#105

Control panel & cooktop diagram

Range oven control board

Part #WB27X37998

BEST SELLER
This item is not returnable
$171.57 |
7% OFF Phone Price : $183.57
In Stock
Range Gas Valve And Regulator Assembly (replaces Wb21x28820) WB21X33225
#214

Gas & burner parts diagram

Range gas valve and regulator assembly (replaces wb21x28820)

Part #WB21X33225

BEST SELLER
$182.21
In Stock
Range Surface Burner Cap WB29K10023
#150

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10023

BEST SELLER
$23.21 |
21% OFF Phone Price : $29.21
In Stock
Range Surface Burner Cap WB29K10024
#152

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Range Oven Temperature Sensor WB20K10027
#43

Body parts diagram

Range oven temperature sensor

Part #WB20K10027

BEST SELLER
$24.99 |
19% OFF Phone Price : $30.99
In Stock
Injet, Xl V2 WB02X24725
#16

Gas & burner parts diagram

Injet, xl v2

Part #WB02X24725

BEST SELLER
$93.16 |
6% OFF Phone Price : $99.16
In Stock
