Model # 26LB30H Official Proscan lcd television

Here are the diagrams and repair parts for Official Proscan 26LB30H lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Television Control Key Panel 113354
#4

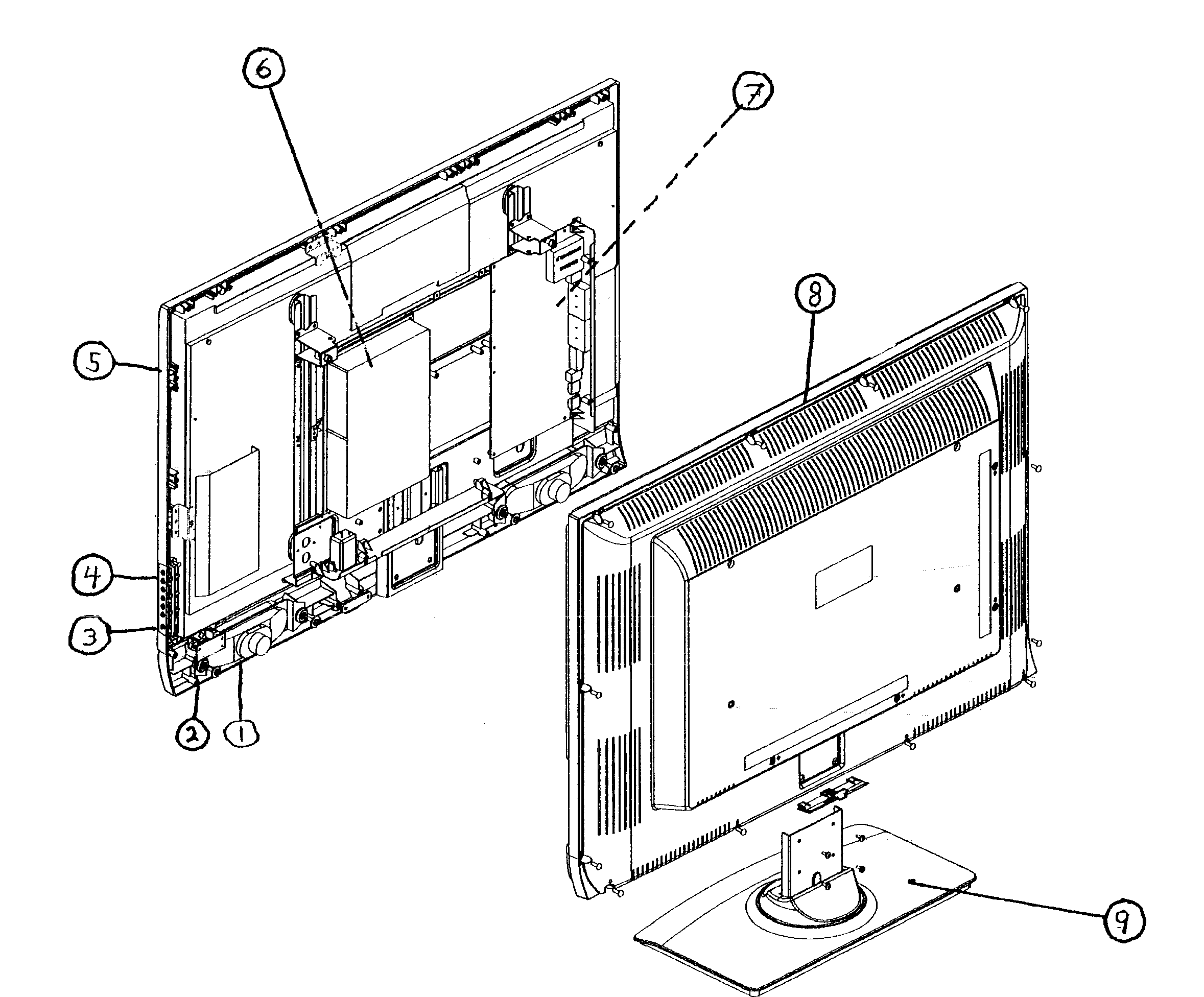

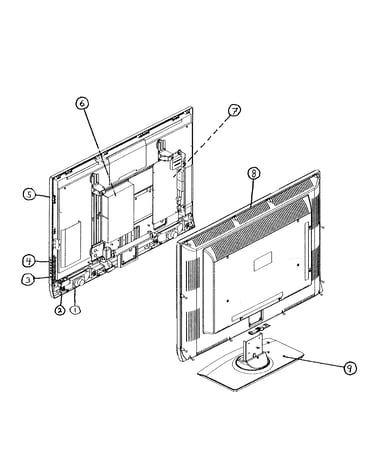

Cabinet parts diagram

Television control key panel

Part #113354

The manufacturer no longer makes this part, and there's no substitute part

Board Panel 1049435
#NI

Cabinet parts diagram

Board panel

Part #1049435

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb 116073
#7

Cabinet parts diagram

Main pcb

Part #116073

The manufacturer no longer makes this part, and there's no substitute part

Ac Cable E080515H00
#NI

Cabinet parts diagram

Ac cable

Part #E080515H00

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 1049603
#5

Cabinet parts diagram

Cabinet

Part #1049603

The manufacturer no longer makes this part, and there's no substitute part

Cabinet 1049437
#8

Cabinet parts diagram

Cabinet

Part #1049437

The manufacturer no longer makes this part, and there's no substitute part

Ir Board 115280
#2

Cabinet parts diagram

Ir board

Part #115280

The manufacturer no longer makes this part, and there's no substitute part

Power Supply Board 115429
#6

Cabinet parts diagram

Power supply board

Part #115429

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker 1038509
#1

Cabinet parts diagram

Television speaker

Part #1038509

The manufacturer no longer makes this part, and there's no substitute part

Stand 1049574
#9

Cabinet parts diagram

Stand

Part #1049574

The manufacturer no longer makes this part, and there's no substitute part
