Treadmill

Model # 831297960 Official Image 10.4q treadmill

Here are the diagrams and repair parts for Official Image 831297960 10.4q treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

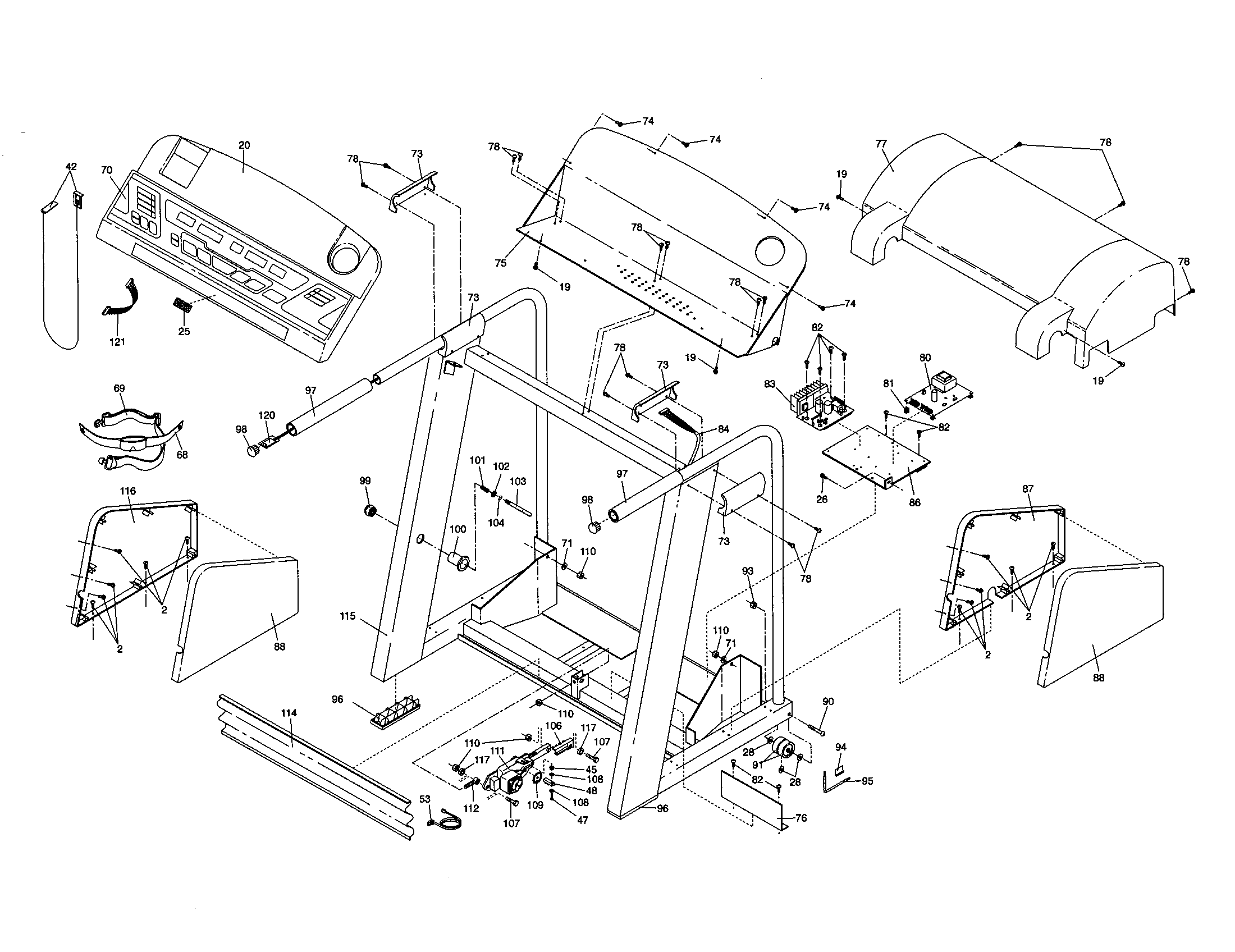

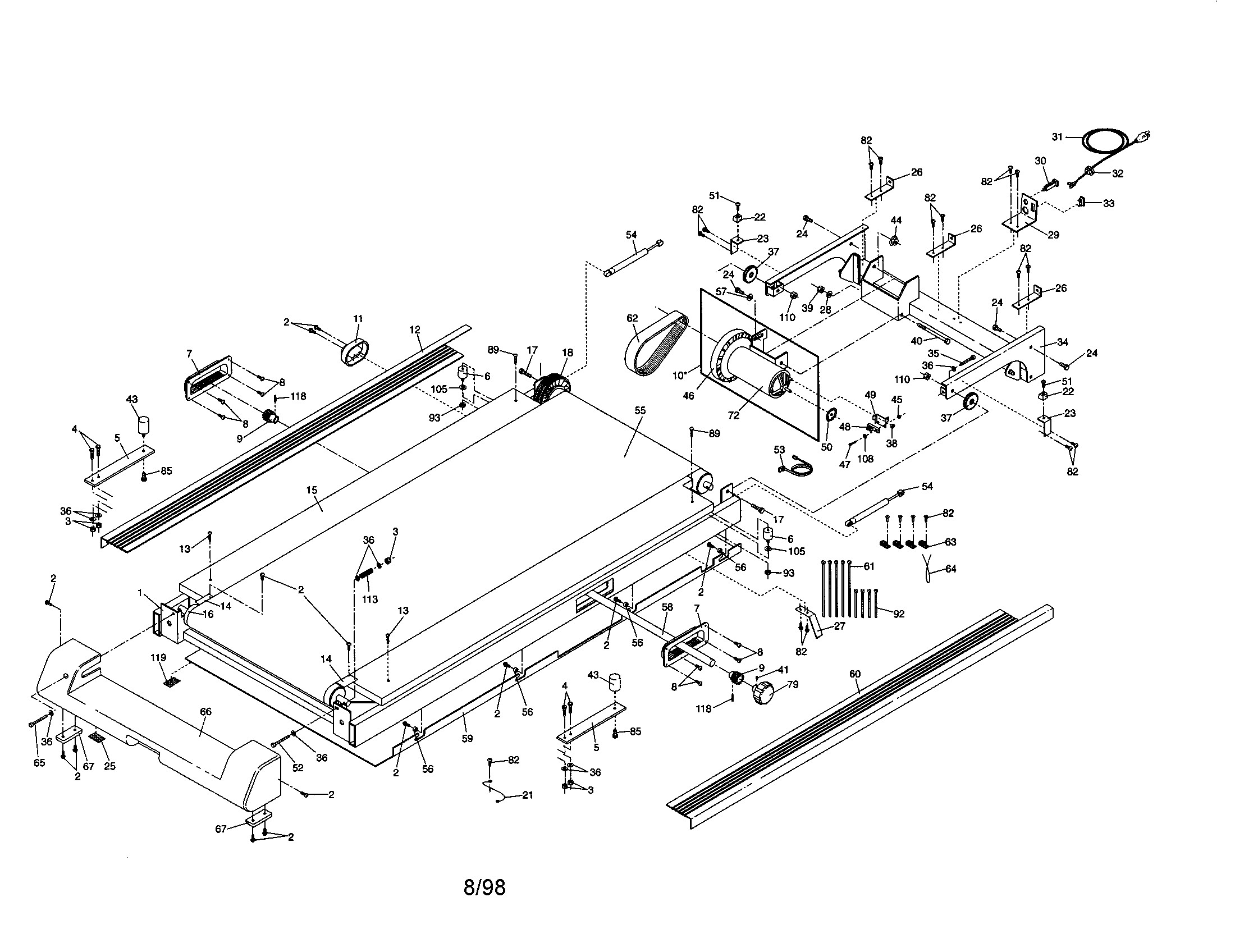

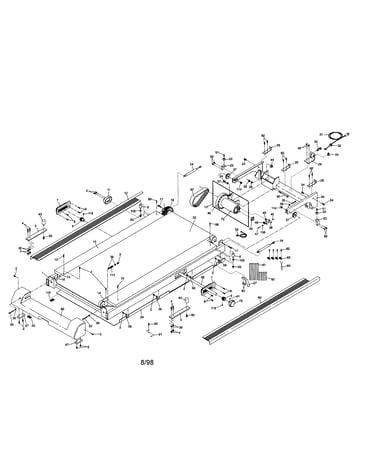

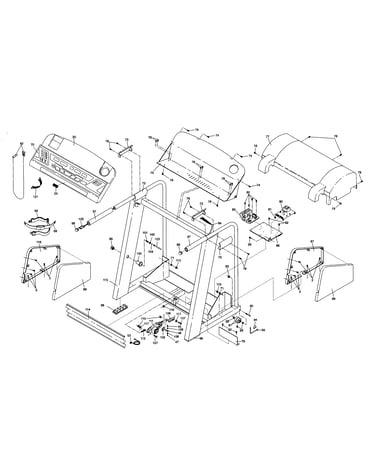

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#42

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Black & Decker Treadmill Power Cord (replaces 031033, 031143, 031147, 247991) 031229

#31

All parts diagram

Black & decker treadmill power cord (replaces 031033, 031143, 031147, 247991)

Part #031229

$11.39 |
15% OFF Phone Price : $13.39
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#30

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Weider Exercise Equipment Optic Sensor 102955

#48

All parts diagram

Weider exercise equipment optic sensor

Part #102955

This item is not returnable
$9.29 |
10% OFF Phone Price : $10.29
In Stock
Treadmill Incline Wheel 132314

#91

All parts diagram

Treadmill incline wheel

Part #132314

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013576

#51

All parts diagram

Exercise equipment screw

Part #013576

This item is not returnable
$2.16
In Stock
Clamp,plstc, 016029

#92

All parts diagram

Clamp,plstc,

Part #016029

This item is not returnable
$2.16
In Stock
Healthrider Exercise Equipment Screw 126996

#74

All parts diagram

Healthrider exercise equipment screw

Part #126996

This item is not returnable
$2.16
In Stock
Nut,hex Nyl 117395

#38

All parts diagram

Nut,hex nyl

Part #117395

This item is not returnable
$2.16
In Stock
Caution Decal 143908
Caution decal

Part #143908

This item is not returnable
$2.16
In Stock
