Model # 7MWTW1700AQ0 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool 7MWTW1700AQ0 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

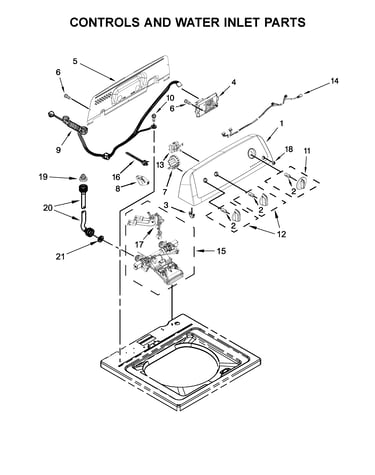

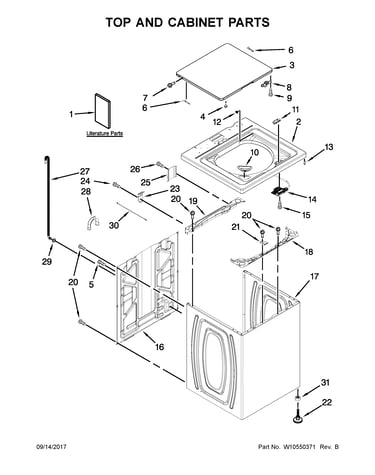

SELECT DIAGRAM
Browse Parts for
7MWTW1700AQ0 Washer
#9

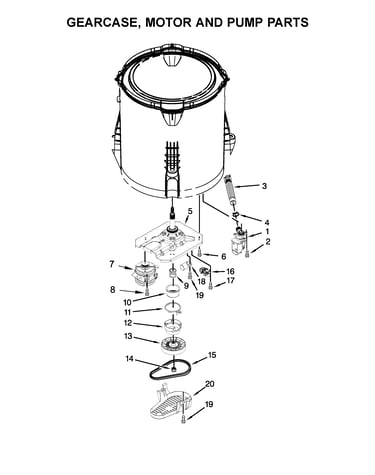

Gearcase, motor and pump parts diagram
Spring
Part #W10006382
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006382. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#11
Gearcase, motor and pump parts diagram
Cam
Part #W10006353
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006353. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#10
Gearcase, motor and pump parts diagram
Washer drive pulley and splutch assembly
Part #W10006352
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006352. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#12
Gearcase, motor and pump parts diagram
Cam
Part #W10006354
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006354. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#13
Gearcase, motor and pump parts diagram
Washer motor drive pulley
Part #W10006356
Replaced by #W10721967
?
Manufacturer substitution
This part replaces W10006356. Substitute parts can look different from the original.
$55.14 |
10% OFF Phone Price : $61.14
In Stock
#14

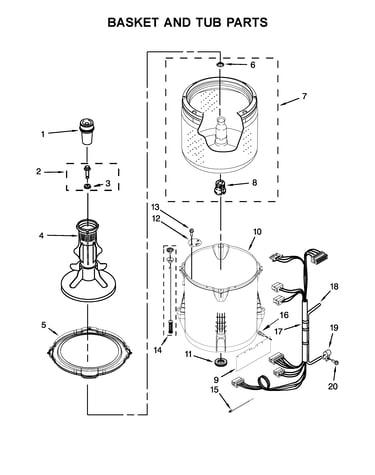

Basket and tub parts diagram
Suspension
Part #W10257088
Replaced by #W10780048
?
Manufacturer substitution
This part replaces W10257088. Substitute parts can look different from the original.
$51.43 |
10% OFF Phone Price : $57.43
In Stock
#16
Gearcase, motor and pump parts diagram
Washer actuator
Part #W10006355
Replaced by #WPW10006355
?
Manufacturer substitution
This part replaces W10006355. Substitute parts can look different from the original.
$43.51 |
12% OFF Phone Price : $49.51
In Stock
#8
Basket and tub parts diagram
Washer drive block
Part #389140
Replaced by #WP389140
?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
$22.16 |
21% OFF Phone Price : $28.16
In Stock
#6
Basket and tub parts diagram
Washer spanner nut
Part #21366
Replaced by #WP21366
?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
This item is not returnable
$6.17 |
14% OFF Phone Price : $7.17
In Stock
#5
Gearcase, motor and pump parts diagram
Washer gear case
Part #W10473144
Replaced by #W11454741
?
Manufacturer substitution
This part replaces W10473144. Substitute parts can look different from the original.
$163.77 |
7% OFF Phone Price : $175.77
In Stock
