Model # 58032251 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58032251 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Bearing 24049
#20

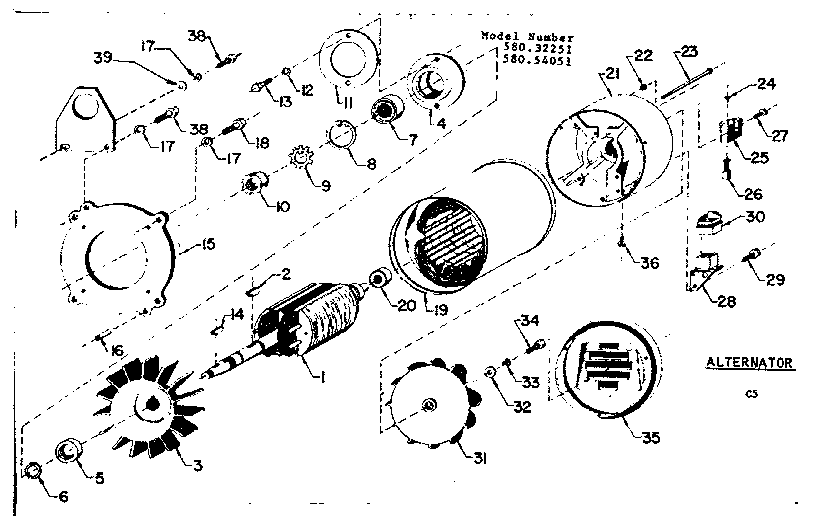

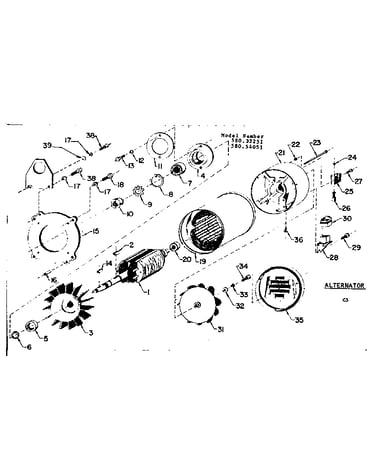

Alternator diagram

Bearing

Part #24049

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 23364
#24

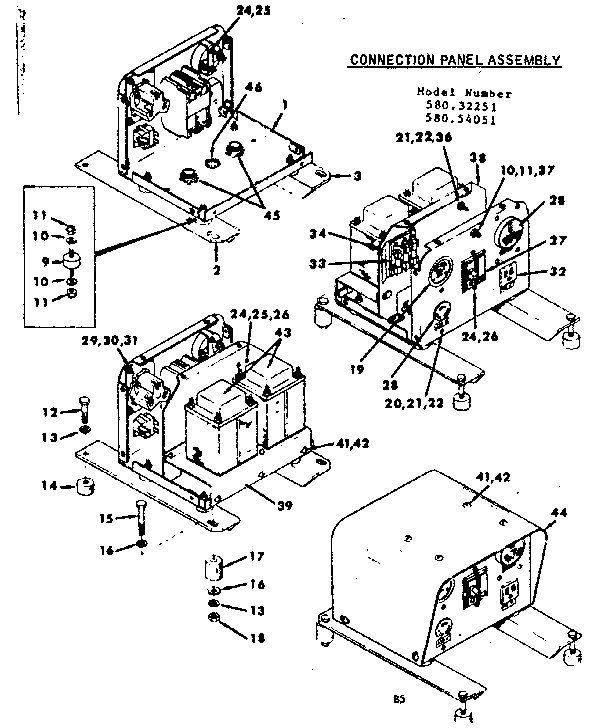

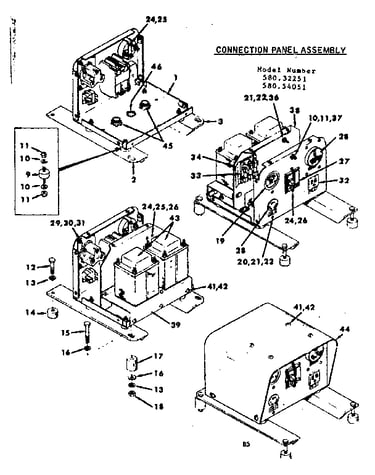

Connection panel assembly diagram

Lock washer

Part #23364

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22283
#12

Connection panel assembly diagram

Cap screw

Part #22283

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22447
#10

Connection panel assembly diagram

Lock washer

Part #22447

The manufacturer no longer makes this part, and there's no substitute part

Mch Screw 22818-W
#23

Alternator diagram

Mch screw

Part #22818-W

The manufacturer no longer makes this part, and there's no substitute part

Shield 26867
#9

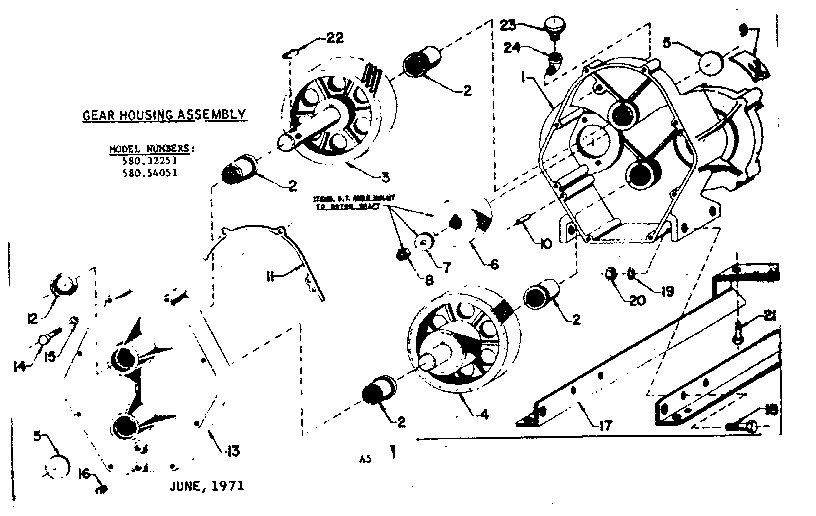

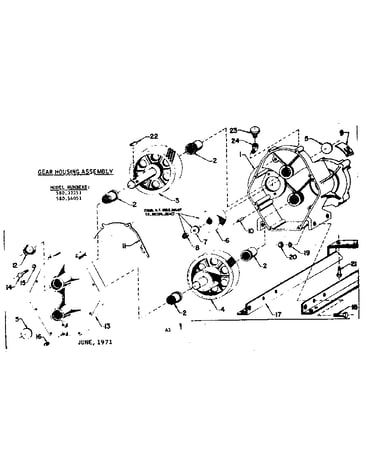

Gear housing assembly diagram

Shield

Part #26867

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 22127
#11

Connection panel assembly diagram

Hex nut

Part #22127

The manufacturer no longer makes this part, and there's no substitute part

Taptite Scrw 24413
#36

Alternator diagram

Taptite scrw

Part #24413

The manufacturer no longer makes this part, and there's no substitute part

Idler Shaft A-26641
#4

Gear housing assembly diagram

Idler shaft

Part #A-26641

The manufacturer no longer makes this part, and there's no substitute part

3/8 Connectr 22206
#45

Connection panel assembly diagram

3/8 connectr

Part #22206

The manufacturer no longer makes this part, and there's no substitute part
