Kenmore
Room Air Conditioner

Model # 58074123300 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58074123300 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

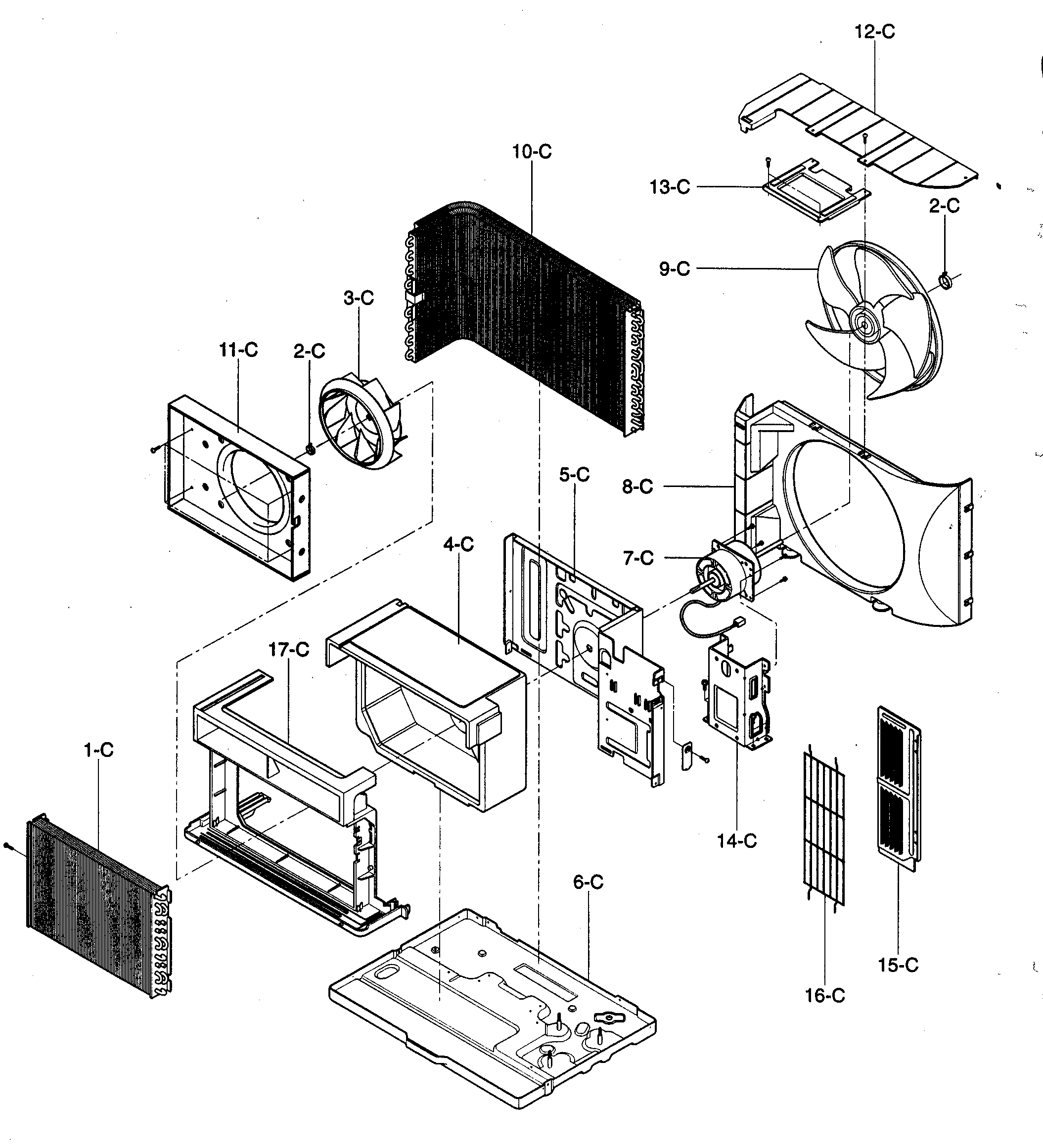

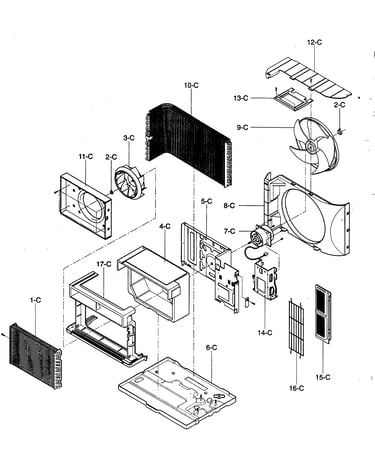

Air handling diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Capacitor 6120AR2194D
#6-B

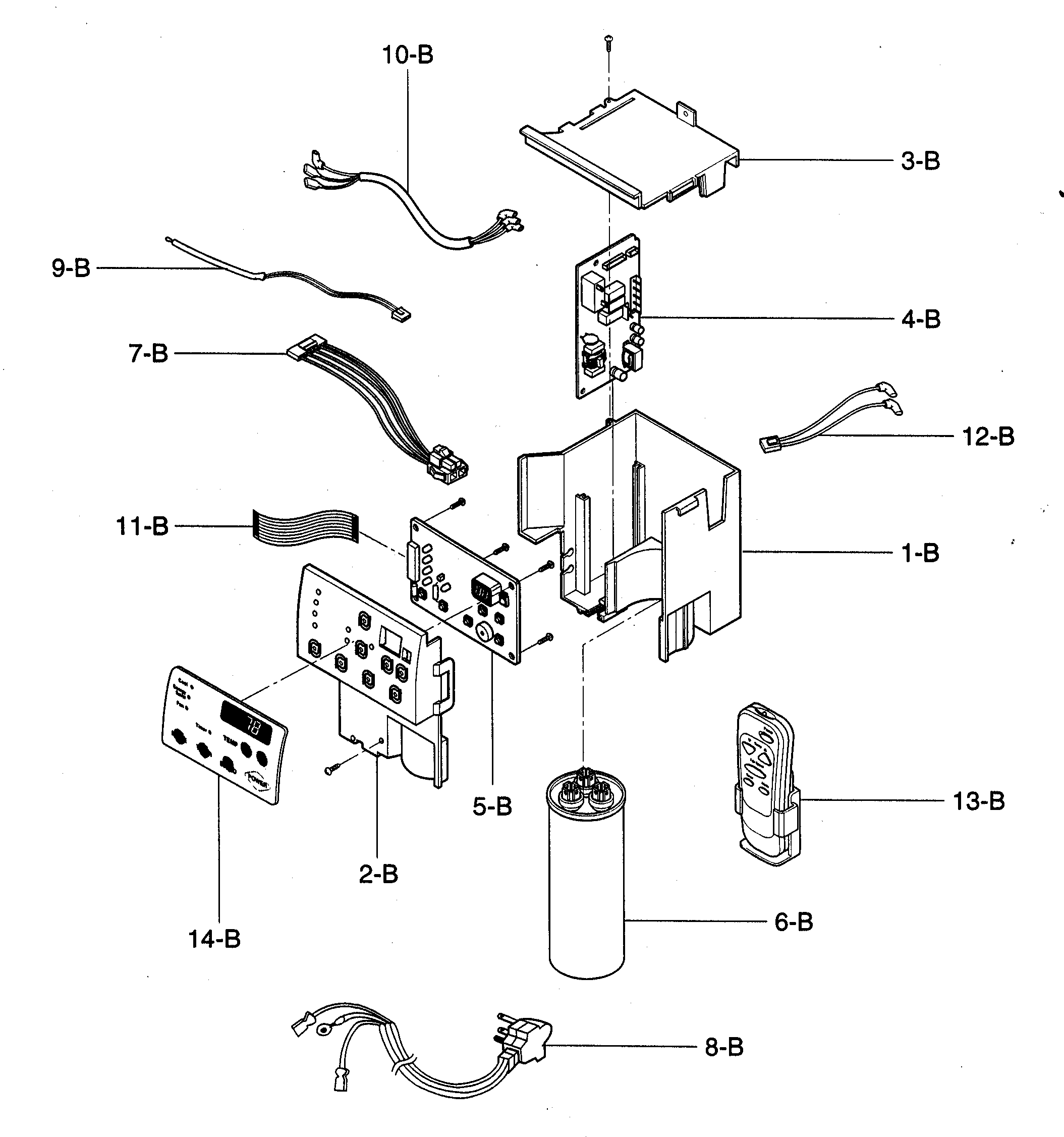

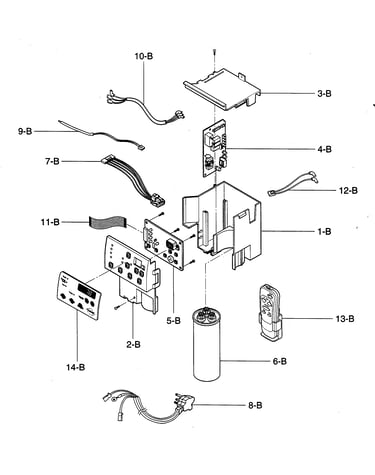

Control box diagram

Capacitor

Part #6120AR2194D

Replaced by #EAE51432202

?
Manufacturer substitution
This part replaces 6120AR2194D. Substitute parts can look different from the original.
$33.61 |
15% OFF Phone Price : $39.61
In Stock
Room Air Conditioner Rear Grille 3530A20033B
#8-EA

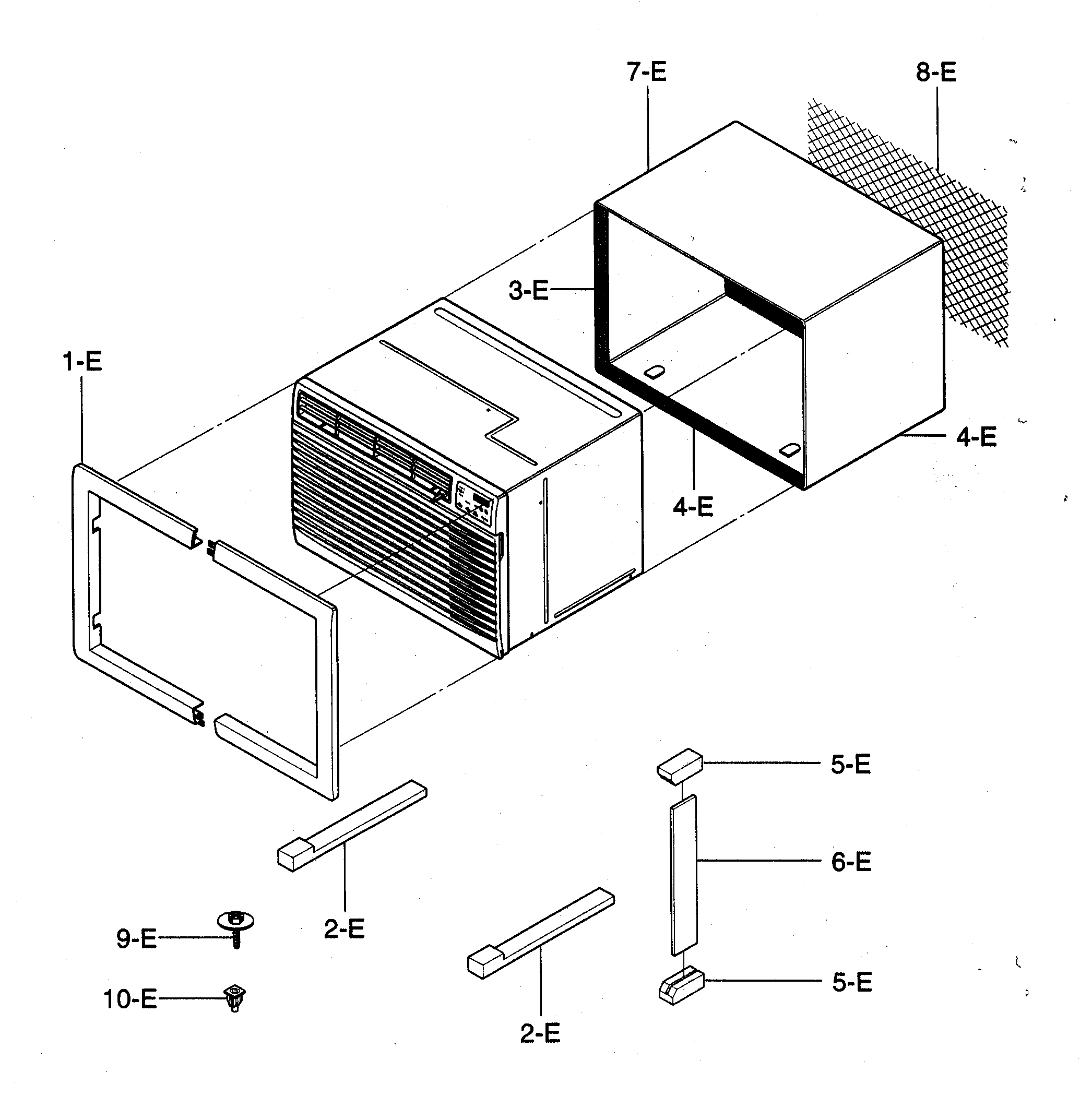

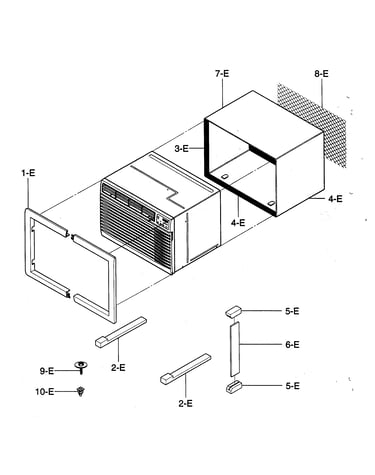

Instalation kit diagram

Room air conditioner rear grille

Part #3530A20033B

$18.62 |
10% OFF Phone Price : $20.62
In Stock
Zenith Room Air Conditioner Compressor Overload Protector 6750U-L058A
#4-D

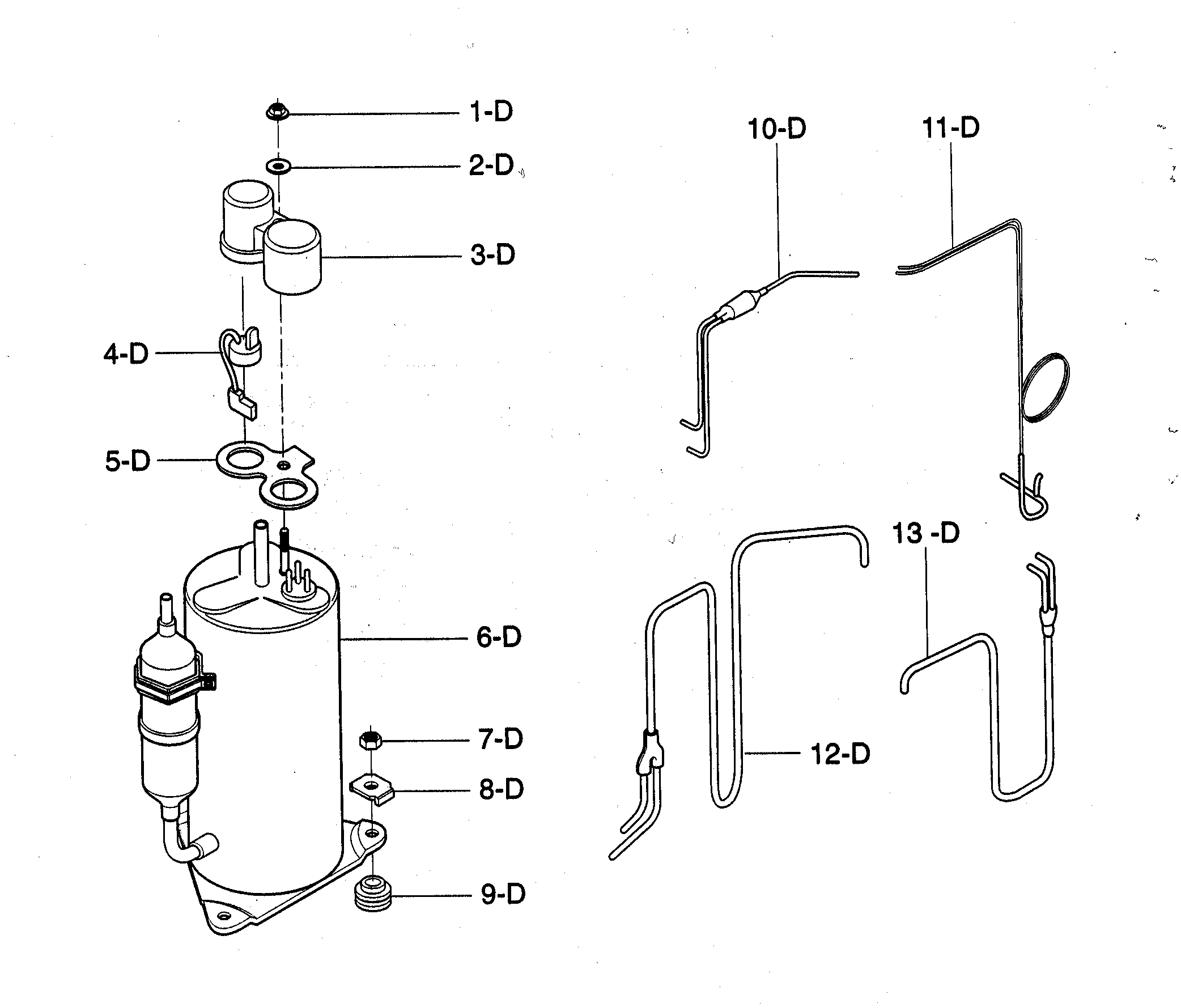

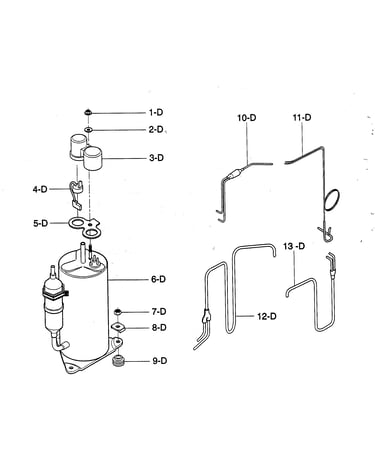

Compressor diagram

Zenith room air conditioner compressor overload protector

Part #6750U-L058A

This item is not returnable
$18.83
In Stock
Lg Screw 4001AR4160A
#9-E

Instalation kit diagram

Lg screw

Part #4001AR4160A

This item is not returnable
$4.51
In Stock
Icp Room Air Conditioner Compressor Grommet 4H00982E
#9-D

Compressor diagram

Icp room air conditioner compressor grommet

Part #4H00982E

This item is not returnable
$3.51 |
22% OFF Phone Price : $4.51
In Stock
Cabinet 3090A20003B
#1-A

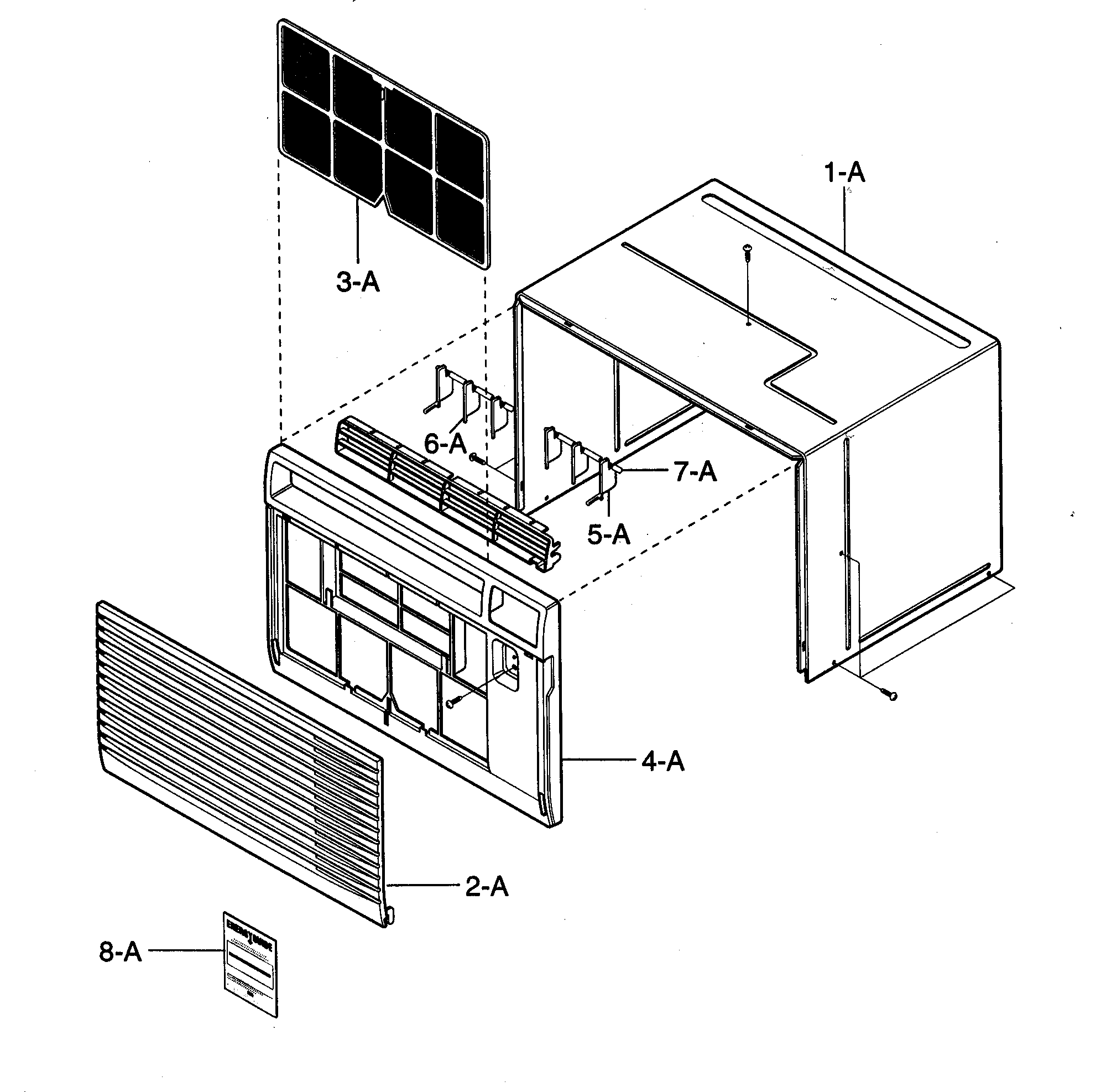

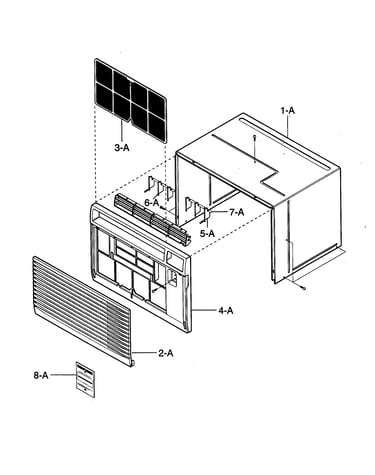

Front cabinet diagram

Cabinet

Part #3090A20003B

$88.36
In Stock
Room Air Conditioner Condenser Fan Shroud 4998A10007B
#8-C

Air handling diagram

Room air conditioner condenser fan shroud

Part #4998A10007B

$29.98
In Stock
Goldstar Room Air Conditioner Electronic Control Wiring Harness 6631A30003A
#12-B

Control box diagram

Goldstar room air conditioner electronic control wiring harness

Part #6631A30003A

This item is not returnable
$7.00
In Stock
Connector 6631A30012E
#7-B

Control box diagram

Connector

Part #6631A30012E

$18.83
In Stock
