Model # 8646361 Official Kenmore bathroom ventilating fan
Here are the diagrams and repair parts for Official Kenmore 8646361 bathroom ventilating fan, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
8646361 Bathroom Ventilating Fan
#NI

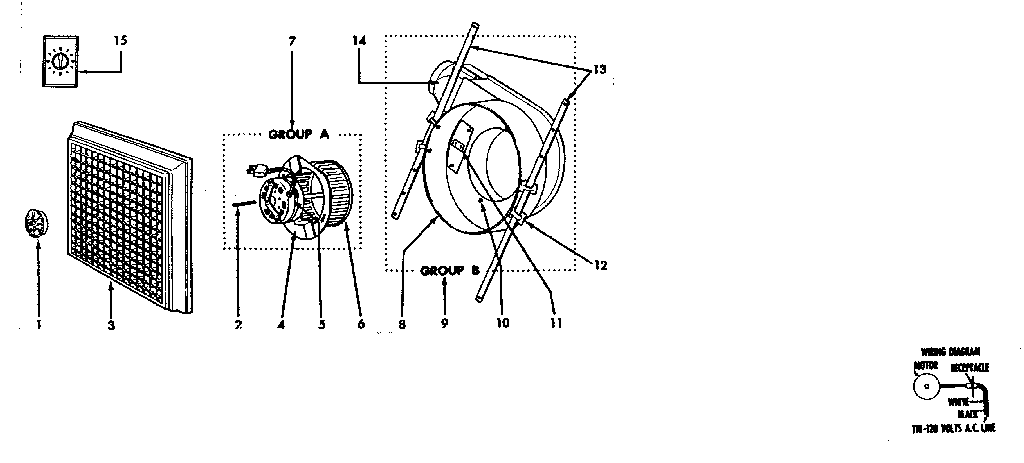

All parts diagram
Ventilator
Part #42-6327
The manufacturer no longer makes this part, and there's no substitute part
#7
Replacement parts diagram
Motor assembly
Part #574A
The manufacturer no longer makes this part, and there's no substitute part
#10
Replacement parts diagram
Mtr brkt scr
Part #S356
The manufacturer no longer makes this part, and there's no substitute part
#1
Replacement parts diagram
Grille knob
Part #308
The manufacturer no longer makes this part, and there's no substitute part
#12
Replacement parts diagram
Bracket
Part #5667-72
The manufacturer no longer makes this part, and there's no substitute part
#5
Replacement parts diagram
Motor
Part #E497
The manufacturer no longer makes this part, and there's no substitute part
#14
Replacement parts diagram
Shutter
Part #572A
The manufacturer no longer makes this part, and there's no substitute part
#13
Replacement parts diagram
Hanger strap
Part #5575
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Wall cap
Part #42-6323
The manufacturer no longer makes this part, and there's no substitute part
#3
Replacement parts diagram
Grille
Part #659A
The manufacturer no longer makes this part, and there's no substitute part
