Kenmore
Floor Scrubber

Model # 10084600 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 10084600 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Bearing 37143
#33

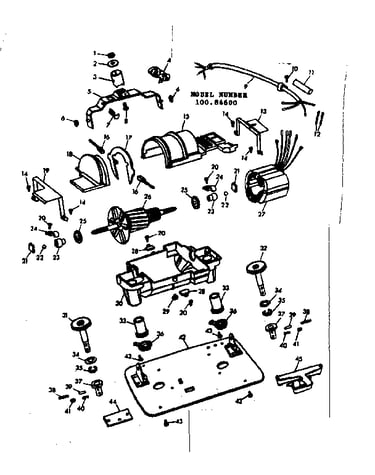

Internal machine parts diagram

Bearing

Part #37143

The manufacturer no longer makes this part, and there's no substitute part

Spring 37149
#40

Internal machine parts diagram

Spring

Part #37149

The manufacturer no longer makes this part, and there's no substitute part

Line Cord 36131P2046
#1

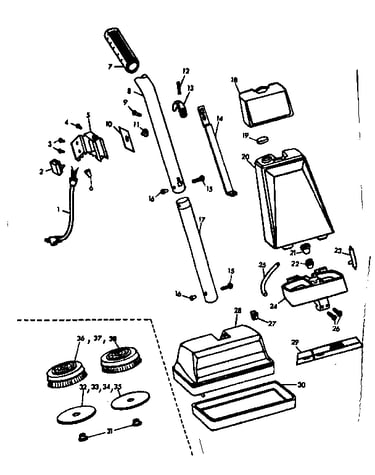

External machine parts diagram

Line cord

Part #36131P2046

The manufacturer no longer makes this part, and there's no substitute part

Container 939011G2
#18

External machine parts diagram

Container

Part #939011G2

The manufacturer no longer makes this part, and there's no substitute part

Seal 37165
#25

Internal machine parts diagram

Seal

Part #37165

The manufacturer no longer makes this part, and there's no substitute part

Cap 37125
#37

Internal machine parts diagram

Cap

Part #37125

The manufacturer no longer makes this part, and there's no substitute part

Plate 37151
#21

Internal machine parts diagram

Plate

Part #37151

The manufacturer no longer makes this part, and there's no substitute part

Insulator 37152
#39

Internal machine parts diagram

Insulator

Part #37152

The manufacturer no longer makes this part, and there's no substitute part

Spring 39038P1
#12

External machine parts diagram

Spring

Part #39038P1

The manufacturer no longer makes this part, and there's no substitute part

Lock 37144
#41

Internal machine parts diagram

Lock

Part #37144

The manufacturer no longer makes this part, and there's no substitute part
