Frigidaire
Electric Wall Oven

Model # GLEB27S7ASA Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire GLEB27S7ASA electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

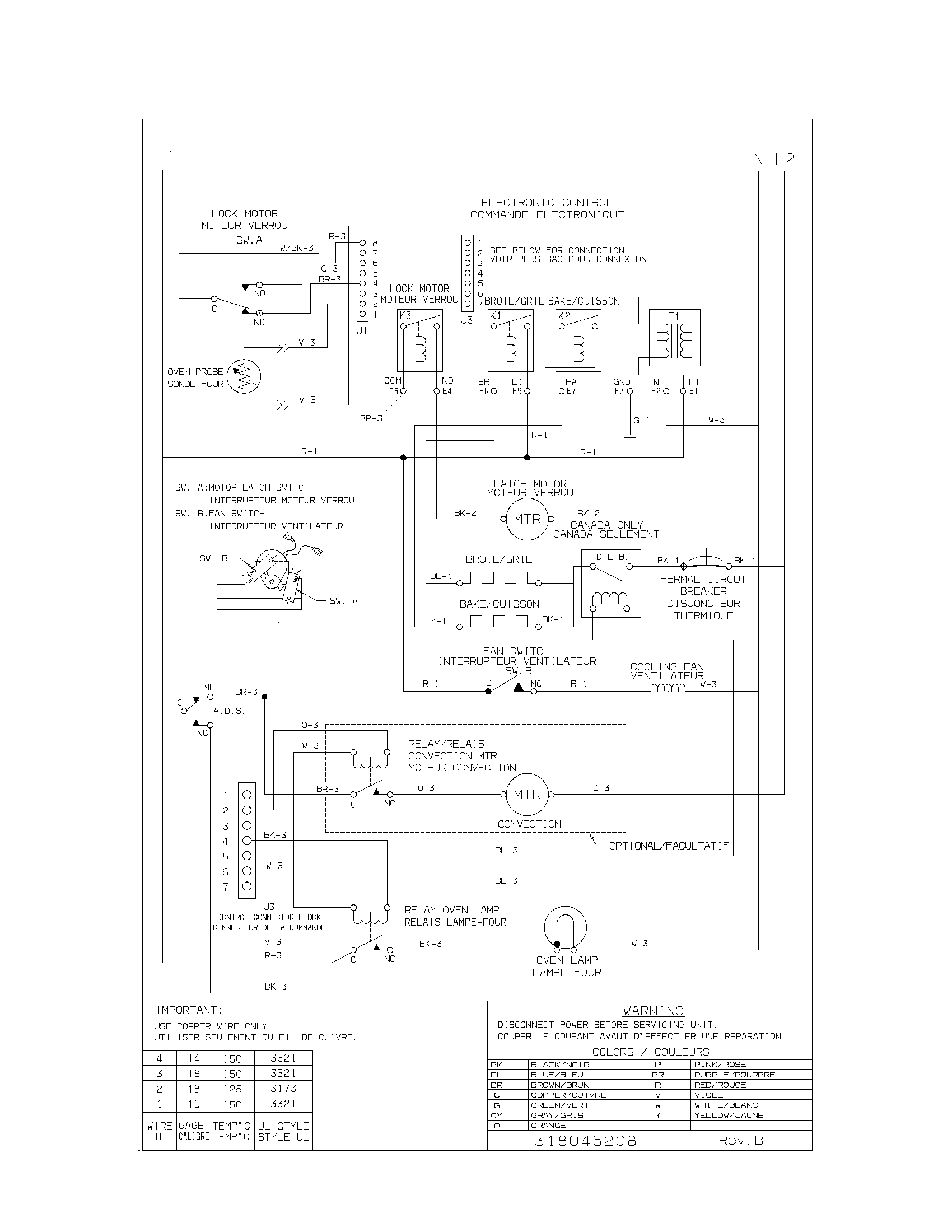

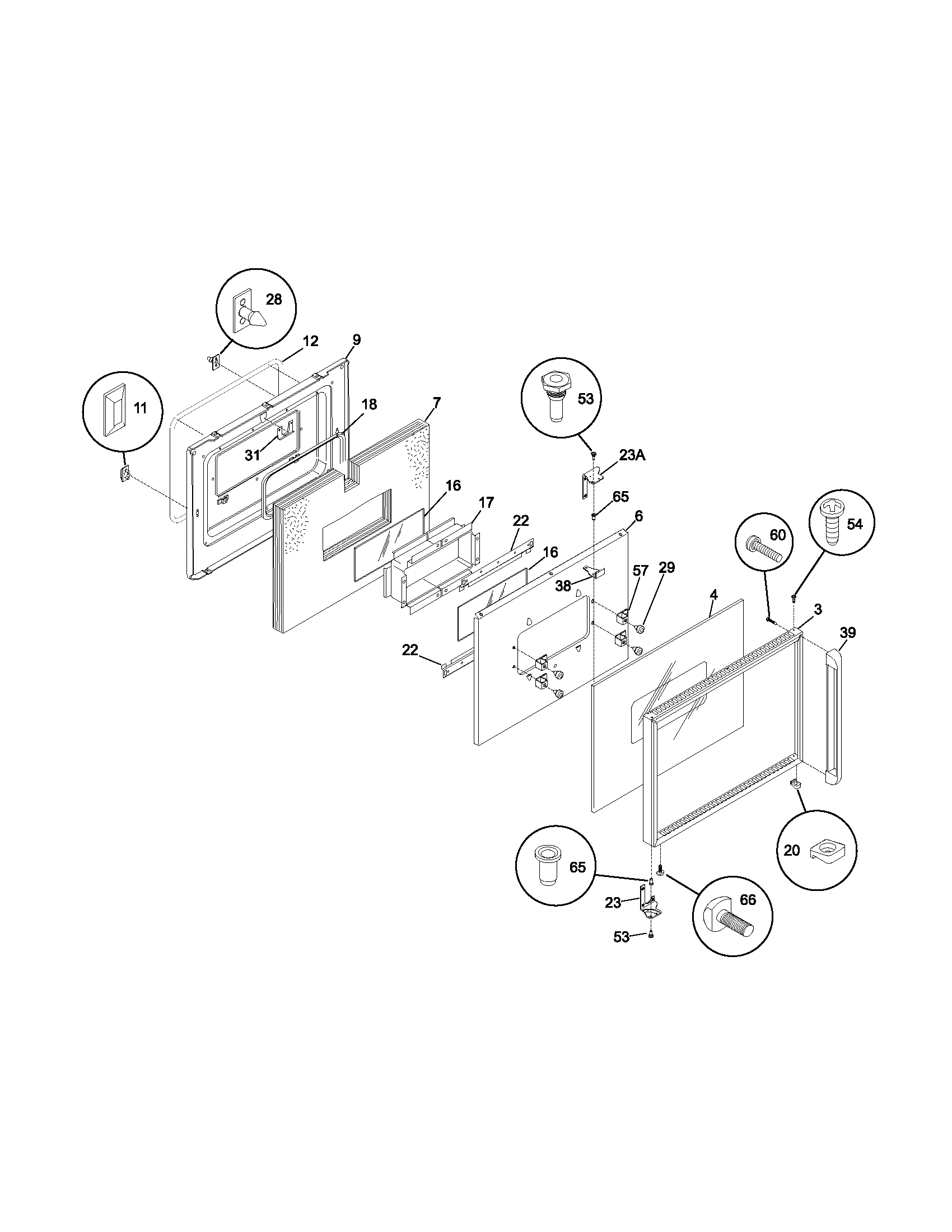

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Bulb 3201908
#15

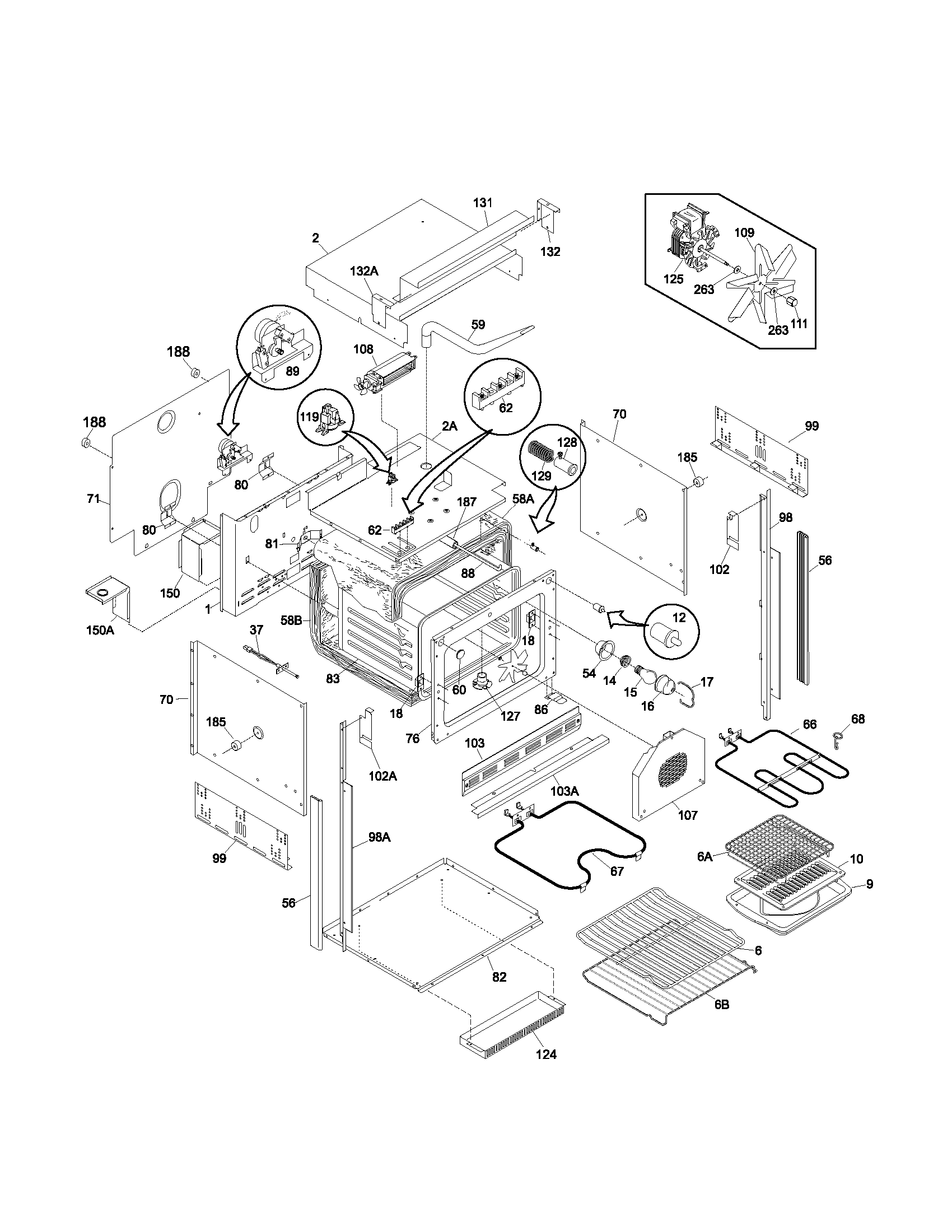

Body diagram

Bulb

Part #3201908

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3201908. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Terminal Block 5303310518
#62

Body diagram

Terminal block

Part #5303310518

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303310518. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Spacer 5303322885
#263

Body diagram

Spacer

Part #5303322885

Replaced by #316008401

?
Manufacturer substitution
This part replaces 5303322885. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Receptacle 5308011085
#14

Body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Oven Light Switch 318089910
#12

Body diagram

Oven light switch

Part #318089910

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089910. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Insert Broil 5303317976
#10

Body diagram

Insert broil

Part #5303317976

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317976. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Broiler Pan 5303317977
#9

Body diagram

Broiler pan

Part #5303317977

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 5303317977. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Shelf 5303311206
#6A

Body diagram

Shelf

Part #5303311206

Replaced by #318365800

?
Manufacturer substitution
This part replaces 5303311206. Substitute parts can look different from the original.
$42.69 |
12% OFF Phone Price : $48.69
In Stock
Gibson Wall Oven Screw, 6 X 3/8-in 3201861
#NI

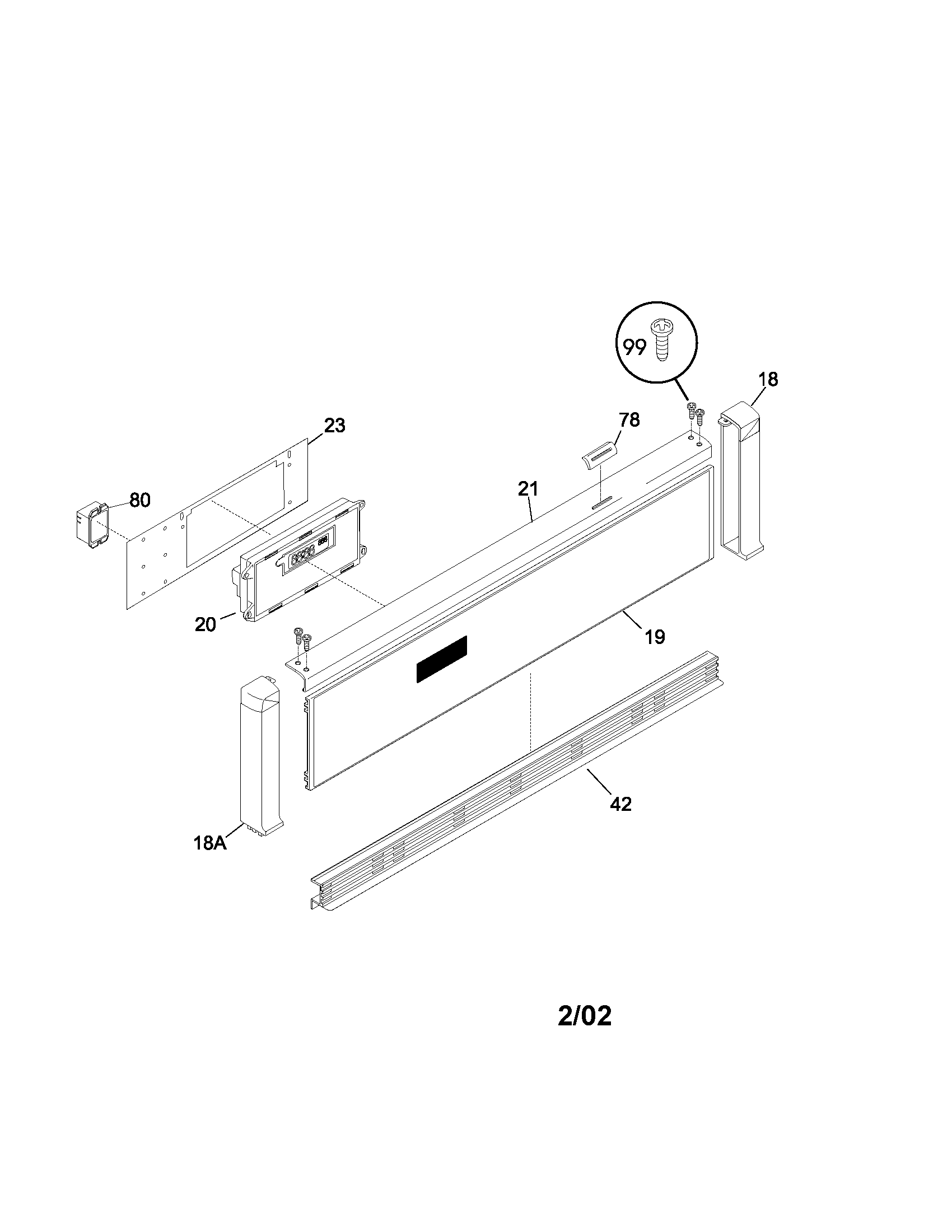

Control panel diagram

Gibson wall oven screw, 6 x 3/8-in

Part #3201861

This item is not returnable
$2.16
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Body diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
