Model # 580328452 Official Craftsman portable ac generator

Here are the diagrams and repair parts for Official Craftsman 580328452 portable ac generator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 145 parts |

#156

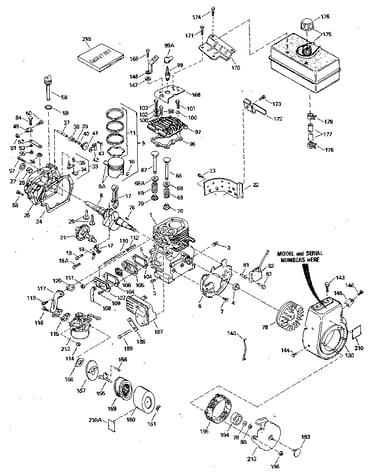

Engine breakdown diagram

Screw

Part #28820

Replaced by #651081

This item is not returnable

$4.60

In Stock

Qty

#26

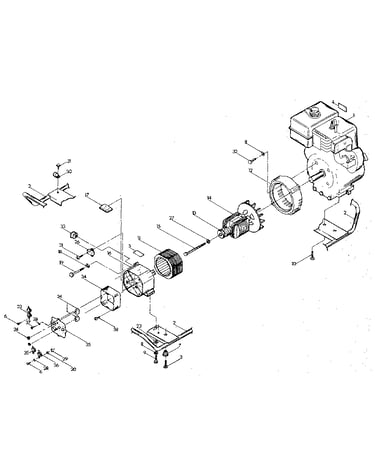

Stator assembly diagram

Brush assembly

Part #66386

Replaced by #66386GS

This item is not returnable

$32.82 |

15% OFF Phone Price : $38.82

In Stock

Qty

#39

Engine breakdown diagram

Washer

Part #30590A

The manufacturer no longer makes this part, and there's no substitute part

#52

Engine breakdown diagram

Gov lever

Part #33454

The manufacturer no longer makes this part, and there's no substitute part

#35

Stator assembly diagram

Receptacle

Part #68868

Replaced by #705932

$53.53

In Stock

Qty

#13

Stator assembly diagram

Bearing

Part #65791

The manufacturer no longer makes this part, and there's no substitute part

#57

Engine breakdown diagram

Screw

Part #650833

The manufacturer no longer makes this part, and there's no substitute part

#76

Engine breakdown diagram

/flywhel key

Part #32589

The manufacturer no longer makes this part, and there's no substitute part

#10

Engine breakdown diagram

Retain ring

Part #27888

The manufacturer no longer makes this part, and there's no substitute part

#68

Engine breakdown diagram

Cap

Part #27882

The manufacturer no longer makes this part, and there's no substitute part
