Haier
Upright Freezer

Model # HUM091EA Official Haier freezer

Here are the diagrams and repair parts for Official Haier HUM091EA freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Haier Clamp RF-1640-07
#27

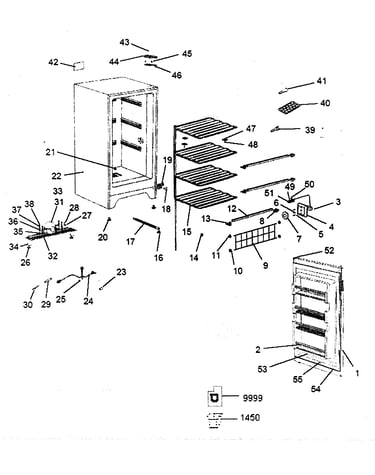

Freezer diagram

Haier clamp

Part #RF-1640-07

This item is not returnable
$2.99
In Stock
Haier Clamp RF-1640-08
#49

Freezer diagram

Haier clamp

Part #RF-1640-08

This item is not returnable
$2.99
In Stock
Haier Scraper RF-6095-01
#41

Freezer diagram

Haier scraper

Part #RF-6095-01

This item is not returnable
$2.49
In Stock
Haier Trim RF-7700-43
#12

Freezer diagram

Haier trim

Part #RF-7700-43

$20.49
In Stock
Haier Nameplate RF-4600-26
#42

Freezer diagram

Haier nameplate

Part #RF-4600-26

This item is not returnable
$4.99
In Stock
Haier Sleeve RF-6535-09
#35

Freezer diagram

Haier sleeve

Part #RF-6535-09

This item is not returnable
$2.99
In Stock
Haier Evaporator RF-2650-62
#15

Freezer diagram

Haier evaporator

Part #RF-2650-62

$91.49
In Stock
Haier Tube RF-7750-21
#17

Freezer diagram

Haier tube

Part #RF-7750-21

This item is not returnable
$2.99
In Stock
Haier Plate RF-5300-27
#32

Freezer diagram

Haier plate

Part #RF-5300-27

This item is not returnable
$3.49
In Stock
Haier Tube RF-7750-04
#30

Freezer diagram

Haier tube

Part #RF-7750-04

This item is not returnable
$6.49
In Stock
