Maytag
Dryer

Model # MDE16PDAYW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag MDE16PDAYW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

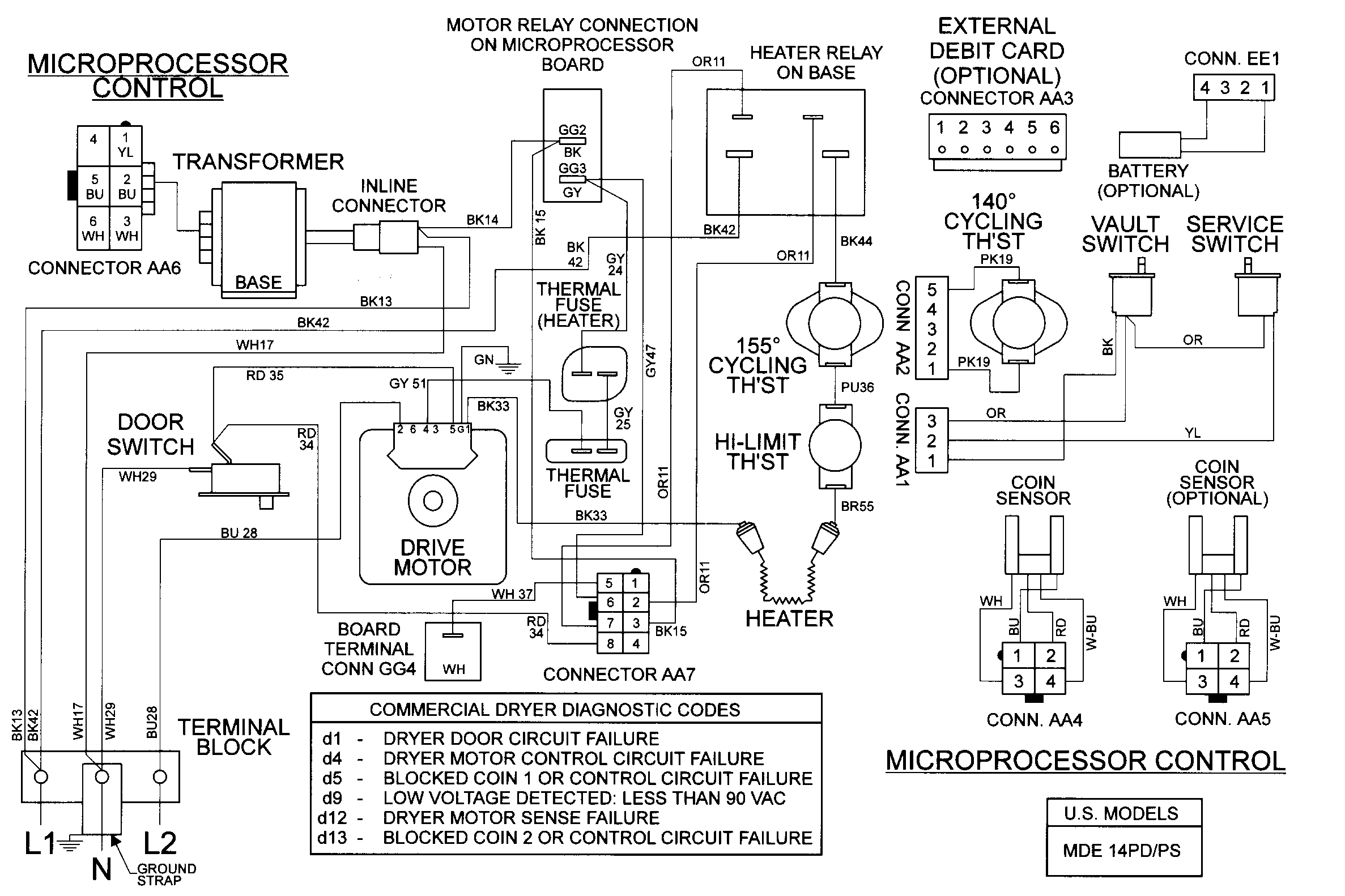

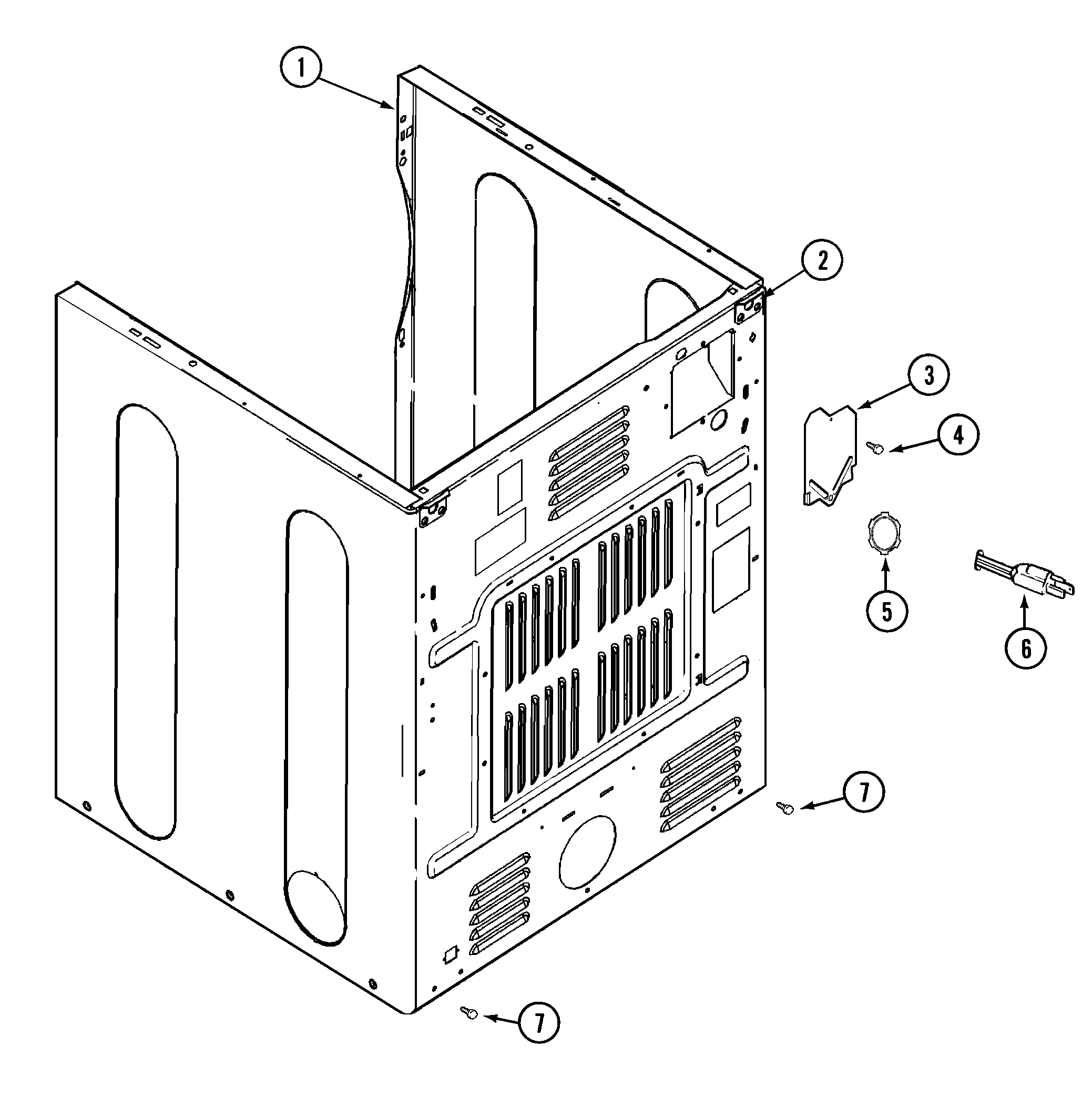

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Screw, Groun 210186
#3

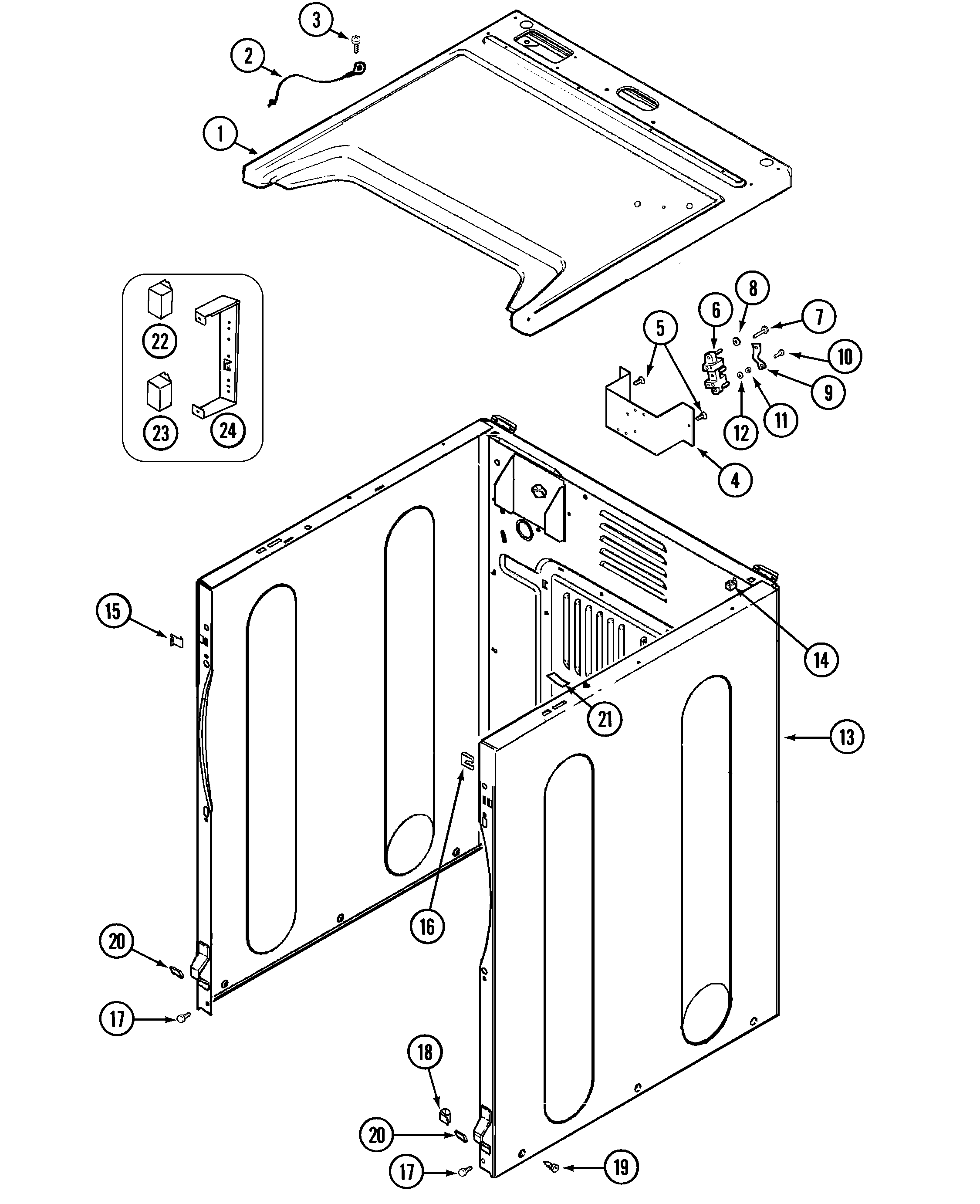

Cabinet-front diagram

Screw, groun

Part #210186

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 210186. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Roller (w/bearing) (qty 2) (series 10) 303373
#24

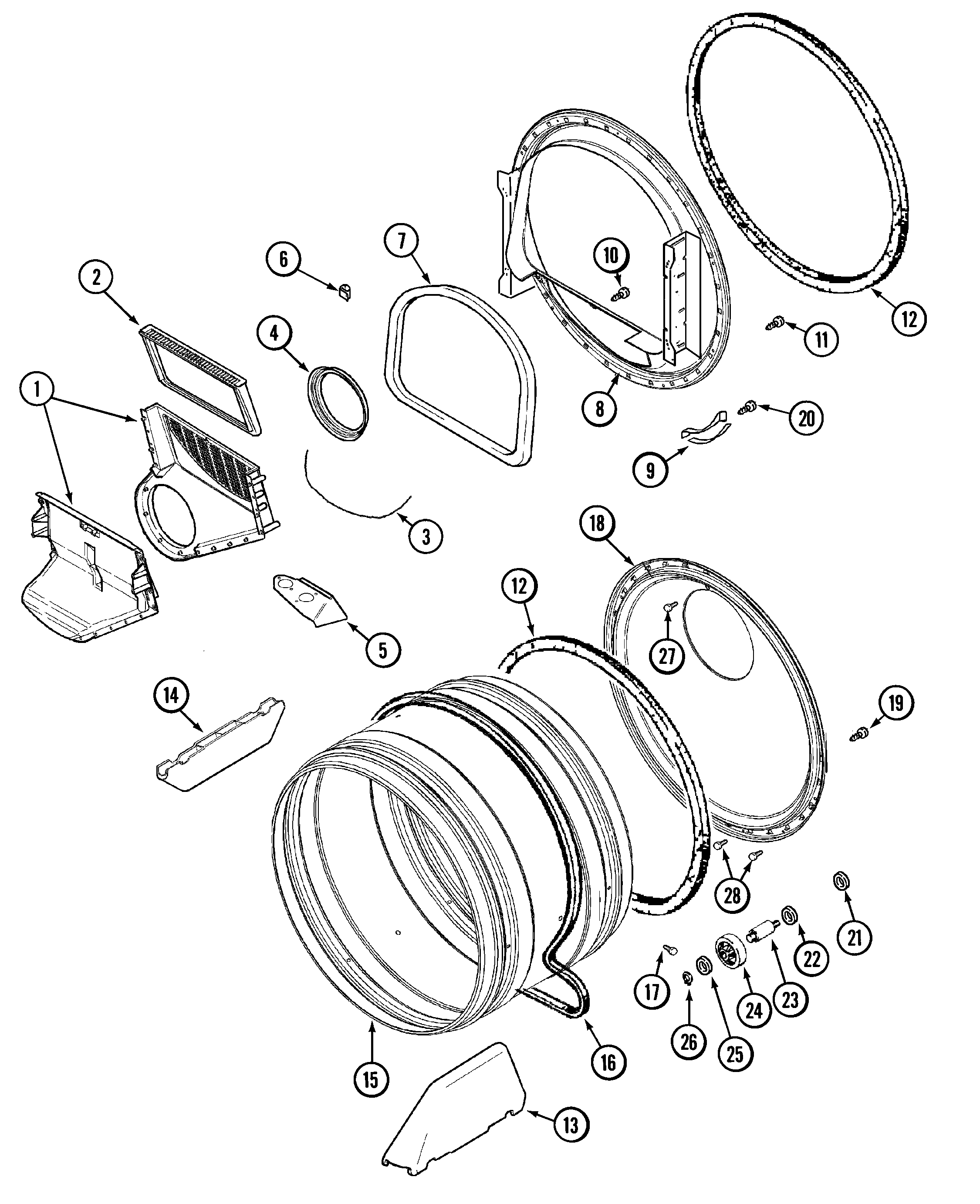

Tumbler diagram

Roller (w/bearing) (qty 2) (series 10)

Part #303373

The manufacturer no longer makes this part, and there's no substitute part

Screw, Switch (qty 2) (series 10) (non-illus) 215527
#4A

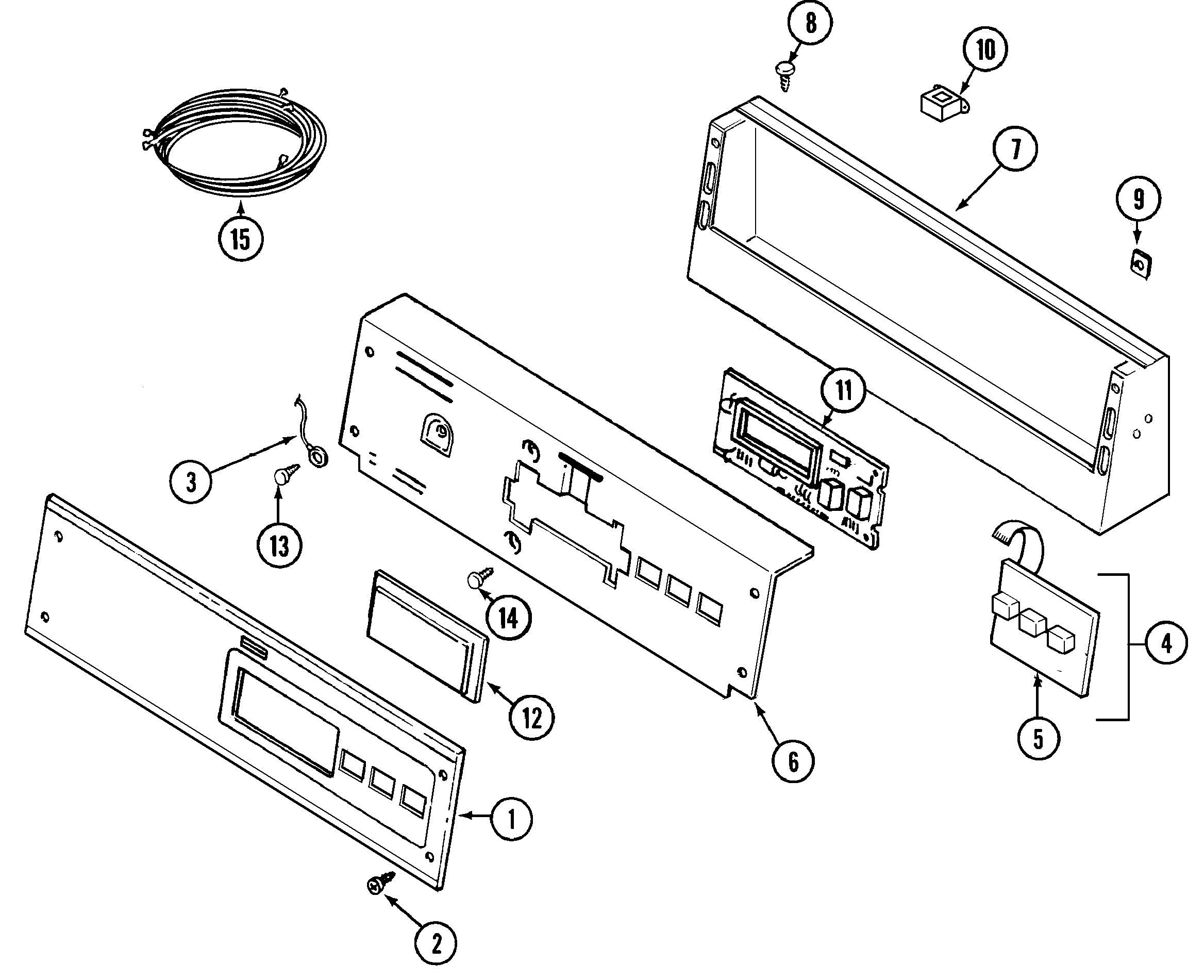

Control panel diagram

Screw, switch (qty 2) (series 10) (non-illus)

Part #215527

The manufacturer no longer makes this part, and there's no substitute part

Washer, Idler Shaft (qty-1) (qty 2) (series 10) 312527
#23

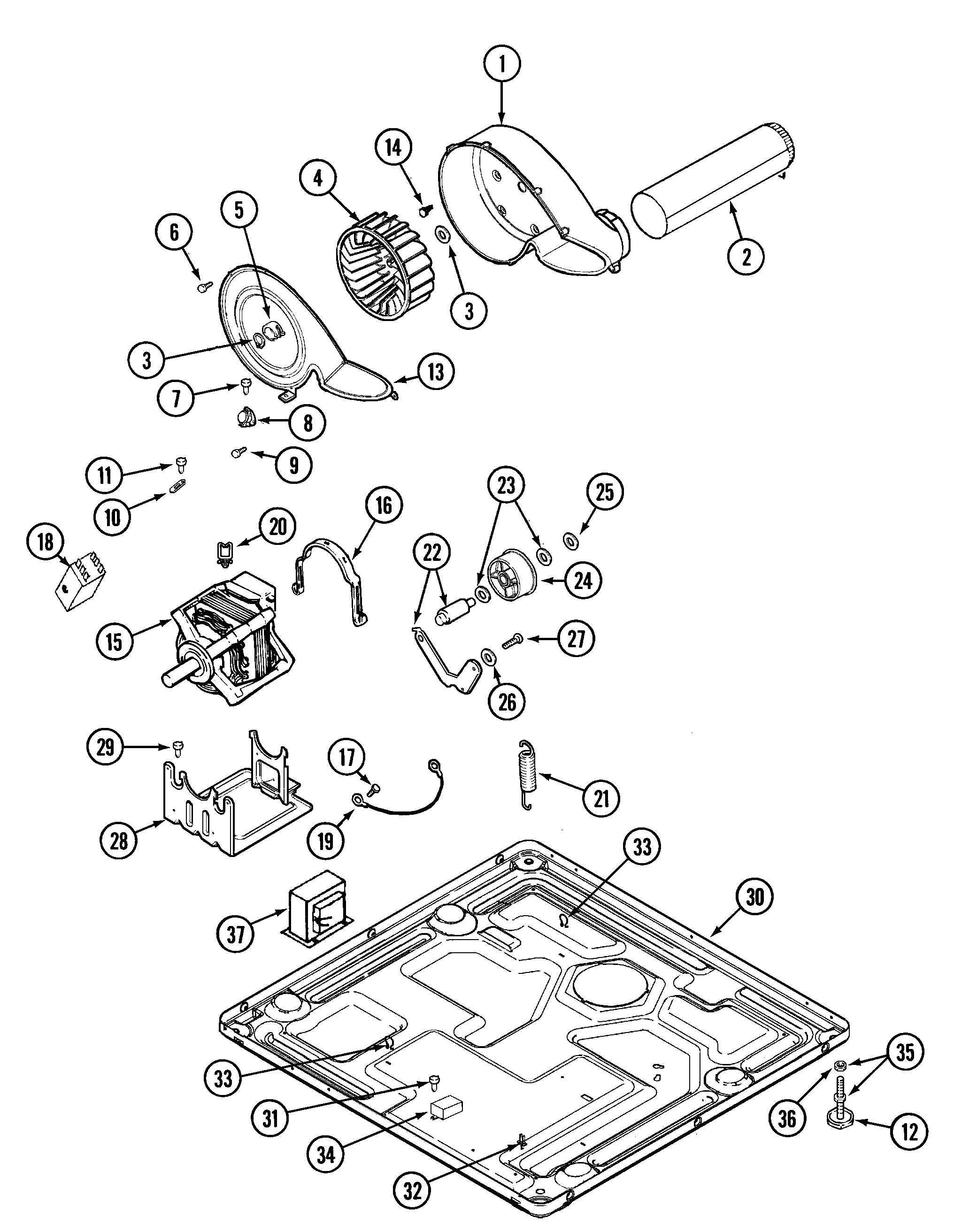

Motor drive diagram

Washer, idler shaft (qty-1) (qty 2) (series 10)

Part #312527

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring, Idler Shaft (series 10) 312958
#25

Motor drive diagram

Lock ring, idler shaft (series 10)

Part #312958

The manufacturer no longer makes this part, and there's no substitute part

Switch, Door (series 10) 33001509
#6

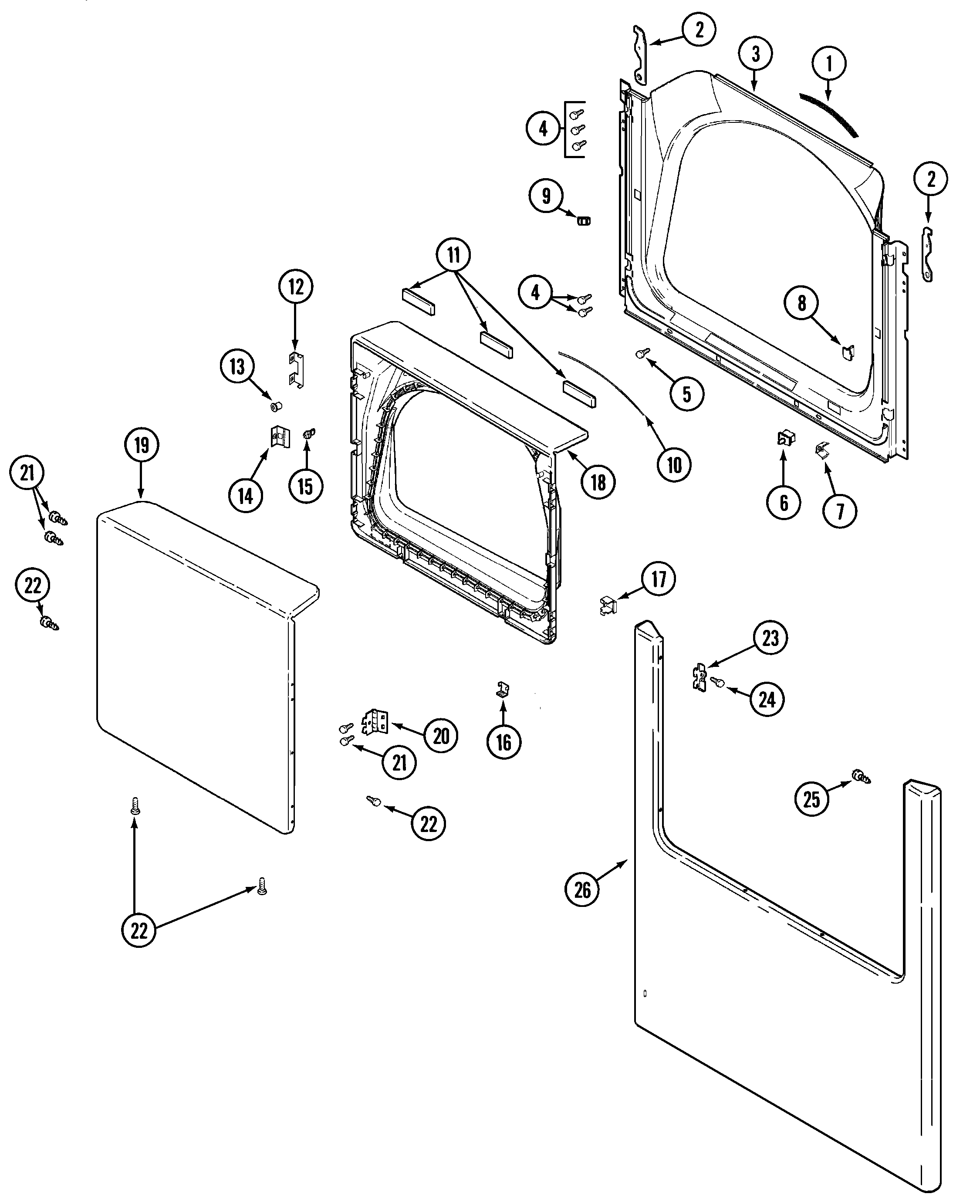

Door diagram

Switch, door (series 10)

Part #33001509

The manufacturer no longer makes this part, and there's no substitute part

Door, Inner (alm) (series 10) 33001908
#18A

Door diagram

Door, inner (alm) (series 10)

Part #33001908

The manufacturer no longer makes this part, and there's no substitute part

Wire, Jumper (series 10) 307173
#10

Heater diagram

Wire, jumper (series 10)

Part #307173

The manufacturer no longer makes this part, and there's no substitute part

Washer 910309
#4

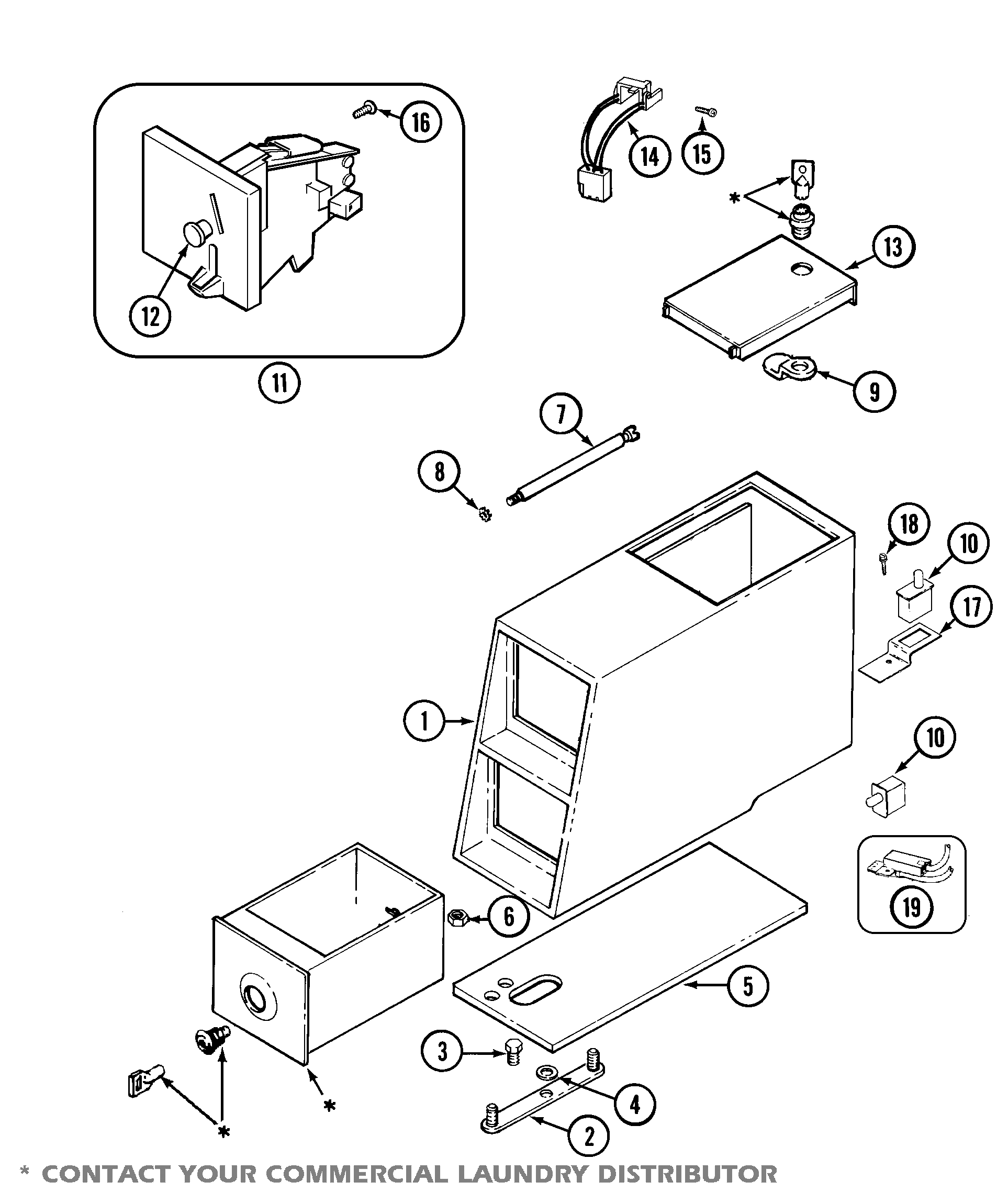

Control center diagram

Washer

Part #910309

The manufacturer no longer makes this part, and there's no substitute part

Idler Pulley & Bearing Assy. (series 10) 33001783
#24

Motor drive diagram

Idler pulley & bearing assy. (series 10)

Part #33001783

The manufacturer no longer makes this part, and there's no substitute part
