Model # 536886240 Official Craftsman 33" snow blower

Here are the diagrams and repair parts for Official Craftsman 536886240 33" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

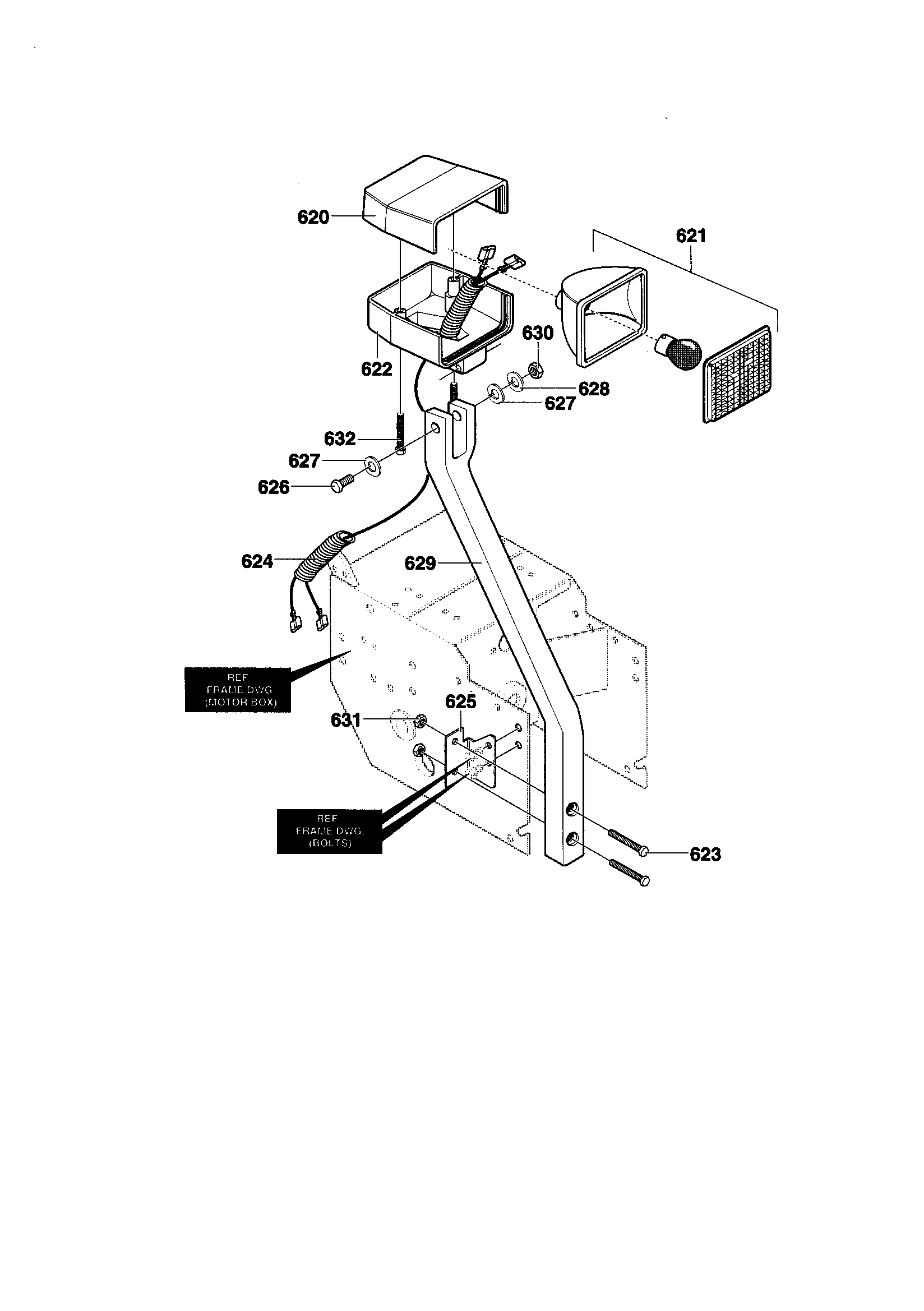

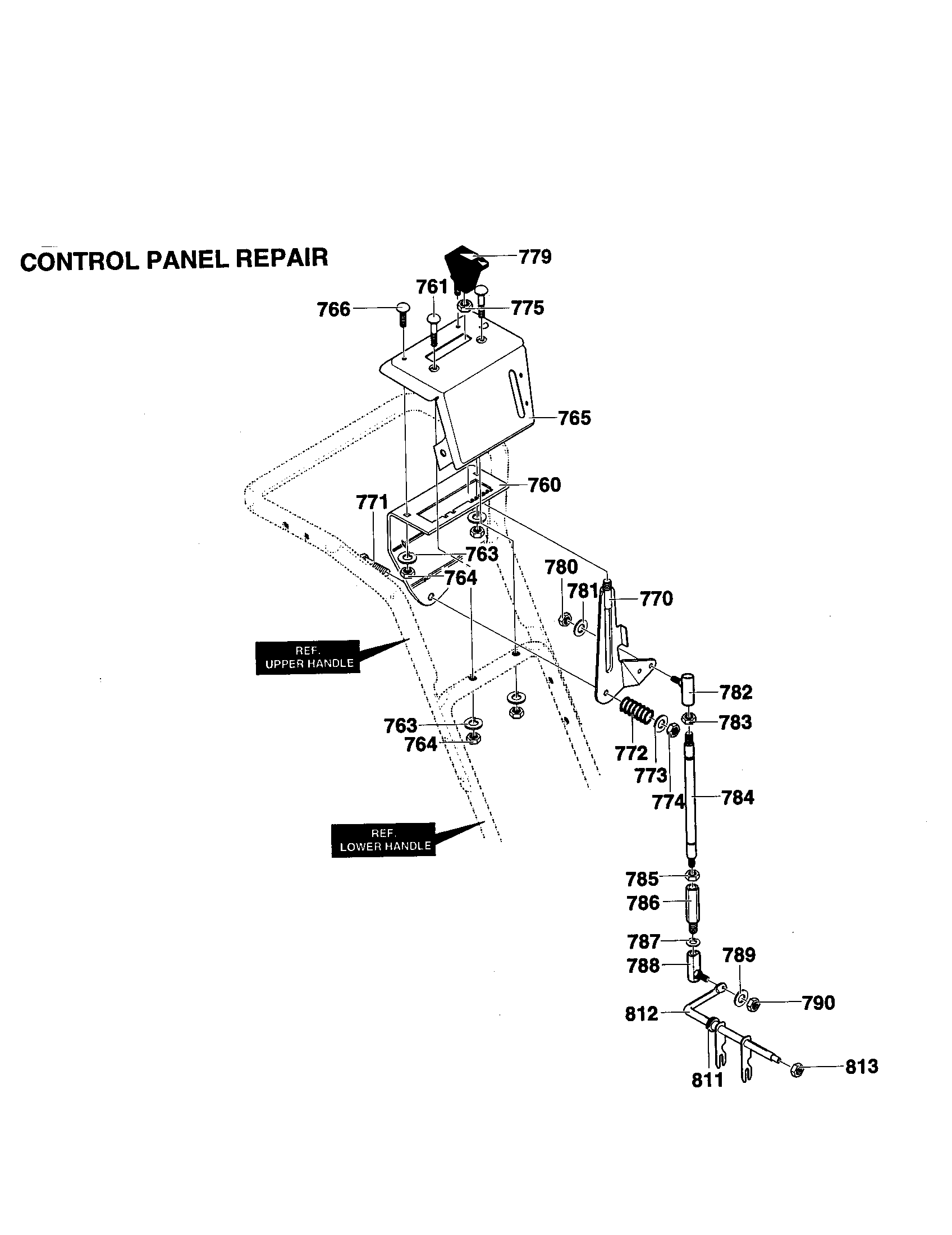

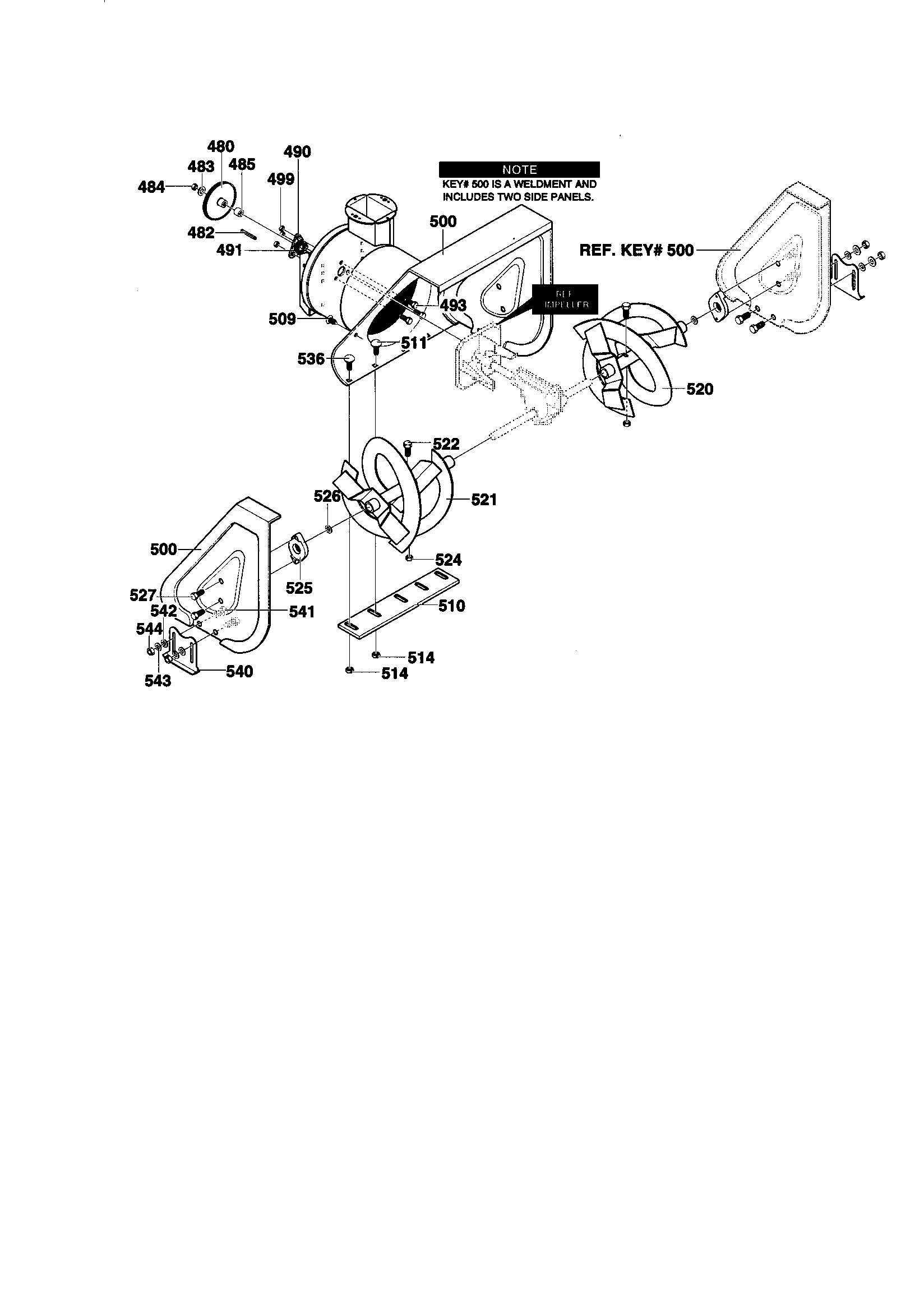

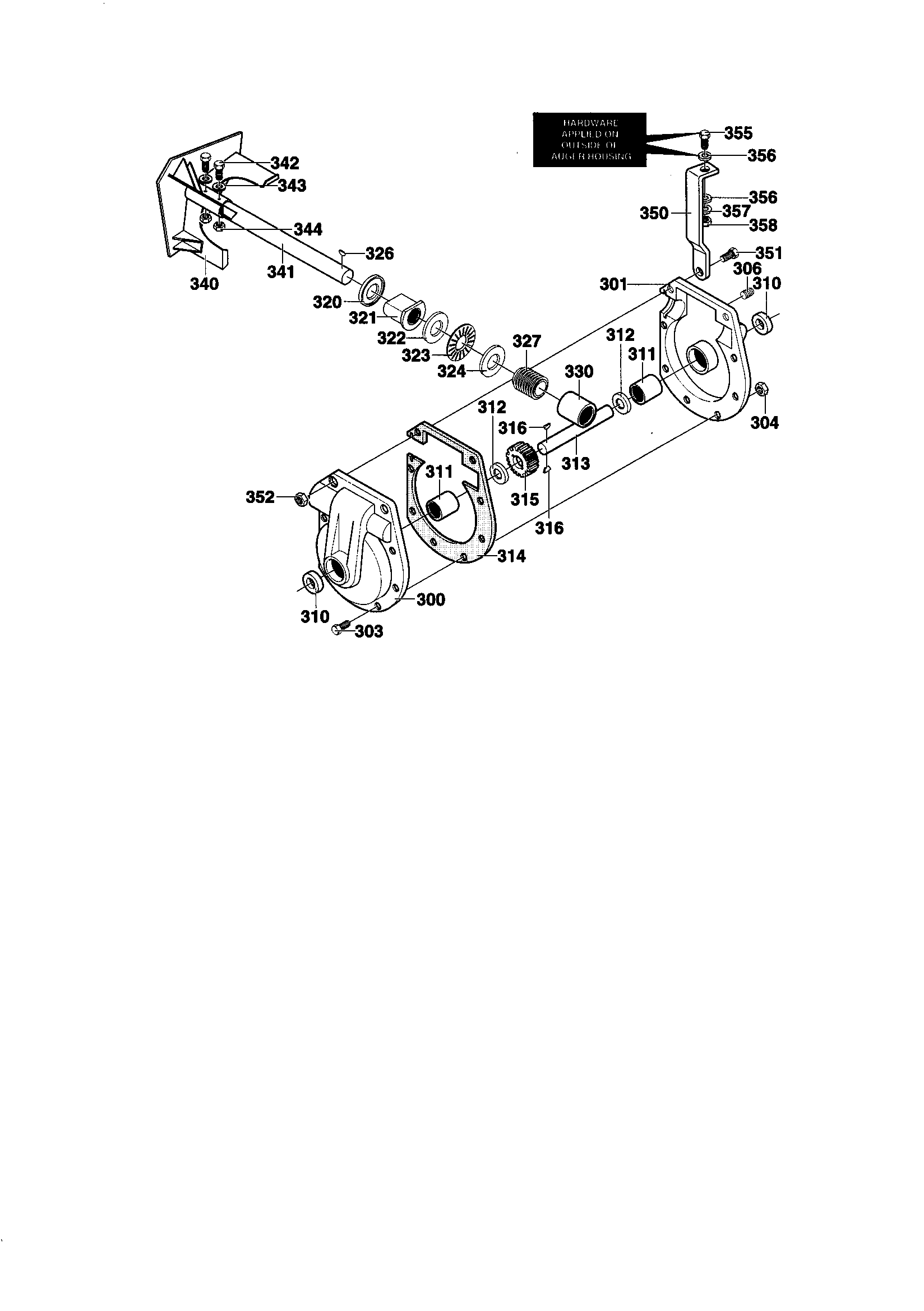

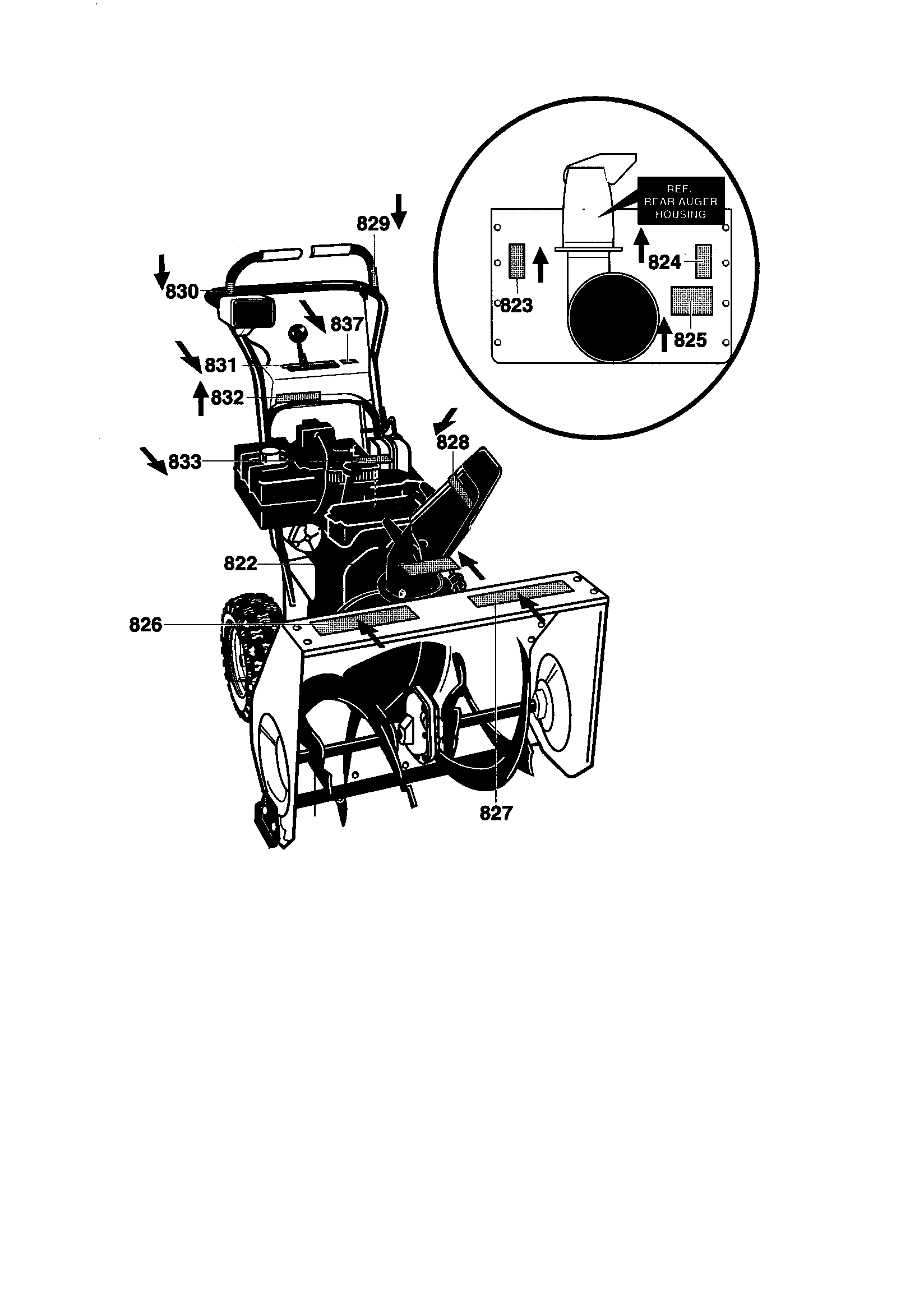

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |
Frction Disc 313883
#246

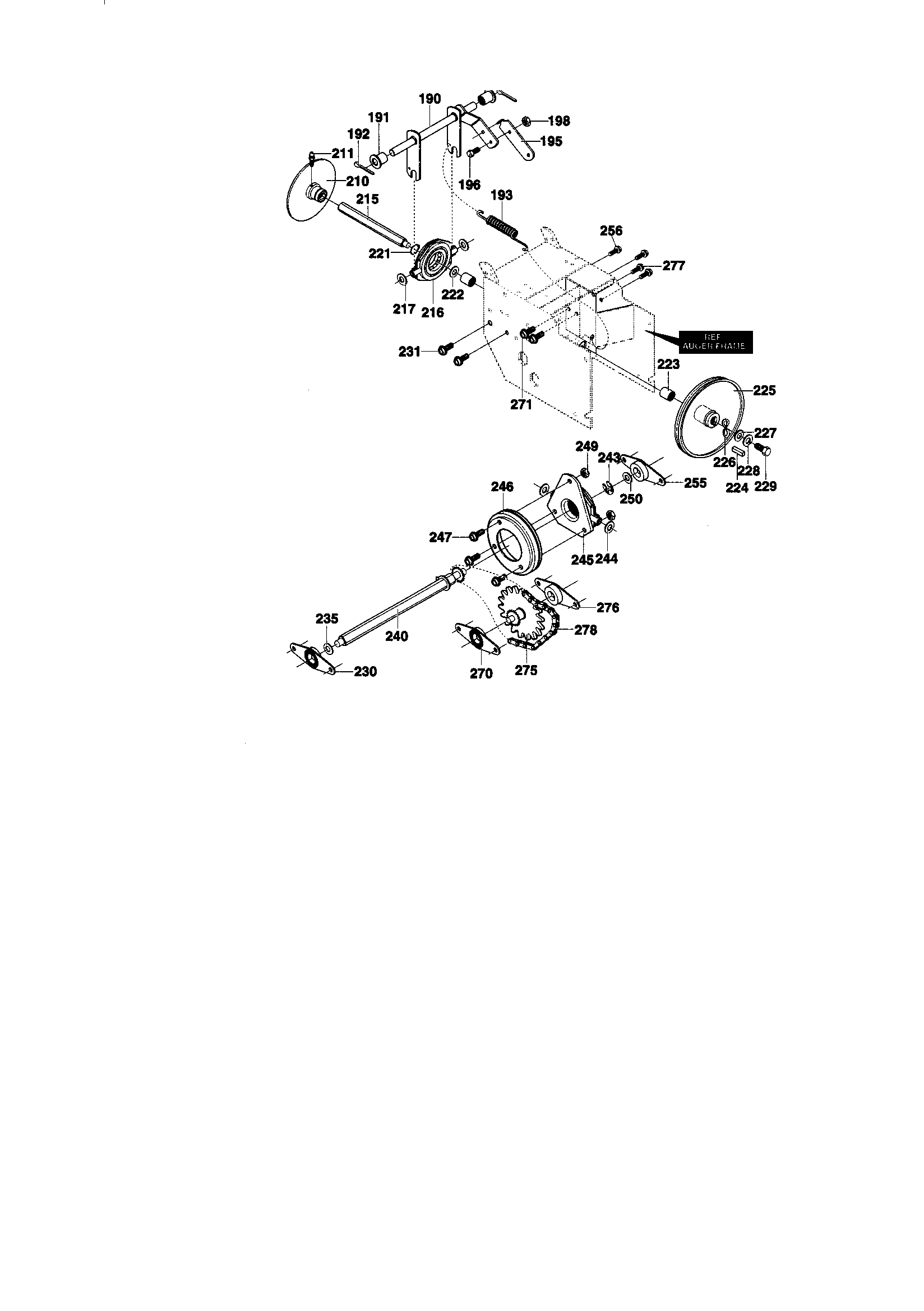

Drive components repair parts diagram

Frction disc

Part #313883

Replaced by #1501435MA

?
Manufacturer substitution
This part replaces 313883. Substitute parts can look different from the original.
BEST SELLER
$27.05 |
18% OFF Phone Price : $33.05
In Stock
Snowblower Chute Retainer Ring, Outer 585193
#611

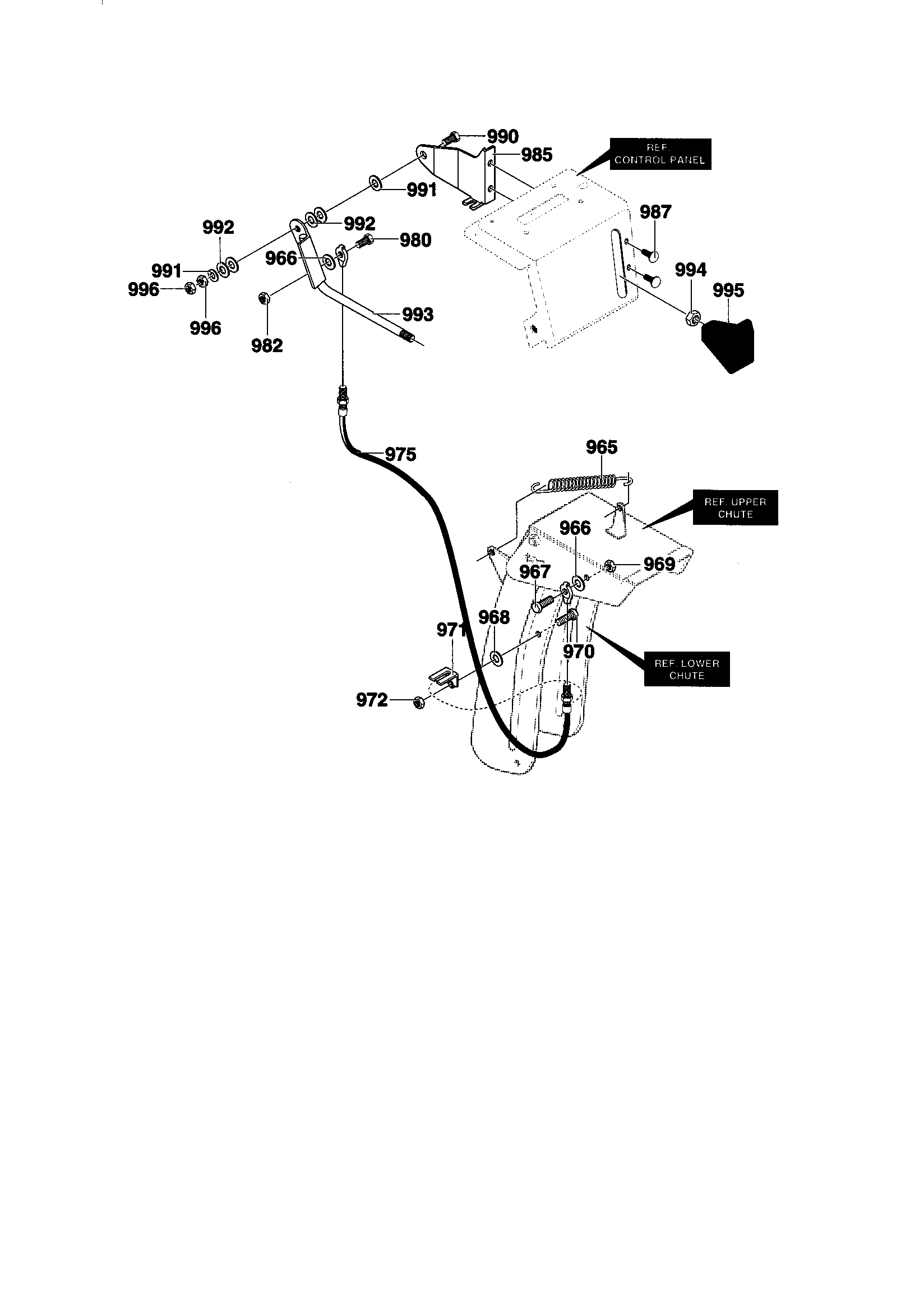

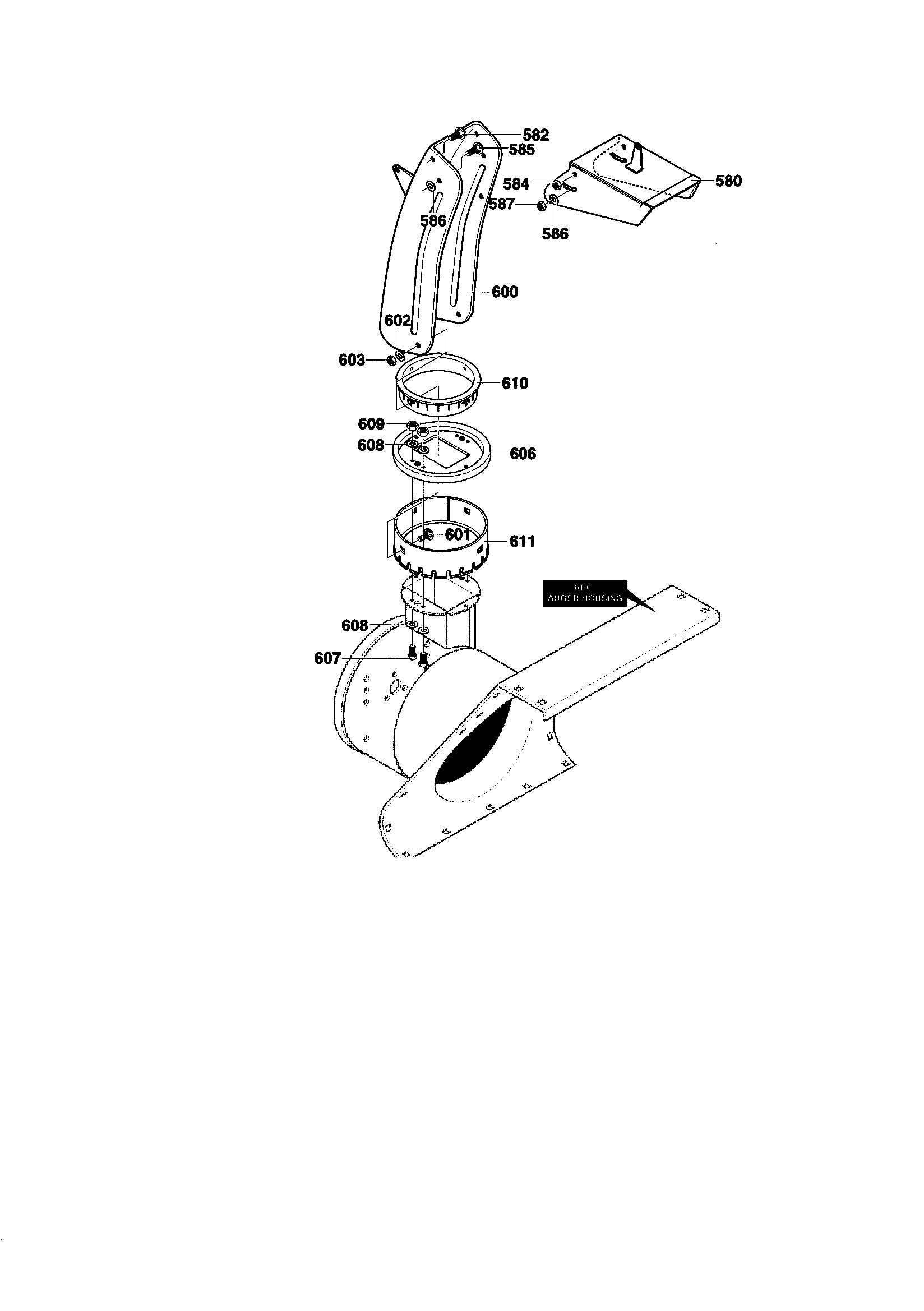

Remote discharge chute repair diagram

Snowblower chute retainer ring, outer

Part #585193

Replaced by #585193MA

?
Manufacturer substitution
This part replaces 585193. Substitute parts can look different from the original.
BEST SELLER
$31.90 |
16% OFF Phone Price : $37.90
In Stock
Snowblower Chute Retainer Ring, Inner 337227
#610

Remote discharge chute repair diagram

Snowblower chute retainer ring, inner

Part #337227

Replaced by #337227MA

?
Manufacturer substitution
This part replaces 337227. Substitute parts can look different from the original.
BEST SELLER
$25.11 |
19% OFF Phone Price : $31.11
In Stock
Auger Cable 761153
#108

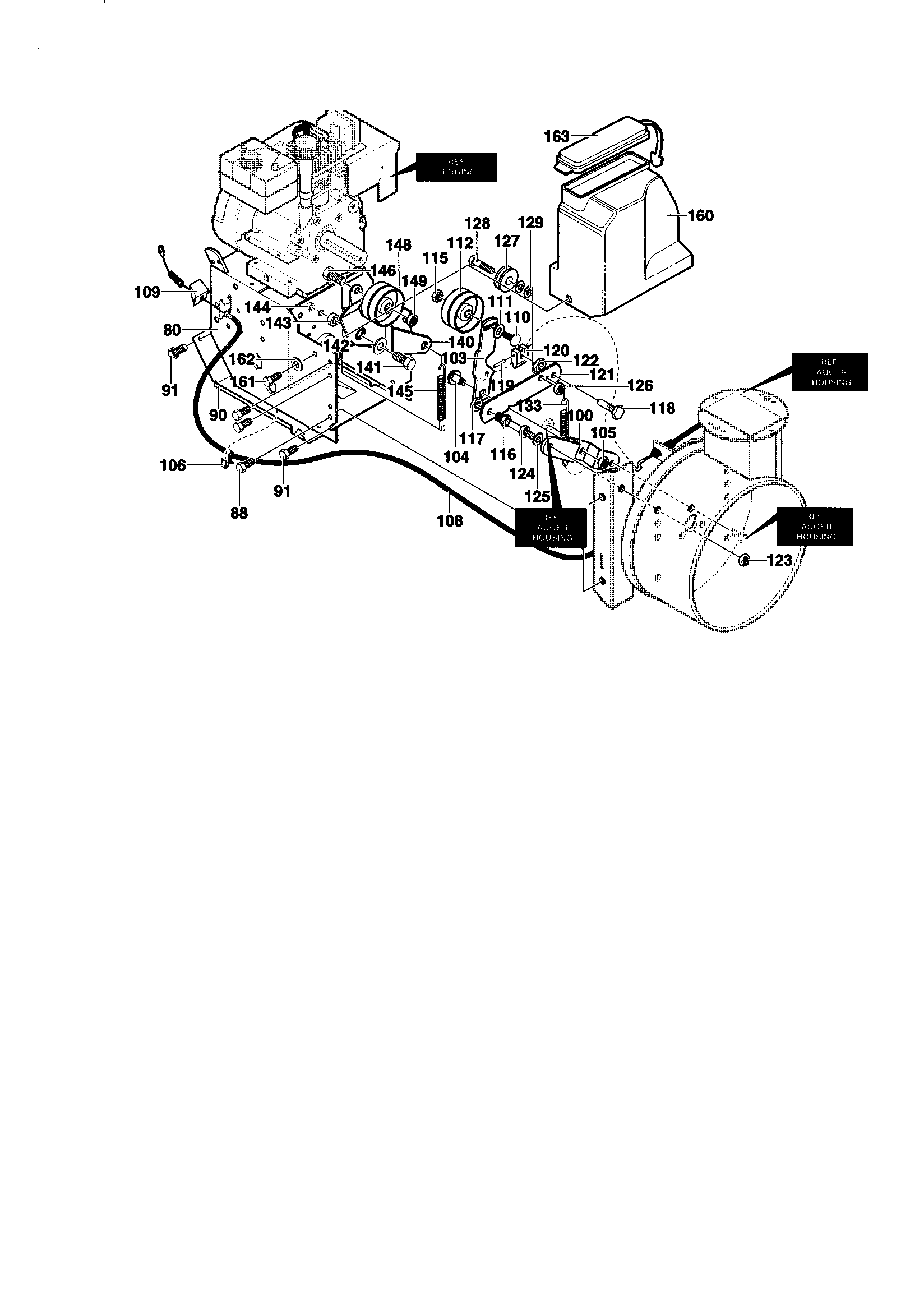

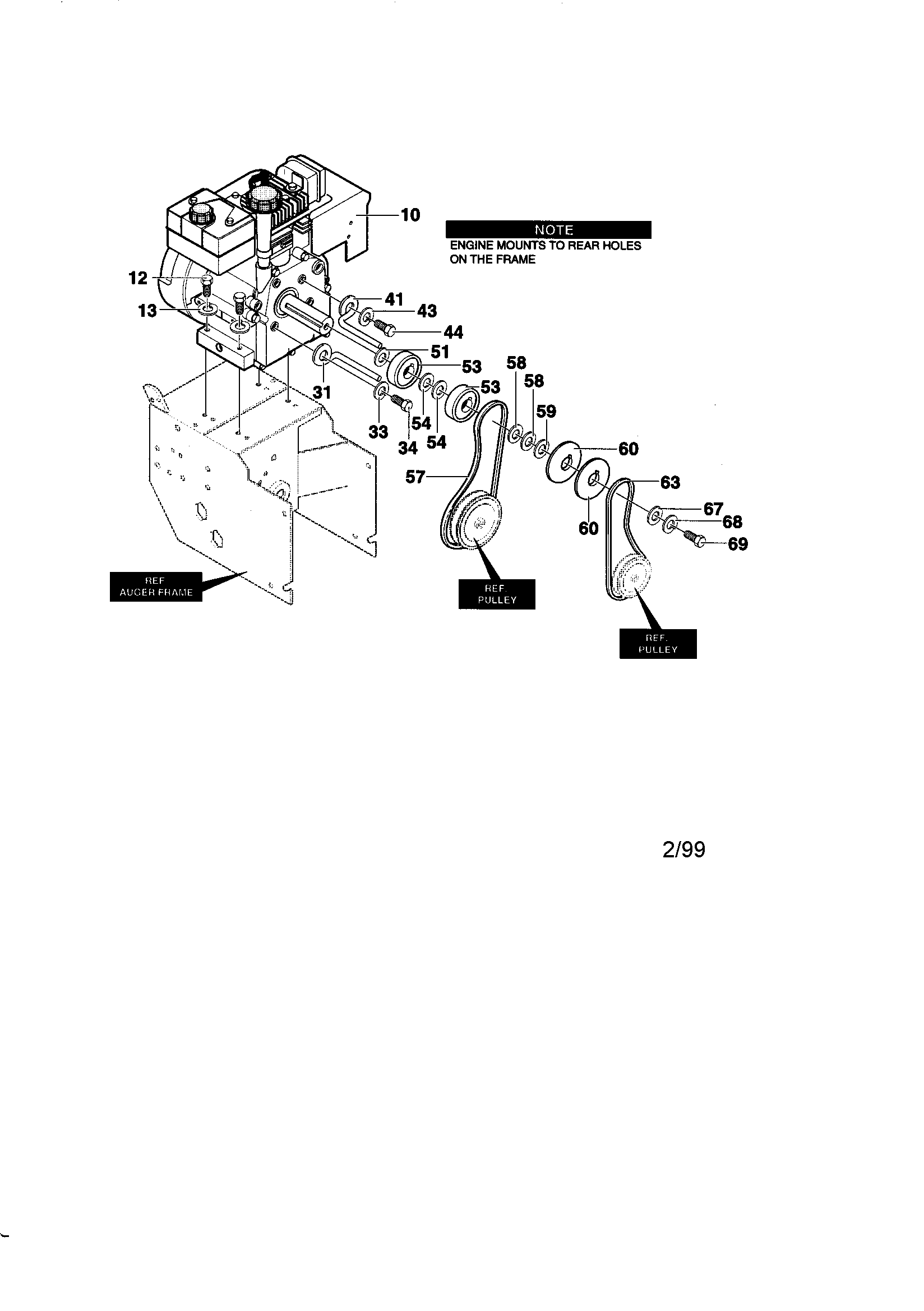

Frame components repair parts diagram

Auger cable

Part #761153

Replaced by #761400MA

?
Manufacturer substitution
This part replaces 761153. Substitute parts can look different from the original.
$56.53 |
10% OFF Phone Price : $62.53
In Stock
Worm 585196
#871

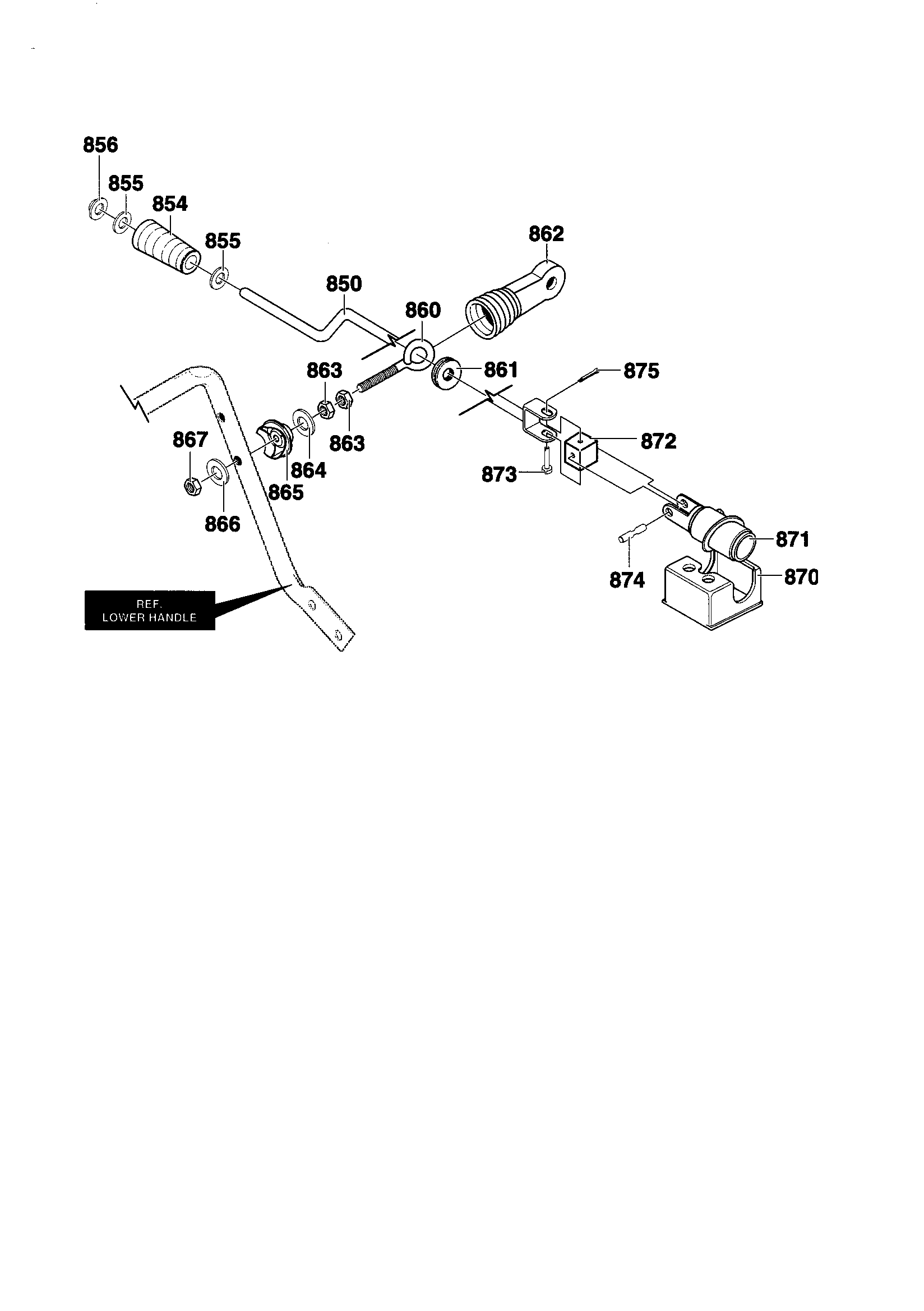

Chute rod repair diagram

Worm

Part #585196

Replaced by #585196MA

?
Manufacturer substitution
This part replaces 585196. Substitute parts can look different from the original.
$20.23 |
23% OFF Phone Price : $26.23
In Stock
Boot Spring 308146
#746

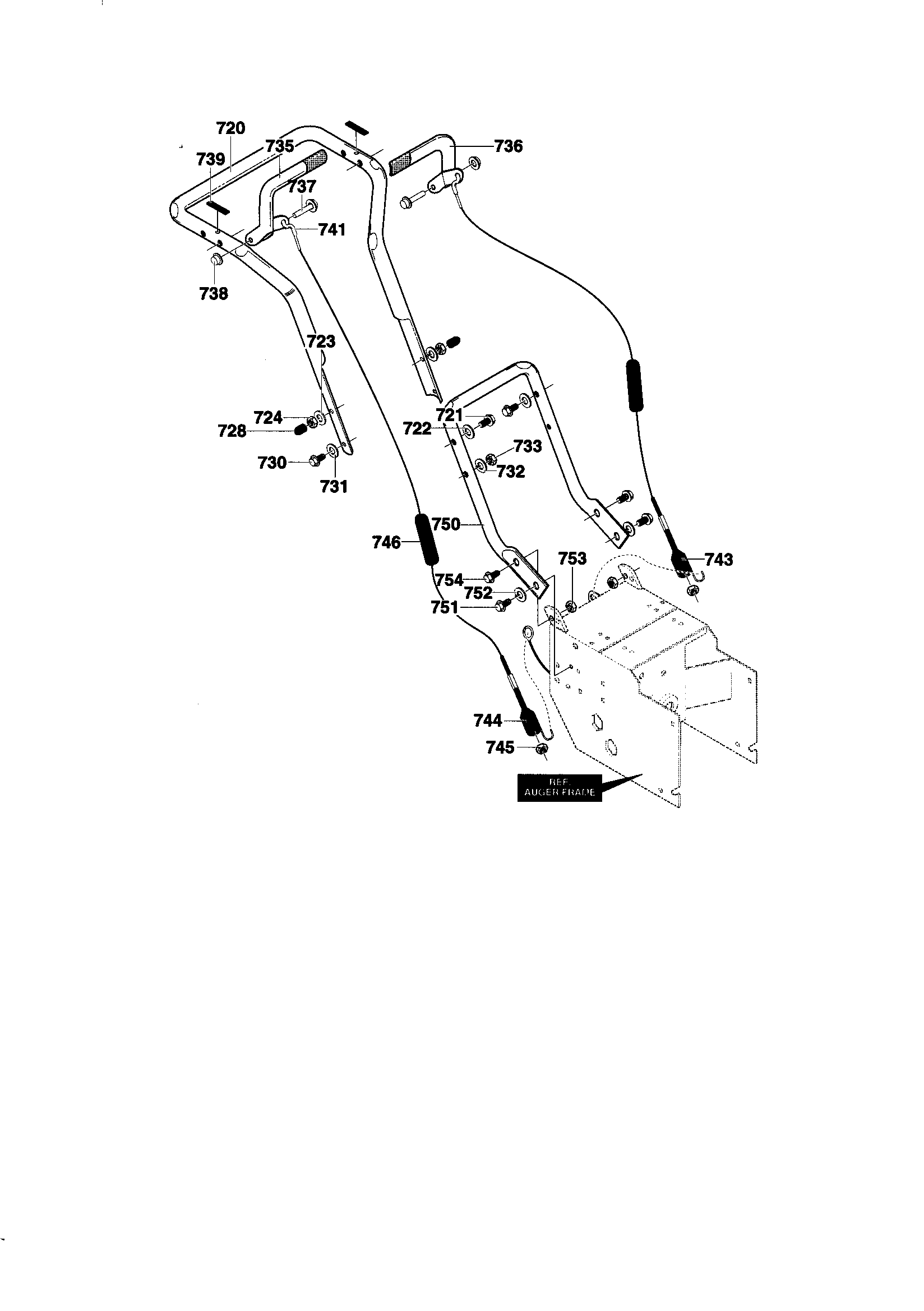

Handle repair diagram

Boot spring

Part #308146

Replaced by #308146MA

?
Manufacturer substitution
This part replaces 308146. Substitute parts can look different from the original.
$10.97 |
15% OFF Phone Price : $12.97
In Stock
Pulley 313843
Pulley

Part #313843

Replaced by #1502120MA

?
Manufacturer substitution
This part replaces 313843. Substitute parts can look different from the original.
$34.31 |
15% OFF Phone Price : $40.31
In Stock
Retaining Ring 239
#678

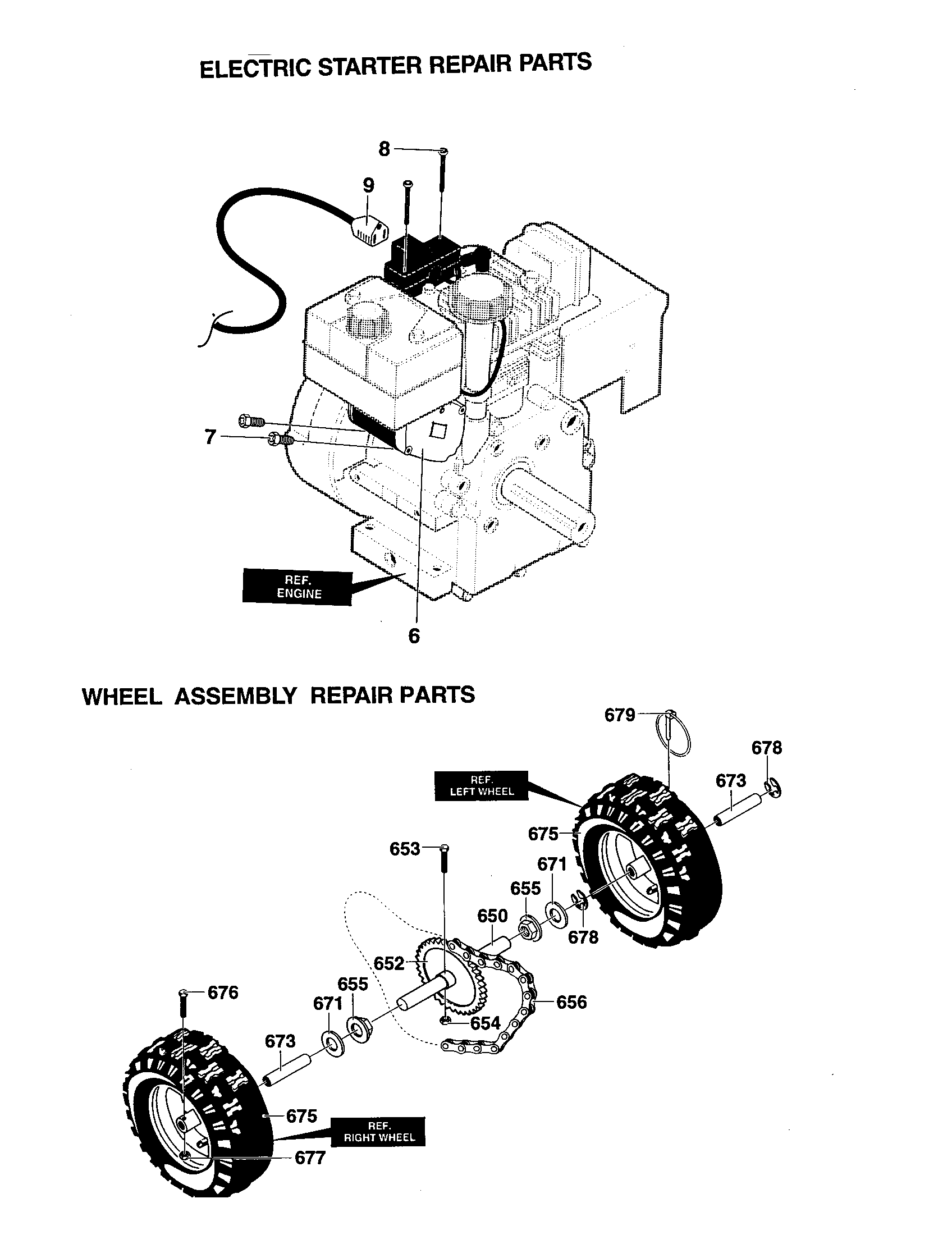

Electric starter/wheel assembly diagram

Retaining ring

Part #239

Replaced by #1657528SM

?
Manufacturer substitution
This part replaces 239. Substitute parts can look different from the original.
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Universal Pin 578060
#874

Chute rod repair diagram

Universal pin

Part #578060

Replaced by #578060MA

?
Manufacturer substitution
This part replaces 578060. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Collar 585214-853
#606

Remote discharge chute repair diagram

Collar

Part #585214-853

Replaced by #585214YZMA

?
Manufacturer substitution
This part replaces 585214-853. Substitute parts can look different from the original.
$40.98 |
13% OFF Phone Price : $46.98
In Stock
