Amana
Gas Range

Model # ARGS7650WW-P1130761NWW Official Amana gas range

Here are the diagrams and repair parts for Official Amana ARGS7650WW-P1130761NWW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

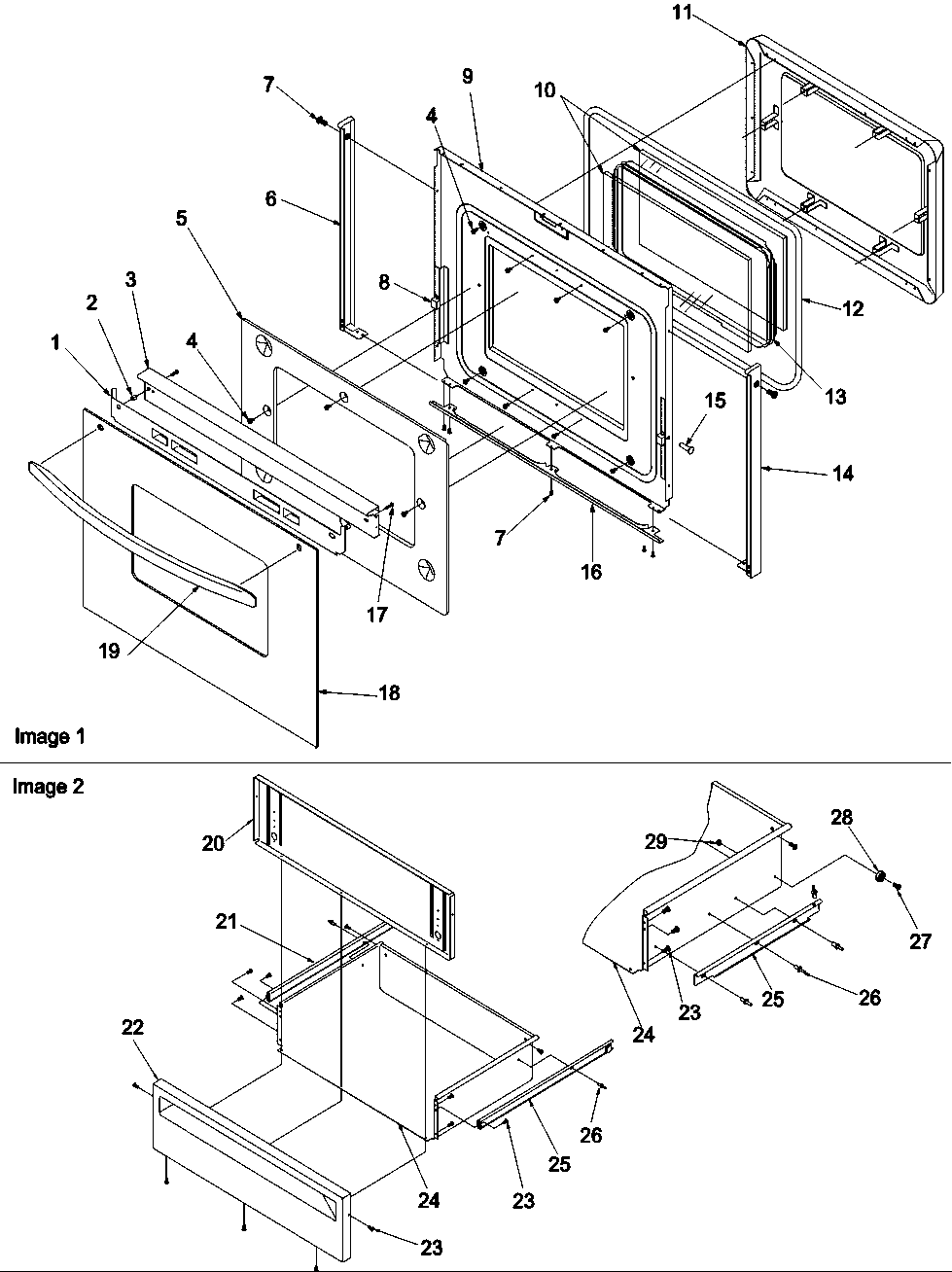

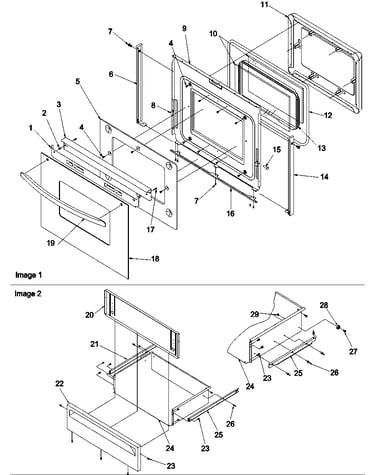

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Screw 31750409
#15

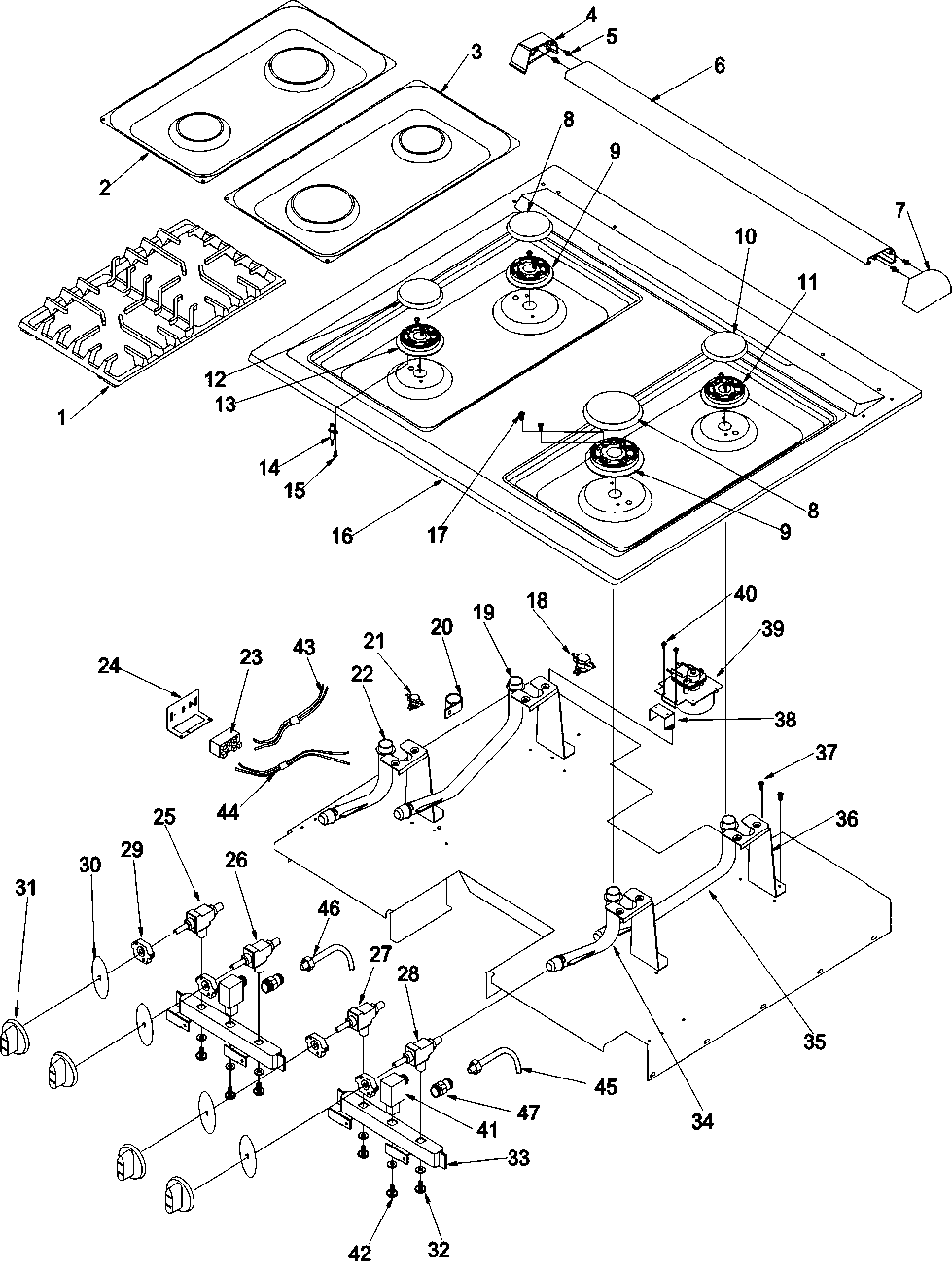

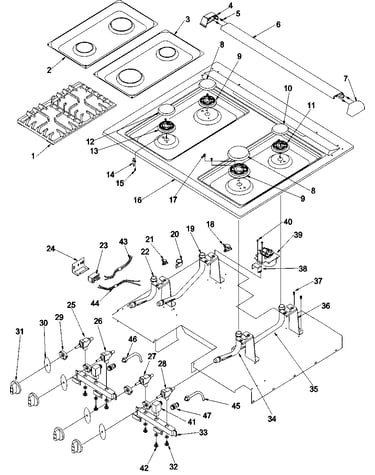

Main top diagram

Screw

Part #31750409

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 31750409. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 31750521
#34

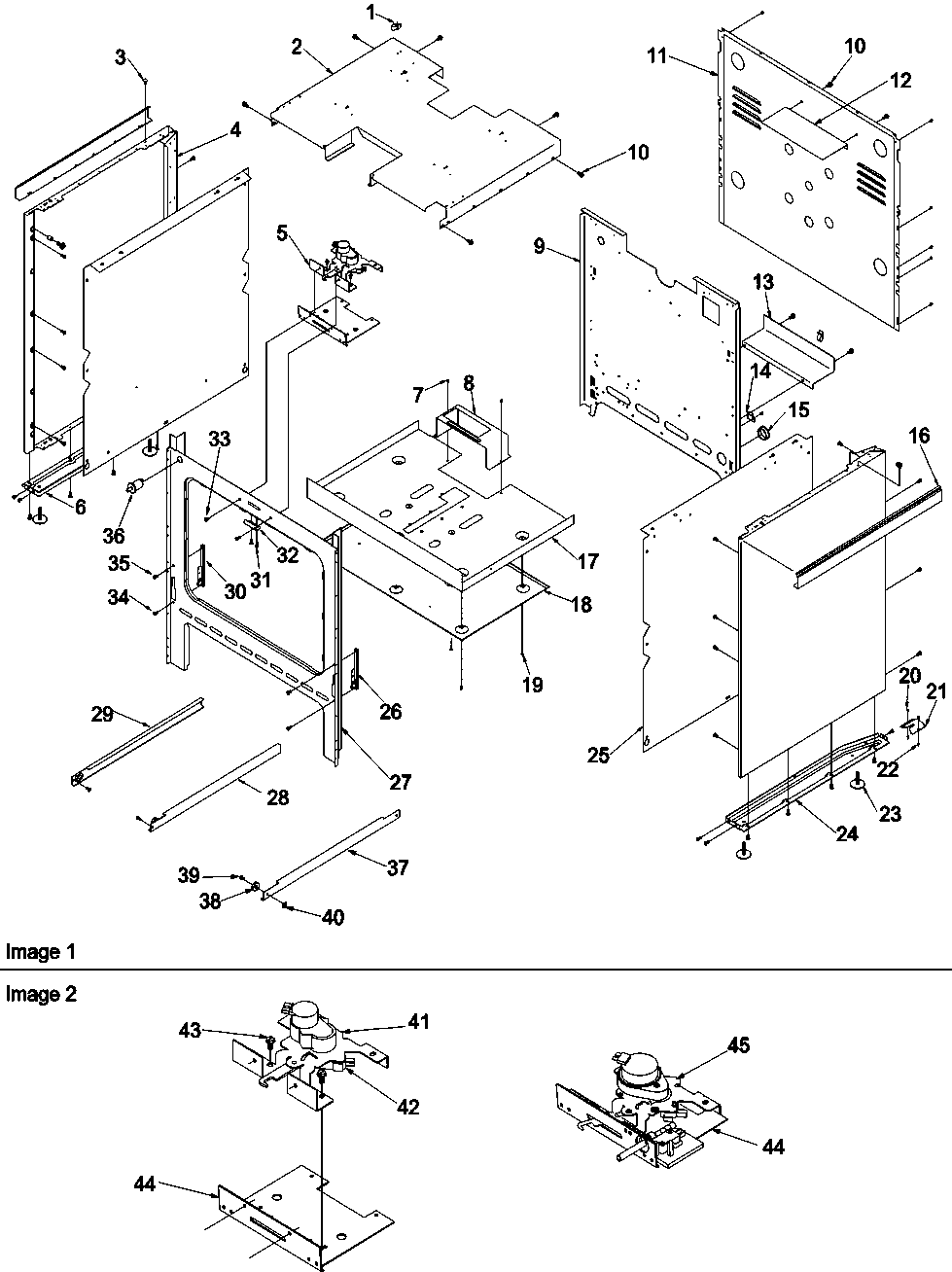

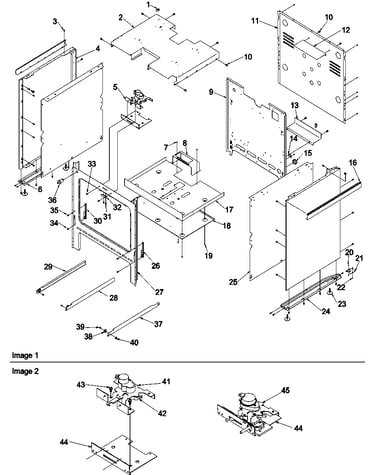

Cabinet diagram

Screw

Part #31750521

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 31750521. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Igniter 0309145
#25

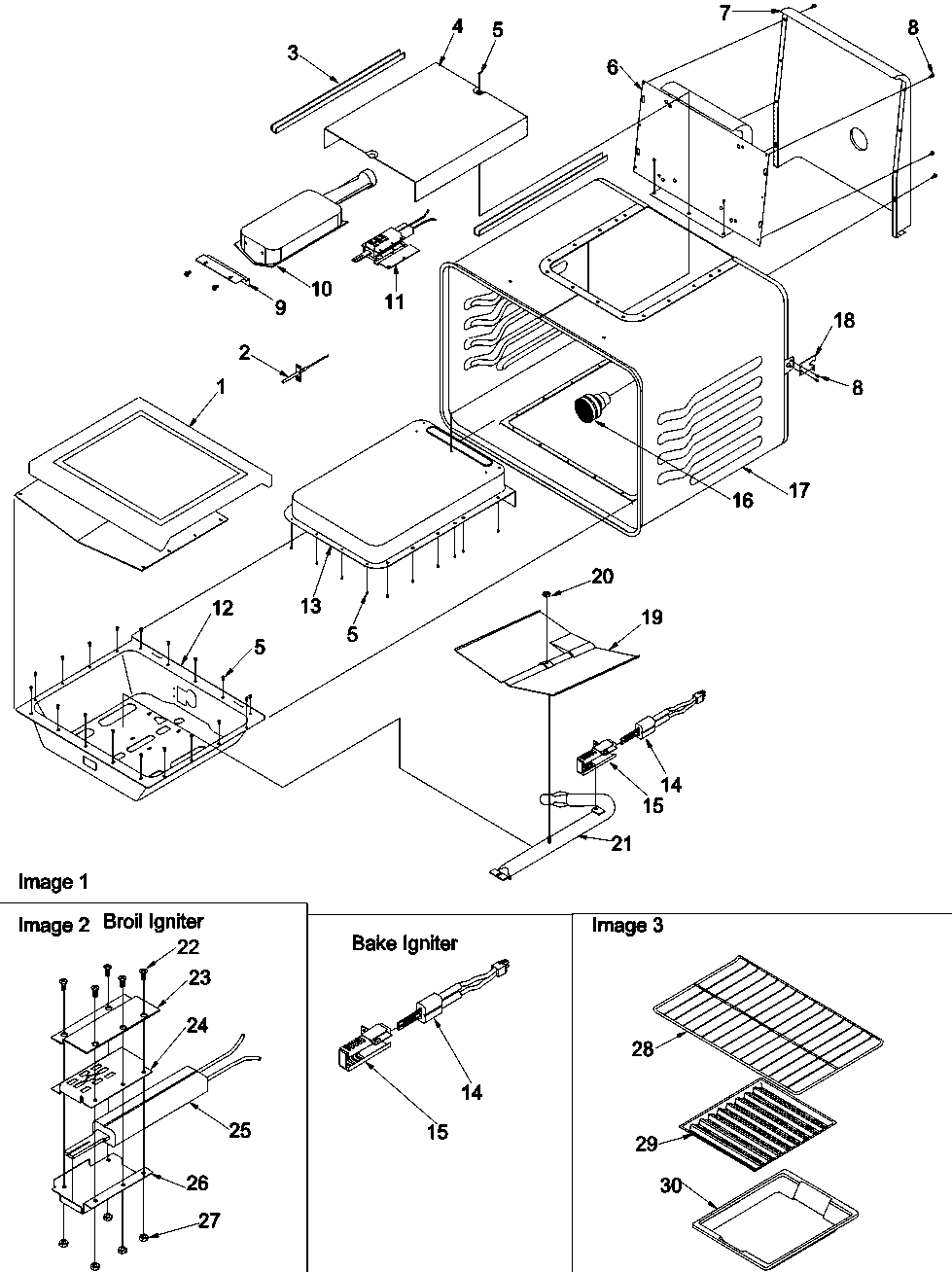

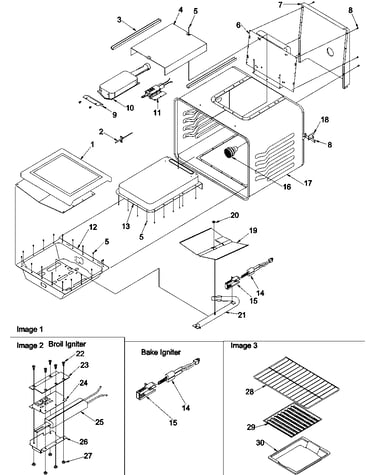

Cavity diagram

Igniter

Part #0309145

Replaced by #786324

?
Manufacturer substitution
This part replaces 0309145. Substitute parts can look different from the original.
$46.23 |
11% OFF Phone Price : $52.23
In Stock
Burner 0315768
#11

Main top diagram

Burner

Part #0315768

Replaced by #WPY0315768

?
Manufacturer substitution
This part replaces 0315768. Substitute parts can look different from the original.
$106.59 |
10% OFF Phone Price : $118.59
In Stock
Screw 31750507
#35

Cabinet diagram

Screw

Part #31750507

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 31750507. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Range Oven Rack 314763J
#28

Cavity diagram

Range oven rack

Part #314763J

Replaced by #WP314763J

?
Manufacturer substitution
This part replaces 314763J. Substitute parts can look different from the original.
$35.63 |
14% OFF Phone Price : $41.63
In Stock
End Cap 31742705W
#8

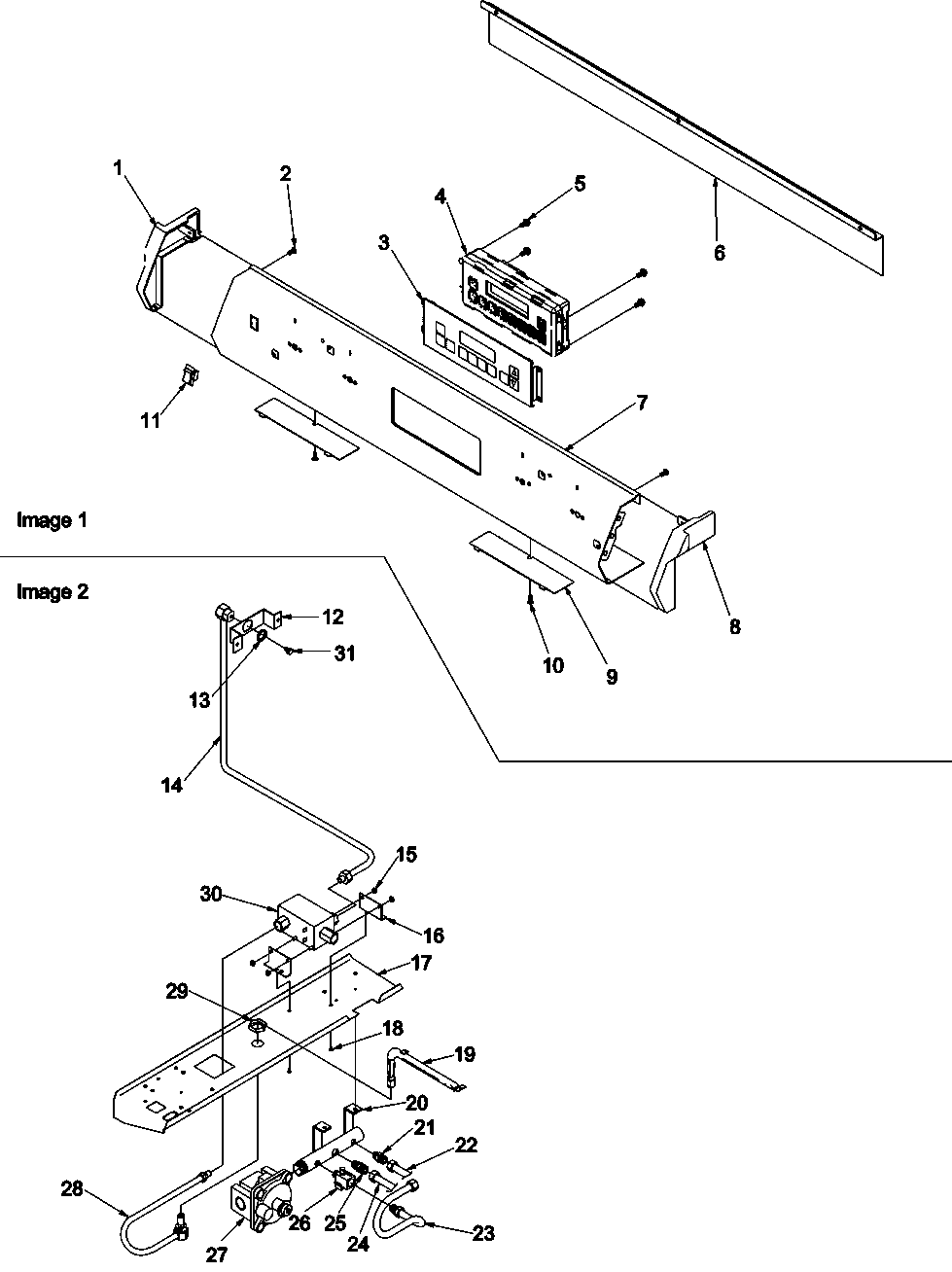

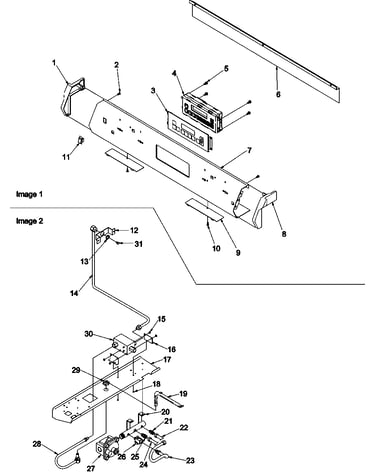

Control panel and gas supply diagram

End cap

Part #31742705W

$19.62
In Stock
Valve Screw 31750712
#32

Main top diagram

Valve screw

Part #31750712

Replaced by #WP8273096

?
Manufacturer substitution
This part replaces 31750712. Substitute parts can look different from the original.
This item is not returnable
$4.23
In Stock
Broiler Pan 314175CG
#30

Cavity diagram

Broiler pan

Part #314175CG

Replaced by #4396923

?
Manufacturer substitution
This part replaces 314175CG. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw 31750320
#17

Main top diagram

Screw

Part #31750320

Replaced by #WPY04100059

?
Manufacturer substitution
This part replaces 31750320. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
