GE
Electric Wall Oven

Model # JTP16GV2BB Official GE electric built-in oven

Here are the diagrams and repair parts for Official GE JTP16GV2BB electric built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

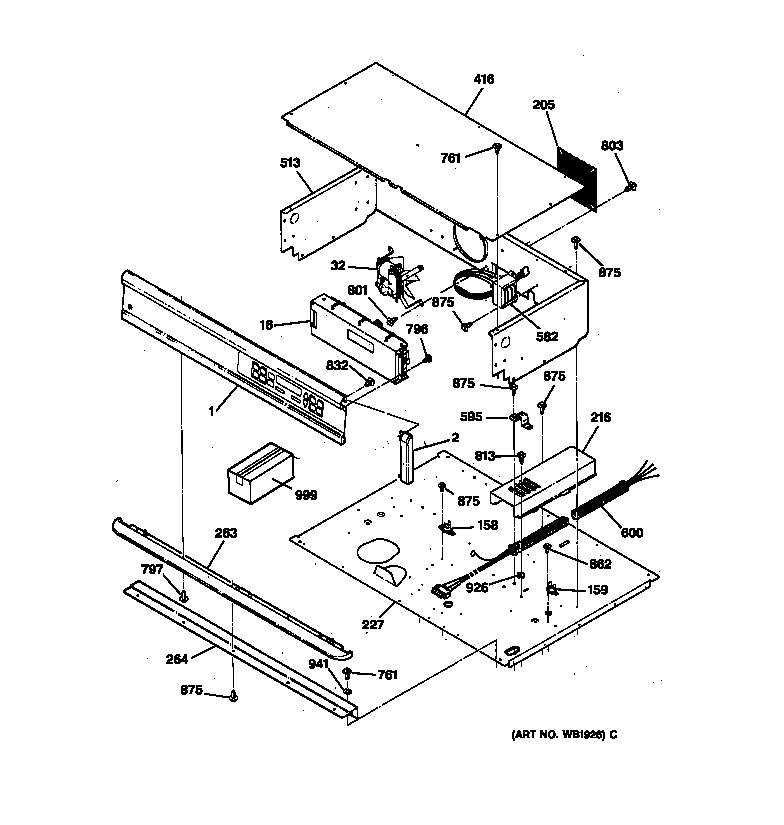

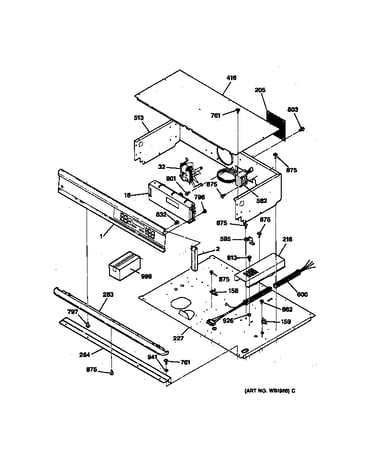

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Sensor WB20K5040
#253

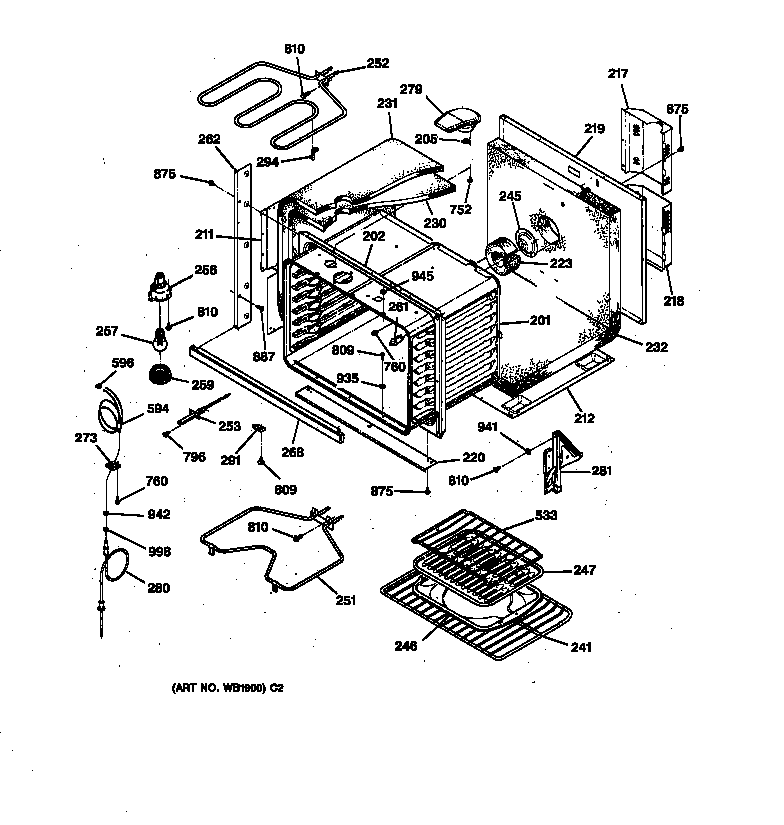

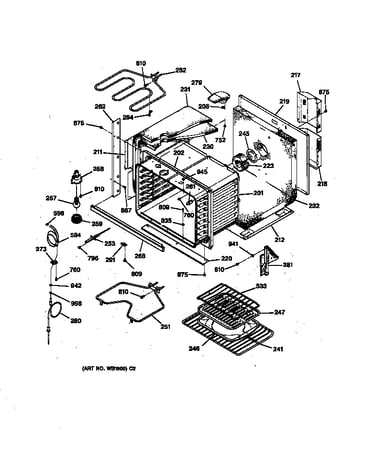

Body parts diagram

Sensor

Part #WB20K5040

Replaced by #WB23X5340

?
Manufacturer substitution
This part replaces WB20K5040. Substitute parts can look different from the original.
BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Range Bake Element WB44K5018
#251

Body parts diagram

Range bake element

Part #WB44K5018

BEST SELLER
$63.62 |
9% OFF Phone Price : $69.62
In Stock
Range Broil Element Support (replaces Wb02k9719, Wb02x9719, Wb2x9438, Wb2x9576) WB2X9719
#294

Body parts diagram

Range broil element support (replaces wb02k9719, wb02x9719, wb2x9438, wb2x9576)

Part #WB2X9719

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Convection Element WB44K5019
#298

Blower diagram

Convection element

Part #WB44K5019

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44K5019. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Range Screw (replaces Wb01x1293, Wb1k50) WB1X1293
#856

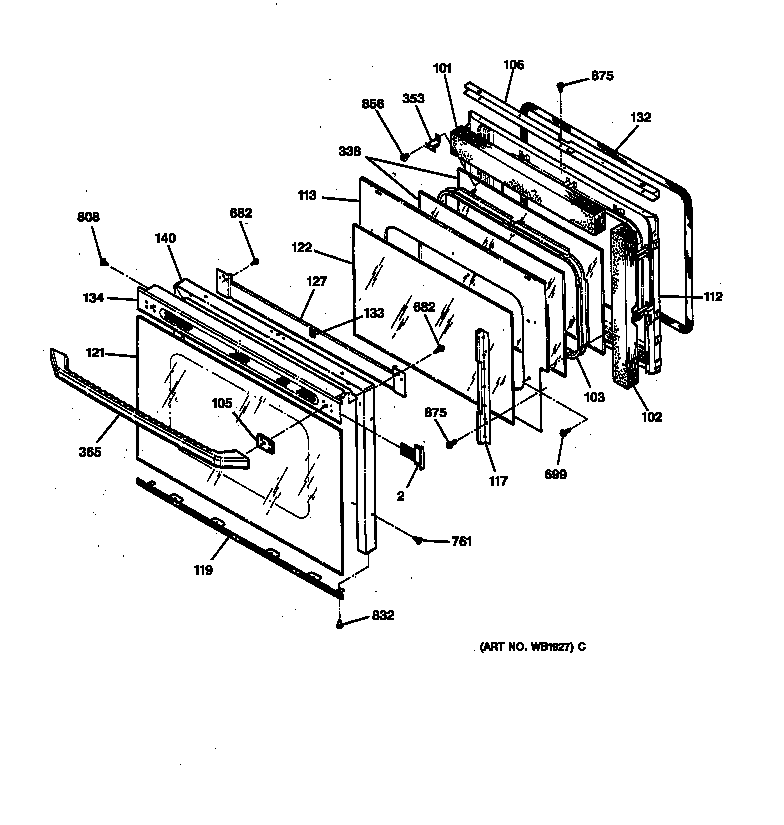

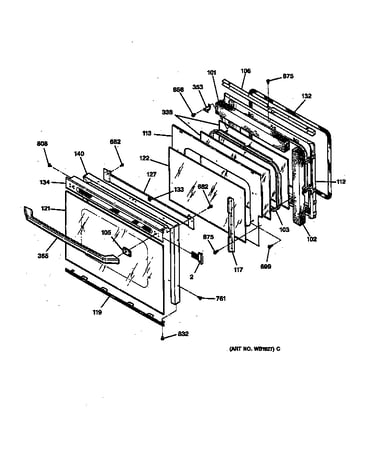

Oven door diagram

Range screw (replaces wb01x1293, wb1k50)

Part #WB1X1293

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Oven door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Fan Blade WB26K5040
#512

Blower diagram

Fan blade

Part #WB26K5040

Replaced by #WB2X8351

?
Manufacturer substitution
This part replaces WB26K5040. Substitute parts can look different from the original.
This item is not returnable
$24.28 |
20% OFF Phone Price : $30.28
In Stock
Range Convection Fan (replaces Wb26x5113) WB26K5069
#511

Blower diagram

Range convection fan (replaces wb26x5113)

Part #WB26K5069

$108.43 |
10% OFF Phone Price : $120.43
In Stock
Range Screw WB1K5062
Range screw

Part #WB1K5062

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw WB1X1137
#809

Body parts diagram

Range screw

Part #WB1X1137

$7.88 |
11% OFF Phone Price : $8.88
In Stock
