Gas Cooktop

Model # FCCG3627AS Official Frigidaire frigidaire/gas cooktop

Here are the diagrams and repair parts for Official Frigidaire FCCG3627AS frigidaire/gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

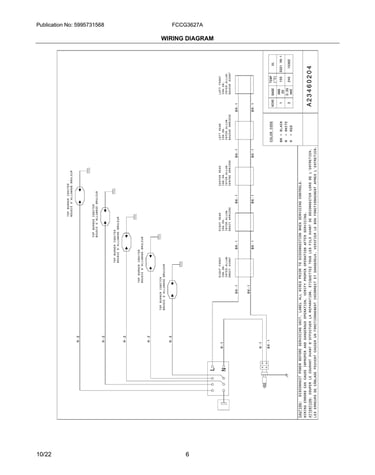

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |

Cooktop Spark Module 5304505696
#8

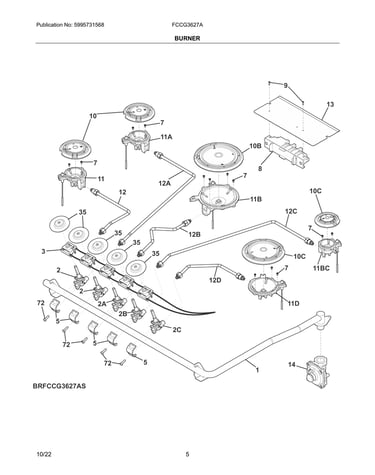

Burner|brfccg3627as.svg diagram

Cooktop spark module

Part #5304505696

$61.19
9% OFF Phone Price : $67.19
In Stock
Cap,burner ,medium 5304533596
#22

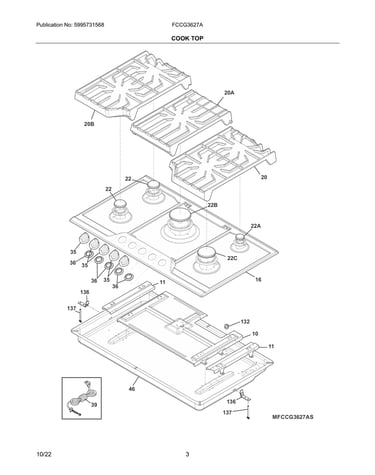

Cook top|mfccg3627as.svg diagram

Cap,burner ,medium

Part #5304533596

In Stock
Crown,burner ,medium 5304533593
#10

Burner|brfccg3627as.svg diagram

Crown,burner ,medium

Part #5304533593

In Stock
Cap,burner ,xtra Large 5304533597
#22B

Cook top|mfccg3627as.svg diagram

Cap,burner ,xtra large

Part #5304533597

In Stock
Cooktop Pressure Regulator 5304533599
#14

Burner|brfccg3627as.svg diagram

Cooktop pressure regulator

Part #5304533599

In Stock
Valve 5304527639
#2

Burner|brfccg3627as.svg diagram

Valve

Part #5304527639

In Stock
Cooktop Firebox Support 318264301
#136

Cook top|mfccg3627as.svg diagram

Cooktop firebox support

Part #318264301

$36.11
14% OFF Phone Price : $42.11
In Stock
Bracket 357733402
#5

Burner|brfccg3627as.svg diagram

Bracket

Part #357733402

In Stock
Tube Assembly,burner ,lh Rear 5304533614
#12A

Burner|brfccg3627as.svg diagram

Tube assembly,burner ,lh rear

Part #5304533614

In Stock
Ignitor/orifice,assembly ,9.5k Btu ,lh Front 5304533583
#11

Burner|brfccg3627as.svg diagram

Ignitor/orifice,assembly ,9.5k btu ,lh front

Part #5304533583

In Stock
