Maytag
Top-Mount Refrigerator

Model # LRTD21A-AH71A Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag LRTD21A-AH71A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Lower Washer 67483-2
#33

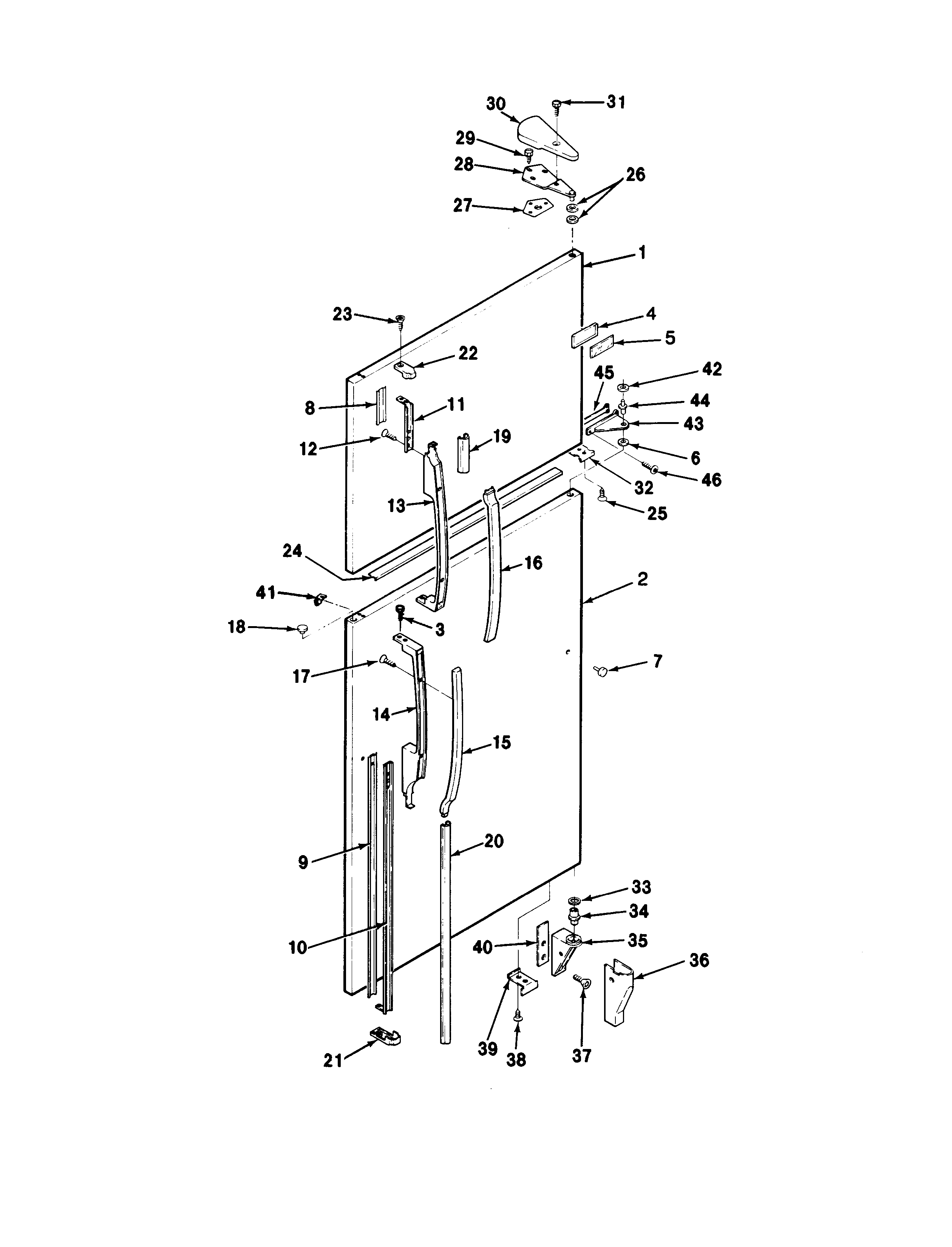

Door (outer) diagram

Lower washer

Part #67483-2

Replaced by #67483-3

?
Manufacturer substitution
This part replaces 67483-2. Substitute parts can look different from the original.
$34.38
In Stock
Screw 9986-87
#29

Door (outer) diagram

Screw

Part #9986-87

Replaced by #WP3-24838-048

?
Manufacturer substitution
This part replaces 9986-87. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Panel, Frz. Door (alm) - Series 11 NO LONGER AVAILABLE
Panel, frz. door (alm) - series 11

Part #NO LONGER AVAILABLE

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shim 67484-1
#45

Door (outer) diagram

Refrigerator shim

Part #67484-1

The manufacturer no longer makes this part, and there's no substitute part

Handle Clip 67386-1
#41

Door (outer) diagram

Handle clip

Part #67386-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Button Plug 67678-2
#7

Door (outer) diagram

Refrigerator button plug

Part #67678-2

The manufacturer no longer makes this part, and there's no substitute part

Tapping Plate 67475-1
#45A

Door (outer) diagram

Tapping plate

Part #67475-1

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Button Plug 67678-3
#7A

Door (outer) diagram

Refrigerator button plug

Part #67678-3

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Handle Screw 65275-29
#14D

Door (outer) diagram

Refrigerator handle screw

Part #65275-29

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Handle 67778-1
Refrigerator door handle

Part #67778-1

The manufacturer no longer makes this part, and there's no substitute part
